Bell cocoon 500 Instruction Manual page 6

AttAChing sEAt tO sEAt
stAy & ChAin stAy -
usE hARdWARE "C"

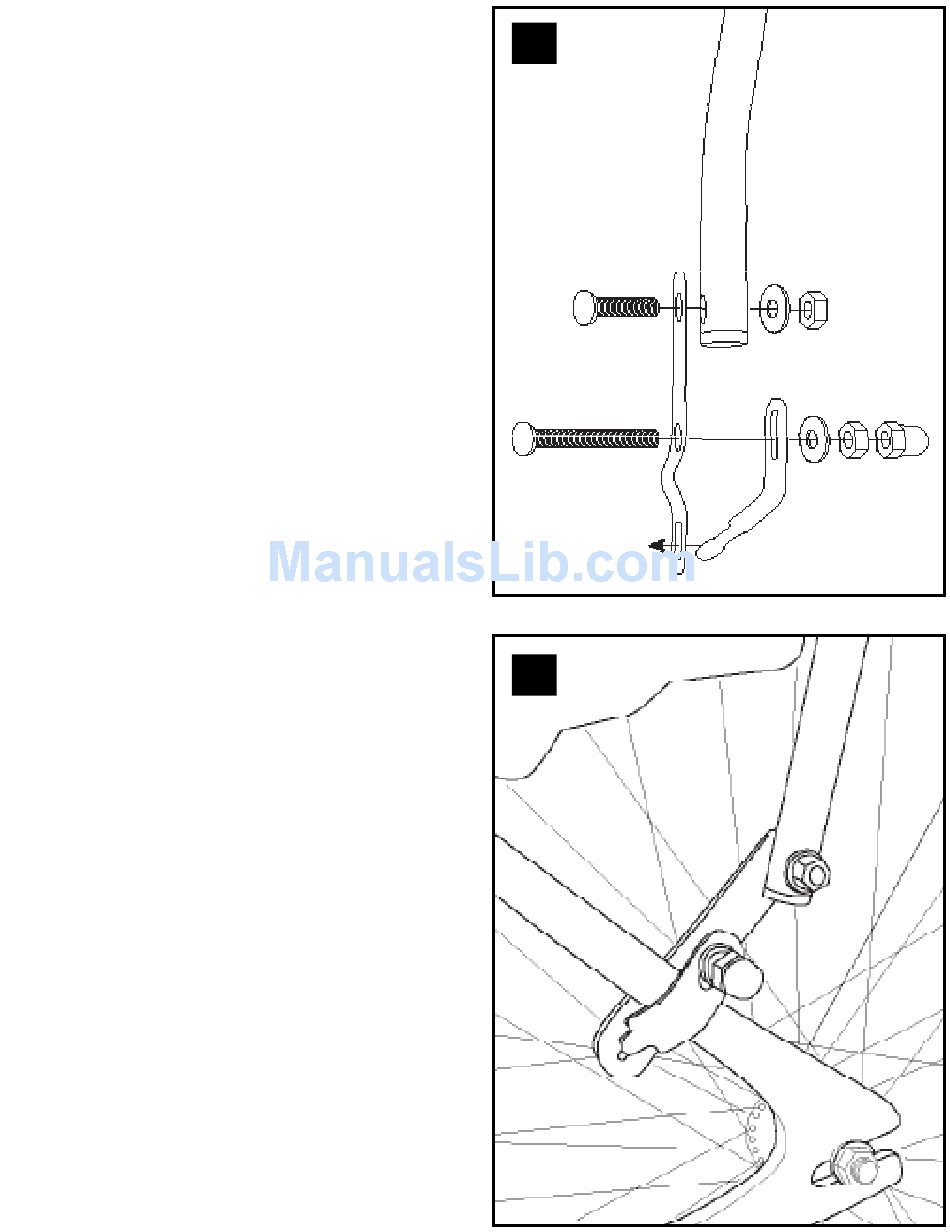

1. Attach each long lower bracket to the
down tube using the shorter bolts from the
inside of the tube. Secure with washer
and nylock nut on each side. (Diagram 6)
2. Insert each short lower bracket into the
slotted end of the long lower brackets and
twist into position.
3. Once lower bracket is fully assembled,
wrap around the bike frame (Diagram 7)
4. Insert the longer bolt from the inside
of the tube through the square holes and
secure with washer, nylock nut and plastic
nut cover on each side.
6
7
