Summary of Contents for Euro Appliances EBC600SX

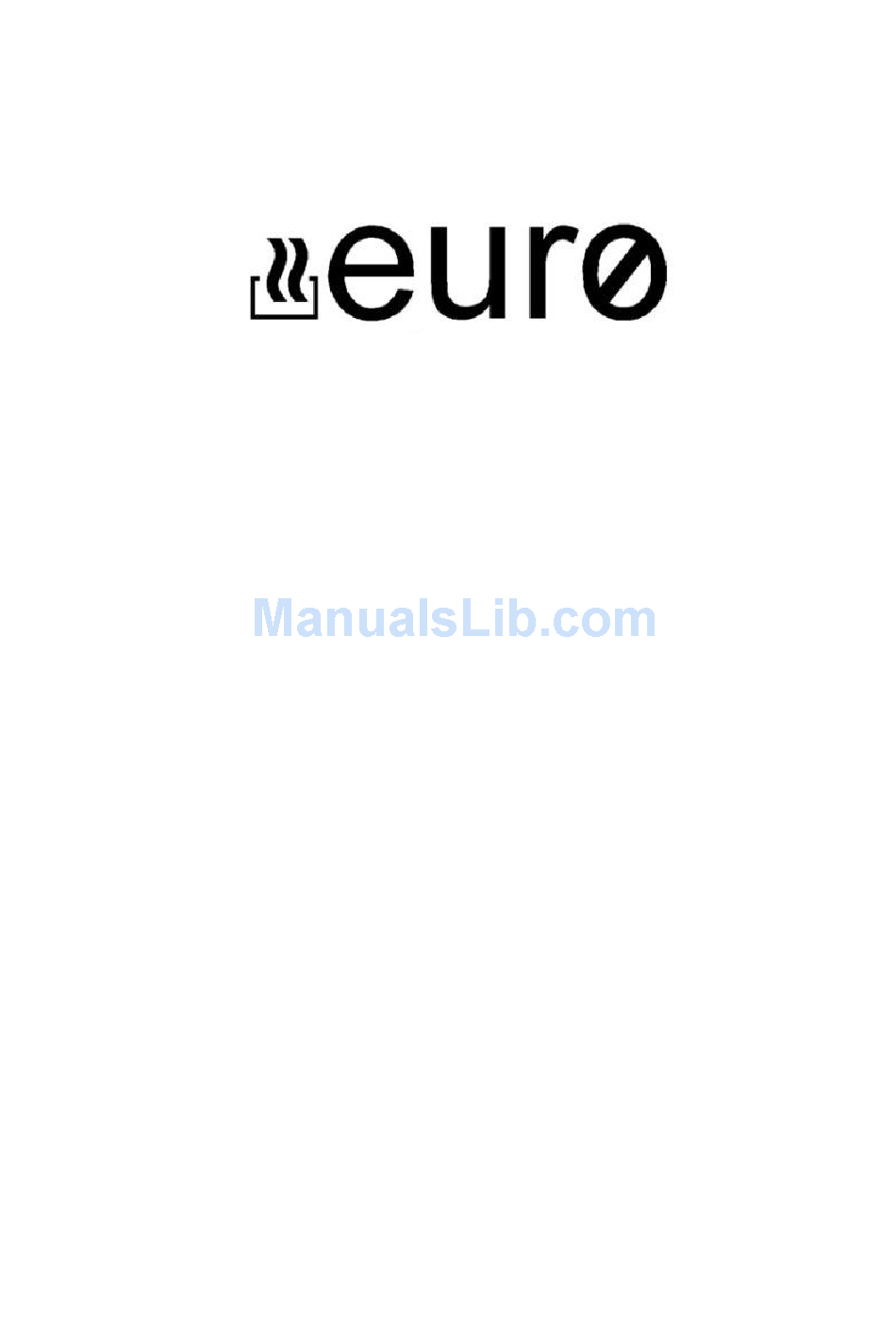

- Page 1 Beverage Cooler EBC600SX EURO APPLIANCES BY EUROSTYLE GROUP...
- Page 2 ’ of beers and beverages. Euro Appliances offers no guarantee for our beverage cooler if it is being used for any purpose other than that for which it was specially designed. Euro Appliances cannot be held responsible for any error in this manual. Euro...
- Page 3 - Have a standard and reliable electricity supply(standard socket to country standards, linked to the ground),it is not recommended to use a multi-socket or extension lead; - Have a surge protector fitted to the electrical outlet - Away from microwave. Certain microwave ovens do not have wave interference shield.
- Page 4 Beverage cooler must be levelled before loading your beverages. Your beverage cooler is equipped with 4 adjustable feet to facilitate easy levelling. Euro Appliances recommends that you tighten the back feet to the maximum and adjust the front feet to create a level.
- Page 5 *Products & Specifications EBC600SX Type Single Temperature Zone Item Number EBC600SX Bottle Capacity 595*595*798mm Dimension (W*D*H) 48KG Weight Refrigerant R600a/45g Cooling System Compressor Cooling 60-90 Ambient Temp ºC Temperature Range 1-15 ºC 220 - 240V Rated Voltage 50HZ Rated Frequency...
- Page 6 2) Operating noises. To reach the desired temperature settings, Euro beverage cooler, like all beverage coolers operating with compressors and fans, may produce the following types of noises. These noises are normal and occur as follows: - Gurgling sound, caused by the refrigerant flowing through the appliance’s coils;...
- Page 7 - Do not pull out more than one loaded rack at a time as this may cause the beverage cooler to tilt forward. - Do not cover the metal racks with alloy foil or other materials, as it will obstruct air circulation - Do not move your beverage cooler while it is loaded with beverages.
- Page 8 1) Control panel of beverage cooler: The LED displays the internal air temperature. The desired temperature can be adjusted by pressing Up or Down buttons. The temperature setting can be adjusted from 1 ºC to 15 ºC. Press and hold the Up and Down buttons together, the set temperature will temporarily flashed in the LED display for 5 seconds.
- Page 9 All Euro beverage coolers are equipped with a double glazed glass door to minimize condensation on the glass door. The unit is not totally sealed, fresh air admission is permitted through the drainpipe. Air is circulated through the beverage cooler by means of a fan /fans and the hollow shelves.
- Page 10 scratching it. Remove the two screws from the door bottom at right side and install them to the door bottom at left side. (Fig.3) Use the new bottom hinge provided in the plastic bag inside the wine cooler and installs it at the designated position on the left side, and installs the door shaft (3) assembly accordingly.
- Page 11 * Installing Stainless Steel Handle This beverage cooler includes a stainless steel handle that is required to operate this unit. To install the handle please follow the below instruction: 1. Pull away the door gasket in the area where the handle is to be installed –...
- Page 12 Check Fuse, if any. Make sure that the door is closed properly. If your wine cooler appears to be malfunctioning, unplug it and contact EURO after sales service on 1800 440 335. Any intervention on the cold circuit should be performed by a refrigeration technician who should carry out an inspection of the circuit sealing system.
-
Page 13: Troubleshooting Guide
*Troubleshooting Guide PROBLEM POSSIBLE CAUSE Beverage cooler does not Not plugged in. The appliance is turned off. operate. The circuit breaker has tripped or a fuse has blown Beverage cooler is not cold Check the temperature control setting. External environment may require a higher enough. - Page 14 The door was reversed and not properly installed. The gasket is dirty. The shelves are out of position. Eurostyle Group trading as Euro Appliances No. 6 Pattinson Road, Newton SA 5073 Service Line: 1800 440 335 Fax: (08) 8462 9127...
