Summary of Contents for Rehan Looky HD

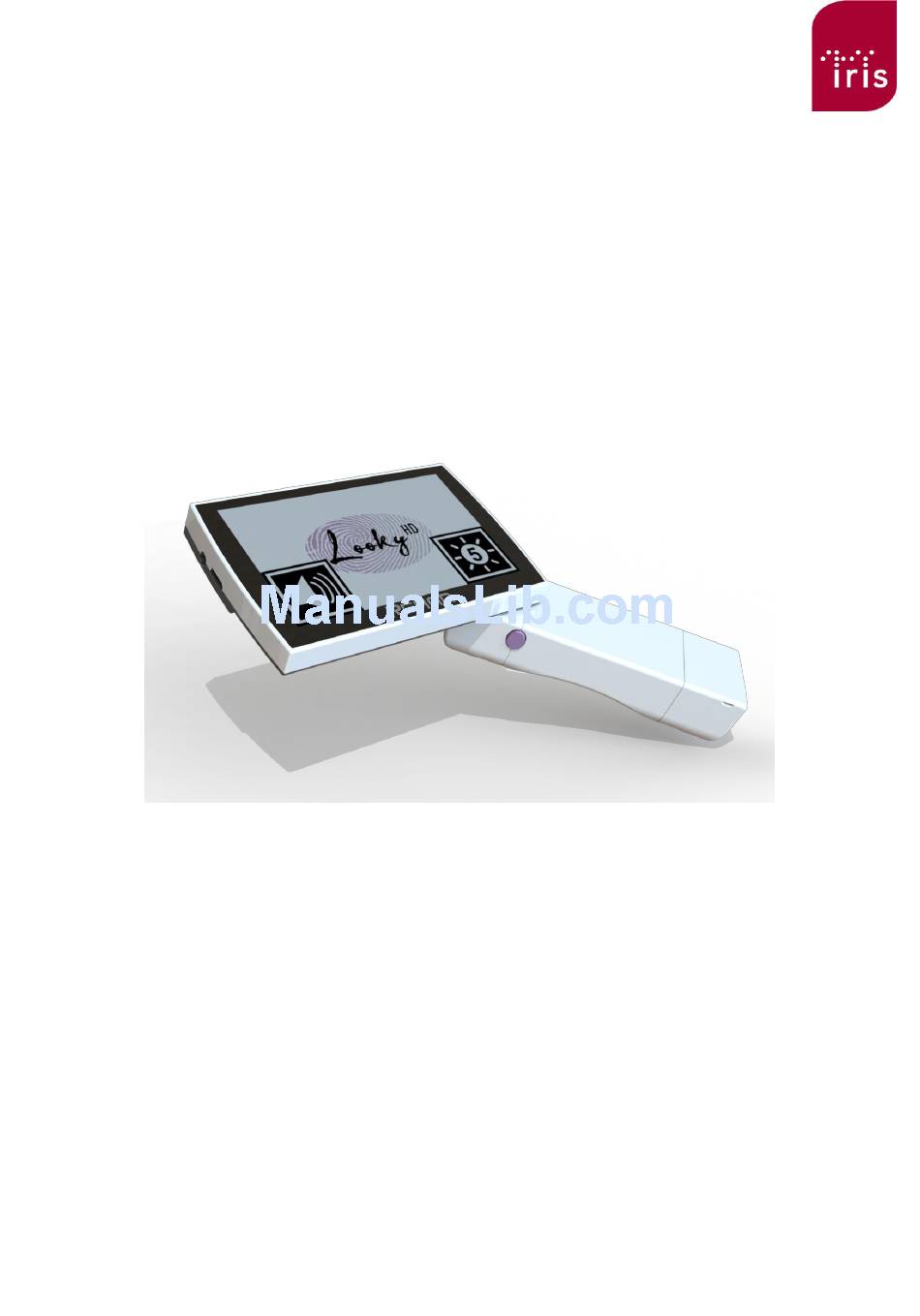

- Page 1 Manual Looky HD Touch Screen Iris Hjälpmedel AB • Sandsborgsvägen 52 • 122 88 Enskede • Tel: 08 39 94 00 • www.ebutiken.iris.se...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ............5 2. General description Looky ........5 3. Intended use ............6 4. Safety and Maintenance ........... 6 5. Installing the Looky ..........7 6. Instructions for charging ........... 7 7. Battery handle maintenance ........8 8. -
Page 3: Introduction
1. Introduction Congratulations with the purchase of your Looky ! In this manual you will find a detailed description of all the functions of the Looky . Read this manual carefully before you start using the Looky . If you still have any questions after reading this manual, please contact your supplier. -
Page 4: Safety And Maintenance
4. Safety and Maintenance Before use, be sure to comply to with the following safety and maintenance instructions: Protect the device and its batteries from moisture, rain, sand or extreme temperatures like radiators or direct sunlight. Do not use cleaning products that contain alcohol, methylated spirits, ammonia or abrasives. -
Page 5: Folding Handle
Remove the battery handle from the Looky if you do not intend to use it for an extended period of time. This will improve the longevity of the battery handle. Batteries are sensitive to overcharging. It is recommended to only charge the battery handle when it is completely drained. -
Page 6: Switching Off The Led
The camera of the Looky can focus on objects from 5 cm. distance to infinity. Just hold the device up to view the object. Remember to touch the screen in order to focus the camera on the object you are viewing. 12. -
Page 7: Zooming
14. Zooming To alter the magnification you slide your finger up/down on the left or right hand side of the touch screen. Zooming icon To zoom in slide your finger upwards on the zooming icon, to zoom out, slide downwards on the zooming icon. -
Page 8: Sound Icon
17.1.1 Sound icon With this icon you can switch the sound on or off. Sound on sound off 17.1.2 Brightness icon With this icon you can set the brightness of the screen. There are 5 different intensity settings. least brightness most brightness 17.1.3 Reading lines By tapping this icon you can generate a horizontal or vertical reading line on... -
Page 9: Display Mode Icon
17.2.2 Display mode icon By touching the display mode icon, an overview of all available display modes will appear. You can easily select which display mode you want to use. 18. Picture output The Looky can output the picture to an external display. Do this simply by connecting the appropriate cable to the HDTV port or the Composite Video port. -
Page 10: Troubleshooting
20. Troubleshooting If the following table does not offer a solution to your problem, please contact your distributor. 1 No picture, dark Switch the Looky or blurry image. Image is frozen, shortly press the ON/OFFbutton once. Switch the viewing mode to colour. 2 Looky cannot Press the ON/OFF button to switch... -
Page 11: Specifications
21. Specifications Main specification Measurements 131 × 75 × 32 mm (l × w × h) Weight 300 grams (including battery) Dislay TFT diameter 5.0” Other specifications High Brightness Touch technology Camera Minimum magnification 2× Maximum magnifitation 20× Focus 5cm - infinity Power supply Battery system Interchangable (inside battery handle) -
Page 12: Warnings
22. Warnings This icon indicates that users with pacemakers should take care with the magnetic area of the handle on the Looky as this might, depending on your pacemaker, interfere with the pacemaker. Please contact your surgeon to inform yourself on the effects of magnets with your pacemaker. 23.
