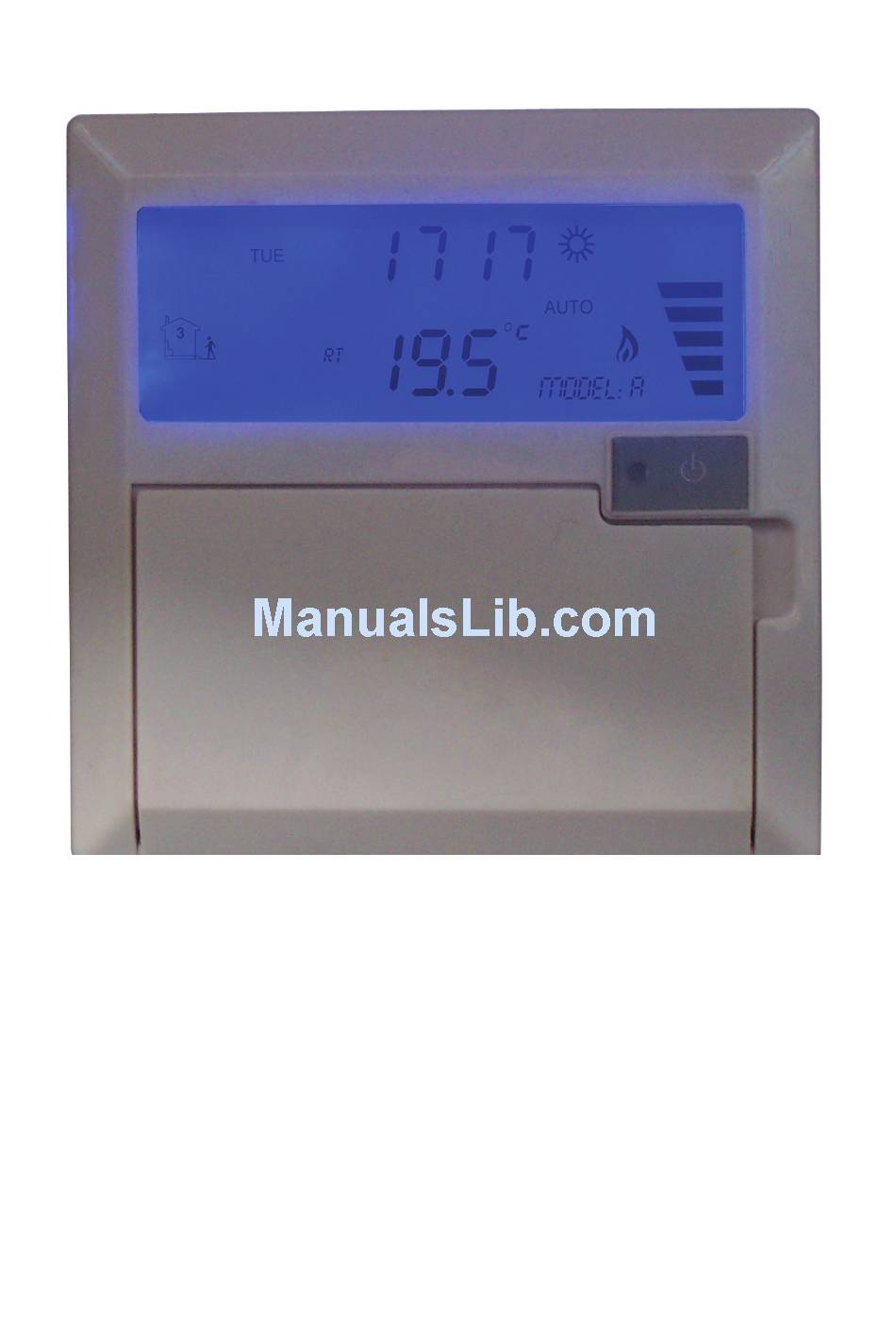

- Page 1 Electronic controller IB – Tron 1000 GWC to control Ground Heat Exchanger...
- Page 2 InsBud company supports policy of development. The right to making changes and improvements in products and manuals without prior notice reserved! The contents of this manual - the text and graphics are owned by InsBud company or its subcontractors. It is legally protected.
-
Page 3: Table Of Contents
Contents IB-TRON 1000 GWC Basic information __________________ 4 Features _________________________ 4 Technical data _____________________ 5 Available models __________________ 5 Scope of delivery __________________ 5 General considerations _____________ 5 Structure _________________________ 6 LCD Display _______________________ 7 Connection _______________________ 7 Temperature sensors _______________ 8... -
Page 4: Ib-Tron 1000 Gwc
(on/o ). programming. Measurement of two temperatures T1 IB-Tron 1000 GWC controller allows to con- and T2 trol process of heating, cooling and ventila- Power supply from network - it doesn’t tion. The thermostat chooses source of heat... -
Page 5: Technical Data
If thermostat has to operate normally open/normally closed device, so-called: contact device (for example: gas heating stove), it will be required additional normally open/ normally closed relay. Wa have these re- lays in our o er. www.insbud.net... -
Page 6: Structure
TRUCTURE RT SENSOR TIME MODEL HEATING PROG COOLING MODE ENTER MINUS PLUS CANCEL THE ENTERED DATA www.insbud.net... -
Page 7: Lcd Display
A phase appears (L) when cho- osing FT source A phase appears (L) when cho- osing RT source Two loose wires with thermistor come out from the controller, it can be cut and connect external RT sensor www.insbud.net... -
Page 8: Temperature Sensors
For example: 1 249 when controller during data analysis deter- mines that there is probability of more favo- rable temperature conditions on the second device than currently used device, may be www.insbud.net... -
Page 9: Example Of Operating
In the summer the controller by pressing single button switches onto the cooling mode to cooling the building. Exemplary logic of device operating: The air is taken from the GHE. When the outside temperature is found www.insbud.net... -
Page 10: Exemplary Connection Diagram
Fresh, warm air sensor Sensor sensor IB-Tron 1000GWC Sensor Brown(open) Air damper Green (closed) repeater Black np.IB-F200 Closing signaling Power 230V AC Brown(open) Air damper Green (closed) repeater Black np.IB-F200 Yellow Closing signaling G.W.C pin diagram of relay base www.insbud.net... -
Page 11: Example Of Controlling By Water Heat Exchanger
IB-Tron 1000GWC Bottom source IB-Tron 1000 GWC controller measures two temperatures: outside temperature (by RT sen- sor) and air temperature after passing through the heater, when water circulation pump is turned on (glycol or brine), by FT sensor. Measurement of the outside temperature (RT) is current, measurement of air temperature (FT) at the switching on heater has to be cyclic. -
Page 12: Calibration
EMPERATURE UNITS Set current hour (longer holding Temperature can be displayed in ºC and ºF the button will faster change time) To change units please: Con rm the data. Press and hold two buttons for 3 PROG seconds. MODE www.insbud.net... -
Page 13: Work Mode
To activate/deactivate keyboard lock please: Press and set testing period for FT. MODE Adjustable value is in seconds. FT Press for 3 seconds. symbol is visible on display. Con rm the data. www.insbud.net... -
Page 14: Guard Function
To reset controller and go back to factory To change mode of displaying temperature settings please: please: Press for 5 seconds both buttons. Press repeatedly to change mode. MODEL Choosen mode is shown on the display. Con rm the data. www.insbud.net... -
Page 15: Software Version
IB-System. tions, please contact us. This manual applies to IB-Tron 1000 GWC controller with software version number RRORS On display may appear symbols that signify:... -
Page 16: Remote Control
Customer provides product to service Terms of warranty may be changed by at their own cost. local InsBud company partner. At time of repair service will not provi- de buyer replacement product www.insbud.net... - Page 17 32-300 Olkusz POLAND sales department: +48 (32) 626 18 00 sales department: +48 (32) 626 18 18 technical department: +48 (32) 626 18 07 technical department: +48 (32) 626 18 08 fax: +48 (32) 626 18 19 e-mail: insbud@insbud.net www.insbud.net...
