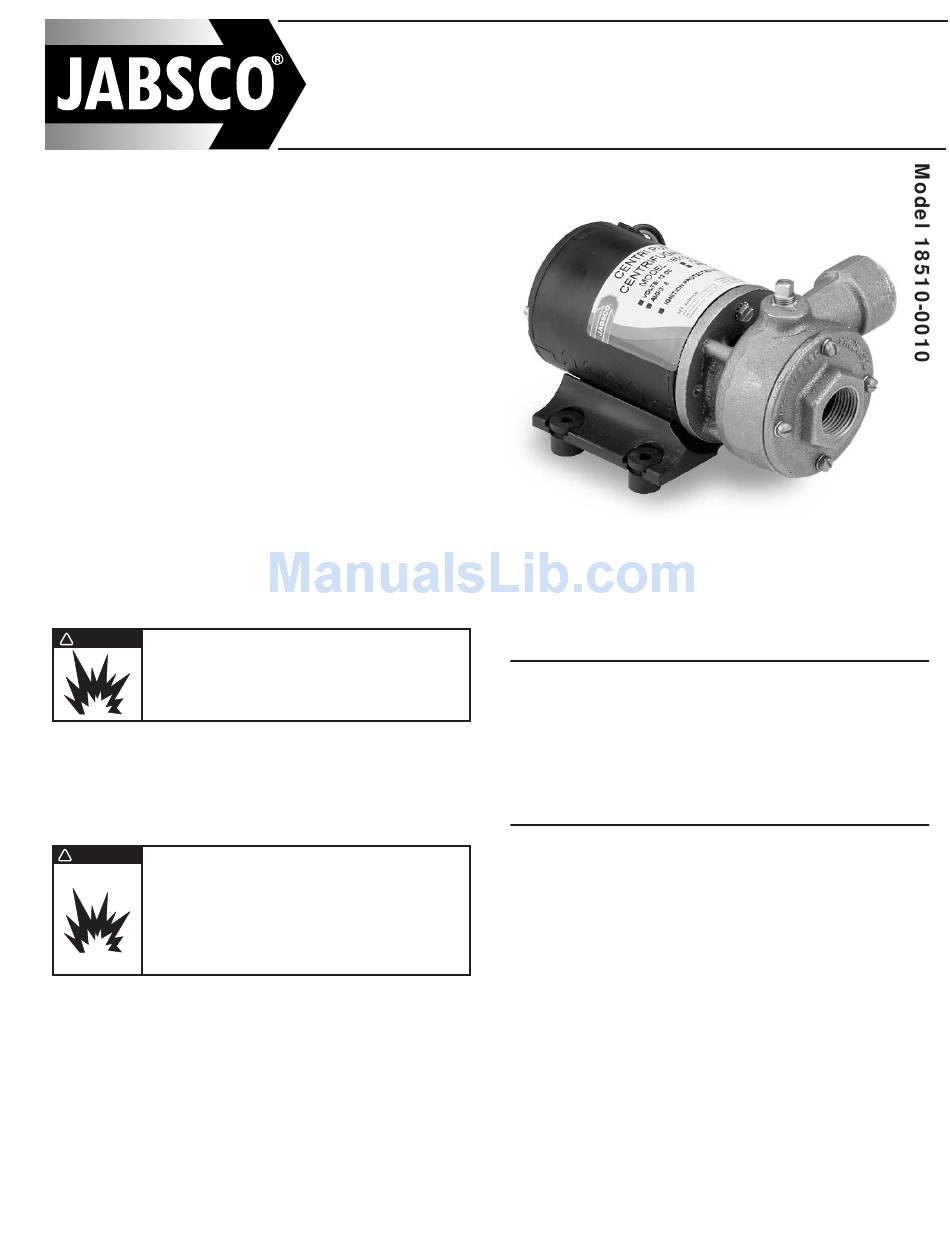

JABSCO 18510-0010 User Manual

COMMERCIAL DUTY
"CENTRI PUPPY"
Bronze Centrifugal DC Motor/Pump Unit
FEATURES
Body & Impeller Bronze
Seal Carbon/Ceramic with Buna N
Port Size 3/4" NPT Internal
Motor 12 Volt DC Permanent Magnet,
Fully Enclosed, Ignition Protected
Shaft Stainless Steel
Weight 8 lb, (3,6 kg) approx.
Motor meets USCG Electrical Standards (Title 33,
Chapter I, Part 183; Subpart I) for IGNITION PROTEC-
TION on gasoline powered vessels.
WARNING
!
Explosion hazard. Do not pump
gasoline, solvents, thinners or other
flammable liquids. To do so can cause
an explosion resulting in injury or death.
WARNING
Explosion hazard. Do not operate with
!
rivets removed from motor case.
Explosion resulting in personal injury,
death or property damage can occur.
Case openings must be sealed to avoid
explosion and maintain ignition
protected rating.
APPLICATION
Suited for many general pumping applications where a
flooded intake condition exists. This pump is NOT SELF-
PRIMING. Typical uses include diesel fuel transfer (NOT
GASOLINE), feed pump for spraying systems, irrigation,
cooling systems for dairy, watering stock, washdowns,
vehicle heating systems, machinery cooling systems
and cutting saw blade cooling.
Model 18510-0010
PERFORMANCE (Nominal 12 Vdc System)
*FUSE/
AMPS BREAKER
21 25
18 25
17 25
16 25
13 25
3 25
INSTALLATION
The pump must be mounted in a dry location -the motor
is not waterproof and must not be submerged. The unit
can be mounted in any desired position. It is best mount-
ed so that water dripping from loose port connection will
not wet the motor. The pump head may be mounted at
90 degree increments on the motor to allow mounting as
needed.
* Customer supplied, not included with pump.
FEET OF
PSI WATER GPM
open open 25
4.3 10 20
5.2 12 18
6.0 14 15
6.9 16 13
9.0 18 Shut-off
