8. DO NOT INSTALL NEAR ANY HEAT SOURCES This Product should be situated away from heat sources such as radiators, stoves, or other products (including amplifiers) that produces heat. DP48 User Guide Page...
Page 3
15. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. 16. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. DP48 User Guide Page...

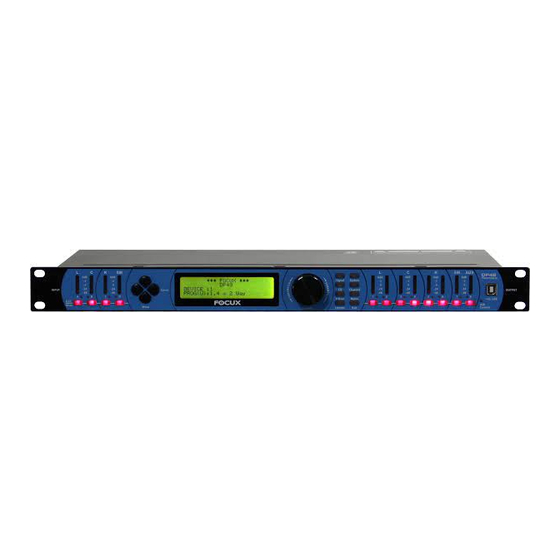

1.0 Introduction The DP48 is a digital system processors which offer a whole new level of performance with Complete Equalization and Loudspeaker Control System designed for the touring or fixed sound installation markets. The absolute latest in available technology is utilized with 32-bit (40-bit floating point ) processors and high performance 24-bit Analog Converters.
2.0 Features The DP48 is the most effective way to manage all aspects of Loudspeaker management for Public Address system applications. The DP48 essentially becomes the only device that you will need between the mixer and the power amps. The following are just some of the features of the device.
*EQ – PEQ Equalizer, *X’over (Crossover) *Limiter – THRESH, ATTACK, RELEASE *Edit – Load, Store or Erase programs *Channel - Input Mix *Name (Channel name) - for each input/output channel. *Exit – exit control for main system. DP48 User Guide Page...
Page 8
To confirm the setting press the wheel one time. 6. LCD – 4 line x 32 letters for showing all the necessary information to control the unit. 7. Cursor control- 4 ways Cursor control. DP48 User Guide Page...
• The initialization process takes about 8 seconds and during that period the unit boots and displays the device model and firmware version. • After the initialization process is finished the DP48 displays its main screen: • The screen shows the current program number and program name assigned to the unit.
6.1 Input/Output menus Each of DP48 input channels has a separate Mute key. Hold down the Mute key for 1 second then the Channel Edit menu can be used and the green LEDs above the Mute button are lit.
Page 11
• SLPH - Filter Slope of low frequency crossover point (high pass). Ranges from 12 to 48dB/octave. If the selected Filter Type is Linkritz Riley, the available slopes are 12 / 18 / 24 / 48 dB/octave. DP48 User Guide Page...
Page 12
(Off). If more than one input sources are enabled, they will be added together as the source for the current output channel. OUT 1 : MENU:Source InA:ON InB:ON InC:OFF InD:OFF DP48 User Guide Page...
Signal Generate -Load a X’Over - Program Recall The DP48 has a built in non-volatile memory that can store up to 30 different program setups. A program can be recalled using this menu. Load a X’Over – use the rotary thumb wheel to select and press to confirm...
Page 14
-SYSTEM Set SYSTEM MENU *Password BackLight Set Delay Unit Device ID System info *Password- The password of the DP48 is 6 characters in length. SYSTEM SETUP MENU: Password *------* *1-----* *------* BackLight Set SYSTEM SETUP MENU: Time Light on / 20 s The LCD display can set always on or switch off after 20 Second.
Page 15
SYSTEM Store NAM:XXXXXXXXXXXX Security - Security Lock The DP48 enables the user to secure the unit and prevent undesired changes in the setup. In order to lock/unlock the unit the user must enter the correct password. • PASSWORD – Under the System Menu...
Page 16
The password of the DP48 is 6 characters in length. The user can change it via the PC application software. The factory default password of a new unit is “blank” and the master password is “666666”. *Password SYSTEM SETUP MENU: Password...
Thresh Out Attack Limit ATTACK -100 0.1/1 Time Out Release Limit RELEASE 2 / 4 / 8 / 16 / 32X Attack time Time Source Channel Source Off / On Channel 15 characters Ch-Name NAME Name DP48 User Guide Page...
8.0 PC Control Software The DP48 is shipped with a special PC Control Software –DPcontrol.exe gives the user an option to control the unit from a remote PC via the USB or RS485 serial communication link. The software makes it much easier to control and monitor the device allowing the user to get the whole picture on one screen.
Page 19
Step 1: Put the installation CD into your CD drive on your computer or download the software from www.focux.us, double-click DPcontrol_Setup_V1.0.exe to start the installation and follow the instructions to complete the installation. Step 2: Double click DPcontrol to run DP48 control software Step 3: Click Device View Step 4: Click Add New Devices Step 5: Select a Device, click Properties Step 6: Edit DeviceID and COMPort.
Page 20
Step 8: Starting Tuning DP48 User Guide Page...
Audio: 3-pin XLR RS-485 X 2 USB: Type B Power: Standard IEC Socket General Power: 110/240 VAC (50-60Hz) Dimensions: 19”x1.75”x9” (483x44x229 mm) Weight: 7lbs / 3.2kg Audio Control Parameters Gain: -40 to +12dB in 0.1dB steps DP48 User Guide Page 2 1...
Page 22
Program Names: 15 character length Delay Units: ms, ft, m Frequency Modes: 36 steps/Oct, 1Hz resolution Security Lock: Lock/Unlock Copy channels: All parameters (with PC software) Channel Names: 6 character length **Note: Specifications subject to change without notice** DP48 User Guide Page...
This warranty applies only to failure of a DP48 product caused by defects in materials and workmanship during the stated warranty period. It does not apply to a unit...
