Page 2: User Manual
USER MANUAL 200W Beam Moving Head Light Please read over this manu before operation the light... -
Page 3: Maintenance

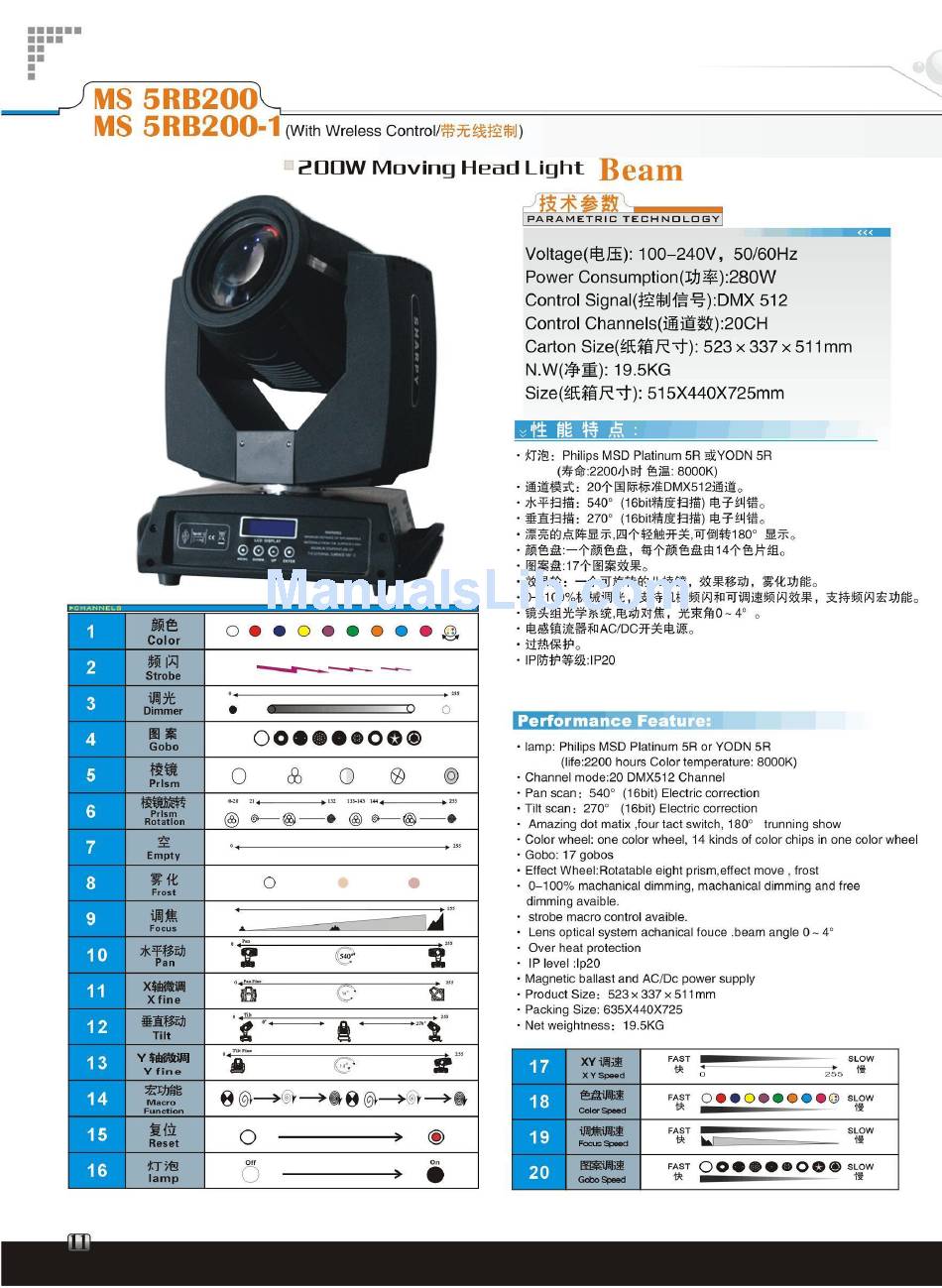

Maintenance 1. To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. 2. Intermittently using will extend this item’s service life 3. Please clear the fan ,fan net , and optical lens in order to keep good work state. 4. - Page 4 · Tilt scan：270° (16bit) Electric correction · Amazing dot matix, four tact switch, 180° turning show · Color wheel: one color wheel, 14 kinds of color chips in one color wheel · Gobo: 17 gobos · Effect Wheel: Rotatable eight prism, effect move , frost ·...
- Page 5 press “ENTER” to confirm or press “ ESC” to cancel. Default This function enables you to select different operations. Press “up” or “down” to view other functions. Press “ENTER” to enter, and press “up” or “down” to select nod.1 or nod.2, press “ENTER”...
-
Page 6: Power Supply Mains
Power Supply Mains Use the provided plug to connect the main power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off. - Page 7 Connecting to the control signal line (DMX): Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 3 or 5-pin male/female connectors.
-
Page 8: Channel Control
bottom, lock the two levers by 1/4 rotating clockwise; then install another clamp. 4 Install on safety string which stands at least ten times weight as equipment. Terminal of the accessory is designed for clamps. 5 Make sure pan/tilt lock unlocked or not. Keep the distance more than 1M from equipment to flammable material or lighting source. - Page 9 72-79 Color9 80-87 Color10 88-95 Color11 96-103 Color12 104-111 Color 13 112-127 Color 14 128-191 Rainbow effect, positive rotation, fast to slow 192-255 Rainbow effect, reverse rotation, slow to fast Close 1-50 OPEN CH 2 Strobe 51--240 Slow strobe to fast strobe 241--255 OPEN CH 3...
- Page 10 98-104 Gobo14 105-111 Gobo15 112-118 Gobo16 119-127 Gobo17 128-191 Rainbow effect, positive rotation, fast to slow 192-255 Rainbow effect, reverse rotation, slow to fast 0-31 Not prism CH 5 Prism 32-255 Prism 0-127 Angle 0 CH 6 Prism Rotate 128-191 positive rotation, fast to slow 192-255 reverse rotation, slow to fast...
- Page 11 200-205 Delay On Speed CH 17 0-255 Fast to slow adjustment 0-127 The whole stepper and speed adjustment COLOUR CH 18 Effect 128-255 The micro stepper and speed adjustment CH 19 BEAM TIME 0-255 No shake GOBO CH 20 1-191 Shake, slow to fast Shake 192-255...
