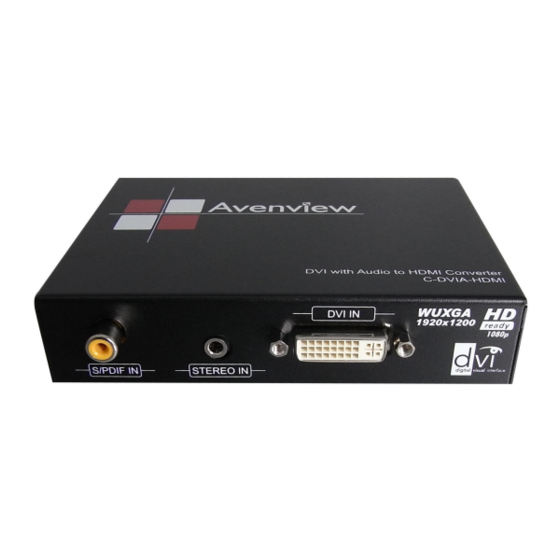

DVI with Audio to HDMI Converter
Model #: C-DVIA-HDM
© 2010 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no representations or warranties with
respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any
time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in
Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products
including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.
www.avenview.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avenview C-DVIA-HDM
Summary of Contents for Avenview C-DVIA-HDM
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
-
Page 2: Table Of Contents
Regulatory Notices Federal Communications Commission (FCC) ......... 4 Introduction ........................... 4 Package Contents ........................5 Before Installation........................5 Panel Description ........................6 EDID Learning ......................... 6 Installation ..........................7 1.10 General Troubleshooting ....................... 8 Section 2: Specifications ......................... 9 www.avenview.com... -
Page 3: Section 1: Getting Started
Removal, installation, and set-up service charges. Safety Instructions The C-DVIA-HDM DVI with Audio to HDMI Converter has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment’s, the C-DVIA-HDM should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 4: Regulatory Notices Federal Communications Commission (Fcc)
(DVI-D) and both digital audio (S/PDIF) and analog stereo audio to digital HDMI. With C-DVIA-HDM converter, DVI based devices such as PC with S/PDIF or analog stereo audio can readily connect to your HDMI TV or projector at low cost. -
Page 5: Package Contents
Package Contents Before you start the installation of the converter, please check the package contents. C-DVIA-HDM Power Adapter (+5VDC, 2A) User’s Manual Before Installation Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction. -
Page 6: Panel Description
Power: Power indicator; Red Light = Power ON +5V DC: Power Connector EDID Learning 1. Power up the C-DVIA-HDM 2. Connect HDMI display to HDMI OUT 3. Turn the rotary control counter-clockwise from 0 to 7 4. The Green light will be bright and then dark to indicate the EDID is learned 5. -
Page 7: Installation
Installation To setup Avenview C-DVIA-HDM follow these steps for connecting to a device: 1. Power off display source such as DVD Player, Set-top box 2. Connect your DVI source to DVI input 3. Connect S/PDIF or Stereo Audio source to RCA Jack or 3.5mm Jack respectively 4. -
Page 8: 1.10 General Troubleshooting
Ensure that display device supports 480p or 720p resolution This product supports up to 1080p (1920x1200) resolution. Check the DVI and HDMI connection Screen Defects Appear If outputting from a PC. Check the maximum resolution range of the graphics card. www.avenview.com... -
Page 9: Section 2: Specifications
Section 2: Specifications Item Description Units C-DVIA-HDM Unit Description DVI with Audio to HDMI Converter HDMI Compliance HDMI 1.2a DVI Compliance DVI 1.1 Video Bandwidth 165MHz (4.95Gbps) Supported Resolutions Single Link up to: 1080p, WUXGA (1920x1200 @ 60Hz) Audio Support... - Page 10 Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of...
