3190 Manual Addendum
This addendum describes the functionality of the 3190 Digital TV Receiver. The 3190
Nextwave Australian Digital TV Receiver has the added benefit of component out via Scart.
This functionality provided high quality video signals to your Television display.
This addendum makes alterations to the Video/Audio Settings of the system menu and pro-
vides an additional installation diagram for connecting to a TV via component out.

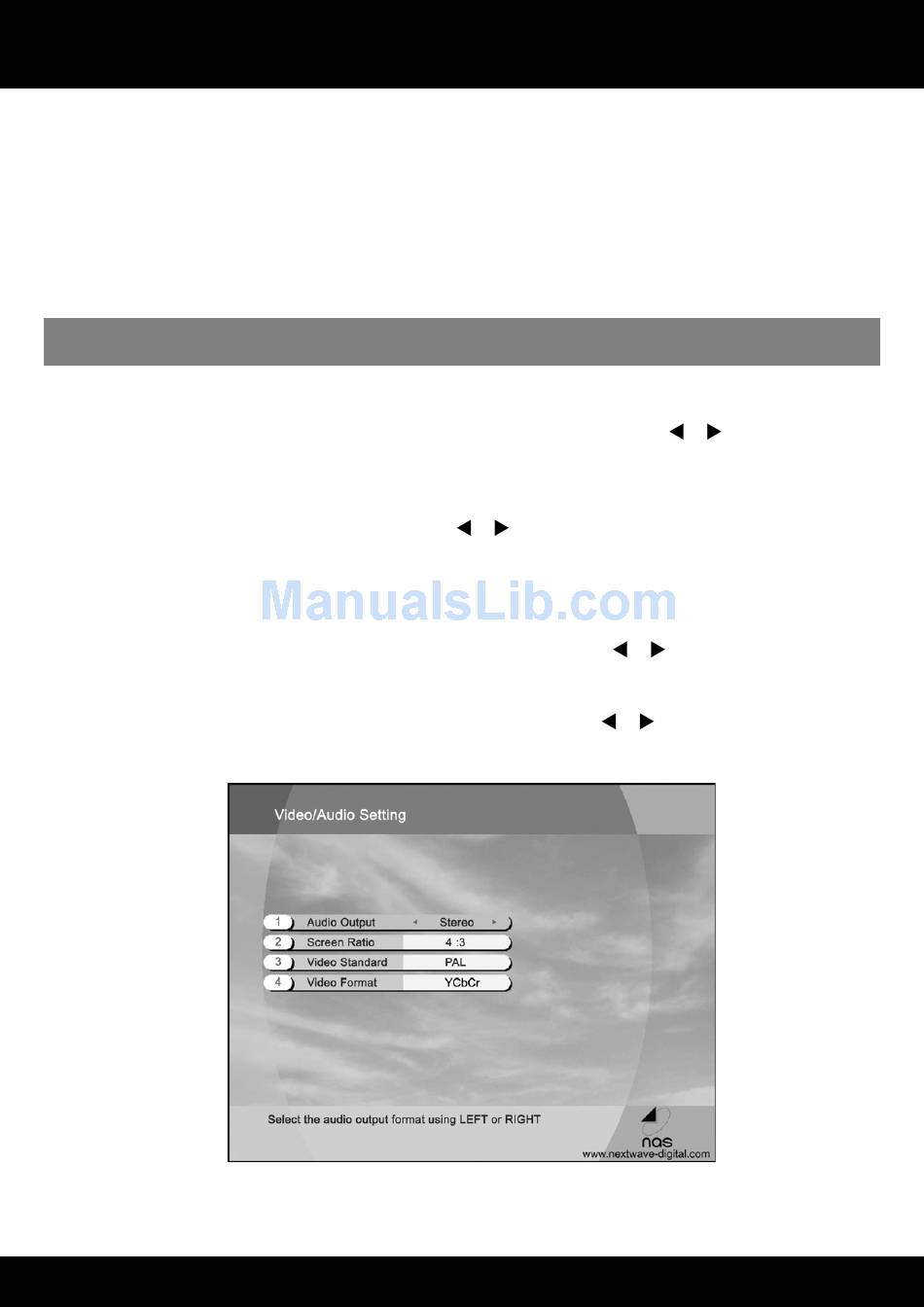

Video / Audio Setting
Audio Output
You can select Stereo, Left, Right or Mixed Output mode by using the
buttons.
Please Note: Use Audio button on remote as a hotkey.
Screen Ratio
You can select TV screen format by using the
buttons. The 4:3 format is the standard
format, the 16:9 for a wide screen TV.
Please Note: Use wide button on remote as a hotkey.
Video Standard
You can select video standard (PAL/NTSC/AUTO) by using the
buttons.
Video Format
You can select video format (RGB/CVBS/YCbCr) by using the
buttons.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDR-3100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NextWave Digital TDR-3100

  • Page 1 3190 Manual Addendum This addendum describes the functionality of the 3190 Digital TV Receiver. The 3190 Nextwave Australian Digital TV Receiver has the added benefit of component out via Scart. This functionality provided high quality video signals to your Television display. This addendum makes alterations to the Video/Audio Settings of the system menu and pro- vides an additional installation diagram for connecting to a TV via component out.
  • Page 2 3190 Manual Addendum Connecting to a TV using Component (Y,Cb,Cr) output Connect the coaxial cable from the Antenna to the ANT IN socket on the rear panel of the STB. Connect a SCART to Component (Purchased separately) cable to the SCART TV socket on the STB and the Component IN (Y,Cb,Cr) socket on your TV.
  • Page 3 Operating Instructions TDR-3100 Australian Digital TV Receiver...
  • Page 4 Safety Instructions Please read the following safety instructions carefully. ♦ Do not overload wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or electrical shock. ♦ Never allow liquids, spray or other materials to come into contact with the inside of the STB. ♦...
  • Page 5: Table Of Contents

    Contents Quick Start Guide ......................Safety Instructions .
  • Page 6: Quick Start Guide

    Quick-Start Guide If you wish to operate the NextWave Australian Digital TV ‘Set Top Box’ (STB) before reading the rest of this manual, please complete the following steps. Step. Connect your antenna to the AERIAL input socket. Step. Connect Video and Audio lead between STB and VCR or TV. Connect video (yellow) plugs of supplied lead to VIDEO OUT of STB to VIDEO IN of your TV or VCR.
  • Page 7 Step. At the Search Programs menu (see page 23), search ALL channels on AUTO. Press OK. From the Search Programs menu, press OK on Search: AUTO. This will activate a complete channel search. None of the digital channel frequencies or parameters need to be known.
  • Page 8: Front Panel / Rear Panel

    - Connect the coaxial cable from the VHF/UHF Antenna to the AERIAL socket on the rear panel of the STB. The NextWave TDR-3100 is a stylish, full featured standard definition digital set top box. There is no compromise between high quality, extensive features and a competitive price.
  • Page 9 Rear Panel Your NextWave TDR3100 digital TV receiver contains a wealth of connection options. The following diagram illustrates and describes the connection options on the rear panel. l a i l a i . t u . t r l a i .
  • Page 10 Remote Control You can operate every function of the NextWave digital decoder using the buttons on the remote control handset. Please read this section to help your understanding of each function.
  • Page 11 Remote Control c t i f n i . e l f n i s t i f n i 8 10 f n I f n i t s i r i f g i l t s i c t i t c i i t b...
  • Page 12: Installation

    Installation There are several types of TV’s, VCR’s and other equipment that you can connect to the STB. In this manual you will see some of the most common ways of connecting the STB to your equipment. Connecting to a TV SCART Connect the coaxial cable from the VHF/UHF Antenna to the...
  • Page 13 Installation Connecting to a TV through a VCR - OPTION 1 - For this type of connection your VCR will have to be switched to AV/Line In mode. The signal from the STB will now be routed through the VCR to the TV set. - If your TV set has AV inputs connect VCR to TV using three RCA cables to maintain picture quality.
  • Page 14 Installation Connecting to a TV through a VCR - OPTION 2 - For this type of connection your VCR will have to be switched to AV/Line In mode. The signal from the STB will now be routed through the VCR to the TV set. - If your TV set has AV inputs connect STB to TV using SCART to RCA cables to maintain picture quality.
  • Page 15 IN, AUX, SPARE or EXTRA input sockets on your HI-FI system. - If available you can connect an RCA single cable from the SPDIF socket on the STB to your AV Processor. For other installation tips, please visit the NextWave Digital web site: www.nextwave-digital.com...
  • Page 16: Getting Started

    Getting Started The following section contains all the steps necessary when first installing and using the receiver. Step. Installation 1. Connect the coaxial cable from the VHF/UHF antenna to the AERIAL socket on the rear panel of the STB. 2. Connect the SCART or RCA leads between the main SCART or RCA socket on the TV; and the TV SCART or RCA sockets on the rear of the STB.
  • Page 17 Getting Started Step. Channel Searching 1. Press the MENU button on your remote control. 2. Select ‘Installation’ by using the buttons and press OK. And you will be asked to enter your password. The password is preset to 0000. And the Installation menu appears on the screen.
  • Page 18 Getting Started Step. Watching TV 1. Press OK to access the TV Channel List while viewing programs. 2. Select channel by pressing the buttons. If the list contains a large number of channels, you can change one channel list page at a time by using the buttons.
  • Page 19: User Functions

    User Functions Information Box While you are watching TV you can receive Program Information by pressing the i button on the remote control. The Information includes; current time and date, current channel number and name, signal quality/strength, mute and EPG Information. Please Note: This information is only available when transmitted by broadcasters.
  • Page 20: Program Guide

    User Functions Program Guide While you are watching TV or listening to radio you can view the program for each service in the TV Guide mode. To access this mode press the EPG button on the remote control. Change between the TV Guide and Radio Guide by pressing the RADIO button. You can leave the TV Guide mode by pressing the EXIT button.
  • Page 21: Main Menu

    Main Menu Main Menu Press the MENU button on your remote control and you can see the Main Menu on the screen. It has 8 items; Language, Configuration, Edit Channels, Installation, Change Pass- word, Parental Control, Games and Information. The OK button always confirms your selec- tion and pressing it will take you to the next step.
  • Page 22: Configuration

    Main Menu Configuration Select the menu ‘Configuration’ by using the buttons and press OK. This menu al- lows you to configure the output. Video / Audio Setting Audio Output You can select Stereo, Left, Right or Mixed Output mode by using the buttons.
  • Page 23: Time Settings

    You can select power-on time by using the buttons or the numeric button. Power-Off Time You can select power-off time by using the buttons or the numeric button. For other operational tips, please visit the NextWave Digital web site: www.nextwave-digital.com...
  • Page 24 LCN and others have not. Broadcasters have only just begun identifying their own programs by their unique LCN. LCN is included as an option in the NextWave TDR-3100. LCN may be turned on or off in this by pressing the buttons.
  • Page 25 Main Menu Edit Programs In this menu you can edit TV channels, radio channels. Edit TV Programs Select the channel by using the buttons. You can also change one channel list page at a time by using buttons. This menu has seven command items ; Move, Favourite, Sort, Rename, Lock, View, and Delete.
  • Page 26: Edit Channels

    Main Menu Edit TV Programs Lock Channel You can lock the channel in order to prevent your children from watching. Press the Green button and then a locked channel will be marked with a padlock symbol. View You can use this menu if you are looking for some “special”...
  • Page 27: Channel Search

    Main Menu Installation Channel Search You can search channels in different ways, Please follow to the procedure described on the next page. Reset (Factory Default) Use this option only if you have to start the complete installation procedure from scratch. If you continue from here, all your previous settings, parental code and favorite channels etc.
  • Page 28 When the search procedure has ended, the screen will show how many TV and Radio channels have been found. Press OK to save the channels. For other operational tips, please visit the NextWave Digital web site: www.nextwave-digital.com...
  • Page 29 Main Menu Manual Search Select ‘Search’ using the buttons. When you perform a ‘Manual Search’ you first need to enter some parameters for the channel search to work. Channel Select UHF or VHF channel by using the buttons. Frequency Input UHF/VHF frequency that the given channel is transmitted on. The unit is MHz. If you enter the wrong figure, erase with the button.
  • Page 30: Change Password

    Sokoban. For directions on how to play each game, please follow the On-Screen instructions. Information You can check the system information about the model name, the manufacturing date and the version of the software. For updated software and upgrading information, please visit the NextWave Digital web site: www.nextwave-digital.com...
  • Page 31: Trouble-Shooting

    Trouble-shooting Possible Setup Faults STB not responding to remote Check and replace RCU batteries. Turn STB off (at rear panel) and back on after 10 secs. Picture break up Restart STB after turning off for 10 secs. Check signal level and quality. Check cable and antenna connection.
  • Page 32: Specifications

    Specifications Tuner / Channel Input Connector F-type, IEC Connector, Female Frequency Range 470MHz to 862MHz(UHF), 174MHz to 230 MHz(VHF) Input Impedance 75 ohm unbalanced Signal Level -20 to -85dBm Demodulation QPSK, 16QAM and 64QAM Bit Rate 31.67Mbps OFDM Spectrum 2k and 8k mode carrier, Non-Hierarchical/Hierarchical Guard Interval 1/32, 1/16, 1/8, 1/4 MPEG Transport Steam A/V Decoding...
  • Page 33 Warranty Certificate WARRANTY CERTIFICATE FOR THE NEXTWAVE TDR-3100 AUSTRALIAN DIGITAL RECEIVER Please keep this Warranty Certificate with your tax invoice as proof of purchase. It will be needed when claiming service in terms of this warranty. 1. The Warranty shall not apply to malfunction or damage after installation, resulting from transport and/...
