Page 1: Operating Instructions

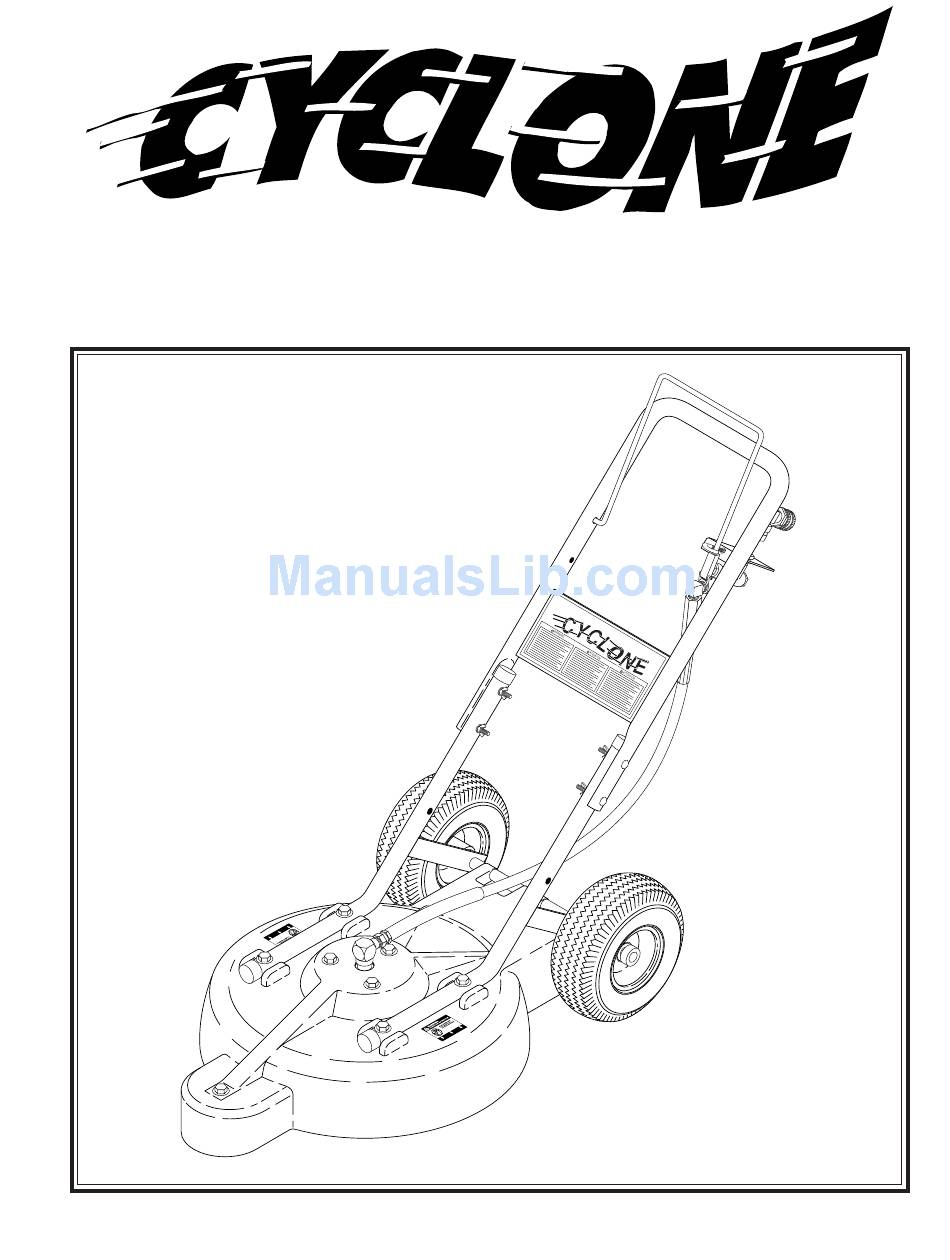

OPERATING INSTRUCTIONS AND PARTS MANUAL 4275 N.W. PACIFIC RIM BLVD. I CAMAS, WA 98607 I USA For technical assistance or the Dealer nearest you, call (360) 833-1600... -
Page 3: Table Of Contents
Date of Purchase ____________________________ The model and serial numbers will be found on a decal attached to the Cyclone. You should record both serial number and date of pur- chase and keep in a safe place for future reference. Cyclone System Manual • Form #96-619 • Revised 10/01... -
Page 4: Introduction
5. The best insurance against an accident is precau- INTRODUCTION tion and knowledge of the machine. The Cyclone is designed to attach to a pressure washer 6. Never expose any parts of the body, such as feet or which rotates two high pressure nozzles in the Cyclone. -
Page 5: Alignment Tool 95-0728030
STEP 1: Disconnect water to Cyclone, then turn STEP 2: Place base of alignment tool flat against bottom of Cyclone plastic body. Press end entire machine over to allow access to nozzle jets. of tool (opposite of desired angle) against axle, then rotate nozzle arm to alignment tool as shown. -
Page 6: Exploded View
CYCLONE SYSTEM OPERATOR’S MANUAL EXPLODED VIEW... -
Page 7: Parts List, Exploded View
CYCLONE SYSTEM OPERATOR’S MANUAL EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 2-00260 Elbow, 1/4", Male Pipe 95-0728018 Axle, 5/8" x 18.5", Stainless 2-01080 Cap, Black Vinyl 95-0728022 Handle, Trigger Bar 2-011049 Base, Polyethylene, Red 95-0728023... -
Page 8: Troubleshooting
NOZZLE CHART Correct nozzle size is important for optimum cleaning efficiency. The Cyclone is shipped with two #3, 15° nozzles in rotary swivel. Review correct nozzle size for your pressure washer. See chart below for correct nozzle size. To obtain the correct nozzle size in the rotary swivel, divide the minimum nozzle size for the pressure by two. -
Page 9: Warranty
CYCLONE SYSTEM OPERATOR’S MANUAL Cyclone System WARRANTY LIMITED MINIMUM 90 DAY WARRANTY We warrant to the original consumer that each new part and accessory sold by C-Tech will be free from manufacturing defects in materials or workmanship in normal service for the duration specified by the original component manufacturer with a 90 day minimum from date of purchase, provided it is installed properly and the equipment is maintained in accordance with C-Tech's instructions and manuals. -
Page 10: Spanish
3. Nunca hacer ajustes a la máquina mientras esté INTRODUCCION operando. El Sistema de Cyclone de agua está diseñado para 4. Deben usarse accesorios de seguridad para los ojos adaptarse a una lavadora de presión haciendo rotar dos y protección de los pies cuando se use este equipo. - Page 11 SYSTEMA DE CHORRO DE AGUA MANUAL DEL OPERADOR 4. Inspeccionar el tamaño de la boquilla de la lavadora de presión. El Sistema de chorro de agua viene con dos boquillas #3. Si su lavador de presión requiere una boquilla más grande que la #6, consulte con su vendedor local.
- Page 12 Tobera Herramienta de Ajuste Carrocería Plástica PASO 1: Desconecte el agua de Cyclone, luego gire PASO 2: Coloque la base de la herramienta de ajuste la máquina completa para permitir el acceso plana contra la parte inferior de la carrocería a las toberas de chorro.
- Page 14 4275 N.W. Pacific Rim Blvd. • Camas, WA 98607 • (360) 833-1600 Form #97-6138 • Revised 10/01 • Printed in U.S.A.
