Summary of Contents for Siti Digital DVB-C8899CO

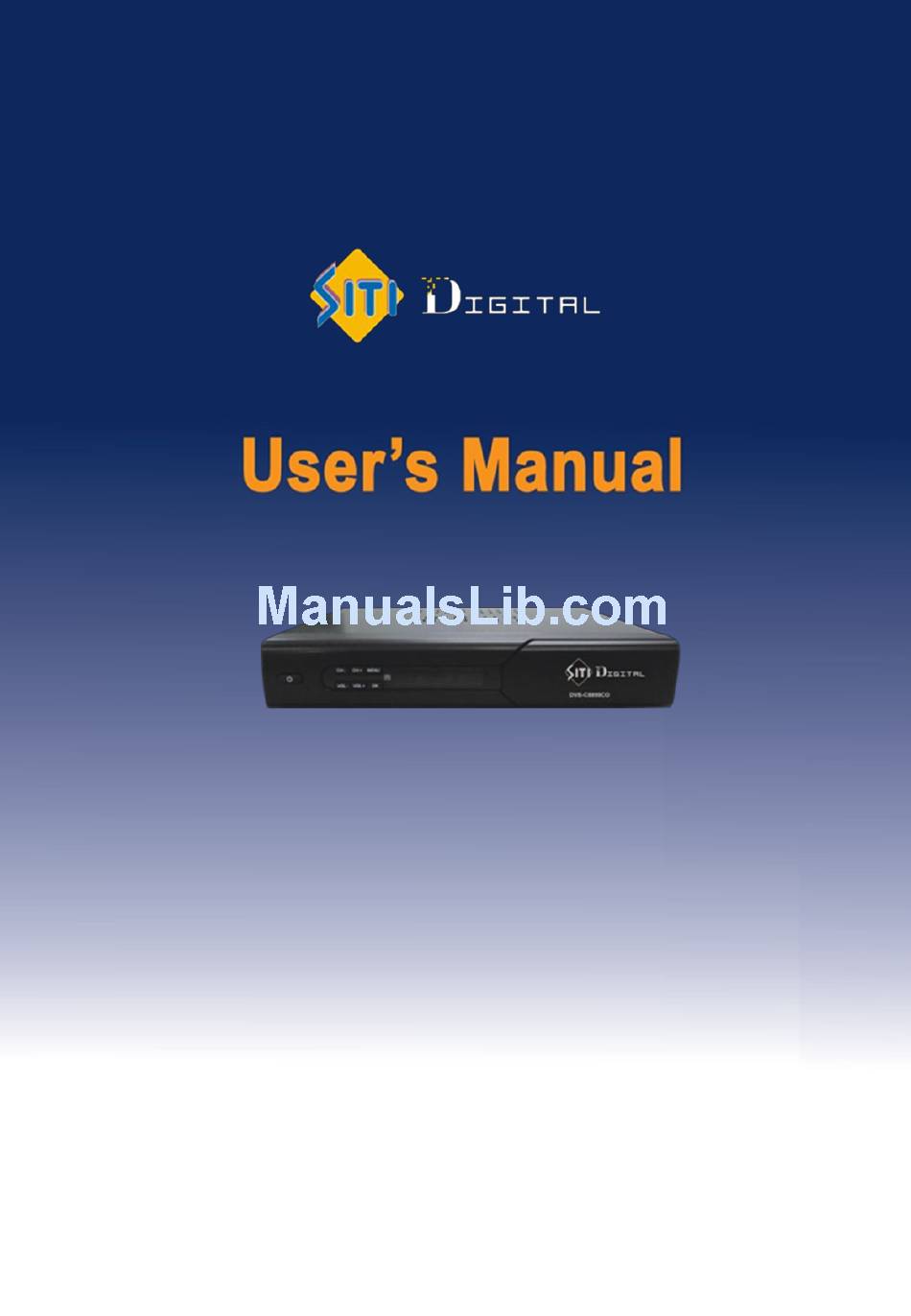

- Page 1 DVB-C8899CO The information provided are for guidance only, the company reserves the right to change the specs at any time.
-
Page 2: Table Of Contents
CONTENTS • SAFETY INSTRUCTIONS • ACCESSORIES • APPEARANCE • REMOTE CONTROL UNIT (RCU) • CONNECTIONS • INSERTING SMARTCARD • MENU TREE • MENU MAP • MENU • TROUBLESHOOTING • SPECIFICATIONS DVB and the DVB logos are trademarks of the DVB Project... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 4: Accessories
ACCESSORIES 1. RCA Cable: : 1 ea 2. Batteries : 2 ea 3. Remote Control Unit : 1 ea Before using the remote Control Unit: - Remove its back cover. - Insert the two batteries (type R03/AAA – 1.5 V) supplied. - Position them as shown in the diagram in the battery compartment. -
Page 5: Appearance
APPEARANCE FRONT VIEW 1. Button, standby 2. 4. CH-/+. Channel up or down/ cursor movement 3. 5. VOL-/+. Volume adjustment/ state alteration 6. MENU. Menu entry 7. OK. Operation confirmation/ channel listing 8. Remote sensor/ status indicator/ displaying board 9. Mini-door, open it to insert a smart card into the slot REAR VIEW 1. -
Page 6: Remote Control Unit (Rcu)
REMOTE CONTROL UNIT (RCU) COLOR KEYS Various functions are associated with each color key in the main menu and in the sub- menu (say, in channel list mode). - Page 7 REMOTE CONTROL UNIT (RCU) 1. POWER Enter Standby mode or program-watching state 2. 0-9 Menu: input the parameter value Non-menu: Select Channel 3. INFO Display information tape 4. EPG Non-menu: activates the EPG 5. VOL+ Volume increase 6. VOL- Volume decrease 7.
-
Page 8: Connections
CONNECTIONS Connections for CVBS For this Basic Set Up, use a CVBS lead for the video connection and either the red or the white color RCA leads that came with this Set Top Box for the audio connection. Prepare your equipment Make sure that your TV monitor has CVBS (VIDEO, AUDIO-R, AUDIO-L) input. -
Page 9: Inserting Smartcard
INSERTING SMARTCARD Smartcard The well-inserted status To watch subscribed channels/ packages, a smartcard is necessary. All the channels/ packages subscribed by you from the service provider should be available to you through the Set top box. Here’s how to get access to the pay channels after you have paid your subscription to the provider and your purchase of the STB and Smartcard. -
Page 10: Menu Tree
MENU TREE Main Menu Channel List Edit Channel Edit Delete All Channel Conax CA Subscription Status Event Status Token Status Change CA PIN Maturity Rating About Conax CA Messages System Software Upgrade Information Factory Reset STB Information Signal Level Games... - Page 11 MENU TREE User Profile User Setting Output Setting Language Setting Local Time Setting Timer Setting Parental Lock Guide All Channels Alphabetical Movies Hindi Music Movies English Entertainment Kids Entertainment News Business News Sports Infotainment Fashion Int. Entertainment Religious (Various) Audio...
-
Page 12: Menu Map
MENU TREE MAIN MENU Main Menu live Service Factory Reset. Primary TV service List password 1234 User Setting... -
Page 13: Menu
MENU TREE The first time using the receiver The first time powering on the receiver, it’ll start searching channels automatically by the defaulted frequency parameters. If the signal is normal, the channels will be scanned properly, if not, please refer it from your service-provider Press the VOL+/- to adjust volume, press the CH+/- to turn channel. - Page 14 MENU TREE Output Setting Screen Ratio: Set the video style manually as 4:3 or 16:9 according your actual TV screen. The video will set as its original signal if Auto is set. Aspect Ratio: Set a ratio to fit your meaning. Volume control: The volume of channel will be adjusted singly when the Single is opted for;...
-
Page 15: Edit
MENU TREE 6. Parental Control: Get it into. The primary code is 1234. 6.1 Menu Lock: The Install and so on cannot access unless input the right code when [Lock] is chosen. 6.2 Program lock: Only the [Lock] is chosen, the program lock in TV Edit can be useful. -
Page 16: System Information
MENU TREE category to FAV2 List, the added channel is included there, select one to watch it. 3. Delete All Channels If you want to remove all existing channels, opt for this instruction. Press OK key, appearing in the Information box, confirm Yes to remove. Rebooting the receiver or resetting the receiver can scan down channels once more. -
Page 17: Conax Ca
MENU TREE Conax CA Use to get state of smartcard. Subscription Status: view the subscription status of the smartcard. Change CA pin: Use to change card code. Input primary pin then enter a new one, and then input it to confirm. As for the primary pin, please consult them from your... -
Page 18: Troubleshooting
MENU TREE Before you contact your service center, please read the below tips carefully. If the problem persists after completing the following tips, please contact your service center for further instructions. Solution to the Problem Possible Cause problem Time Setting is wrong. The time is not set correctly. -
Page 19: Specifications
MENU TREE Tuner: Input Frequency 50.5-858MHz QAM 64：40dBuV – 85 dBuV (75Ω) Input level QAM256：44dBuV – 83 dBuV(75Ω) Frequency band 8MHz Symbol rate 3.6 ~ 6.952 MBaud Demodulation type 16,32,64,128,256QAM adjustable 75Ω Input impedance Video Decode format MPEG2.MP@ML Output system PAL, NTSC Output terminal Picture definition...
