Summary of Contents for Ecel CURING LIGHT EC 500

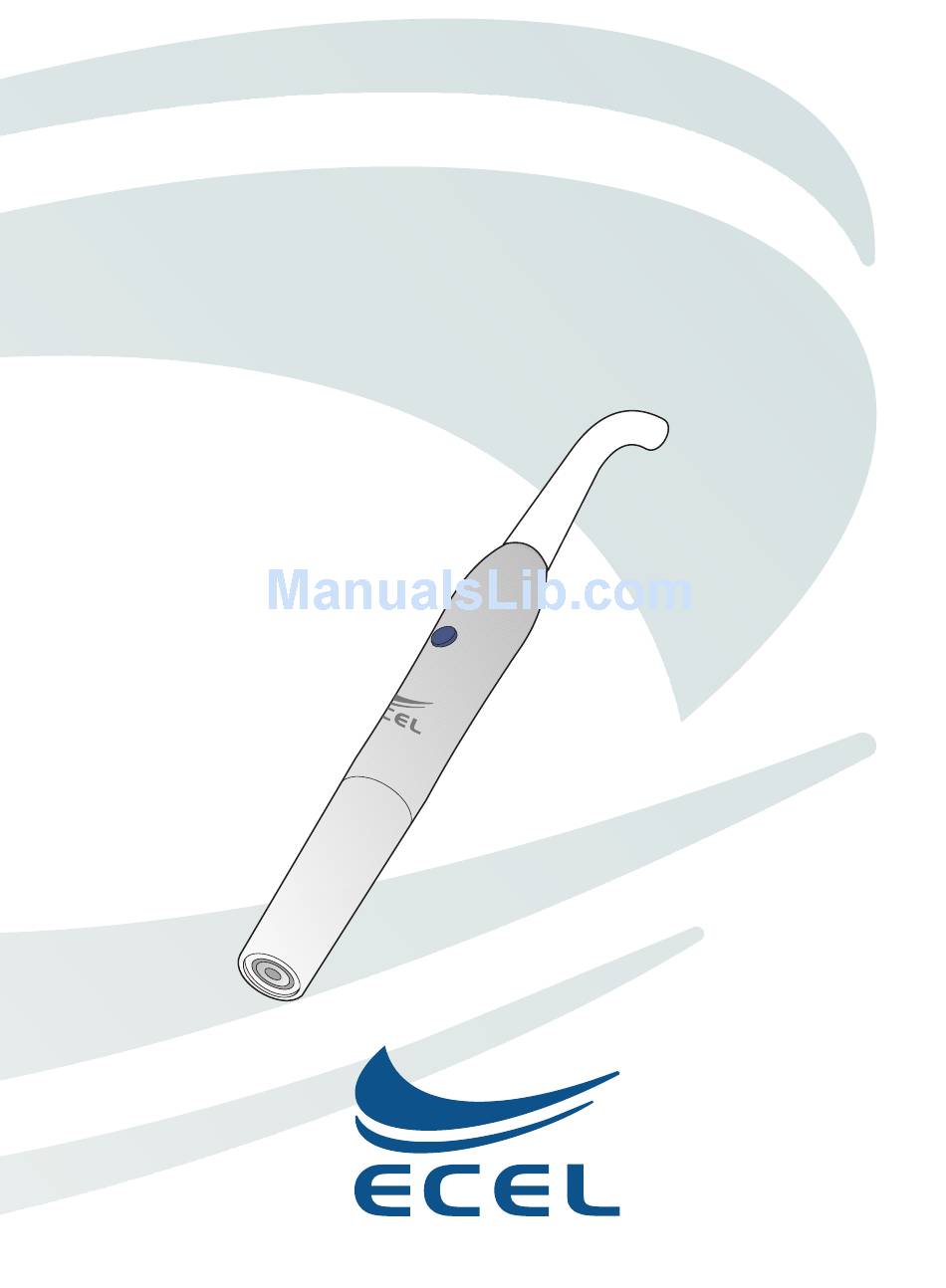

- Page 1 Owner´s Manual CURING LIGHT EC 500...
-
Page 2: Figures
Curing Light Fig. A Fig. D Fig. B... -
Page 3: Table Of Contents
Technical Name: Curing Light Trade Name: EC 500 Commercial Model: Manufacturer: Ecel Indústria e Comércio LTDA CNPJ: 03.090.848/0001-47 Mogiana Avenue, 1854 Jd. Independência Ribeirão Preto/SP CEP: 14075-260 Phone: (16) 3878-1700 Walter Bagatta Junior CREA-SP: 0601359652 Technical responsibility by: Declared as ANVISA(National Health Surveillance Agency) registration number: exempt from registration by the Brazilian Health Department. -
Page 4: Product Presentation
List of items contained in the box: 01 Handpiece, 01 Charger Base, 01 Acrylic curing light tip, 01 Eye protector, 01 Battery, 01 Charger and 01 Owner's manual. Curing Light EC 500 Accompanying parts and accessories: 1 - Light Guide Tip... -
Page 5: Operation
halogen lamp (with estimated useful life of around 50 hours). It offers an estimated useful life of around 10.000 hours, avoiding the frequent replaces of lamp. Another important feature is the cold light, which generates a minimum of heating to the resin and the tooth. It eliminates the use of filters, because the light is emitted in the appropriate spectrum (approximately 470nm). -
Page 6: Cleaning And Care
Do not use another battery except the original of . Otherwise, your Curing Light EC 500 equipment may be denied. Do not place the unit near flammable materials, and do not touch the flammable solutions with the light. -
Page 7: Battery Disposal
Customer CNPJ/CPF Phone Address City ZIP code State Dealer Costumer´s Signature Ecel Indústria e Comércio Ltda. Fone: (55) 16 3878-1700 - ecel@ecel.ind.br - www.ecel.ind.br Av. Mogiana, 1854 - Jd. Independência - Cep: 14075-260 Ribeirão Preto - SP - Brasil... -
Page 8: After Installation
Keep the product protected from direct sunlight and rain. ENVIRONMENTAL OPERATION CONDITIONS Environmental temperature functioning range + 10°C to + 35°C Environmental temperature range recommended by ECEL + 21°C to + 26°C Functioning relative humidity range non-condensing 30% to 75% (... -
Page 10: Final Recommendations
Warranty Specifications Curing Light EC 500 Automatic commutation from Voltage 240 VCA Consumption 10VA 50/60 Hz Frequency 3,7V - 2000mAh Lithium Battery Charging time for Battery 5 hours Output Power 500 mW/cm² Dimensions of the handpiece Ø 25 mm x... -
Page 11: Troubleshooting
Fault Equipment does not start Cause Battery Low Solution Charge the battery Cause Inadequate contact with the battery Clean the circuit board, the battery connector and the Solution handpiece. Connect the handpiece to the battery again. Fault Equipment does not charge Cause Charger is disconnected or is not well connected Solution...
