Summary of Contents for Rice Lake MajorSlice 300M

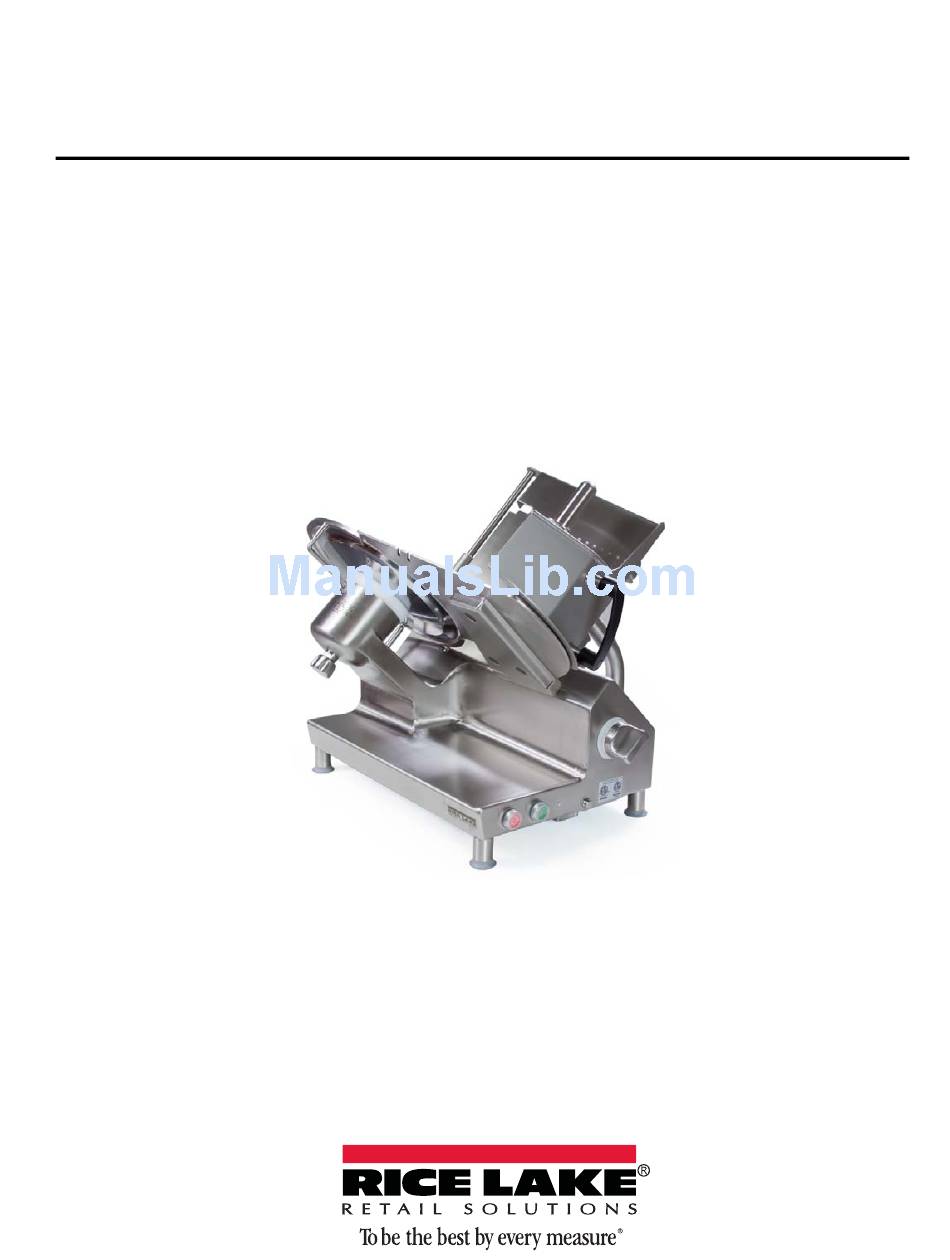

- Page 1 MajorSlice™ 300M Manual Stainless Steel Professional Slicer Operator's Manual Professional Series - All Stainless Steel Construction 166125 Rev A...
-
Page 3: Table Of Contents
For More Information ..........................23 Brand Name: DADAUX GASTROTECH © Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelakeretail.com/webinars. MajorSlicer 300 Operator’s Manual...
-
Page 5: Introduction
Introduction Authorized distributors and their employees can view or download this manual from the Rice Lake Weighing Systems distributor site at www.ricelakeretail.com Safety Section Study the Following Safety Rules FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH. -
Page 6: Installation And Operation
Installation and Operation Installation Notify the carrier immediately if shipping carton is damaged. If equipment is damaged notify the carrier within five (5) days and save all documents. 1. Carefully remove packing material from top and sides of machine. WARNING Avoid touching exposed knife. -
Page 7: Operation
Operation Front Back Figure 2-1. Slicer Operation 1. Close the (#4) index control knob by turning clockwise. 2. Pull back the (#13) product grip using the (#14) product grip handle. 3. Load the product to be sliced into the (#11) carriage tray. 4. -
Page 8: Parts
Parts MajorSlice 300 Parts GR123 GR134 VT22 GR121 GR122 GR77 GR113 GR76 GR70 GR112 GR27 GR22 GR12 GR130 GR135 GR10 GR12 GR131 GR136 GR137 GR138 GR139 GR138 GR110 GR140 GR14 GR145 GR19 GR150 GR20 GR144 GR146 GR152 GR21 GR153 GR151 GR154 GR15 GR62... - Page 9 Item # Part No. Description Reference Center Stud – Bearing Cylinder Stainless Steel 304 Circle Clip Ø21 Stainless Steel A2 Ball Bearing (608 2rs) Ø22/8 E.7 Stainless Steel Support Bracket – Housing – Rail Slide Stainless Steel 304 Screw CHC M6-16 Stainless Steel A2 Circle Clip Ø8 Stainless Steel A2...
- Page 10 GR93 GR96 GR96 GR97 GR98 GR87 Figure 3-2. MajorSlice 300 Parts Diagram (continued) Item # Part No. Description Reference Pilot Ring - Bronze – Carriage Tray Release 20/16 Lg,16 BRONZE Carriage Tray Release Stainless Steel 304 Set Screw - Carriage Tray Release Stainless Steel 304 Adjustment Pilot –...
- Page 11 GRE13 Figure 3-3. MajorSlice 300 Electrical Parts Diagram Item No Part No. Description Reference GRE13 Motor 0.18kW 110V 60Hz Electrical Box NSYTBP16128 Locking Nut Gromet PG13.5 Elect. Box Pilot – On/off Button On/Off Button Frame LS-11 Locking Nut Gromet M20x1.5 156513 Electrical Cord With 3 Prong Plug 153687...
-
Page 12: Sharpener Assembly Parts
Sharpener Assembly Parts MajorSlicer 300 Operator’s Manual... - Page 13 Item # Part No. Description MATERIAL Body Stainless Steel Ring - Bronze, Ø5/8 Lg.5 Bronze Screw, CHC M5-10 Stainless Steel Bearing – Deburring Spindle Bronze Spring 1 – Deburring Spindle, #1 Stainless Steel Spring 2 – Deburring Spindle Stainless Steel Circle Clip Ø10 Stainless Steel Circle Clip Ø24...
-
Page 14: Maintenance
Maintenance Important Carriage tray and sharpener are calibrated to the unit and are not interchangeable with any other units. Lift only at the bottom of the unit. Lifting at any other area may cause damage to the components and Important will void the warranty. - Page 15 Lubrication Point Figure 4-2. Round Rail Lubrication Point 4.1.2 Square Rail Lubricate with PN 77933 USDA H-1 food grade grease (white). 1. Power off the machine by turning off the (#3) power switch. 2. Unplug machine from power source. 3. Close the (#4) index control knob by turning clockwise. 4.
- Page 16 4.1.3 Sharpener Assembly. 1. Lubricate both stone spindles of the sharpener assembly and turn them by hand assuring they turn freely. Locating Sharpener Pins Sharpener Pin Knob Lubrication Point - Spindles beneath stones Figure 4-4. Sharpener Assembly Lubrication DO NOT LUBRICATE MACHINE WITH PETROLEUM BASED, VEGETABLE BASED OR ANIMAL FAT Important BASED PRODUCTS.
-
Page 17: Cleaning, Sanitizing And Inspection Instructions
Cleaning, Sanitizing and Inspection Instructions Food Zones 11B 11D Front Back Figure 4-5. Food Zone Label Description Remarks Base – angled back Stainless steel Base – pylon side Stainless steel Knife – guard Stainless steel Knife – back Gauge plate – front Stainless steel Gauge plate - back Stainless steel... - Page 18 Splash Zones Figure 4-6. Splash Zones Label Description Remarks Base – pylon top Stainless Steel Base – pylon angled back Stainless Steel Base – back Stainless Steel Base – Slide Stainless Steel Base – top Stainless Steel Base – front Stainless Steel Base –...
- Page 19 Front Back Figure 4-7. Cleaning Slicer 1. Power off the machine by turning off the (#3) power switch. 2. Unplug machine from power source. 3. Close the (#4) index control knob by turning clockwise. 4. Turn the (#6) carriage tray release knob counterclockwise to release the carriage. 5.
- Page 20 Never use a hose, submerge, or place machine in a dishwasher. If a chemical sanitizer other than chlorine, iodine or quaternary ammonium is used, it shall be applied in accordance with the EPA-registered label use instructions. The machine must be clean and sanitized before each use. 9.
-
Page 21: Sharpen Knife
Sharpen Knife 1. Swing the Product Grip to the storing/non-use position and lock it in place. 2. Before mounting the sharpener assembly, adjust the index control knob to #11. 3. Pull the carriage tray handle to the home position as shown in Figure 4-10. 4. - Page 22 Lever Locating Sharpener Pins Sharpener Pin Knob Sharpener Assembly Mounting Sharpener Assembly Gauge Plate Sharpener Pin Holes Gauge Plate Knife Product Grip Handle Knife cover Product Grip Carriage Tray Handle Carriage Tray Index Control Knob Figure 4-10. Sharpening Knife MajorSlicer 300 Operator’s Manual...
-
Page 23: Electrical Diagram
Electrical Diagram 24vcc MOTOR 110V 60Hz S1 : OFF BUTTON S2 : ON BUTTON KM1 : CONTRACTOR km1 : AUXILIARY CONTACT RT : THERMAL RELAY rt : THERMAL RELAY CONTACT T : POWER SUPPLY V : LED INDICATOR Maintenance... -
Page 24: Troubleshooting
Troubleshooting Problem Solution No Power Check to make sure machine is plugged in. Check that the power source is working. Inspect the power cord for cuts or damage. Contact your local service agent. Index Control Knob won’t open Check that the carriage tray knob is tightened (hand tight only) in place. Bring carriage tray to the front/home position and tighten. -
Page 25: Specifications
Specifications Construction 304 Food/ Hospital Grade Stainless Steel 2.5mm thick Knife 11.81 in (300 mm) Drive Belt Motor 1/4 Hp (0.18 kW) Water/Dust Resistant Index Slice Thickness VARIOCUT system 0-.866 in (0-20 mm) Sharpener Assembly Independent Detached Sliding Carriage High Tech. with Stainless Guide System Dimensions: Overall H 21 7/8 in (577 mm... -
Page 26: Majorslice 300 Limited Warranty
MajorSlice 300 Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for one year. -
Page 27: For More Information
1 to reach on-call personnel. Fax Number 715-234-6967 E-mail US sales and product information at • prodinfo@ricelake.com International (non-US) sales and product information at • intlsales@ricelake.com Mailing Address Rice Lake Weighing Systems 230 West Coleman Street Rice Lake, WI 54868 USA Maintenance... - Page 28 MajorSlicer 300 Operator’s Manual...
- Page 30 November 06, 2014 PN 166125 Rev A...
