Summary of Contents for Well st100

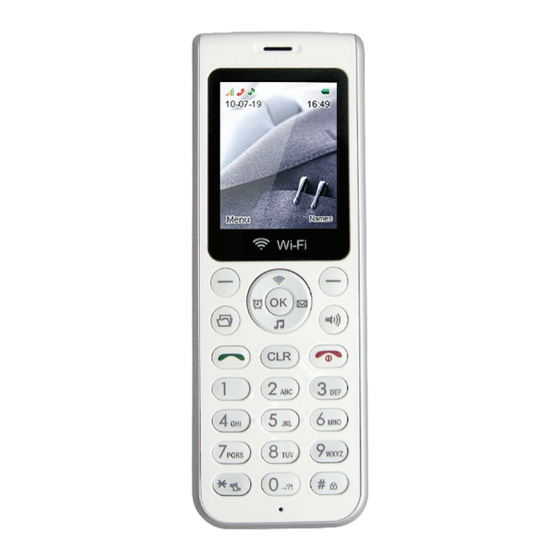

  • Page 1 Wi-Fi Internet Phone ST100 User Manual www.well.cz...
  • Page 3 Caution Notice for Safety Please read and follow these safety rules, which are for preventing any accident or dangers beforehand, and keep it where you can see easily even after you finish reading the user manual. Warning Violation of these instructions can possibly cause serious injury or even death. Warning Violation of these instructions can possibly cause the slight injury or product damage.
  • Page 4 Notices for safety Do not put the product in any heating product (microwave, heater, etc) to dry the product when it gets wet. Keep the product out of direct sunlight and places that are very humid. (0~+50 Celsius keep interior) Using the product in high temperature or high humidity and getting wet can cause the battery explosion or change in exterior appear- ance.
  • Page 5 Keep the Wi-Fi Phone and recharger away from children or pets. Use of damaged battery and putting battery into one’s mouth can affect their body, and it has dangers to occur electric shock. Do not hit or take the product apart. Free warranty is unavailable for damages from shock or disassembling.
  • Page 6 Keep the phone away from volatile substance (alcohol, benzene, thinner, etc). It can cause fire and change in appearance and color. Do not use the Wi-Fi phone and touch recharger or socket with wet hands. It can cause fire or electronic shock.
  • Page 7 Notices for safety Except for millwright, do not disassemble the product or remodel. For repair or checking, see customer counseling counter. Free warranty is unavailable for disassembling or shocking the product. Please follow the installation steps on this manual properly. Otherwise, reduction or working problem of the product can be caused.
  • Page 8 Check whether the call is available or not beforehand because emergency call is only available in coverage area. Be caution about possibility of interference. Because our wireless installation has possibility of interference, there is no service about safety of life. Install the product at somewhere horizontal, and avoid the shelf or place where is inclined.
  • Page 9 Do not cover the Wi-Fi Phone with the plastic wrap. The coating of the phone can be taken off. Keep the Wi-Fi Phone data separately. Data in Wi-Fi phone can be erased in case of upgrade or repair. Be caution about that manufacturer does not take responsi- bility for any damage from data loss.

  • Page 10: Table Of Contents

    Contents Basic compenents Phone instruction Phone book Basic compenents Power on, Power off Phone book Title for each part Making a call Save numbers Using battery Calling to recent number Set speed dial Recharging battery Calling by speed dial Delete speed dial Typing text messeage Calling by speed dial Regulating ear speaker volume during phone call...
  • Page 11 Text Message Setting Wi - Fi phone to register on the web Text Message Wallpaper setting site Light setting Inbox Firmware upgrade of Wi - Fi phone Time setting Sent message on the web site Time and date Draft Time server and world time Outbox Language New message...

  • Page 12: Basic Components

    Basic components Basic components Check if the product contains all the components on the picture after purchase, and please inquire where you purchase the product with any problem. Wi-Fi Phone Recharge rack Adaptor Battery User manual Caution Caution: Exclusive AP is needed for using Wi-Fi phone, and we suggest you to use AP that comes with Wi-Fi phone only.

  • Page 13: Title For Each Part

    Title for each part Earphone speaker LCD screen Speaker phone Phonebook Direction/OK Key /clear Battery cover Send Key Power on /off Key Dial/Call/End Keypad Microphone...

  • Page 14: Using Battery

    Using Battery Battery must be inserted before the use of Wi-Fi 1. Open the battery cover, and insert battery in 2. Close the cover for installation of battery. battery pack with labels to be upper surface. Battery is consumables, and the term of free guarantee is Use the battery from our company only.

  • Page 15: Recharging Battery

    Recharging Battery At the time of purchase, the product is not fully charged, so please recharge it before using for the first time. Battery will be fully recharged around 4 hours after connected to recharger. Using Wi-Fi phone during recharge, it will take longer time. Recharging status is available on the LCD screen if the phone is on during recharge.

  • Page 16: Typing Text Messeage

    How to type text message During typing message, by using button, user can move cursor up/down/left/right. And characters can be edited or inserted. Characters in front of cursor get erased one by one when right soft key is pressed. And when it gets pressed for a few second, all the character gets erased.
  • Page 17 upper 1 time at Navi key upper 1 time Typing text message and right 2 times For example, to type “@%+” at Navi key upper 2 times and left 3 times at Navi key Typing symbol At new message, select the numeric mode by pressing right soft key button.

  • Page 18: Explanation For Button Function

    Explanation for button function Menu Phone mode Left soft key Phone book Alarm Right soft key Speaker phone Call My menu AP search Clear/Cancel PQRS WXYZ Text message .,?!
  • Page 19 Icon sign Group 1 Wi-Fi network does not exist. Wi-Fi network is connected successfully for this much of signal. Wi-Fi network is connected successfully for this much of signal Wi-Fi network is connected successfully for this much of signal Wi-Fi network is connected successfully for this much of signal. Wi-Fi network is connected successfully for this much of signal Wait condition Wi-Fi network is not connected successfully for this much of signal...
  • Page 20 Icon sign Group 2 Phone is registered successfully to SIP server of service offerer. Phone is not registered successfully to SIP server of service offerer. Group 3 Vibration mode Sound/Vibration Mode Sound mode Silent ringer mode Group 4 Alarm indication Group 5 Missed call sign...
  • Page 21 Group 6 Change of call sign Group 7 Battery capacity indication Battery capacity indication Battery capacity indication Battery capacity indication Battery capacity indication Battery capacity indication...

  • Page 22: Voip Setting

    VoIP Setting Wi-Fi phone offers VoIP setting as a basic setting based on information of service provider. User will receive service provider’s setting from service provider that is already set at Wi-Fi phone or an arbitrary text message. Of course, passive VoIP setting addition is available. Please refer to “Setting VoIP”...

  • Page 23: Go To Flight Mode

    Go to flight mode 1. Left soft key at standby status -> Setting -> Wi-Fi setting-> flight mode 2. Turn on/off the flight mode by using direction key 3. Save the current flight mode status by using left soft key. Main menu 1.

  • Page 24: Phone Instruction

    Phone instruction Power on, Power off Press the button with sign for a few seconds. Then, the phone will be turned on or off. Caution When breakdown of the product is occurred or when phone doesn`t get turned on, turn on Wi-Fi phone after take off and re-connect the battery.

  • Page 25: Calling To Recent Number

    Calling to recent number After pressing at standby screen, select phone number by using key, and press again. Calling by speed dial Press short cut number for a few seconds. However, if shortcut number is more than 2 digits, press the last digit of the shortcut number for a few seconds.

  • Page 26: Receiving Call

    Receiving call When the phone rings, press to receive phone call. To end the phone call, press Missed call When the phone rings, press to receive call, and press to end the call.

  • Page 27: Phone Book

    Phone book Name, Phone number, personal information can be saved or searched at Wi-Fi phone memory. menu → phone number search is available by selecting phone book. After pressing phone book button, user can search phone number directly. Save numbers User can add a new number in phone book during phone call by pressing menu, pressing phonebook, then, pressing new contact.

  • Page 28: Set Speed Dial

    Set speed dial Speed dial can call from 0 to 99 (100 dials) easily. At standby status, Select menu → phonebook → speed dial. Select the number by using direction key, press menu button. Then, user can put the number directly. When number input is done, press button. Then it will be saved. Delete speed dial At standby status, select menu →...

  • Page 29: Group Management

    Group management Function that can manage phone numbers by groups. It offers basic groups like black list, friends, family, customer, work. Group creation At standby status, select menu → phonebook → group management. Press direction key to see group lists. To create group, press menu button and press new group.

  • Page 30: Call History

    Call history View call history At standby status, select menu → call history. Check total call history, missed call, sent call, received call and call used duration by pressing direction key If menu button is pressed on call history screen, serve menu below will come up. View detail shows detail of the call history.

  • Page 31: Call Duration

    Call duration It shows last call, received call, sent call and call time. At standby screen, select menu → call history → call duration. represents last call duration. represents received call duration. represents sent call duration. represents all call duration. When you press menu button after selecting call duration, time initialization screen will come up.

  • Page 32: Text Message

    Text message Inbox When new message is received, it notices user with reception notice screen, user can check the contents by selecting menu → Text Message → Inbox. Inbox can storage maximum 100 messages. And when it gets over 100 messages, it erases the oldest message one by one. User can delete, respond, forward, lock, view and save message by selecting menu at inbox screen.

  • Page 33: Sent Message

    Sent message Sent message can store maximum 100 messages, and only messages that are sent successfully get stored. User can check the content by selecting menu → text message → sent message. User can delete, respond, forward, lock, view, save message or save number by selecting menu on the sent message screen.

  • Page 34: New Message

    New message At standby screen, user can select new message by pressing key. Or by selecting menu → text message → new message. Message will be sent when user press after typing message and entering receiving number.

  • Page 35: Diary

    Diary Diary...

  • Page 36: Alarm

    Setting alarm Select menu → dairy → alarm. User can set the alarm time by selecting Edit in menu. Current time Time of a day that alarm gets vitalized Day of a week that alarm gets vitalized Alarm sound Alarm repeat counts Alarm interval Alarm note Save the alarm setting by pressing menu button.

  • Page 37: Invitalize, Delete, Edit Alarm

    Invitalize, delete, edit alarm time Select menu → tool → alarm time. Select alarm by pressing direction key When menu button is pressed, serve menu below will show up. Invitalization: Invitalize alarm setting. Reference Delete: Delete alarm setting. Edit: Edit alarm setting. Calendar...

  • Page 38: Creat New Event

    Create new event Select menu → dairy → calendar. Choose date by using direction key When menu button is pressed, serve menu below will show up. Select Name, place, date, time, duration, notification after selecting type of event at New event. Save new event setting by using menu button.

  • Page 39: Calender Setting

    Calendar setting Select menu → dairy → Calendar. Select setting after pressing menu button. Then user can edit duration, notification, date, starting time. World time World time shows current time of area of time zone. Select menu → dairy → world time. User can check current time of chosen city after choosing city by using direction key...

  • Page 40: Calculator

    Calculator It offers basic calculation of addition, subtraction, multiplication, and division. Select menu → dairy → calculator. addition subtraction multiplication division Calculation result Delete all Erase one digit or help by digit...

  • Page 41: Sound Mode

    Sound mode User can set different ringtone of the phone for different situations. Select menu → Sound mode. User can select wishing phone mode by using direction key For mode vitalization, press menu and select vitalization. To change setting, select setting after pressing menu button. Ringtone types Ringtone volume Vibration setting...
  • Page 42 User can change setting by using direction key Save it by pressing menu button.

  • Page 43: Setting

    Setting User can set the many personal settings like wallpaper, light, time, language, automatic key password of the phone. Wallpaper setting At standby screen select menu → setting → display setting → Wallpaper. Select by using direction key , and user can check the wallpaper by pressing menu button.

  • Page 44: Light Setting

    Light setting At standby screen, select menu → setting → Display setting → Light setting. Select item by using Control the brightness of the screen by using Save the light setting by pressing menu button.

  • Page 45: Time Setting

    Time setting Time and Date At standby screen, select menu → setting → Display setting → Time setting → Change time. Select item by using key. By using buttons, enter the current time. Reference By using buttons, enter the current date. Adjust the time form by using key.

  • Page 46: Time Server And World Time

    Time server and World time When time server starts, the time and date will be different depend on place where user sets the time. So, before to set the world time, user mush set the server. User doesn’t need to set the time server because it gets set when the phone gets released from the factory.

  • Page 47: Language

    Language setting User can select the language. At standby screen, Select Menu → Setting → Display setting → Language setting. Select wished Language setting by using key. Select language by using key. Save language setting by pressing menu button. Input timeout User can adjust respond time of keypad when typing text message.

  • Page 48: Automatic Key Lock

    Expert: Keypad response is short. Reference Commoner: Keypad response is average. Beginner: Keypad response is long. Save input timeout setting by pressing menu button. Automatic key lock Automatic keypad lock is available. At standby screen, select Menu → Setting → Display setting → Automatic key lock. Select wishing setting by using key.

  • Page 49: Wifi Setting

    WiFi setting User can set or add a new Wi-Fi network. AP setting At standby screen, select Menu → Setting → WiFi setting → AP setting. Select AP that needs to be set by using key. When menu button is pressed, following serve menu will come up. Down: Move down the selected SSID.

  • Page 50: Add New Ap

    Add a new AP At standby screen, select Menu → Setting → WiFi setting → AP search. Select wished AP by using key. When menu button is pressed, following serve menu will come up. Up : This will be used to move selected AP up among the already appointed AP. Reference Down : This will be used to move selected AP down among the already appointed AP.
  • Page 51 Step 1 : Search for valid Wi-Fi network AP search message will show up when user press button at standby screen. Step 2 : Select proper AP at the list, and if selected AP is not in user’s network composition list, user must register.
  • Page 52 Security Type Further Setting Further Setting Info No Security Please input Index No WEP 64 Index and Password...
  • Page 53 Please input Index No WEP 128 Index and Password Please input Password WPA-PSK...
  • Page 54 WPA2-PSK Please input Password Please input Password 802.1X IP Type Settings...
  • Page 55 IP Type Further Setting Further Setting Info DHCP Please input IP address Gateway Please input Gateway address STATIC IP Mask Please input Mask address...

  • Page 57: Call Setting

    Call setting Call setting for responding for the calls. At standby screen, select Menu → Setting → Call setting. Select response mode by using key. Select response mode, that user wants, by using button. Call key : Call reception is available by only call key. Reference All key : Call reception is available by all key.

  • Page 58: Call Lock

    Unconditional : Switch all the call unconditionally. Reference During phone call : Switch only during the phone call. No response : Switch when the call doesn’t respond. To use reception switch function, user must set Activate or Inactivate. Call lock At standby screen, select Menu →...

  • Page 59: Change Code For Call Lock

    Change code for call lock At standby screen, select Menu → Setting → Call lock. Select call lock code change by using button. Enter the current password. Reference Enter the new password. Re-enter the new password for verifying. Save the setting by pressing menu button. Block sending/receiving Receiving At standby screen, select Menu →...

  • Page 60: Sending

    Sending At standby screen, select Menu → Setting → Block sending/receiving → Sending. Select option by using button. Internationally call Mobile number 060/070 Save the setting by pressing menu button. Security setting When security setting is on, user must enter the password when turning on the phone. Activate the phone lock At standby screen, select Menu →...

  • Page 61: Change Password For Lock

    Password input screen will show up when user press menu button. It gets activated after menu button gets pressed. Change password for phone lock To prevent disapproved user, security number for phone lock is used, and manufacture`s initial password is 0000. To prevent disapproved user, please change the password. At standby screen, select Menu →...

  • Page 62: Phone Information

    Enter the password Re-enter the password for verifying. Caution Be cautious about that all the user information including phone numbers, call history will be erased. At stand-by screen, select menu → setting → phone information. Select serve menu by using key.

  • Page 63: Wi-Fi Phone To Register On The Web Site

    Wi-Fi phone to register on the web site CAUTION!! Wi-Fi Phone and a desktop or laptop computer must be connected to the same AP(Access Point) STEP 1: You can see the IP address of the phone in the menu(Phone Setting→My phone info →Network info) STEP 2: Please, write the IP and Port(8080) the following in the URL of Explore (example: http://192.168.200.11:8080)
  • Page 64 STEP 4: Click the “MENU” at the top-left in the web page then you can confirm menus for administration as below.
  • Page 65 STEP 5: Click the “SIP Config” and then you can see SIP Profile 1, SIP Profile 2, SIP Profile 3, SIP Profile4 .→ input as below.

  • Page 67: Firmware Upgrade Of Wi-Fi Phone On The Web Site

    Firmware upgrade of Wi-Fi phone on the web site. CAUTION!! Wi-Fi Phone and a desktop or laptop computer must be connected to the same AP(Access Point) STEP 1: You can see the IP address of the phone in the menu(Phone Setting→My phone info →Network info) STEP 2: Please, write the IP and Port(8080) the following in the URL of Explore (example: http://192.168.200.11:8080)
  • Page 68 STEP 4: Click the “MENU” at the top-left in the web page then you can confirm menus for administration as below.
  • Page 69 STEP 5: Click the “Firmware upgrade” and then you can see the “Current Firmware” and “New Firmware”.
  • Page 70 STEP 6: When you upgrade the firmware on the web .lzma file selection.
  • Page 71 STEP 7: Click upload. STEP 8:You can see “Prepare to download ...%” on the lcd screen.

  • Page 72: Before Contact To Service Center

    Before contact to service center When the Wi-Fi phone doesn`t get turned on Check that if the phone is properly installed. Check that if the battery is recharged enough. Press the power button of Wi-Fi phone. Take off the battery and re-insert it when the phone is not working as the power is turned When the phone call doesn`t work even after purchase of additional Wi-Fi phone.
