Camon C6 Operating Instructions Manual

Rotavators with powersafe clutch
Hide thumbs Also See for C6:

Advertisement

Table of Contents

See also: Operating Instructions Manual
Rotavators
Models
C6
·
C8
·
C10
·
C13
with PowerSafe
Clutch
®
Operating Instructions
Before commissioning the machine, read operating instructions
and observe warning and safety instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Camon C6

Summary of Contents for Camon C6

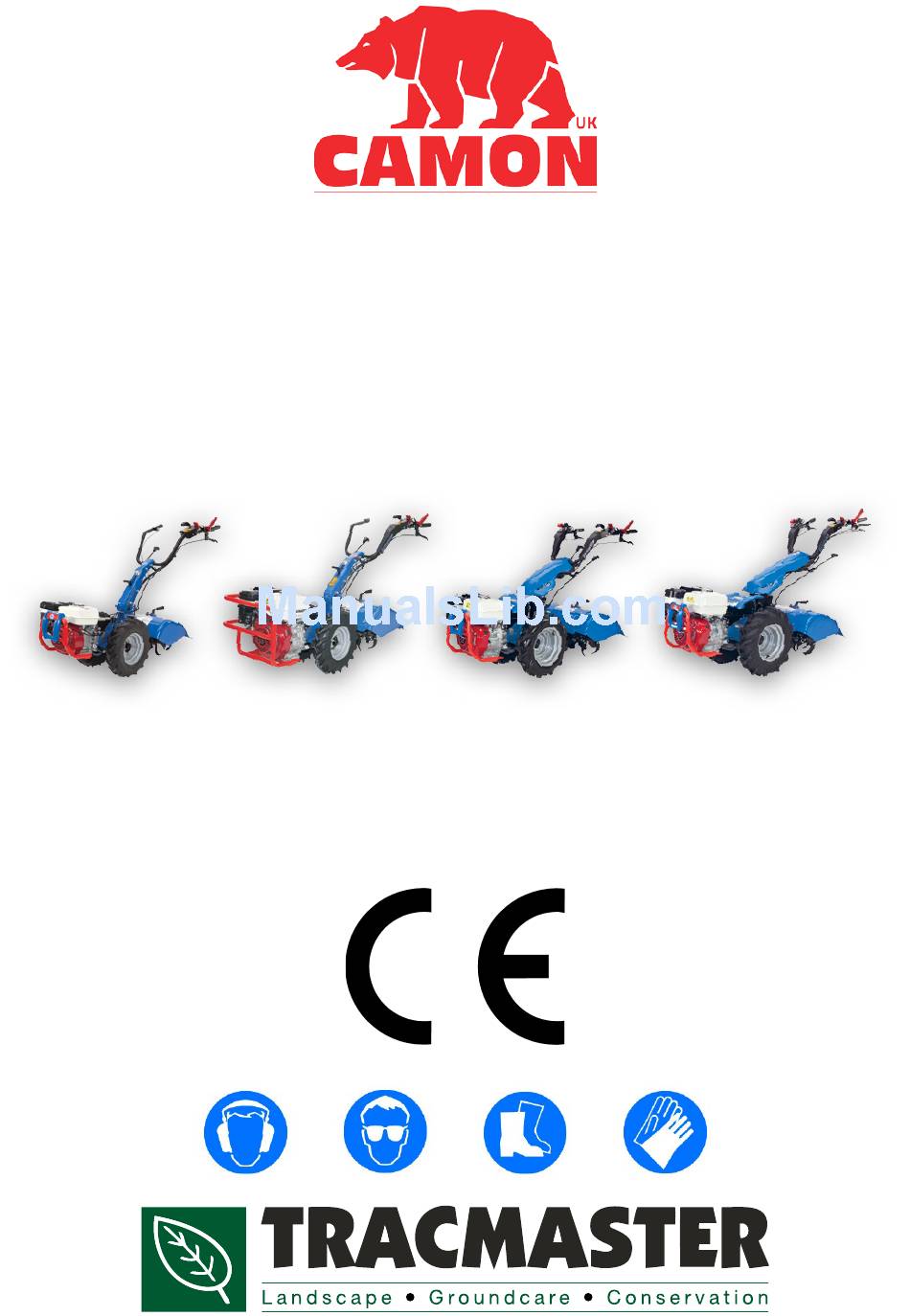

  • Page 1 Rotavators Models · · · with PowerSafe Clutch ® Operating Instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions.
  • Page 2 CAMON Rotavators Contents Page 3 Safety Page 4 Controls Diagrams - C6/C8 & C10 Page 5 Controls Diagrams - C13 Controls Description Page 6 Assembly Instructions Page 7 How to Start Petrol Engine How to Start Diesel Engine Page 8...
  • Page 3 CAMON Rotavators Safety ALWAYS start the engine in the open air DO NOT smoke when refuelling DO NOT mix OIL with the fuel ALWAYS stop the engine before making any adjustments, refuelling, moving or cleaning, or when the unit is unattended...
  • Page 4 CAMON Rotavators Controls C6 & C8 Page 4 PSR/AM/0912...

  • Page 5: Controls Description

    CAMON Rotavators Controls Controls Description MACHINE STOP LEVER (red lever that stops the machine when released) ENGINE STOP LEVER CLUTCH CONTROL LEVER GEAR LEVER (the location of different gears are shown on the selector) PTO LEVER (there is a safety device that prevents engagement with reverse gear)

  • Page 6: Assembly Instructions

    CAMON Rotavators Assembly Instructions 1. Remove the machine from its packing case. 2. Rotate the handlebar stem to the operating position and fit the handlebars - check operation and routing of cables. 3. Fit the wheels, ensuring the correct rotation (see diagram A below) and check the tyre pressures (20psi). 4. Fit the gearbox dipstick.
  • Page 7 CAMON Rotavators To Start Petrol Engine Using the dipstick provided, check the engine oil level. Top up with 10w/40 oil if necessary. Check fuel level. Only use unleaded petrol from a clean container. Never re-fuel when the engine is hot or running. Leave 1” air space in the fuel tank. Turn the fuel tap to ‘ON’ position, if the engine is cold set the choke lever to ‘ON’ position.

  • Page 8: Operation

    CAMON Rotavators Operation Use handlebar adjuster (G) to set handlebar height. Hold the handlebar and pull up the clutch lever (C). Depress the red stop lever (A) and select working speed 1 (D). NEVER select a higher wheel speed for work.

  • Page 9: Operating Hints

    CAMON Rotavators Operating Hints LET THE MACHINE DO THE WORK. Excessive downward pressure on the handlebars may cause the machine to jump. Apply gentle pressure and the machine will find its own digging depth according to the type of ground. If the ground is hard, position the depth adjuster centre knife on the top hole and make several passes until the desired depth is achieved.
  • Page 10 CAMON Rotavators Maintenance Guide For engine maintenance please refer to engine manufacturers manual. After every hour of operation stop the engine and remove the spark plug cap. Check engine oil level (recommended oil SAE 10w/40). Remove all foreign matter from the digging knives assembly e.g. wire, string, grass etc.

  • Page 11: Maintenance Programme

    CAMON Rotavators Maintenance Programme OPERATION EVERY EVERY EVERY EVERY 6 WEEK MONTH MONTHS ENGINE Check engine oil level 10w/40 See separate engine manual GEARBOX Check gearbox oil level & (see page 13) CONTROLS Check nuts & bolts Ensure clutch cable has free play...

  • Page 12: Service Information

    CAMON Rotavators Service Information Every Week • With the machine on a level surface, check the gearbox oil level, top up as necessary using the correct oil as listed below. The gearbox oil level should reach between the two notches on the dipstick (fig. 2, C) .
  • Page 13 CAMON Rotavators Service Information Gearbox Oil Quantities CAMON C6/C8/C10 = approx 2.3 litres CAMON C13 = approx 2.6 litres Oil Type Fuchs Titan Hyp 90 Valvoline 80w-90 GL-5 Morris EP80w/90 API GL5 Castrol EPX 80w-90 Motorex Hypoid SAE 80w/90 API GL5 Millers...

  • Page 14: Troubleshooting Guide

    CAMON Rotavators Troubleshooting Guide PROBLEM POSSIBLE CAUSE REMEDY Unable to select gear Pressure washing has removed Grease the detent ball and lubrication of gear lever detent quadrant. ball. Unable to pull engine over Machine has been tipped on Remove spark plug and air side for cleaning and engine filter. Stand to one side and...

  • Page 15: Risk Assessment

    CAMON Rotavators Risk Assessment HAZARDS RISK LEVEL ACTION NEEDED General The machine should only be used by trained operators. Machine tipping over Do not use on slopes over 25 Machine jumping High Ensure the centre knife is in good condition and adjusted to suit the ground conditions.

  • Page 16: Service Record

    CAMON Rotavators Service Record To ensure your machine is kept in peak condition, we recommend that you have it serviced regularly by one of Tracmaster’s Authorised Agents. To find out who your local Authorised Agent is, contact Tracmaster on 01444 247689. SERVICE SCHEDULE First 2 Weeks or 30 Hours of Work - whichever is sooner (see page 13)

  • Page 17: Warranty Registration

    CAMON Rotavators Warranty Registration To validate your warranty please complete the form below and return it to: Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill, RH15 9LR Alternatively visit www.tracmaster.co.uk and complete the online form. CUSTOMER DETAILS Name: ....................Company (if applicable): ....................
  • Page 18 CAMON Rotavators Machine Overview Diagram Engine stop lever C6 & C8 Machine stop lever Parking brake lever Throttle lever Clutch lever Wheel speed lever Digging knives engagement lever Handlebar adjuster Petrol cap Gearbox oil level Depth adjuster Digging knives Engine oil...
  • Page 19 Decompression lever YANMAR DIESEL ENGINE Vibration & Sound Levels MACHINE VIBRATION M/SEC - 3 AXIS SOUND LEVEL dB(A) CAMON C6 Rotavator 3100 85.0 CAMON C8 Rotavator 3100 85.0 CAMON C10P Rotavator 3000 85.0 CAMON C10D Rotavator 3600 97.0...
  • Page 20 © Tracmaster Ltd 2012. Specifications are subject to change without prior notice. Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR T: +44 (0) 1444 247689 F: +44 (0) 1444 871612 W: www.tracmaster.co.uk E: info@tracmaster.co.uk...
