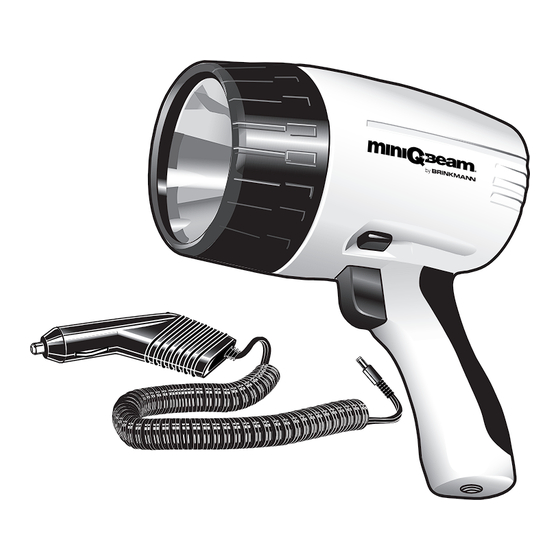

- Page 1 ® Halogen Spotlight WARNING READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS IN THIS MANUAL TO AVOID PERSONAL INJURY OR PROPERTY DAMAGE. OWNER’S MANUAL & OPERATING INSTRUCTIONS...
- Page 2 Do not operate in close proximity of combustible or flammable materials. • Do not attempt to operate spotlight if cord, plug, bulb or any part of the spotlight is damaged or corroded. • Only use DC lighter plug that is provided with the Mini-Q-Beam ® spotlight or its replacement. •...
- Page 3 4 D size batteries or from a To Operate 12-volt DC lighter plug. Mini-Q-Beam Using 4 D Size Batteries (Cordless Mode): Always use alkaline batteries for maximum brightness and longer run times. Step 1: Follow instructions under “To Replace Batteries” on page 4.
- Page 4 Step 2: To unlock and turn spotlight OFF, push the lock button to the UNLOCKED position as shown in Illustration 3. NOTE: To lock the Mini-Q-Beam in the OFF position, release trigger switch, then push the lock button to the LOCKED position as shown in Illustration 2.
- Page 5 Step 5: Turn head assembly clockwise until secure. Illustration 4 Only use Brinkmann halogen bulb that is designed for the Mini-Q-Beam To Replace Bulb spotlight as a replacement. Use of any other bulb may result in poor performance and may damage your spotlight.
- Page 6 • Use only Brinkmann halogen bulb that is designed for your Mini-Q-Beam spotlight. Use of any other bulb may result in poor performance and may damage your spotlight. • After months of use, cigarette lighters can build up corrosion that may prevent the DC lighter plug from making good contact.
- Page 7 Model 802-1724-1 Black Model 802-1725-1 Green Camo Pigtail Adapters Pigtail adapter with battery terminal clips allow Mini-Q-Beam spotlights with DC lighter plug to operate from a 12-volt battery. Model 802-1704-0 (2-Ft. Cord) Model 802-1705-0 (10-Ft. Cord)
-
Page 8: Year Limited Warranty
1-YEAR LIMITED WARRANTY For 1-year from date of purchase, The Brinkmann Corporation warrants the Mini-Q-Beam ® spotlight against defects due to workmanship or materials to the original purchaser. The Brinkmann Corporation’s obligations under this warranty are limited to the following guidelines: •...
