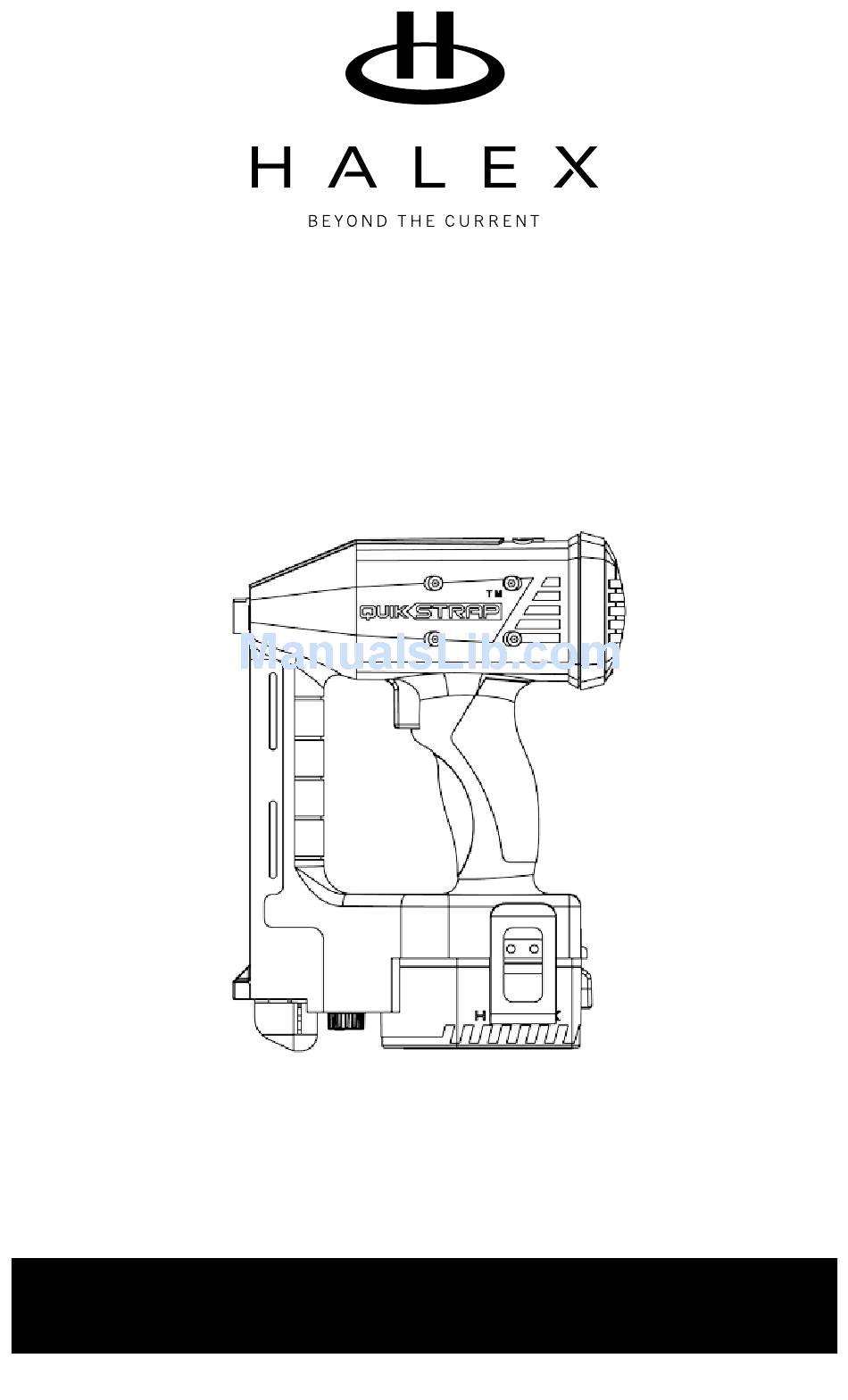

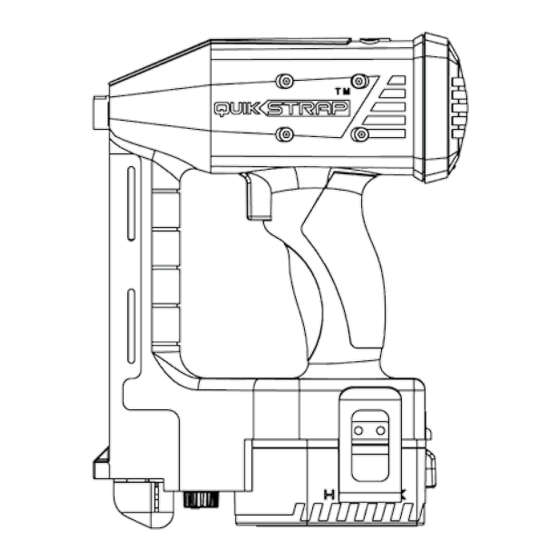

- Page 1 QUIKSTRAP CABLE STAPLER ™ INSTRUCTION MANUAL Catalog Number 51915 SAVE THIS MANUAL FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
This manual contains important sections relative to user safety, tool use and tool main- tenance. Therefore, make sure this manual is present at all times for all users. Extra copies, free of charge, are available online at quikstrap.com or by calling 1-800- 749-3261. -
Page 3: Product Description
1. PRODUCT DESCRIPTION Congratulations on your purchase of the QuikStrap™ Cable Stapler! We hope you find this tool to be an indispensable part of your wiring jobs. Please read this entire manual so you can thoroughly understand the safe and proper operation of your tool, maximize time in service and ensure safe use. - Page 4 • Always wear appropriate hearing protection during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss. • Use only QuikStrap Staples. The use of other types of ™ fasteners could result in serious bodily injury to you or bystanders.
- Page 5 77°F (25°C). Keep the tool inside the tool case or tool bag that it came in. • Always use specified QuikStrap™ Staples by Halex. Use of non-Halex brand staples may permanently damage the tool and cause bodily injury.
-
Page 6: Safety Instructions For Staplers
3. SAFETY INSTRUCTIONS FOR STAPLERS WARNING: Pacemaker wearers, exposure to magnetic fields generated by the tool can result in death or serious injury. Pacemaker wearers should not operate this tool. If you have any reason to suspect that interference is taking place, turn off the tool immediately and seek medical assistance. - Page 7 • Refer to the Maintenance section for detailed information on the proper maintenance of the tool. • Do not drive fasteners near edge of material. The work- piece may split causing the fastener to ricochet, injuring you or a bystander. Be aware that the staple may follow the grain of the wood, causing it to protrude unexpectedly from the side of the work material.
-
Page 8: Stapler Operation Instructions
2. Do not expose charger to water including rain or snow. 3. Use of an attachment not recommended or sold by Halex may result in a risk of fire, electric shock, or injury to persons. 4. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger. - Page 9 Battery Charging Procedure Y our charger is designed to use standard 120 volt AC, 60 Hz power. Do not use DC or any other voltage. Battery charge time is approximately 90 minutes. Charging is controlled by a microprocessor. Charger will charge the battery when the battery’s temperature is between 32°F(0°C) and 113°F(45°C).
- Page 10 You may also charge a partially discharged pack whenever you desire with no adverse affect on the battery pack. 5. Halex battery packs that are labeled “Li-ion” should only be used with the Halex battery charger supplied with your tool. The charger should be labeled “Li-ion“.
-
Page 11: Operating Instructions
7. Do not immerse charger in water or any other liquid. Features (Fig. 3) Fig. 3 A. Contact Trip - pin B, C. Staple sight windows B, C. Magazine D. Magazine release (both sides) E. Power Switch / Depth Adjustment Knob F. - Page 12 Loading the Tool (See Fig. 5) DANGER: Always use specified QuikStrap™ Staples. Use of non- Halex brand staples may permanently damage the tool and could result in serious bodily injury. Use of non- Halex brand staples will void the Fig.
- Page 13 To Load Fasteners: 1. Read Instruction Manual before using tool. 2 Turn Power Switch to “Off” Position. 3 Remove battery. Orient stapler so the magazine is facing up. 4. SQUEEZE pusher release and then pull magazine rail / pusher completely back. 5.
- Page 14 Adjusting Staple Depth (Fig. 6) The depth that the fastener is driven can be adjusted using the depth adjustment knob on the back of the Fig. 6 tool. Staple depth is also very dependent on how firmly the handle is held to resist Power Knob kickback (“recoil”).
-
Page 15: Staple Specifications
5. STAPLE SPECIFICATIONS WARNING: USE ONLY WITH SPECIFIED QUIKSTRAP™ STAPLES. USE OF NON-HALEX BRAND STAPLES MAY CAUSE RISK OF INJURY AND/OR DAMAGE TO TOOL. USE OF NON-HALEX BRAND STAPLES WILL IMMEDIATELY VOID THE WARRANTY. 6. STAPLER MAINTENANCE & BATTERY DISPOSAL CAUTION: Use only mild soap and damp cloth to clean the tool. -
Page 16: Troubleshooting
Service Information Whether you need technical advice or repair (this product is not user serviceable) please contact Halex. 1-800-749-3261 NEXT BUSINESS DAY SERVICE POLICY: If you experience a service issue with your Stapler, we will have a replacement in your hands next business day. Simply give us a call. 1-800-... -
Page 17: Re-Order Information
The above warranties are limited to tools which are used with Halex- brand staples; if non-Halex brand staples are used with the tool, these warranties shall be null and void. - Page 18 SOLE REMEDY: THE SOLE REMEDY OF THE PURCHASER OF ANY TOOL IN CONNECTION WITH ANY BREACH OF ANY APPLICABLE W ARRANTY BY HALEX SHALL BE, AT THE DISCRETION OF HALEX, EITHER REPAIR OR REPLACEMENT OF THE TOOL, OR REFUND OF THE PURCHASE PRICE FOR THE SAME.
- Page 19 ADDITIONAL LIMITATIONS/INFORMATION The warranties herein are only valid for tools purchased and used in the United States, its territories and in Canada. These warranties and limitation shall be enforced to the fullest extent permitted under applicable law. Specific rights may vary from state to state or province to province.
- Page 20 If we can’t resolve the issue over the phone, we will have a replacement in your hands the next business day. Simply give us a call. Designed and engineered in the USA. Made in China. Instruction Manual P/N 49979 Copyright 2012 HALEX Printed for Halex in China 08/12...
