Club Piscine SG8 Assembly & Operating Instructions

Magnetic stepper
Hide thumbs

Advertisement

Table of Contents

Assembly & Operating Instructions
for

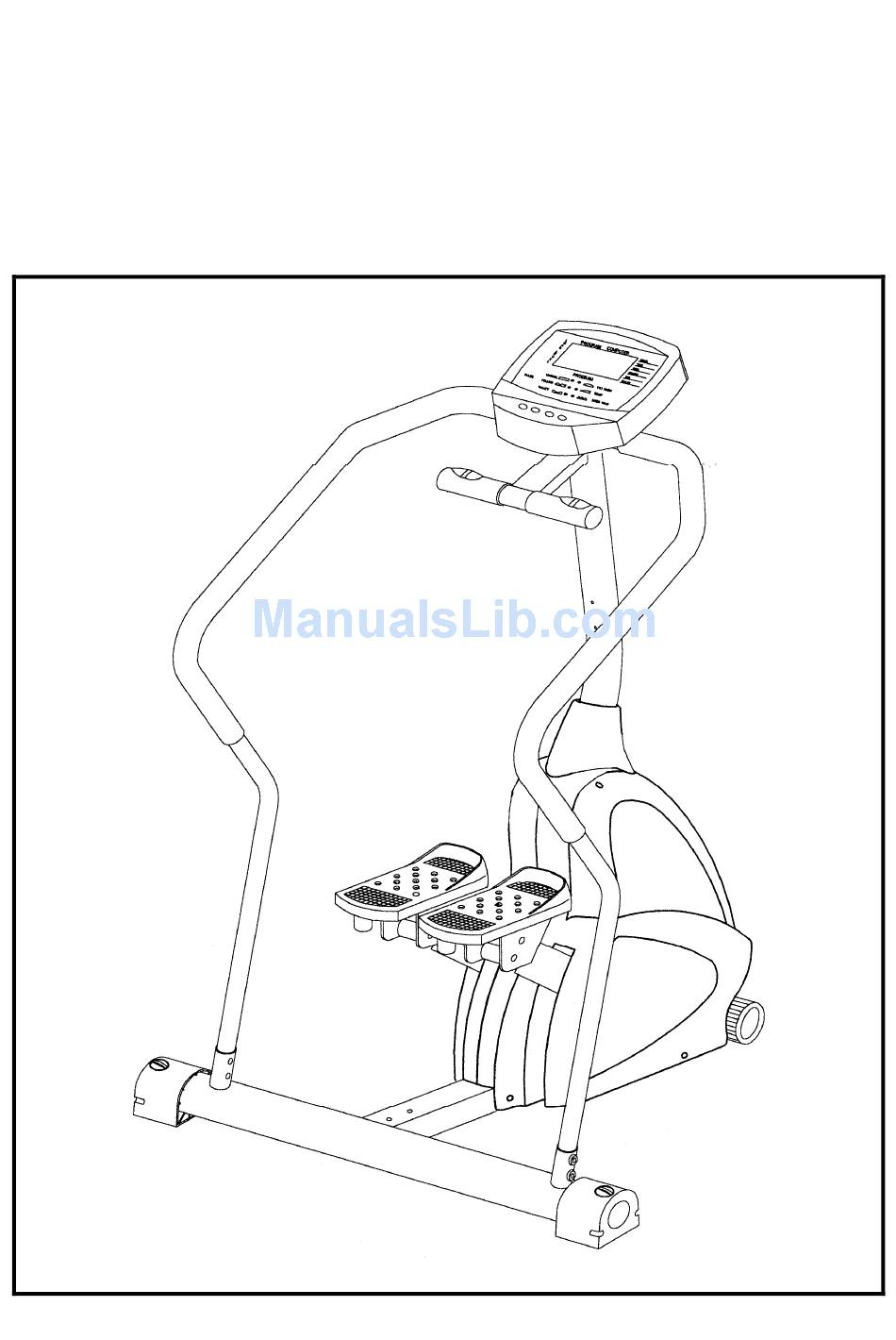

Magnetic Stepper
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Club Piscine SG8

  • Page 1 Assembly & Operating Instructions Magnetic Stepper...
  • Page 2 COMPLETE BIKE ASSEMBLY...

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Q’TY DESCRIPTION Q’TY Main Frame Washer 19 x 8 Foot Tube Screw M8 x 10L Stabilizer Handlebar Post 2 5 C Clip Φ Pulley I O-Ring Pulley II Sensor plate Magnetic System Magnet Bearing Housing Screw φ8 x 33.5L Belt I Screw M6 x 12L Belt II...

  • Page 4: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1. ASSEMBLING THE STABILIZER (3) UNTO MAIN FRAME BY SCREN (49) & WASHER (48). STEP 2. SLIDE THE TOP COVER (72) INTO HANDLEBAR POST (4). CONNECT THE SENSOR WIRE (67) & (63) TOGETHER. SLIDE HANDLEBAR POST ONTO MAIN FRAME.
  • Page 5 STEP 3. ASSEMBLING THE HANDRAIL ONTO THE FRAME BY SCREWS (55) ,(56) & (64). STEP 4. CONNECTING THE SENSOR WIRES (60) & (63) ONTO COMUTER. FIXING COMPUTER ONTO HANDLEBAR POST BY SCREWS (69).

  • Page 6: Key Guide

    EXERCISE MONITER INSTRUCTION MANUAL BC-51126 FRONT VIEW SAC N TIME C OUNT C AL PULSE MANUAL FAT BURN VALLEY INTERVALS KEY GUIDE ENTER/MODE: Press this button to enter the function setting from Time, Distance, Calorie, and pulse limit. Press this button to confirm the setting values. : 1.

  • Page 7: Functions And Operations

    START/STOP: 1. Press this button to start or stop exercising. 2. Hold this button for 2 seconds can enter initial mode and reset value to zero. POWER UP 1. Before all, you should connect the connection cables with monitor together. 2.

  • Page 8: Operation

    CALORIE Press the MODE button until the mark appear on the position of Calorie. Count up: Without setting the calorie value, the monitor will count up the calorie from 0.1~999.0. Count down: Setting the exercise calorie from 1.0~999.0, the monitor will count down from your setting values. Once reach setting value, monitor will alarm.
  • Page 9 2. Without setting the value of time, distance, calories and pulse a. Press the UP or DOWN button to choose desired program from Manual. Program 1 to program 6. b. Press the ENTER button to confirm your desired program. c. Press start to begin the exercise. Note: Program 6 is a very unique program, it allows the monitor to adjust the workout resistance according to your heart rate automatically.
