User Manual

Please read, understand and follow the information contained in this User Manual before installation and

use this product.

Customer Service Department:

1-800-749-2258

customercare@moorecoinc.com

(Monday – Friday, 8AM-5PM CST)

User Manual – Version 1.1

Table of Contents

Need help?

Do you have a question about the OneBoard and is the answer not in the manual?

Questions and answers

Summary of Contents for Best-Rite OneBoard

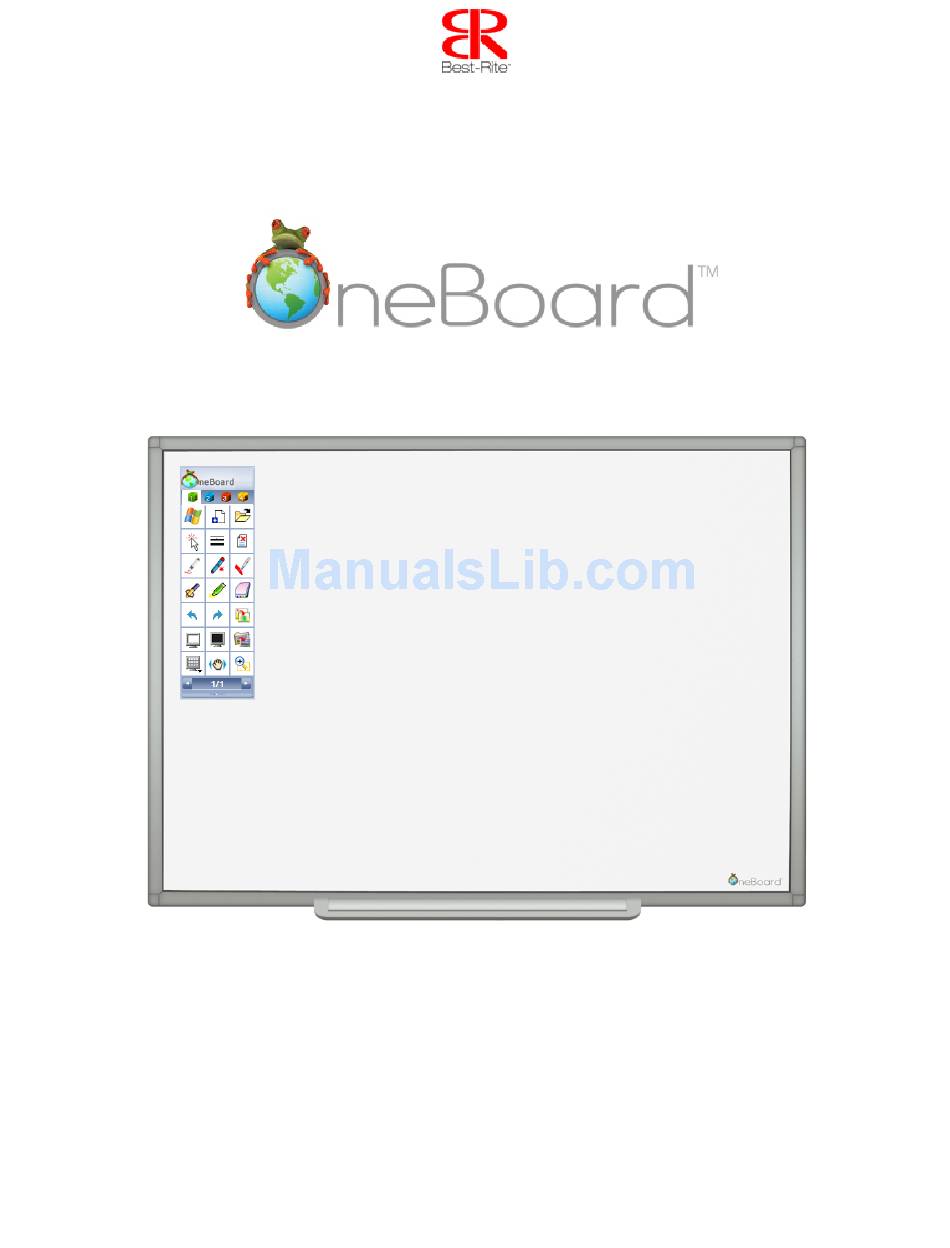

Page 1 User Manual Please read, understand and follow the information contained in this User Manual before installation and use this product. Customer Service Department: 1-800-749-2258 customercare@moorecoinc.com (Monday – Friday, 8AM-5PM CST) User Manual – Version 1.1...
Page 2: Table Of Contents
Contents Safety Information Scope of Supply OneBoard Software Installation OneBoard Connection OneBoard Configuration Gestures OneBoard Software Operation Notices Warranty Page 2 of 23...
Page 3: Safety Information
Safety Information This product was designed for and is intended for use indoor via a USB cable connected to a desktop or laptop computer. Using this product in an outdoor and/or wet environment could damage this product and create potentially unsafe conditions. Meaning of Signal Words Indicates a potential hazard that could result in serious injury or death and/or property damage.
Page 4  When you operate this product, the AC power outlet should be near this product and easily accessible.  The fact that this product operates satisfactorily does not imply that the AC power outlet is grounded and that the installation is completely safe. For your safety, if you are in any doubt about the grounding status of the AC power outlet, consult a qualified electrician.
Page 5  Use only the included power cord and power adaptor. If another power cord or power plug or power adaptor is used, fire or electric shock might result.  Do not operate this product in a location with high temperature or high humidity. This product is suitable to work under: Temperature: 10°C to 40°C;...
Page 6  Do not install this product where it may be exposed to direct sunlight, near heating equipment, or near air-conditioning vents.  Do not install this product in strong sunlight or strong lighting.  Do not install this product in locations where the temperature may change suddenly. ...
Page 7: Scope Of Supply
Scope of Supply After unpacking, please make sure all of the following parts (subject to your purchase) are present: OneBoard – USB Item Description Quantity Board with built-in IR sensor Tray Hardware pack (Z-hanger, side tubes, screws, screw anchors)
Page 8: Oneboard Software Installation
OneBoard Software Installation DO NOT connect OneBoard USB cable to your computer before following the steps below. Step 1. Install OneBoard software To run the installation program, double-click “OneBoard_Setup.exe” on your installation CD. You may see a progress bar initially.
Page 9 Choose the installation destination and click “Next” to continue. You may need to click “Install” on the next screen. Your installation progress will be displayed. Page 9 of 23...
Page 10 Click “Finish” to exit the installation program after the OneBoard software has been installed. Plug the USB cable into your OneBoard. Plug the other end of the USB cable into your computer’s USB port. The OneBoard has been detected and is ready to use when your computer displays the following dialog: ...
Page 11: Oneboard Connection
OneBoard Connection In order to use the OneBoard, you must have a PC, projector, and OneBoard USB connected as shown in the figure below. Once connected, you will need to adjust your projector so that the projected image is fully within the OneBoard working area.
Page 12: Oneboard Configuration
OneBoard Configuration Open the OneBoard driver by double-clicking the OneBoard driver icon on your desktop. To access the settings for your driver, right click the OneBoard icon in your notification area, and choose “settings”. Screen Calibration You will be prompted to calibrate your screen after the first time you connect your OneBoard after installing the software and any time your projector screen resolution changes.
Page 13 Attempting to automatically update the OneBoard software with UAC enabled will result in an error. AUTORUN If you do not want the OneBoard software to automatically start with your Windows installation, you can uncheck this box to disable that. Page 13 of 23...
Page 14: Gestures
Gestures When using the OneBoard, be sure that your knuckles, other fingers, clothing, or other objects are not going to obstruct the IR beams. When using multi-touch gestures, be sure that your fingers are spread open enough to allow the software to recognize each finger individually.
Page 15: Software Operation
Software Operation To move the toolbar around on To display the toolbar To minimize the toolbar, the screen, “click” and drag the submenu, single “click” on the click the area highlighted highlighted area: highlighted area: below. To maximize the minimized toolbar, double click the frog icon: Customizing Your Toolbars...
Page 16 Use the buttons highlighted in the illustration below to switch between the different pages of your OneBoard toolbar. For an explanation of what each button does, please see pages 21-27 Keyboard On most Windows computers, you may place all 10 fingers, spread out, on the OneBoard to activate the on-screen keyboard. Quick Menus Some objects, such as images added to the screen with OneBoard software tools, will have a “quick menu”...
Page 17 Timer The OneBoard software includes a digital timer that can be used to measure the time-length of something or it can be used as a count-down timer. Use the button highlighted below to see timer options. Button Functions Following is a general description of the main OneBoard buttons and their functions:...
Page 18 Select Object Select objects, images, text in a OneBoard screen Scroll Scrolls through OneBoard toolbar pages Insert text or text file into a OneBoard screen (not for text entry into Insert Text Windows components, websites, PDFs, etc) Undo Undo the last action...
Page 19 Color Selection Icon Functions Description Select Color Select a pen color Select Fill Color Select a fill color Black Pen Black pen White Pen White pen Blue Pen Blue pen Red Pen Red pen Green Pen Green pen Yellow Pen Yellow pen ...
Page 20 Geometric Shapes Icon Functions Description Geometric Draw Geometric drawings tool Geometric Line Geometric line tool Geometric Rectangle Geometric rectangle/square tool Geometric Circle Geometric circle/oval tool Geometric Triangle Geometric triangle tool Geometric Circle by Geometric circle tool that draws based on radius Radius Geometric Circle by Geometric circle tool that draws based on diameter...
Page 21 Other Tools Icon Functions Description Spotlight Spotlight certain areas of the whiteboard document, masking others Zoom Area Zoom in on a selected area of a whiteboard document Zoom In Zoom in on the entire whiteboard document Curtain Hide / show areas of the whiteboard document Keyboard Displays the Windows keyboard tool Protractor...
Page 22: Notices
The contents of this user guide are subject to change without prior notice. Warranty MooreCo, Inc. (“MooreCo”) warrants that your new OneBoard brand product (“Product’) is free from defects in materials or workmanship, subject to the limitations, exclusions, and other provisions as detailed below.
Page 23 Notice to purchasers for home or personal use: Federal law does not permit the exclusion of certain implied warranties for consumer products. Therefore, if you are purchasing this product for home or personal use, the exclusion of implied warranties noted in the above paragraph does not apply to you.
