Summary of Contents for LINKIT Security 90312

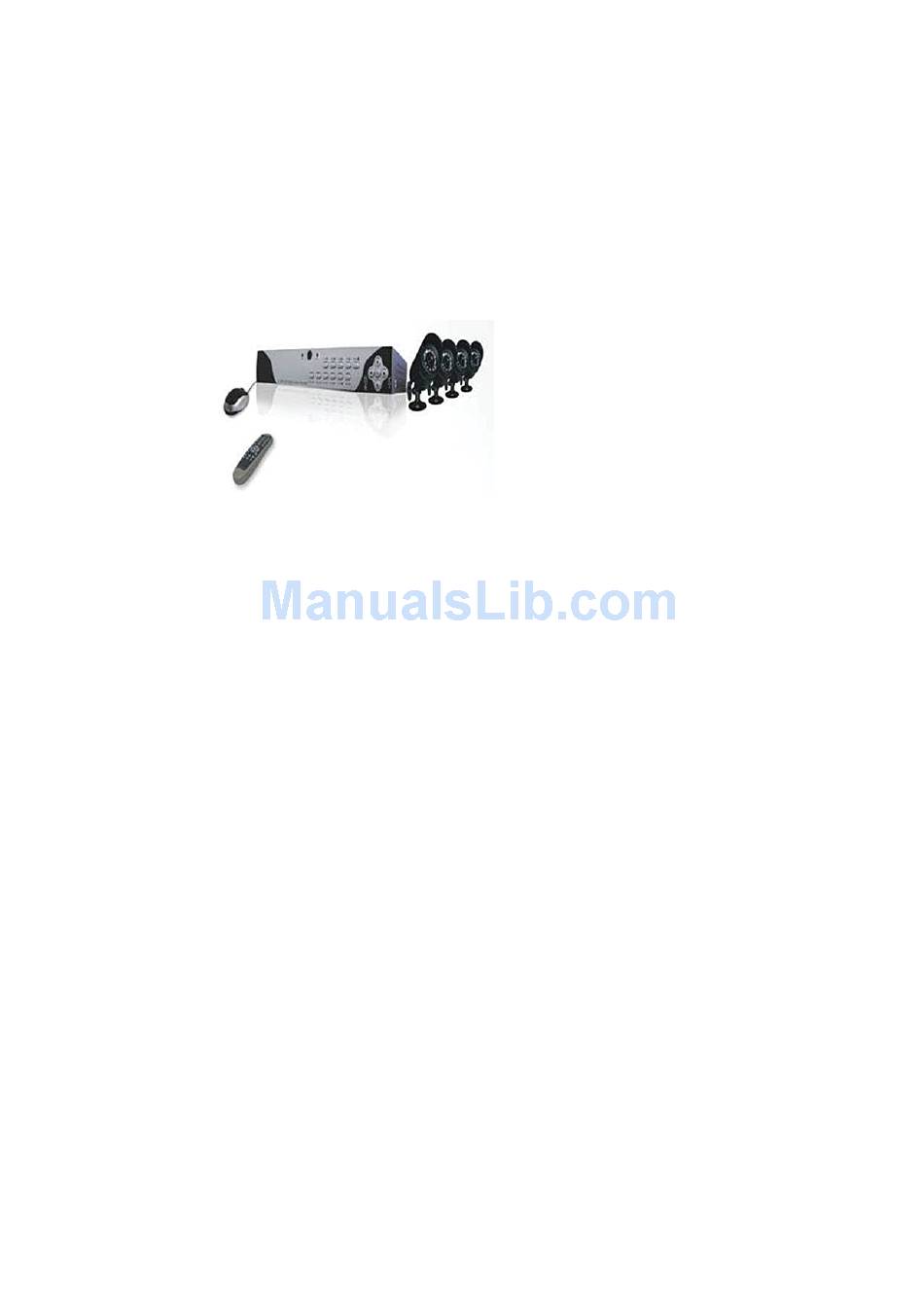

- Page 1 User Manual LINKIT Security User Guide ALL IN ONE Complete 4/8 Security Cameras with DVR Kit Model: 90312 / 90313...
- Page 2 User Manual...
-
Page 3: Table Of Contents
User Manual Contents SAFETY INSTRUCTION ................................1 CHAPTER 1: DVR FEATURES..............................2 CHAPTER 2: LAYOUT ................................3 2.1 DVR F ................................3 RONT ANEL 2.1.1 4-CH DVR Front Panel ............................. 3 2.1.2 8-CH DVR Front Panel ..............................4 2.2 R .................................. - Page 4 User Manual 5.5 PTZ C ..................................23 ONTROL 5.6 R ....................................24 ECORD 5.7 S ..................................24 ECORD CHAPTER 6: WEB APPLICATION MANAGER ........................25 6.1 P .......................... 25 INS DOWNLOAD AND INSTALLATION 6.2 W ................................
-
Page 5: Safety Instruction
User Manual Safety Instruction 1. Read Instruction All the safety and operating instruction should be read before the equipment is operated. 2. Power sources This equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer. -
Page 6: Chapter 1: Dvr Features
User Manual Chapter 1: DVR Features Function Brief and Description Double video output, with Monitor or VGA virtual output, support Net-viewer and Real-time Monitoring Mobile Live monitor, and also support zoom in/out, auto sequence and PIP display. H.264 video compression format; record quality adjustable, multiple recording Record Function modes (Always, Scheduled, Manual, Alarm, Motion detection and remote record) Record storage... -
Page 7: Chapter 2: Layout
User Manual Chapter 2: Layout 2.1 DVR Front Panel DVR is a short form of Digital Video Recorder. 2.1.1 4-CH DVR Front Panel Key title Item Remark Function & Description or Indicator Power button Power on/off If the “Green” indicator is on the system is getting power Power Indicator normally. -
Page 8: 8-Ch Dvr Front Panel
User Manual 2.1.2 8-CH DVR Front Panel Item Key title or Indicator Remark Function & Description Power button Power on/off If the “Green” indicator is on the system is getting power Power Indicator normally. IR Receiver Receives IR signal from Remote Controller When the “Red”... -
Page 9: Rear Panel
User Manual 2.2 Rear Panel 2.2.1 4-CH DVR Rear Panel 2.2.2 8-CH DVR Rear Panel Item Physical port Connection method Video input 4CH:Connect CH1-4 (Virtual) video input device（BNC interface） 8CH:Connect CH1-8 (Virtual) video input device（BNC interface） Video output Connect monitor output (BNC interface) Audio Input 4CH DVR: 4CH audio input (BNC interface）... -
Page 10: Remote Controller
User Manual 2.3 Remote Controller Key title Key function Channel select 1-8; Numeric key 9、0 Numeric key Multiple display mode Menu Enter into Main menu/Exit ▲ Up direction key, Volume adjust ▼ Down direction key, Volume adjust Left/Down direction key, Decrease/increase parameter ◄/ value of control bar Select key/Edit key;... -
Page 11: Chapter 3 Dvr Installation
User Manual Chapter 3 DVR INSTALLATION 3.1 Hard Drive Installation Caution： Please do not Install or take out hard drive when DVR is running! First, loosen the screws in the left and right sides. Secondly remove the cover Third, connect data cord and power cable of main board to the according ports of DVR. Next, Install HDD on the bracket fix then with screw, firmly secure the screw so that it can not get loose from such as vibration. -
Page 12: Camera And Monitor Connection
User Manual Next, check if the connectors are properly connected and there is no problem with wiring and close up cover and fix it with screws. 3.2 Camera and Monitor Connection Connect camera cable to video input of DVR, and from video output of DVR to Monitor via BNC connector (Refer to section2.2-Rear Panel);... -
Page 13: Chapter 4: Dvr Start Up
User Manual Chapter 4: DVR Start up 4.1 System Initialization After connecting the Power cable of DVR to wall outlet and pressing the Power button on the front panel, you will enter into the system initializing screen shown as Picture 4-1. Picture 4-1 4.2 Live screen After finishing initialization the system will enter into Live screen. -
Page 14: Main Menu Guide
User Manual 5.2 Main Menu Guide Title Set Camera Color set Display Set Record Resolution Record Record Scheduled Static set DHCP set Network PPPoE set DDNS set Search/Playback File List Search File Backup Main Menu Log Search Log Export Alarm Email Set PTZ set Device Manage... -
Page 15: Main Menu
User Manual 5.3 Main Menu After clicking right button of mouse, pop-up menu appears on the screen. You can click [main menu] option on pop-up menu mode to enter into Main menu interface (Shown as Picture 5-2). In Main Menu mode, you can control device management settings, such as Display, Record, Network, Search, Device and System setting etc. -
Page 16: Network Setup
User Manual [Frame rate] include two options – Fixed and Manual. When set to “Manual” and click [Frame rate setup] option, you may allocate the frame rate for each channel. [Audio] option allows you turn audio on/off. [Mode] allow you select record modes, including Always and Scheduled. - Page 17 User Manual When selecting PPPoE form the Type, user can input user name and password provided by ISP and set Media and Web port (details please refer to the Picture 5-10). You can visit your DVR via public network without port forwarding when network type is set to “PPPoE”...
-
Page 18: Record Search
User Manual 5.2.4 Record Search Click [Main Menu Record Search] to enter into below window shown as Picture 5-13. Channel: allows you select the channel(s) you desire to search. Time Search: In the Video Search screen, user can search for a specific date and time for a recording and view it in Playback mode. -
Page 19: Playback Player
User Manual Player program that comes with the DVR or through the net-viewer program. Please make sure you have connected backup device, such as USB and DVD, well before backing-up. Log Search In the Record Search screen, Click [Log Search] to pop up the Log search screen shown as Picture 5-17(a). Select log type, enter start date &... - Page 20 User Manual 3. Select the playback file you desired from the file shown as Picture 5-21. Picture 5-21 Note: Please select the file with *.264 format or *.nvr. The record file backed-up by U flash disk or removable disk is with *.264 format, and DVD Recorder with *.nvr format. 4.
-
Page 21: Device Management
User Manual 5.2.6 Device Management Options in device management include HDD, PTZ, Mobile, Motion and Serial set. Click [Main Menu Device Management] option to enter into the window shown as Picture 5-23. Picture 5-23 5.2.6.1 HDD Management In the [Device Management] screen, highlight and click [HDD] icon to enter into the window shown as Picture 5-24. - Page 22 User Manual small “H” appears on the screen with buzzer sound. Setting this to OFF will only show the “H” on the screen but the buzzer will not sound. HDD Space: When setting [Buzzer] to ON and the DVR is running out of storage space the buzzer will sound.
- Page 23 User Manual SSL: is a security link transport protocol. You can encrypt your communication info (including your email) using SSL to prevent hackers from monitoring your email or communication info and even your password. Generally Gmail.com server set SSL to [On] shown as Picture 5-28, and other mail server to [Off]. If your setting is still not right, please contact the web site where you have applied for your email box to get SMTP port and SSL of mail box.
-
Page 24: Ptz Setup
User Manual 5.2.6.3 PTZ setup Enter into [Main menu Device PTZ Setup] to select the channel you desire to control and set PTZ protocol (Pelco-D or Pelco-P), Baud Rate (1200, 2400, 4800, 9600), Data bit (8, 7, 6, 5), Stop bit (1, 2), Parity Check (None, Odd, Even, Mark, Space), Address Code and Cruise status respectively. -
Page 25: System
User Manual 5.2.7 System The [System] Menu includes the below sub-menus: Time Set, User Password, Audio/Video Setting, Language select, System Info and System Maintenance. After entering into the [System] menu, you can configure the relative parameters to meet your needs. After entering into the [System] menu, you can configure the relative parameters to meet your needs. -
Page 26: Language
User Manual Click the [Volume] and/or [Margin] options on the right-bottom corner of the Video/Audio screen to adjust the volume and/or margin respectively. Details please kindly find the Picture 5-39 (b). Picture 5-39 （ b） 5.2.7.4 Language Enter into [Language] menu to select the language you want to use on the DVR (shown as Picture 5-40), and then click [APPLY] button. -
Page 27: Menu Lock
User Manual Default: Click the [Load Default] button to recover all the DVR settings back to factory set. Reboot: Click the [Reboot] button to restart the device manually. Power off: the button allows you cut the power after making sure the DVR shutdown. Note: 1. -
Page 28: Record
User Manual Total: set up pre-set bit quantity Pre: indicates starting point cruised. System default point is 01. STP：sets the stop time at each point GOTO：allow you go to a specific preset point. SET：allow you set a set of specific preset points of a PTZ camera. 1. -
Page 29: Chapter 6: Web Application Manager
User Manual Chapter Web Application Manager 6.1 Plug-ins download and installation 1. Open your web browser and input the IP address and web port of DVR; 2. If your computer is connected to internet, you will be prompted to download and install “ActiveX Control”; 3. -
Page 30: Web Client Interface
User Manual simultaneously Audio / Video will be automatically connected well (Shown as Picture 6-2(a) and (b). Picture 6-2（a） Picture 6-2（b） 6.3 Web Client Interface 6.3.1 Menu Bar Menu bar include [Live], [Playback], [Remote setting], [Local Setting] and [Logout] option and [Language select] option on the right-up corner. -
Page 31: Remote Setting
User Manual Picture 6-3 Double-click any file listed or highlight any file and click [Play] button to play the selected recording file. Click [Download] button to download and save selected recording file to specified saving path shown as Picture 6-4. Picture 6-4 You can set [Save Path] option on the [Local Setting] menu. -
Page 32: Alarm Parameters
User Manual Click [Copy to] option on the right-bottom corner of the interface to copy all the remote setting to any channel shown as Picture 6-5(c). Enter into [Record Set] option to set record control parameters, including record enabling, audio enabling, Pack time, Record mode and Timer Rec. -
Page 33: Ptz Parameters
User Manual Click [Channel Alarm] option to enable or video loss and video cover for each channel (shown as Picture 6-9). Picture 6-9 Clicking [Output] option allows you set alarm output parameters, including buzzer time, Post Record time, Alarm out time, and open Pre-record function Picture 6-10 PTZ Parameters Click [PTZ Parameters] option to enter into the interface shown as Picture 6-11. - Page 34 User Manual [DDNS], [Mobile] and [Email set] (Picture 6-12). Relevant parameters setting please refer to section 5.2.3 – [Network Setting]. Picture 6-12 Picture 6-13 Picture 6-14...
-
Page 35: Device Parameters
User Manual Picture 6-15 Picture 6-16 Device Parameters Click [Device Parameters] option to enter into the interface shown as Picture 6-14. Now you can check device info (Picture 6-14), Software version (Picture 6-17) and HDD info (Picture 6-18) etc. Picture 6-17 Picture 6-18... -
Page 36: Device Manage
User Manual Picture 6-19 Device Manage Extend [Device Manage] option to enter into sub menus – System setting, Authority and DST shown as Picture 6-20, Picture 6-21 and Picture 6-22. Picture 6-20 Picture 6-21 Picture 6-22... -
Page 37: Local Setting
User Manual 6.3.1.4 Local setting The option allows you set [Record Save Path], [Frame Save Path] and [File Save Path] shown as Picture 6-23. Picture 6-23 Note：Remote manual recording file will be saved to Record save path. Local recording file will be saved to [File save path]. 6.3.1.5 Logout Click [Logout] option to return back Log-in Interface shown as Picture 6-2. -
Page 38: Chapter 7: Specifications
User Manual Chapter 7: Specifications Model parameter Video System NTSC/PAL(Optional) Video/Audio Video：H.264 Audio：8kHz*16bit ADPCM Compression Format 4-CH input/2-CH 8-CH input/2-CH output ； Video I/O output； VGA (Optional) VGA(Optional) Audio I/O 4-CH input / 2-CH output 8-CH input / 1-CH output Display Resolution D1：704×576(PAL) 704×480 (NTSC) Display frame rate... -
Page 39: Chapter 8: Appendix
User Manual Chapter 8: Appendix 8.1 Record Alarm setting Please refer the below matrix: “⊥” stand for “only alarm but no record”; “AMR” stand for “alarm record”; “NLR” stand for “normal record”; and “NOR” stand for “ no record”. Once alarm is triggered, alarm icon will occur, and when many alarms are triggered, alarm remarks will occur on the screen. -
Page 40: Troubleshooting
User Manual 163.net smtp.163vip.net popx.163vip.net www.sina.com @sina.com.cn smtp.sina.com.cn pop3.sina.com.cn @yahoo.com.cn smtp.mail.yahoo.com.cn pop.mail.yahoo.com.cn www.yahoo.com @yahoo.com smtp.mail.yahoo.com pop.mail.yahoo.com google.com @gmail.com smtp.gmail.com(465/587) pop.gmail.com(995) www.china.com @china.com smtp.china.com pop.china.com www.sohu.com @sohu.com smtp.sohu.com pop.sohu.com Mail.163.com smtp.163.net pop.163.net Mail.163vip.com smtp.163vip.net pop.163vip.net Mail.tom.com @tom.com smtp.tom.com pop.tom.com Mail.263.com @263.net smtp.263.net pop3.263.net x263.net... -
Page 41: System Configuration
User Manual detected and has sufficient space available; check if video has lost etc. 11. Q: Why can’t stop [Stop] function? A: Pressing [Stop] button only can stop manual record. If you want to stop Scheduled record, please revise to [No Record] during this period. -
Page 42: Accessories
User Manual 8.6 Accessories Power Cord Power Supply User Manual USB Mouse Remote Controller Software CD... - Page 43 The material in this document is the intellectual property of our department . No part of this manual be reproduced, copied, translated, transmitted, or published in any form or by any means without our department prior written permission. Our products are under continual improvement and we reserve the right to make changes without noti ce.
