Panasonic TC-P60UT50 Service Manual

Panasonic TC-P60UT50 Service Manual

60 inch class 1080p plasma hdtv
Hide thumbs Also See for TC-P60UT50:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
For detailed troubleshooting information and circuit explanations,
refer to the "QSM/Service Hints/Troubleshooting Information(TI)" and Seminar/Training Manual/Technical
Guide(TG) documents posted on the TSN web site.
For information about this model, type TC-P2012 in the model box under "Direct Search".

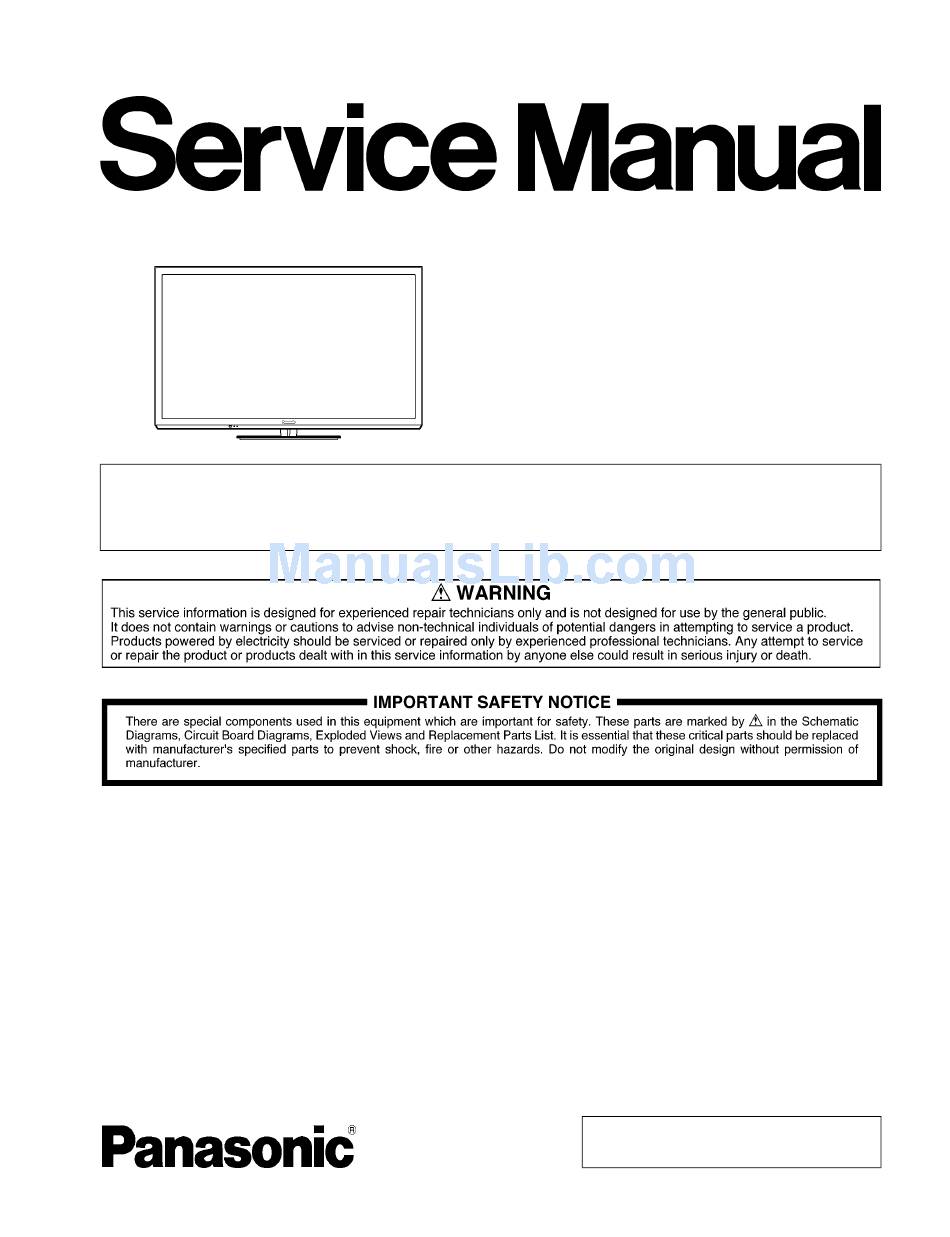

60 inch Class 1080p Plasma HDTV
TC-P60UT50
Model No.
GPF15DU Chassis
© Panasonic Corporation 2012.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.MTNC120451CE
B34 Canada: B62
Ver.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-P60UT50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic TC-P60UT50

Summary of Contents for Panasonic TC-P60UT50

  • Page 1 "QSM/Service Hints/Troubleshooting Information(TI)" and Seminar/Training Manual/Technical Guide(TG) documents posted on the TSN web site. For information about this model, type TC-P2012 in the model box under "Direct Search". © Panasonic Corporation 2012. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 1.1. General Guidelines ----------------------------------------3 2 Warning --------------------------------------------------------------4 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4 2.2. About lead free solder (PbF) ----------------------------5 3 Service Navigation------------------------------------------------6 3.1. PCB Layout --------------------------------------------------6 4 Specifications ------------------------------------------------------7 5 Technical Descriptions------------------------------------------8 5.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. PCB Layout Board Name Function Power Supply Non serviceable. P-Board should be exchanged for service. Main AV input, processing Remote receiver, Power LED, C.A.T.S sensor Data Driver (Lower Right) Data Driver (Lower Center) Data Driver (Lower Left) Scan Drive Sustain Drive Sustain out (Lower)

  • Page 7: Specifications

    TV Set only 73.9 lb. (33.5 kg) NET Bluetooth Standard Compliance ® Bluetooth Frequency Range 2.402GHz~2.480GHz • Use Panasonic 3D Eyewear supporting Bluetooth wireless technology. Note Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

  • Page 8: Technical Descriptions

    5 Technical Descriptions 5.1. Specification of KEY for DTCP-IP, WMDRM and Widevine 5.1.1. General information: 1. EEPROM (IC8902) for spare parts has the seed of KEY for each DTCP-IP for DLNA, WMDRM for Netflix and Widevine for CinemaNow. 2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC (IC8000) and EEPROM (IC8902).

  • Page 9: Service Mode

    6 Service Mode 6.1. How to enter into Service Mode 6.1.1. Purpose After exchange parts, check and adjust the contents of adjustment mode. While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds Note: Service Mode can not be entered when 3D signal input.

  • Page 10: Contents Of Adjustment Mode

    Contents of adjustment mode 6.1.4. • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark ADJUST...

  • Page 11: Option - Mirror

    6.2. Option - Mirror Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down. Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

  • Page 12: Hotel Mode

    6.4. Hotel mode 1. Purpose Restrict a function for hotels. Item Function 2. Access command to the Hotel mode setup menu Mode Select hotel mode On/Off In order to display the Hotel mode setup menu: Input Select input signal modes. While pressing [VOLUME (-)] button of the main unit, Set the input, when each time power is switched on.

  • Page 13: Data Copy By Sd Card

    6.5. Data Copy by SD Card 6.5.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 14 6.5.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 15 6.5.4. Data copy from SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 16: Troubleshooting Guide

    7 Troubleshooting Guide For detailed troubleshooting information and circuit explanations, refer to the "QSM/Service Hints/Troubleshooting Information(TI)" and Seminar/Training Manual/Technical Guide(TG) documents posted on the TSN web site. For information about this model, type TC-P2012 in the model box under "Direct Search".

  • Page 17: Service Fixture & Tools

    8 Service Fixture & Tools 8.1. SC jig Purpose: To find the failure board (SC or SU/SD) when the power LED is blinking 7 times. SC jig: Jumper connector to connect to SC50 connector on SC board Part number: TZSC09187 How to use: Caution: Remove SC jig from SC board after inspection.

  • Page 18: Disassembly And Assembly Instructions

    9 Disassembly and Assembly Instructions 9.1. Disassembly Flow Chart for the Unit This is a disassembly chart. When assembling, perform this chart conversely.

  • Page 19: Disassembly Procedure For The Unit

    9.2. Disassembly Procedure for the Unit 9.2.1. Remove the Pedestal stand 9.2.4. Remove the Bluetooth module 1. Remove the Plasma panel section from the servicing 1. Remove the screw (×1 ) and remove the Bluetooth stand and lay on a flat surface such as a table (covered module.

  • Page 20: Remove The Speakers

    9.2.7. Remove the P-Board 9.2.9. Remove the A-Board Caution: 1. Remove the screws (×4 To remove P.C.B. wait 1 minute after power was off for 2. Remove the claws (×2 discharge from electrolysis capacitors. 3. Remove the Side terminal cover and the Side shield 1.
  • Page 21 9.2.11. Remove the SU-Board 9.2.13. Remove the SC-Board 1. Disconnect the flexible cables (SU1, SU2, SU3, SU4 and 1. Disconnect the connector (SC2). SU5) connected to the SU-Board. 2. Disconnect the flexible cable (SC20). 2. Disconnect the flexible cable (SU11-SD11) and the bridge 3.
  • Page 22 9.2.15. Remove the SS2-Board 9.2.17. Remove the Stand bracket plate 1. Disconnect the flexible cables (SS65 and SS67). , ×2 1. Remove the Stand bracket fastening screws (×6 2. Remove the screws (×2 ) and remove the SS2-Board. , ×2 ) and remove the Stand bracket plate.

  • Page 23: Remove The Contact Metals

    9.2.21. Remove the Cabinet assy from the 9.2.22. Remove the Contact metals Plasma panel section 1. Remove the screws (×10 2. Remove the Contact metal side (L, R). 1. Place the Cabinet assy on a flat surface of a table (covered by a soft cloth) and a cushion.

  • Page 24: Replace The Plasma Panel

    9.2.25. Remove the C3-Board 1. Disconnect the flexible cables (CB12, CB13, CB14 and CB15). 2. Disconnect the flexible cables (C31, C32, C36 and C37). 3. Remove the screws (×3 ) and remove the C3-Board. 9.2.26. Replace the Plasma panel Caution: Place the Plasma panel on a flat surface of a table (covered by a soft cloth) and a cushion.

  • Page 25: Measurements And Adjustments

    10 Measurements and Adjustments 10.1. Adjustment 10.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed. 2.

  • Page 26: White Balance Adjustment

    10.1.2. White balance adjustment Name of measuring instrument Remarks Color analyzer (Minolta CS-1000 or equivalent) Procedure Remarks 1. Enter the Service mode. 2. Receive the Analog-RF (except for no signal) or set CVBS/YUV/HDMI (no signal is available). 3. Select [WB-ADJ] by using [1] and [2] key in the remote controller. 4.

  • Page 27: Block Diagram

    11 Block Diagram 11.1. Main Block Diagram MAIN AV INPUT,PROCESSING HDMI1-2 (HDMI2) ETHERNET DATA TMDS DATA ETHERPHY ETHERNET LAN CON I/F HDMI I/F ARC_OUT USB I/F USB_1-2 IFD_OUT TUNER TUNER I/F BLUETOOTH PEAKS-LD4 SD CARD DATA V/Y/PB/PR SD CARD VIDEO/ V/YPbPr SD CARD I/F COMPONENT...

  • Page 28: Block (1/4) Diagram

    11.2. Block (1/4) Diagram JK8600 SPEAKER_L SPEAKER_R BLUETOOTH SD CARD D3201 DIGITAL JK8602 JK8601 JK4700 JK4701 AUDIO TU6706 ETHERNET USB1 USB2 MAIN AV INPUT,PROCESSING ANT IN HDMI1 HDMI2 TUNER IC8650 DMD_ ETHERPHY IIC0 BT3.3V IC4900 X8651 AUDIO AMP 25MHz SOUND15V WOL3.3V SUB5V SUB3.3V...

  • Page 29: Block (2/4) Diagram

    11.3. Block (2/4) Diagram MAIN AV INPUT,PROCESSING IC9300 PD6H VIDEO DATA PLASMA AI VIDEO DATA LVDS DATA H/V Sync Control VIDEO DATA Sub Filed Processor P+3.3V IC9803 P+1.2V P+3.3V DCDC15V P+1.2V IIC0 DATA DRIVER CONTROL +1.2V 1.2V IC9005 P+2.5V DCDCEN D_UHZ VJ9005 +2.5V...

  • Page 30: Block (3/4) Diagram

    11.4. Block (3/4) Diagram POWER SUPPLY COLD COLD AC CORD Fuse F001 AC Vin PHOTO (Live) Detection COUPLER FILTER SS11 CONVERTER T301 FET SW Vsus F301 FET SW F15V Relay F15V for prevention STB5V of inrush current EV5V REG. SOUND15V OCP/OVP P+15V LATCH...

  • Page 31: Block (4/4) Diagram

    11.5. Block (4/4) Diagram SCAN DRIVE SCAN OUT (UPPER) SUSTAIN DRIVE Reference Voltage IC14601-03 TPVSUS Vsus Lo : 210V Vsus Hi : 215V IC16784,85 Reference Voltage Vsus Vad = 195 PC16897 Reference Voltage PDP SCAN TPVSUS Vsus Lo : 210V IPD CIRCUIT DRIVER TPVAD...

  • Page 33: Wiring Connection Diagram

    12 Wiring Connection Diagram 12.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 12.2. Wiring (1)

  • Page 34: Wiring (2)

    12.3. Wiring (2)

  • Page 35: Wiring (3)

    12.4. Wiring (3)

  • Page 36: Wiring (4)

    12.5. Wiring (4)

  • Page 37: Wiring (5)

    12.6. Wiring (5)
  • Page 38 Model No. : TC-P60UT50 Schematic Diagram Note...
  • Page 39 Model No. : TC-P60UT50 Replacement Parts List Note...
  • Page 40 Model No. : TC-P60UT50 A-Board (1/15)
  • Page 41 Model No. : TC-P60UT50 A-Board (2/15)
  • Page 42 Model No. : TC-P60UT50 A-Board (3/15)
  • Page 43 Model No. : TC-P60UT50 A-Board (4/15)
  • Page 44 Model No. : TC-P60UT50 A-Board (5/15)
  • Page 45 Model No. : TC-P60UT50 A-Board (6/15)
  • Page 46 Model No. : TC-P60UT50 A-Board (7/15) and K-Board...
  • Page 47 Model No. : TC-P60UT50 A-Board (8/15) S-10...
  • Page 48 Model No. : TC-P60UT50 A-Board (9/15) S-11...
  • Page 49 Model No. : TC-P60UT50 A-Board (10/15) S-12...
  • Page 50 Model No. : TC-P60UT50 A-Board (11/15) S-13...
  • Page 51 Model No. : TC-P60UT50 A-Board (12/15) S-14...
  • Page 52 Model No. : TC-P60UT50 A-Board (13/15) S-15...
  • Page 53 Model No. : TC-P60UT50 A-Board (14/15) S-16...
  • Page 54 Model No. : TC-P60UT50 A-Board (15/15) S-17...
  • Page 55 Model No. : TC-P60UT50 C1-Board S-18...
  • Page 56 Model No. : TC-P60UT50 C2-Board (1/2) S-19...
  • Page 57 Model No. : TC-P60UT50 C2-Board (2/2) S-20...
  • Page 58 Model No. : TC-P60UT50 C3-Board (1/2) S-21...
  • Page 59 Model No. : TC-P60UT50 C3-Board (2/2) S-22...
  • Page 60 Model No. : TC-P60UT50 SC-Board (1/3) S-23...
  • Page 61 Model No. : TC-P60UT50 SC-Board (2/3) S-24...
  • Page 62 Model No. : TC-P60UT50 SC-Board (3/3) S-25...
  • Page 63 Model No. : TC-P60UT50 SS-Board (1/2) S-26...
  • Page 64 Model No. : TC-P60UT50 SS-Board (2/2) and SS2-Board S-27...
  • Page 65 Model No. : TC-P60UT50 A-Board (Foil side) S-28...
  • Page 66 Model No. : TC-P60UT50 A-Board (Component side) S-29...
  • Page 67 Model No. : TC-P60UT50 K-Board S-30...
  • Page 68 Model No. : TC-P60UT50 C1-Board S-31...
  • Page 69 Model No. : TC-P60UT50 C2-Board S-32...
  • Page 70 Model No. : TC-P60UT50 C3-Board S-33...
  • Page 71 Model No. : TC-P60UT50 SC-Board (Foil side) S-34...
  • Page 72 Model No. : TC-P60UT50 SC-Board (Component side) S-35...
  • Page 73 Model No. : TC-P60UT50 SS-Board (Foil side) S-36...
  • Page 74 Model No. : TC-P60UT50 SS-Board (Component side) S-37...
  • Page 75 Model No. : TC-P60UT50 SS2-Board S-38...
  • Page 76 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks TXN/A1SSUUS CIRCUIT BOARD A 1 (RTL)PAVCA N0AE6KL00012 CIRCUIT BOARD P 1 PAVCA TXNC11SSUU CIRCUIT BOARD C1 1 (RTL)PAVCA TXNC21SSUU CIRCUIT BOARD C2 1 (RTL)PAVCA...
  • Page 77 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C4905 F1G1C104A077 C 0.1UF 16V C4906 F1G1C104A077 C 0.1UF 16V C4907 F1K1V106A010 C 10UF, 25V 1 PAVCA C4908 F1G1H1020008 C 1000PF 50V C4909 F1K1V106A010...
  • Page 78 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8103 F1K1E106A134 C 10UF, 25V C8105 F1J0G2260001 C 22 UF 4 V C8106 F1J0G2260001 C 22 UF 4 V C8108 ECJ1VB1E104K C 0.1 UF, 25V...
  • Page 79 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8659 F1G1C104A077 C 0.1UF 16V C8674 F1G1C104A077 C 0.1UF 16V C8675 F1G1C104A077 C 0.1UF 16V C8676 F1G1C104A077 C 0.1UF 16V C8721 F1K1E106A134 C 10UF, 25V...
  • Page 80 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C9438 F1G1A105A047 C 1UF 10V C9441 F1G1A105A047 C 1UF 10V C9446 F1G1C104A077 C 0.1UF 16V C9450 F1J1A106A110 C 10UF, 10V 1 PAVCA C9453 F1J1A106A110...
  • Page 81 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16401 F1L2J562A021 C 5600PF, 630V 1 PAVCA C16416 F2A2T3010001 E 300UF, 220V 1 PAVCA C16417 F2A2T3010001 E 300UF, 220V 1 PAVCA C16418 F2A2T3010001 E 300UF, 220V...
  • Page 82 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16903 F1K2J222A024 C 2200PF, 630V 1 PAVCA C16907 F1K2J2210003 C 220PF, 630V 1 PAVCA C16908 F1L2J472A021 C 4700PF, 630V 1 PAVCA C16910 F1K2J821A043 C 820PF, 630V...
  • Page 83 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks CN0100 K1KA14A00248 14P CONNECTOR D3021 DZ2J140M0L ZENER DIODE D3022 DZ2J140M0L ZENER DIODE D3023 DZ2J140M0L ZENER DIODE D3024 DZ2J140M0L ZENER DIODE D3025 DZ2J140M0L ZENER DIODE...
  • Page 84 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D16421 DA3CF30ACL ZENER DIODE D16422 DA3CF30ACL ZENER DIODE D16430 B0ECKP000061 DIODE 1 PAVCA D16432 B0ECKP000055 DIODE D16462 B0FBCN000012 DIODE 1 PAVCA D16473 DA2J10100L DIODE...
  • Page 85 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks IC9300 C1AB00003813 1 PAVCA IC9304 TVRS827S 1 PAVCA IC9400 C0JBAZ001120 IC9401 C0JBAZ001120 IC9402 C0JBAZ001120 IC9803 C0DBAYY01283 1 PAVCA IC9804 C0DBZYY00541 1 PAVCA IC16130 C0ZBZ0001936...
  • Page 86 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks L8604 J0JYC0000464 FILTER 1 PAVCA L8606 J0JYC0000464 FILTER 1 PAVCA L8607 J0JYC0000464 FILTER 1 PAVCA L8704 G1C1R5ZA0311 INDUCTION COIL 1 PAVCA L8705 G1C4R7ZA0311 INDUCTION COIL...
  • Page 87 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q16422 DG3D3010CVLW TRANSISTOR 1 PAVCA Q16423 DG3D3010CVLW TRANSISTOR 1 PAVCA Q16442 B1JADN000013 TRANSISTOR 1 PAVCA Q16452 B1JADN000013 TRANSISTOR 1 PAVCA Q16581 B1ABCF000231 TRANSISTOR Q16601 B1CERQ000061...
  • Page 88 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R2811 D0GA104JA023 M100KOHM, J.1/16 W R2812 D0GA224JA023 M 220KOHM J 1/16W R2813 D0GA223JA023 M 22K OHM J 1/16W R2817 D0GA223JA023 M 22K OHM J 1/16W...
  • Page 89 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8111 D1BB2001A197 M 2 KOHM,F.1/10 W 1 PAVCA R8112 D1BB1961A087 M 1.96 KOHM,F.1/10 W 1 PAVCA R8200 D1BA2400A023 M 240 OHM,F.1/16 W 1 PAVCA...
  • Page 90 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8654 D0GA680JA023 M 68 OHM, J,1/16W R8655 D0GA680JA023 M 68 OHM, J,1/16W R8656 D0GA680JA023 M 68 OHM, J,1/16W R8657 D0GA680JA023 M 68 OHM, J,1/16W...
  • Page 91 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8917 D0GA103JA023 M10KOHM, J.1/16 W R8918 D0GA103JA023 M10KOHM, J.1/16 W R8919 D0GA103JA023 M10KOHM, J.1/16 W R8920 D0GA103JA023 M10KOHM, J.1/16 W R8921 D0GA223JA023 M 22K OHM J 1/16W...
  • Page 92 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16042 D0GF5R6JA047 M 5.6 OHM,J, 1/3W R16052 D0GF5R6JA047 M 5.6 OHM,J, 1/3W R16072 D0D2100JA038 W 100 OHM,2W 1 PAVCA R16101 D0GD150JA059 M 15 OHM,J,1/4W...
  • Page 93 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16471 D0GB203JA065 M 20KOHM J 1/10W R16472 D0GB222JA065 M 2.2KOHM,J,1/10W R16473 D0GD561JA052 M 560 OHM,J,1/8W R16474 D0GB102JA065 M 1KOHM,J,1/10W R16475 D0GB472JA065 M 4.7KOHM, J,1/10W R16476 D0GB222JA065 M 2.2KOHM,J,1/10W...
  • Page 94 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16684 D0GD100JA059 M 10 OHM,J,1/4W R16685 D1BD1500A066 M 150 OHM,F.1/8 W 1 PAVCA R16686 D0GB103JA065 M 10K OHM J 1/10W R16696 D0D52R2KA038 W 2.2OHM,K,5W...
  • Page 95 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16948 D0GB471JA065 M 470 OHM,J,1/10W R17101 D0GB101JA065 M 100 OHM,J,1/10W R17102 D0GB101JA065 M 100 OHM,J,1/10W R17103 D0GB101JA065 M 100 OHM,J,1/10W R17104 D1BB49R9A073 M 49.9 OHM,F.1/10W...
  • Page 96 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R17312 D0GB101JA065 M 100 OHM,J,1/10W R17313 D0GB101JA065 M 100 OHM,J,1/10W R17314 D0GB101JA065 M 100 OHM,J,1/10W R17315 D0GB101JA065 M 100 OHM,J,1/10W R17317 D0GB101JA065 M 100 OHM,J,1/10W...
  • Page 97 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ZA16116 K4AA04D00002 TERMINAL ZA16401 K4AZ01D00004 TERMINAL ZA16402 K4AZ01D00004 TERMINAL ZA16403 K4AZ01D00004 TERMINAL ZA16411 K4AA04D00002 TERMINAL ZA16412 K4AA04D00002 TERMINAL ZA16421 K4AA04D00002 TERMINAL ZA16422 K4AA04D00002 TERMINAL...
  • Page 98 Model No. : TC-P60UT50 Exploded View 1 S-61...
  • Page 99 Model No. : TC-P60UT50 Exploded View 2 S-62...
  • Page 100 Model No. : TC-P60UT50 Accessories S-63...
  • Page 101 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks 10030-0061100 BATTERY COVER 1 PAVCA K2AHYH000054 AC-INLET WITH CABLE 1 PAVCA K2CG3YY00132 AC CORD(USA) Shielded 1 PAVCA MD60F15A3J PLASMA DISPLAY PANEL N2QAYB000704 REMOTE CONTROL...
  • Page 102 Model No. : TC-P60UT50 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks XYN4+F8FJ SCREW(SC-SUSD:4 SS-SS2:2) XYN5+F12FJ SCREW(M8_MTL:8) XYN5+F12FJ SCREW(STD_BRA:6) S-65...
