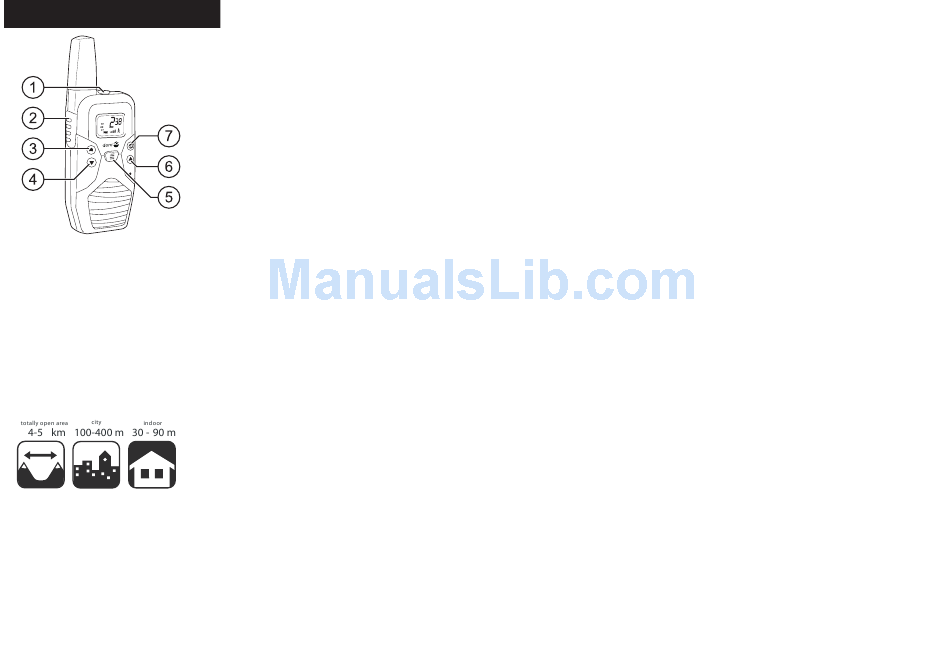

Headset socket
4
DOWN
2
PTT, Push to Talk
5
Menu button
button
6
UP
3
Call button
7
On/Off button
Area of use
The handset is intended for both indoor and
outdoor use, it is NOT resistant to rain, water,
rough or other careless treatment.
In ideal conditions ie: line of sight with no
obstructions between handset/s and monitor, the
range can be up to 5 km.
Batteries
1. Remove the belt clip by lifting the small
locating tab and pushing the clip upwards.
2. Before removing the battery cover release the
locking clasp at the base of the handset.
3. Insert the rechargeable batteries(AAA-NiMh)
ensuring correct battery polarity is observed.
4. Refit the battery cover and belt clip. Charge the
handset for 24 hours before use.
Please note!
The rechargeable batteries has been installed the
handset must be charged for 24 hours before use.
Charging
Connect the mains adapter to the socket on the
rear of the charging stand and to an electrical wall
socket. Place the handset in the charger with the
buttons facing out.
Battery indicator and charging
The symbol
in the display indicates when
|
the batteries require charging. The indicator has
three segments which disappear as the battery
charge decreases, and will flash when the batteries
are running low. Charge the equipment as soon as
possible when the indicator flashes!
The battery indicator will show
when
|
charging is complete (approximately 10 hours/
initially 24 hours). Fully-charged batteries will last
for approximately 85 hours in standby or 3.5 hours
operational time. These times apply at normal
room temperature.
Please note!
Never charge ordinary (non-rechargeable) batteries
in the handset, since this will ruin the equipment.
The guarantee does not cover this type of damage.
The equipment must be charged initially for 24
hours before use during which time the handset
cannot be used. The recharging system used in this
model may result in it becoming warm. This is
normal and will not damage the equipment.
Switching the Handset on/off
Press and hold
for a few seconds to turn the
1
handset on or off.
To communicate
1. Make sure that all handsets (and monitor unit)
are set to the same channel and transfer code.
See below.
2. Press and hold PTT (Push To Talk) to speak.
Please note!
If you are unable to communicate it may be
because different channels or transfer codes have
been selected, the battery is running low or the
units are too far apart.
Channel selection
All UHF/CB radio equipment share the available
designated channels. If the chosen channel is in use
select an alternate channel, the selected channel
number will be displayed in standby mode.
1. Press
. The current selected channel flashes.
w
2. Select the desired channel using
/
.
v
V
3. Press PTT.
Monitor function
The monitor function can be used in weak signal
areas to locate any other signal being transmitted.
1. Press
and
V
at the same time.
w
2. To stop monitoring press
.
w
Transfer code selection
There are 38 transfer codes available which can be
used to filter out unwanted signals. However, your
conversation may still be overheard irrespective
of which code is used. To enable communication
between handsets (as well as monitor to handset), the
same transfer code must be used on all units. In order
to communicate with equipment that cannot select a
code, enter code 0.
1. Press
repeatedly until the small digits in the
w
top right hand corner of the display flash.
2. Scroll to the desired transfer code using
3. Press PTT to confirm.
Scanning
You can scan all available channels to locate any
signals being transmitted. Once a signal has been
located the display will show the channel number,
and a signal will be heard for a few seconds.
You can press PTT to stop at the located channel.
Please note: while searching battery consumption will
be significantly higher than normal.
1. Press
and
at the same time. The unit will
w
{
start searching.
2. To stop scanning press
.
w
Voice control (VOX)
This handset can be used without having to press the
PTT button to transmit. By setting the correct level,
the handset can automatically determine when you
are speaking.
Test different settings until the sensitivity selected is
acceptable. Please note that however accurate your
setting there is always a small risk that increased noise
from the surroundings may activate the transmitter,
this may result in the initial word being unclear. The
transmitter will shut off two seconds after you have
finished speaking.
VOX will be displayed while the function is active. If
the handset transmits by itself the sensitivity is set too
high and will need to be adjusted. Press
to be able
w
to temporarily interrupt and change the setting.
1. Press
repeatedly until VOX is displayed.
w
2. Scroll to the desired setting using
v
/
V
=off, 1=least sensitive....3=most sensitive).
3. Press PTT to confirm.
Call melody
You can select different call melodies (
1. Press
repeatedly until
w
CA
2. Scroll to the desired melody (1 -5) using
3. Press PTT to confirm.
Termination (Roger) tone
If selected a beep tone will be heard when you
release the PTT button. This can be used as a
reminder to the other person that you have finished
talking and are waiting for a response.
1. Press
repeatedly until
w
2. Scroll to the desired setting using
=off,
=on).
On
3. Press PTT to confirm.
Key tone
v
/
V
.
If selected a tone will be heard when the handset
buttons are pressed, this can be switched on or off.
1. Press
repeatedly until
w
to
2. Scroll to the desired setting using
=off,
=on).
On
3. Press PTT to confirm.
Searching two channels
You can enter a different channel for simultaneous
listening while using the selected operating channel.
1. Press
repeatedly until DCM is displayed.
w
2. Scroll to the desired setting using
=off). Press
.
w
3. Scroll to the desired transfer code using
Press PTT.
4. Press PTT to confirm.
Repeater access (AU/NZ only)
To be able to communicate via the CB repeater
network this function must be activated. When
RPT
active
will be shown in the display.
1. Press
repeatedly until RPT is displayed.
w
2. Press
v
for On or
V
for Off.
3. Press PTT to confirm.
Key lock
This function locks buttons
w
prevent unintentional usage.
1. To activate the key lock press
shows the key symbol.
2. To deactivate the key lock press and hold
until the key symbol disappears.
(
OF
=off).
OF
is displayed.
v
/
V
.
is displayed.
ro
/
(
v
V
OF
is displayed.
/
(
v
V
OF
/
(
v
V
OF
v
/
V
.
and
v
/
V
to
until the display
w
w
