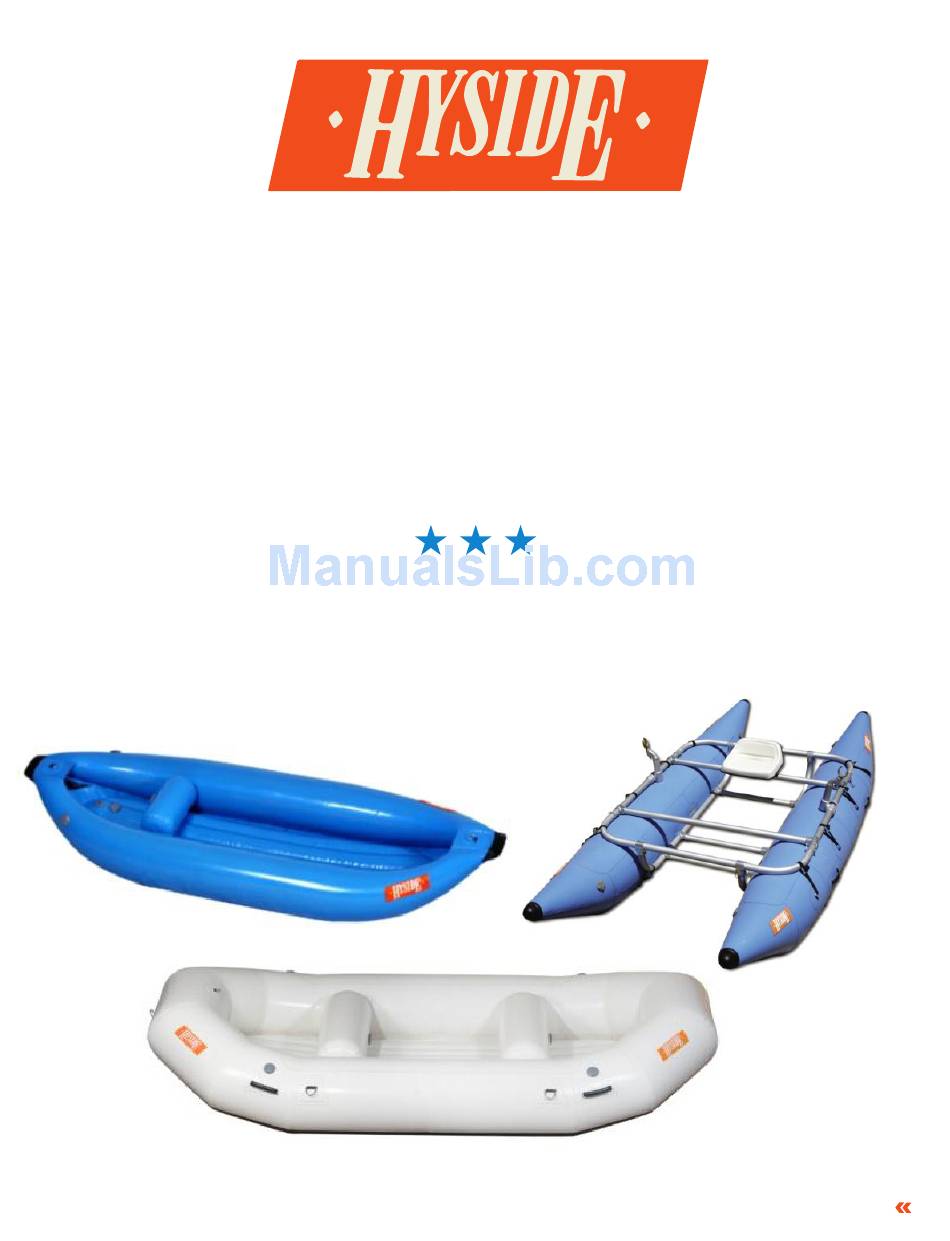

HYSIDE OWNER'S MANUAL
Congratulations on the purchase of your new HYSIDE!
For over 30 years, HYSIDE has been synonymous with the most durable and longest lasting inflatables on the
planet. Through the industry's most durable fabric and the use of the newest technologies, we've designed these
boats to be the workhorses for the commercial outfitting industry. We're certain that you'll enjoy this boat as a
worry free source of FUN for years.
In this manual, you'll find a comprehensive assembly of tips and instructions on using and caring for your new
inflatable.
ANYWHERE YOU WANT TO GO, GET THERE WITH HYSIDE!
This is an owner/operator manual for all of HYSIDE's inflatable line up.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K1 9.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hyside K1 9.0

  • Page 1 Congratulations on the purchase of your new HYSIDE! For over 30 years, HYSIDE has been synonymous with the most durable and longest lasting inflatables on the planet. Through the industry’s most durable fabric and the use of the newest technologies, we’ve designed these boats to be the workhorses for the commercial outfitting industry.

  • Page 2: Table Of Contents

    • Boat Anatomy • Valves • Thwarts • Floors PREVENTATIVE CARE AND MAINTENANCE ON PAGE 7 • Inflating/Deflating your HYSIDE • Cleaning Your HYSIDE • Protecting Your HYSIDE • Storing Your HYSIDE • Transporting Your HYSIDE • Restoring Your HYSIDE •...

  • Page 3: Overview

    The goal of this section is to give you a simple explanation of the parts of your boat and how they function and operate. Getting to know your boat inside and out is the first step to caring for your inflatable. See below for a brief list of terms and parts on your HYSIDE: Self-Bailing Raft...

  • Page 4: Valves

    Once done, reinflate the tube and test. If still leaking, remove the valve for a more thorough cleaning. (See Valve Installation) 800.868.5987 HYSIDE.COM...
  • Page 5 Pressure Release Valve (PRV-Leafield A6) The PRV’s base inside the floor is free-floating. To install, work the base into position so that the collar of the base protrudes through the opening in the floor. Line up the valve with the hole in the floor. Insert the male/threaded part of the valve into the hole of the floor.

  • Page 6: Floors

    Lace-in floors, especially for international clients who need to break down the boats for transport. If you need instructions on lacing-in an inflatable floor, please see our website’s Tips and Trips section at www.hyside.com. FLOOR VALVES All HYSIDE inflatable floors are equipped with a Leafield A6 Pressure Release Valve (PRV).

  • Page 7: Preventative Care And Maintenance

    We’ve designed our boats to be very dependable and very simple to use and operate, even in the toughest conditions. Here are some in-depth tips and processes to keep your HYSIDE running in tip top shape for DECADES, like many of our happy customers have reported.

  • Page 8: Cleaning Your Hyside

    303 Protectant will bring back the shine. PROTECTING YOUR HYSIDE We recommend  303 Protectant  for your HYSIDE. Like sunscreen for your boat, it protects against UV rays and it seems to work as a coating that doesn’t allow dirt to adhere as much as if it weren’t there.
  • Page 9 Using the same PVC pipe, reverse the flow of air with the vacuum and blow air into the floor. The hot air will circulate and evaporate it until it is completely dry.   ROLLING YOUR HYSIDE Rolling your boat is very simple.

  • Page 10: Transporting Your Hyside

    (if shipping). This will avoid damage during transit and will save on freight if you are shipping it. If too big for a box, wrap the boat in a tarp, canvas, or HYSIDE Boat bag. Be sure not to load other equipment on top of the boat that could potentially wear on your boat.

  • Page 11: Tips For Outfitters

    Preventive maintenance is your best tool in keeping your fleet on the river. 1. At the beginning of the rafting season, spray all rubber parts with 303 protectant. (See “Protecting Your HYSIDE”) 2. Whenever possible, store boats under a shelter, out of the sun’s harmful rays. Never let boats unnecessarily bake in the sun.
  • Page 12 30% of a new raft to recondition your raft at a quality repair facility. Generally the work performed comes with a one year warranty. Call us for a list of authorized repair centers in your area or checkout hyside.com. STORAGE As mentioned under “Storing your HYSIDE”, rafts should be stored clean, dry and out of the sun.
  • Page 13 ADDITIONAL SUGGESTIONS Designating a specific inspection area with all the necessary tools available will facilitate the frequency of your inspection routine. • Whenever possible, transport inflatables on the top of the load, inflated, or by themselves. No coated material can withstand the constant grating of a hard object and sand or dirt down miles of dirt road. •...

  • Page 14: Repair

    Below are some common tools for repairing your inflatable. Most of the items you’ll need can be found in your repair kit (included with new boats and available in our online store). Hyside Repair Kit The repair kit includes everything you need for a solid repair on or off the water.
  • Page 15 ACC-114 ACC-125O ACC-112 ACC-125K ACC-125G Rollers and Wheels Use Rollers to compress the fabric materials together during a glue job, to ensure a solid bond. Standard Compression Roller is ACC-114. Ergo Roller (blue) is ACC-112. The black wheel is for cleaning up after a glue job. ACC-125K The orange wheel is for standard buffing and prep work.
  • Page 16 Keep glue stored in a dry area at room temperature. Date bottom of can and replace annually. You can re- use the brushes if they are stored in MEK in a jar that has a hole in the lid large enough to slide the brush in. Use aluminum foil to fill any gaps. 800.868.5987 HYSIDE.COM...

  • Page 17: Replacement Parts

    REPLACEMENT PARTS We normally stock most replacement parts for your inflatable, like D-rings, Handles and Footcones. FOOTCONES D-RINGS HANDLES ACC-319 ACC-750 ACC-300 ACC-302 Since the boats are handmade, the two parts that are not normally stocked are replacement floors and thwarts (since the measurements can vary slightly).

  • Page 18: Trouble Shooting

    $300 repair cost. Under the filter screen is a colored dot that indicates the PSI, so make sure it is the mfg suggested setting of either a blue dot (2.0 PSI release) or yellow dot (1.75 PSI release). 800.868.5987 HYSIDE.COM...

  • Page 19: Warranty Information

    WARRANTY INFORMATION HYSIDE’s goal is to provide you with a product that won’t leave you worrying about a warranty. Warranties won’t help you in remote locations or on the river. That said, if you do have any issues, please see the Terms and Conditions below, as well as our Limited Warranty and Limited Liability (our lawyers made us do it).

  • Page 20: Limited Warranty

    HYSIDE Inflatables does not have control of the use and/or operation of your new HYSIDE inflatable. Said inflatable has not been warranted to be fit for any particular use, or purpose, nor is HYSIDE responsible for the experience level or training of those who will use, occupy or maintain this inflatable, nor is HYSIDE responsible or liable for personal injury in connection with the use of this product.
  • Page 21 HYSIDE’s Limited Warranty and Limited Liability statement. SIGNATURE OF PURCHASER DATE NOTE: This card must carry the signature of the purchaser in order for the warranty on your HYSIDE Inflatable to be valid.
