RAILKING Y6b 2-8-8-2
STEAM ENGINE

OPERATING INSTRUCTIONS

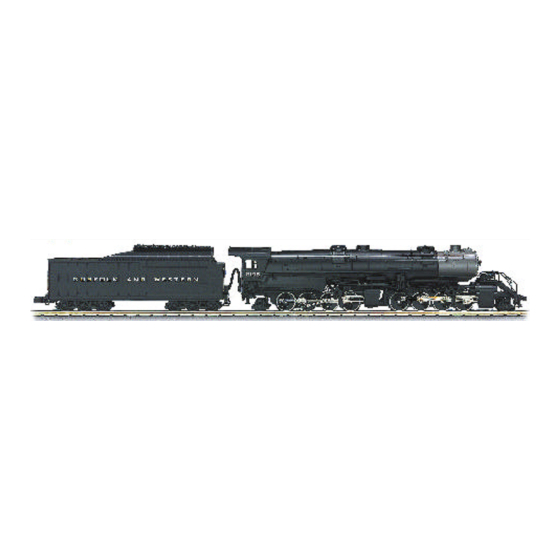

This RailKing Y6b 2-8-8-2 Steam Engine is produced in detailed Die-Cast Metal and
operates on O-31 track. This RailKing Steam Engine contains state-of-the-art electronics
with many built-in automatic features for incredibly realistic operation. Despite these
advanced features, the locomotive is easy to operate with any compatible standard AC
transformer (see the compatibility chart on page 18), and is completely compatible with
most other 3-rail locomotives, rolling stock, and accessories.
This locomotive is equipped with Proto-Sound 2.0 with Digital Command System
(DCS). This new system will allow you to operate your locomotive in Command mode
(when used with the DCS Remote Control System, sold separately) or Conventional
mode. Conventional operating features are described in the following pages, while the
DCS operating features are covered in the set of operating instructions that
accompanies the DCS equipment. Conventional Mode operation of this locomotive is
much simpler than operation of original Proto-Sound engines. For your own safety and
that of your equipment, please read the instructions before you operate this engine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Y6b 2-8-8-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rail King Y6b 2-8-8-2

  • Page 1: Operating Instructions

    RAILKING Y6b 2-8-8-2 STEAM ENGINE OPERATING INSTRUCTIONS This RailKing Y6b 2-8-8-2 Steam Engine is produced in detailed Die-Cast Metal and operates on O-31 track. This RailKing Steam Engine contains state-of-the-art electronics with many built-in automatic features for incredibly realistic operation. Despite these...
  • Page 2: Table Of Contents

    Cleaning the Wheels, Tires and Track Locomotive Traction Tire Replacement Smoke Unit Maintenance Locomotive Light Bulb Replacement Self-Charging Battery Back-Up Troubleshooting Compatibility Transformer Compatibility Chart Additional Features with DCS Remote Control System Safety Precautions Service and Warranty Information RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 3: Set Up

    Set Up There are a few simple steps you must take before operating this RailKing steamer. 1. You should prime the operating smoke unit with smoke fluid before operating. Add 15-20 drops of smoke fluid through the smokestack, then gently blow into the stack to eliminate any air bubbles in the fluid. See Fig. 4.
  • Page 4: Basic Operation

    (see Fig. 1 ). Proto-Sound 2.0 Volume Adjustment Knob Figure 1. Adjusting the Proto-Sound 2.0 Volume Level RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 5: Proto-Sound 2.0 Operation

    To use these buttons to activate features rather than to blow the whistle or ring the bell, you should press the buttons for a shorter time (1/2 second); you may need to practice your timing to make this work smoothly. RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 6: Freight Yard Sounds (Fys)

    Once the bell turns off, the operator regains control of the transformer’s bell and whistle buttons and can ring the bell or blow the whistle as usual. RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 7: Tips On Using Fys

    • FYS can be triggered from Neutral. It will operate the same as if triggered while in motion except that, at the conclusion of the FYS, the engine will depart in the next direction of travel, as opposed to the direction it was traveling before entering Neutral. RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 8: Proto-Coupler Operation

    Note: When speed control is turned off, the Proto-Sound 2.0 system will limit the volume in order to operate more smoothly at lower voltages. Full volume is restored upon reactivating speed control. RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 9: Lock Into A Direction State

    • Cab Chatter plays at random intervals when the engine idles in neutral. • Engine Start-up and Shut-down sounds play when the engine is initially powered on or is powered off for five seconds or more. RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 10: Maintenance

    4. Replace the screws and reassemble. Body Mount Screws Body Mount Screws Motor Mount Screws (G) Motor Mount Screws (G) Body Mount Screws Figure 3. Greasing Points on the Engine and Body Mounting Screws RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 11: Cleaning The Wheels, Tires And Track

    One set of replacement tires is included with the model. Additional tires are available directly from the M.T.H. Parts Department (phone: 410-381-2580; fax: 410-423-0009; e-mail: parts@mth-railking.com; mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532). RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 12: Smoke Unit Maintenance

    If you experience poor or no smoke output when the smoke unit is on and has fluid, check the wick Figure 6. Smoke Unit to see if it has become hard, blackened, and Inspection Cover unabsorbent around the heating element. Remove RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 13: Locomotive Light Bulb Replacement

    To replace the light in the tender, unscrew the six screws holding the tender shell on. Unplug the wires from its harness and replace the bulb, reassemble. You can obtain replacement bulbs directly from the M.T.H. Parts Department. HeadLight Fire Box Light Figure 7. Replacing the Headlight RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 14: Self-Charging Battery Back-Up

    • If the sounds are not improved at the end of the 15 minute test charge, it is time to replace the battery (see directions below). Contact the M.T.H. Parts Department (phone: 410-381-2580; e-mail: parts@mth-railking.com; mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532) for a replacement battery.
  • Page 15: Troubleshooting

    The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (telephone: 410-381-2580; fax: 410-423-0009; e-mail: service@mth-railking.com, mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532). RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 16 RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 17: Compatibility

    This engine will operate on any traditional O-31 or larger O Gauge track ® ™ system, including M.T.H.’s RealTrax or ScaleTrax or traditional tubular track. It is also compatible with most standard AC transformers. (See page 18 for a complete list of compatible transformers and wiring instructions.) RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 18: Transformer Compatibility Chart

    Note that many of the operational commands described in these instructions require a bell button, so if your transformer does not have its own bell button, you should consider adding one to get the full benefit of the system. RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 19: Additional Features With Dcs Remote Control System

    Doppler Operation, including setting distance points for Doppler start, repeat, and stop modes. • Independent Volume Control of Engine Sounds, Bell, Horn & Whistle for each Locomotive . • Control up to 50 different DCS-equipped locomotives at one time with multiple TIUs. RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 20 • User Can Query, Set and Operate Track and Accessory Interface Units for Programming Digital Command Operations for up to 250 Accessories and 250 Individual Switches . • User Can Script, Record and Playback Train Routes. RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 21: Safety Precautions

    In the event such conditions exist, the transformer should not be used until properly repaired. - As with all electrical appliances, this product should not be left in operation when unattended. RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 22 RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 23 RailKing Y6b 2-8-8-2 Steam Engine...
  • Page 24: Service And Warranty Information

    All M.T.H. products purchased from an Authorized M.T.H. Train Merchant are covered by this warranty. See our website at www.mth-railking.com or call 1-888-640-3700 to identify an Authorized M.T.H. Train Merchant near you. M.T.H. products are warrantied for one year from the date of purchase against defects in material or workmanship, excluding light bulbs and traction tires.
