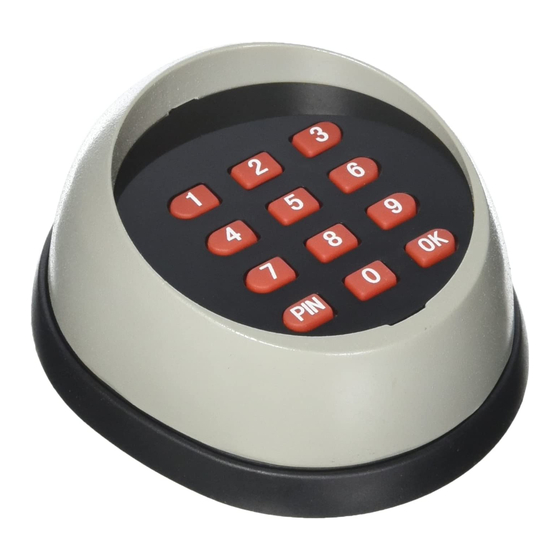

Wireless keypad

Advertisement

Wireless Keypad
Model: LM172
Programming and Operating Instruction Manual
NOTE: Please read this manual carefully before install and use.
www.WholesaleGateOpener.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM172 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aleko LM172

  • Page 1 Wireless Keypad Model: LM172 Programming and Operating Instruction Manual NOTE: Please read this manual carefully before install and use. www.WholesaleGateOpener.com...
  • Page 2: Keypad Description

    Introduction Thank you for purchasing the Wireless Keypad (LM172). The keypad has been integrated a LED backlight key feature. It will bring you great pleasure and convenience while you use it to operate LM/MK series Swing Gate Opener and DSC/R or SFG/SCG series Sliding Gate Opener. Be sure to read the manual carefully and completely before you permanently mounting the keypad, please program the keypad and test its range.
  • Page 3: Use For Dsr/Dsc Series Sliding Gate Opener

    2. You can press the ”OK” button at anytime to stop the moving gate.(Entry code is not needed). NOTE: The beeper of the keypad LM172 will beep at the press of any key. When you enter the entry code, each button should be pressed within 1 second. If an error has occurred, the beep will sound for 2 seconds before returning to normal operation.
  • Page 4: Use For Scg/Sfg Series Sliding Gate Opener

    2. You can press the “OK” button at anytime to stop the moving gate(Entry code is not needed). NOTE: The beeper of the keypad LM172 will beep at the press of any key. When you enter the entry code, each button should be pressed within 1 second. If an error has occurred, the beep will sound for 2 seconds before returning to normal operation.
  • Page 5 2. You can press the “ OK ” button at anytime to stop the moving gate(Entry code is not needed). NOTE: The beeper of the keypad LM172 will beep at the press of any key. When you enter the entry code, each button should be pressed within 1 second.
  • Page 6: Mounting Position Suggested

    Fig.6 Mounting position suggested The wireless keypad LM172 should be installed outside of the property (Pull to Open) and on the same side of the driveway where the control box is installed. The distance between the keypad and control box should not exceed 5 meters.
  • Page 7: To Increase Control Distance Of Keypad

    How to increase the control distance of keypad The designed remote range of the Keypad is 5~10 meters. If you find that the Keypad is not sensitive enough in on-site installation, we suggest you enhance the remote range by the following method. Step 1: Open the control box, the black color antenna can be found in the side of PCB.
  • Page 8 sales@WholesaleGateOpener.com www.WholesaleGateOpener.com ©2005-2012 LockMaster All Rights Reserved...
