Summary of Contents for HGM Vivart HFL03320K57W06

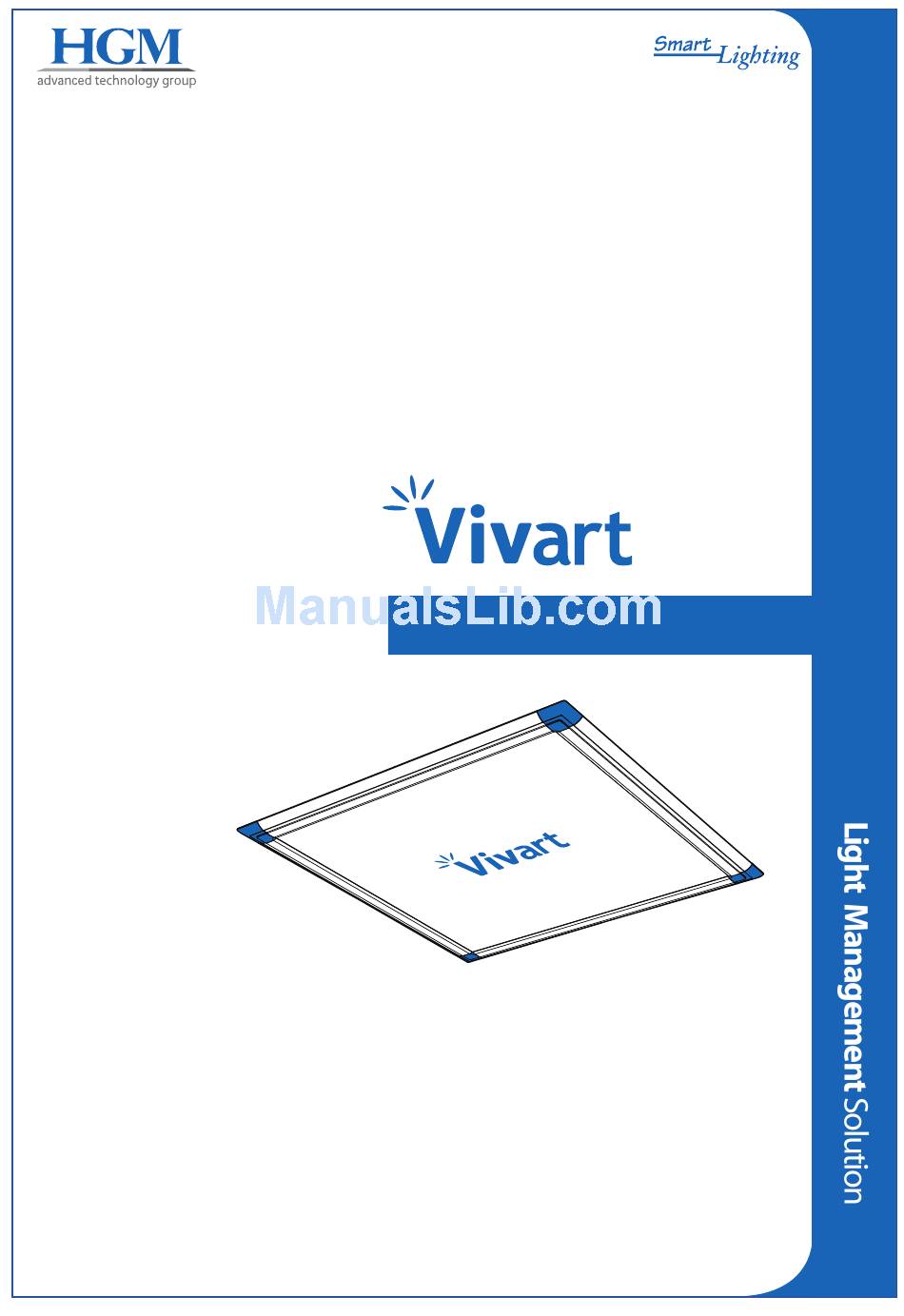

- Page 1 Light is VIVART FLAT LIGHT [Snap Type] www.hgm21.com P/No: OM-2011-L001...
-
Page 2: Product Features
Product Features Building new standards of LED lighting with the use of Diamond Sunburst Engraving method Features Vivart is a new generation of lighting products manufac- tured with original highly-efficient DSE method and using edge-based emission LED type for making lamps. It builds the standard of LED lighting with 50% of energy reduction 비... - Page 3 Warnings for product use Warning HGM’s Vivart lighting products use secured DC 48V power supplies. Negligent use of the product, such as connecting common domestic (110/220V) AC power supply without DC adapter (SMPS), will result in critical damage done to the product. Therefore, please, read and keep in mind the inspection procedure and installation process details.
- Page 4 Do not allow disassembling or recon guring in order to change parts and/or to use with the accessories/parts from other companies - Usage of the accessories from other companies except for HGM will cause internal defect and damage to the product...
- Page 5 SHFL type at light speci cations Item Model Name L x W x D (mm) Watt Volt Angle CRI Kelvin Weight HFL03320K57W06 330 x 200 x 10.5 DC 48V 170˚ 5,700 K 0.6 Kg HFL03333K57W12 330 x 330 x 10.5 12 W DC 48V 170˚...
-
Page 6: Installation
Installation- replacing existing lighting [unexposed cable] 1. Dispose of existing lighting 2. Appoint location of bolt hole 3. Wire connection Conventional Fluorescent Light Box was installed Remove the existing embedded Drill designated product hole(s) Connect product’s adapter to uorescent light box. according to product size. - Page 7 Installation of the product in a new location **Using the Flat cable for the cable exposed. 1. Choose the location 2. Appoint location of the hole 3. Attach with bolts Drill nal product hole(s) according Decide where to install the product. to product size.
- Page 8 Film change procedure 1. Open snap cover 2. Take out the existing lm 3. Check plug-in LED bars Take out the film; turn on the power and check LED surface. If there is foreign substance, remove Protect LED, wear cotton gloves; Take out the attached lm.
- Page 9 Check before reporting a failure If these signs are shown when running the product, please check again. It may not be product failure. Tips for safety inspection for the long term use of the product. - not possible to turn the product on - for safety, turn off...
-
Page 10: Product Warranty
- Product’s appearance damaged or changed due to organic solvent such as acetone, benzene, etc - Product damage due to the use of the product parts or power supply not provided by HGM - Product damage due to oversupply of power of operating voltage - Product parts being lost or damaged due to voluntary disassembly of the product - Product damage due to someone other than the representative of the main office service center... - Page 11 MEMO...
- Page 12 HGM service center Dealership/Branch inquiry 070-7500-5791 Domestic agency inquiry : 070-7500-5790 070-7500-5794 Overseas branch inquiry : Before calling Requesting internet service Knowing exact product model, fault status, phone number and address will get you faster service www.hgm21.com Suggestions/inquiry/new dealership through internet will get you exact and kind service Product’s Self-diagnose, desired date request is...
