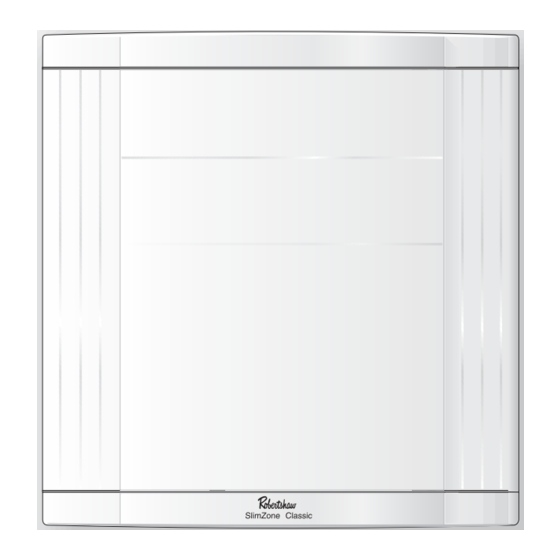

SLIMZONE CLASSIC
2701-001 / 2701-006
ZONE CONTROL SYSTEM
INSTALLATION AND OPERATION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLIMZONE CLASSIC 2701-001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Robertshaw SLIMZONE CLASSIC 2701-001

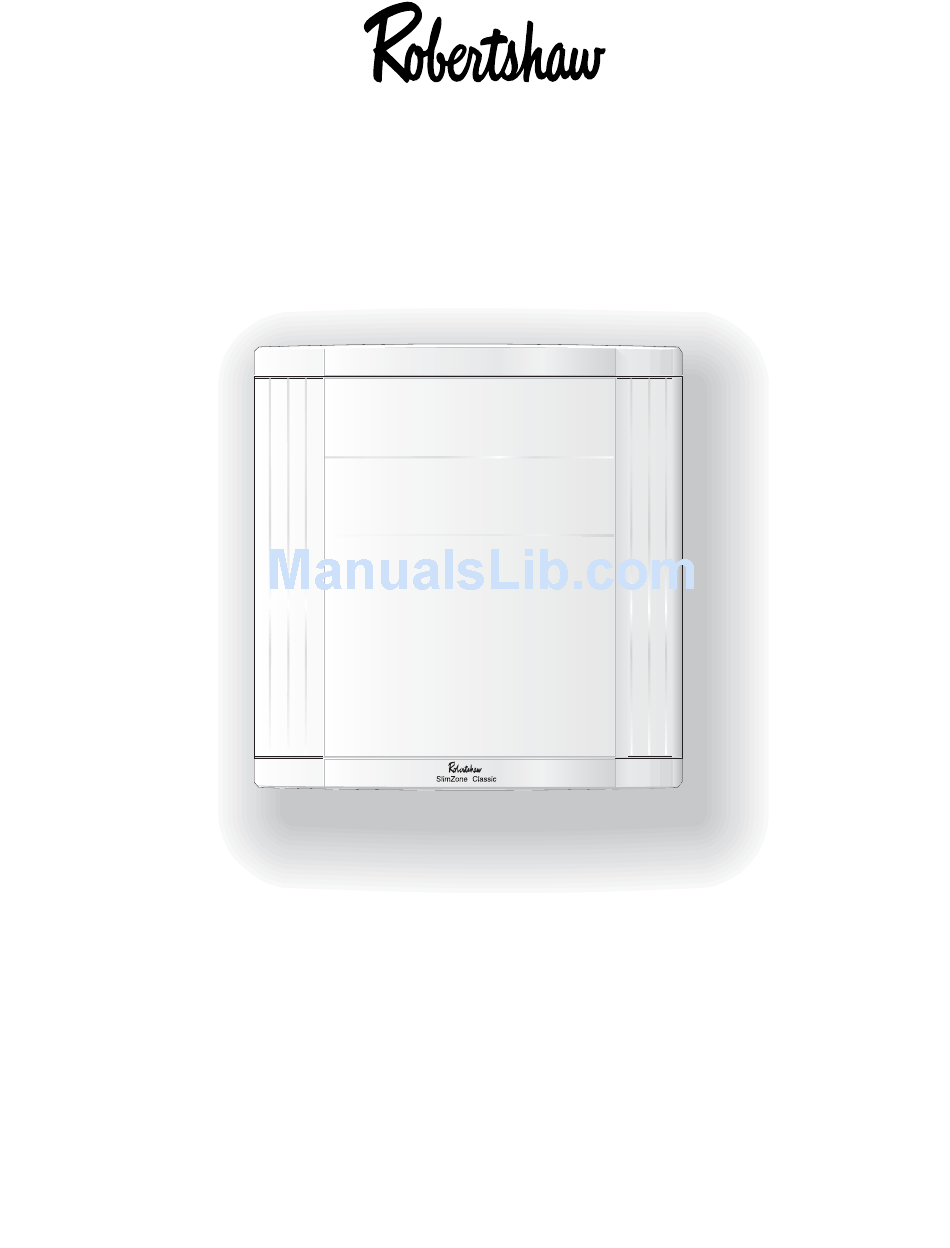

  • Page 1 SLIMZONE CLASSIC 2701-001 / 2701-006 ZONE CONTROL SYSTEM INSTALLATION AND OPERATION MANUAL...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. INTRODUCTION......................1 1.1 IMPORTANT NOTE....................1 1.2 FEATURES......................1 1.3 SAFETY INSTRUCTIONS ..................1 2. APPLICATION AND DESIGN CONSIDERATIONS ............2 3. COMPONENT REQUIREMENTS................3 3.1 BASIC SYSTEM......................3 3.2 THERMOSTATS ......................3 3.3 SIZING TRANSFORMERS..................3 3.4 SIZING DAMPERS....................3 3.5 TYPICAL SYSTEM DIAGRAM ................4 4.
  • Page 3: Introduction

    INTRODUCTION The SlimZone Classic (2701-001/2701-006) zone panel is designed to control conditioned air in separate zones using a single heating and cooling unit. Model 2701-001 controls up to 3 zones; model 2701-006 controls up to 2 zones. SlimZone is compatible with both single stage heating and cooling units and single compressor heat pumps with auxiliary heat.
  • Page 4: Application And Design Considerations

    All zones served by a panel should have the same basic load characteristics. References to typical dampers in this manual are Robertshaw model dampers. CAUTION •...
  • Page 5: Component Requirements

    COMPONENT REQUIREMENTS BASIC SYSTEM The basic system consists of the main SlimZone Classic control panel and the components required to support it. ITEM QUANTITY CONSIDERATIONS 2701-001 or 2701-006 controls 3 or 2 zones 4 wire heat/cool thermostat 1 per zone use standard nonshielded 4 conductor 18AWG copper wire Motorized zone dampers...
  • Page 6: Typical System Diagram

    TYPICAL SYSTEM DIAGRAM Not available with model 2701-006 Classic Figure 3.1: SlimZone Classic System Diagram SYSTEM INSTALLATION REMOVAL AND INSTALLATION OF DOOR Installer should touch a grounded metal object before handling the control panel to avoid potential loss of operation due to static discharge. The door is hinged on the left side. Open the door by gently pulling on the bottom right corner.
  • Page 7: Installation Of Backplate

    INSTALLATION OF BACKPLATE The control panel can be mounted on any interior surface. Use the mounting holes (Figure 4.1) to secure in place using the supplied #8 screws. Mount the control panel in a location that provides easy access for service. Do not mount the control panel on any part of the HVAC equipment or where moisture may be present.
  • Page 8: Bypass Damper System

    The ambient temperature will have an impact on the Polyfuse current limiting protection. The maximum number of dampers that can be connected to the total system using Robertshaw dampers are: At 25ºC (77ºF) At 40ºC (104ºF)
  • Page 9 Figure 4.2: SlimZone Classic Panel Wiring Diagram SlimZone Classic...
  • Page 10: Barometric Bypass Setup

    4.6.3 MOTORIZED BYPASS DAMPERS Some systems may require a motorized bypass damper. Robertshaw 3 wire bypass dampers are independently controlled by the Robertshaw EPC-602 static pressure regulator. Mount the EPC-602 in a position so that the LEDs (light emitting diodes) are visible for checking operation, and mount the bypass damper so that it is accessible for wiring.
  • Page 11: System Operation

    SYSTEM OPERATION INITIAL POWER UP When first powered up, the control panel will immediately process any fan calls from the zone thermostats but will ignore any heating or cooling calls for a maximum delay of 4 minutes. After the 4 minute minimum off delay has been satisfied, the control panel will then accept heating or cooling calls from the zone thermostats.
  • Page 12: Control Panel Setup

    The following sequence is only applicable when the SlimZone Classic system is used in heat pump applications and the system is in the HEAT ONLY or AUTO mode of operation. The auxiliary heat in heat pump systems is controlled by an internal control panel timer. Whenever the heat pump is in the heating mode, the control panel will energize the auxiliary heat output if the heating call is not satisfied within 15 minutes.
  • Page 13: Led Status Indication

    LED STATUS INDICATION All relay outputs and system status can be verified at the control panel and are indicated by LEDs (light emitting diodes). Refer to Figure 4.2 for location of the LEDs. REFERENCE COLOR LOCATION FUNCTION POWER ON Green 24VAC terminal Panel is powered FAULT...
  • Page 14: Setup And Test

    SETUP AND TEST Disconnect power to the equipment before pushing the time delay override button. Cooling Cycle: Set the cooling setpoints of all zone thermostats to their lowest setting. Note: Ensure that the remote switch selector for mode of operation is not set to Heat Only (if installed).
  • Page 15: Troubleshooting Guide

    10. TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION No heat/cooling in Zone thermostat(s) Set COOL/OFF/HEAT switch on the house thermostat(s) to the proper setting. Faulty heating/cooling equipment Troubleshoot equipment according to manufacturer’s instructions. Faulty thermostat Troubleshoot equipment according to manufacturer’s instructions. Replace if necessary.
  • Page 16: Glossary

    11. GLOSSARY Auxiliary/Emergency Applies to heat pump applications only. If the call for heat is not satisfied Heat within 15 minutes, auxiliary heat is energized and will remain on until the call is satisfied. In the event of a heat pump compressor failure, emergency heat (EH) is activated through an EH switch located on the control panel.
  • Page 17: Appendix A: List Of Figures

    APPENDIX A: List of Figures FIGURE 3.1: SLIMZONE CLASSIC SYSTEM DIAGRAM..........4 FIGURE 4.1: BACKPLATE MOUNTING HOLES...............5 FIGURE 4.2: SLIMZONE CLASSIC PANEL WIRING DIAGRAM ........7 APPENDIX B: List of Tables TABLE 3.1: SLIMZONE CLASSIC COMPONENT REQUIREMENTS ......3 TABLE 5.1: MODE OF OPERATION..................9 TABLE 6.1: SWITCH FUNCTIONS IN HEAT/COOL SYSTEMS........10 TABLE 6.2: SWITCH FUNCTIONS IN HEAT PUMP SYSTEMS........10 TABLE 7.1: LED DESCRIPTION..................11...
  • Page 18: Warranty

    WARRANTY Limited Two Year Warranty The manufacturer warrants to the original purchaser that its product and component parts will be free from defects in workmanship and materials for a period of two years from the date of purchase. Your dealer will provide free replacement of your panel upon proof of purchase. Exclusions This warranty does not apply in the event of misuse, abuse or as a result of unauthorized alterations or repairs.
  • Page 19 Climate Controls Americas Climate Controls of Canada, Inc. 515 South Promenade Avenue 3505 Laird Road Unit #14 Corona California 92879-1736 USA Mississauga Ontario L5L 5Y7 Canada Customer Service Telephone +1 800 951 5526 Customer Service Telephone +1 800 387 7978 Customer Service Facsimile +1 630 260 7299 Customer Service Facsimile +1 905 828 1265 iccacustomerservice@invensys.com...
