Apxalarm 6150RFAPX2 Installation And Setup Manual

GENERAL INFORMATION

The 6150RFAPX2 is a combination unit incorporating a normally-open relay output, a fixed English keypad and a transceiver.
The 6150RFAPX2 Keypad/Transceiver may be used on any control panel that supports the 6150 Keypad. The 6150RFAPX2
supports the following:
• 5828/5828V wireless keypads.
• Up to eight wireless keys locally (programmed directly into
6150RFAPX2) without occupying any zones supported by the
control panel.
• Button-type transmitters (e.g., 5804, 5804BD) for local operation.
• A maximum of 16 transmitters programmed into any 5800
Series-supported control panel.
• RF jam detection when the receiver is enabled.
U U U U L L L L The 5802, 5802MN, 5802MN2, 5804, 5804BD, 5804BDV, 5804E, 5814, 5816TEMP, 5819, 5819BRS, 5819WHS, 5828/5828V and 5850
transmitters are not intended for UL installations.
Programming Features
• Auto Enroll mode for programming wireless keys.
• Provides a method for deleting a serial number and re-enrolling a new one in its place.
• Provides default settings for the wireless key functions.
Additional Features
•
Optional back case available for use when mounting adjacent to AVST-APX Audio Verification System Remote. Order Part
# 6150APX-CASE.
• Operates the on-board relay in conjunction with the receiver (e.g., to trip a garage door opener).
U U U U L L L L
This feature is not intended for UL installations.
• Activates relays programmed into the control panel.
• Provides an End User mode to enable/disable local wireless keys (e.g., if a user accidentally loses a wireless key). Refer to the
6150RFAPX2 User Guide for this procedure.

INSTALLING THE 6150RFAPX2

Locate the 6150RFAPX2 in an area and at a height where it
is convenient for user operation. The 6150RFAPX2 must be
at least 10 feet from the control panel to ensure proper
operation of the RF receiver. Perform the following steps.
1. Push the two case release snaps at the bottom of the
keypad with the blade of a medium screwdriver (this will
push in the release snap), then pull that side of the case
back away. Insert the screwdriver in the side of the
keypad (between the front and back case) and gently
twist to release the side locking tab. Repeat for the other
side. Refer to Figure 1 for location of the case back
release snaps and locking tabs.
2. Route the wiring from the control panel through the
opening in the case back. (See the control panel's
instructions for proper wire run lengths.)
3. Mount the case back directly to a wall or electrical gang
box.
4. Connect the power and data wires from the control panel
to the terminals on the 6150RFAPX2 as indicated in the
Wiring Table adjacent to Figure 2.
5. Connect the wires for the relay output (if used) to the
terminals on the 6150RFAPX2's PC board.
INSTALLATION AND SETUP GUIDE
Keypad/Transceiver Keypad/Transceiver Keypad/Transceiver Keypad/Transceiver
• Low-battery indications for the local wireless keys.
• A nominal range of 200' for the RF transmitters (some
transmitters have a shorter range).
• Wireless keys for control panels that do not support RF
themselves (such as 4110DL).
• Sends status signals (Armed, Ready, etc.) to two-way
units such as 5804BDV and 5828/5828V.
Note: Upon power-up or exiting the Program Mode, the 6150RFAPX2
alternately flashes "Ad" and the 2-digit keypad address and the
2-digit receiver address on the display. Press any key to
display the system status.
6. Reattach the keypad to its case back.
ARMED
READY
WW W.APX A LARM.CO M
NOTE:
TO REMOVE CASE BACK
PUSH IN THE TWO MOUNTING
SNAPS LOCATED ALONG THE
BOTTOM OF THE KEYPAD
AND LIFT UP.
RETAINING
SNAPS

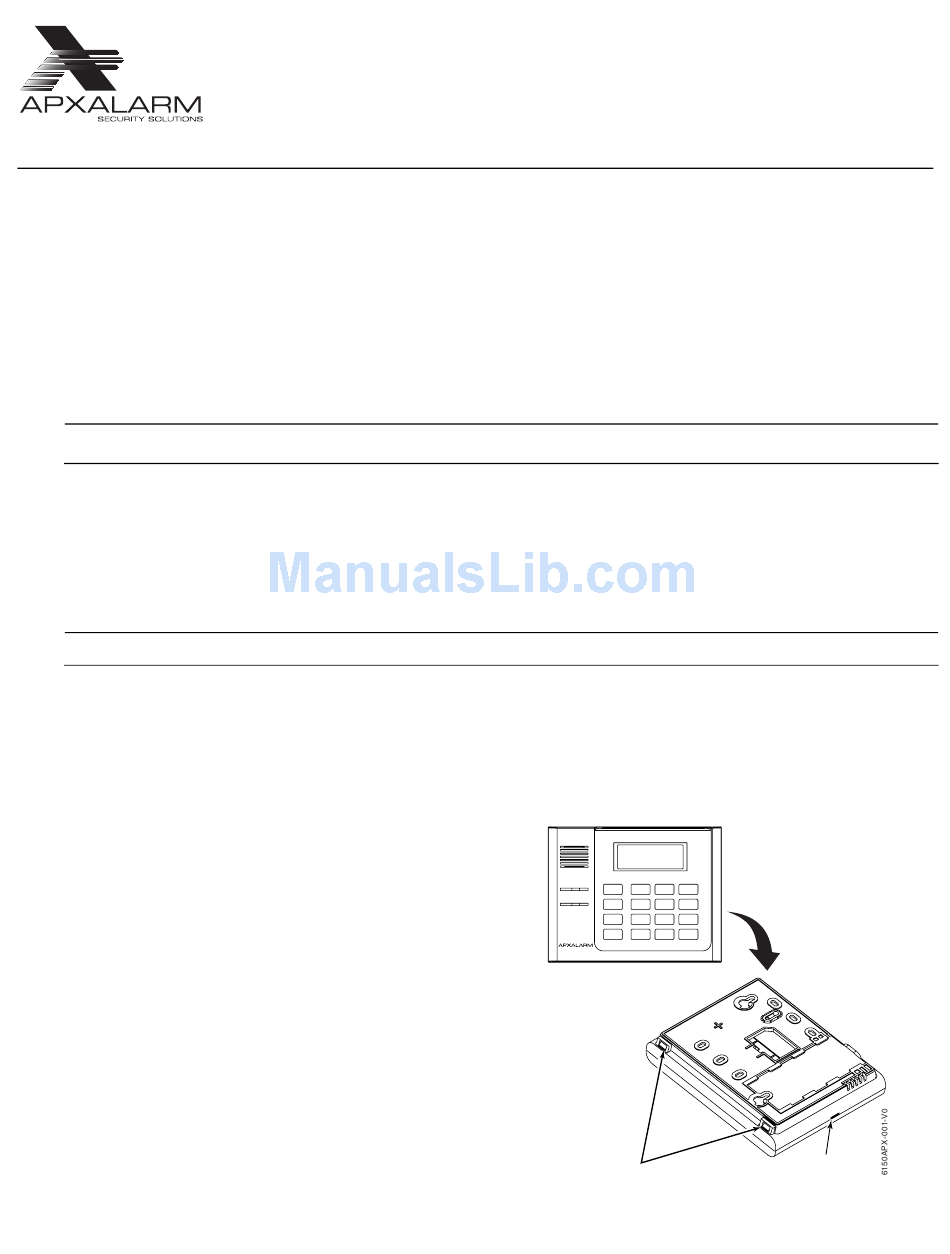

Figure 1 – Removing the 6150RFAPX2 Case Back
K4460-11 10/08 Rev A
6150RFAPX2 2 2 2 6150RFAPX 6150RFAPX 6150RFAPX
LOCKING
TAB
