Teleview TAV900A User Manual

Professional digital television receiver hdtv monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

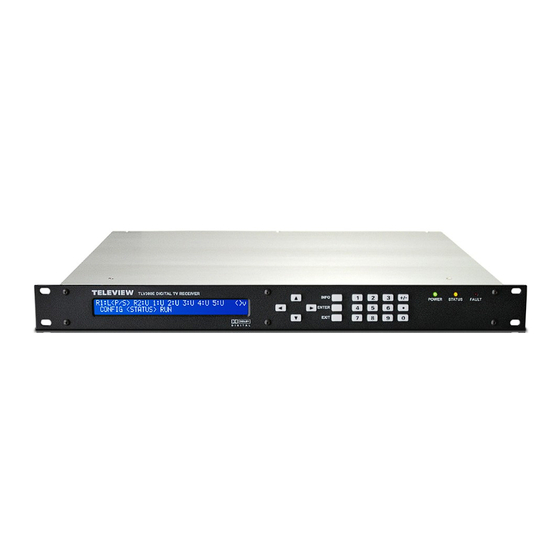

Professional Digital Television Receiver
TLV-300E™, TLV-300E/M™
HDTV Monitor TAV900A
User's Manual
Version 2.0 (For FW V2.1.9, FPGA V3.1)
May 11, 2010
Teleview
Corporate Headquarter Teleview, Inc. 355-1 Yatap, Bundang, Seongnam, Gyeonggi, 463-828 , Republic of Korea
E-mail: sales@teleview.com
http://www.teleview.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAV900A and is the answer not in the manual?

Questions and answers

Related Manuals for Teleview TAV900A

Summary of Contents for Teleview TAV900A

  • Page 1 Professional Digital Television Receiver TLV-300E™, TLV-300E/M™ HDTV Monitor TAV900A User’s Manual Version 2.0 (For FW V2.1.9, FPGA V3.1) May 11, 2010 Teleview Corporate Headquarter Teleview, Inc. 355-1 Yatap, Bundang, Seongnam, Gyeonggi, 463-828 , Republic of Korea E-mail: sales@teleview.com http://www.teleview.com...

  • Page 2: Table Of Contents

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Table of Contents 1. OVERVIEW 1.1 Introduction 1.2 Delivered Contents 1.3 Front Panel Overview 1.3.1 Alphanumeric Display 1.3.2 Function Buttons 1.3.3 Numeric Buttons 1.4 Rear Panel Overview 1.4.1 Overview 1.4.2 Video Output 1.4.3 Audio Output 1.4.4 Digital Output BNC Connectors (AES3/DVB-ASI/SMPTE-310M) 1.4.5 DVB-ASI/SMPTE-310M Input BNC Connectors 1.4.6 RF Input Connectors...

  • Page 3: Version 2.0

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 2.11 Using FAULT Output 2.12 SNMP Network Management 2.13 Saving Configuration 2.14 Menu Using OSD 3. MENU DICTIONARY 3.1 Overview 3.2 CONFIG Menu 3.2.1 CONFIG Menu Overview 3.2.2 CONFIG/MAIN sub-menu 3.2.3 CONFIG/SUB sub-menu 3.2.4 CONFIG/RF-IN1 sub-menu 3.2.5 CONFIG/RF-IN2 sub-menu 3.2.6 CONFIG/BNC OUT(AES/ASI/SMPTE310M) sub-menu...

  • Page 4: Version 2.0

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 4.1 Firmware Upgrade from Teleview Web Site(TELEVIEW URL) 4.2 Firmware Upgrade with FTP(TLVFTPD) 4.3 Firmware Upgrade with USB Port(USB) 5. HELP 5.1 Trouble Shooting 6. SYSTEM STATUS LOG 7. SPECIFICATIONS1 8. INPUT AND OUTPUT SIGNAL SPECIFICATIONS2 8.1 Audio Output...
  • Page 5 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual IMPORTANT SAFETY INSTRUCTIONS: Important safety instructions shall be provided with each apparatus. These instructions shall be in a separate booklet or sheet, or be located before any operating instructions in an instruction for installation or use and supplied with the apparatus.
  • Page 6 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 7: Overview

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 1. OVERVIEW 1.1 I NTRODUCTION The Professional Digital Television Receiver TLV-300E/TAV-900A receives digital broadcasting signal through various sources and supplies demodulated / decoded video and audio in various industrial forms of signal. Designed to be compliant with versatile industrial standard such as MPEG-II MP@ML/HL [1][2] , ATSC (Advanced Television Systems Committee) and DVB (Digital Video Broadcasting), the TLV-...

  • Page 8: Delivered Contents

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 1.2 D ELIVERED ONTENTS When you receive the TLV-300E/TAV-900A from a distributor, the package comes with following contents: Table 1 Content in the carton box Description Quantity TLV-300E 1RU frame or TAV-900A 3RU frame AC power cord 1 North America type (Type B) plug and an IEC C13 line socket 1 Power cord featuring a CEE 7/4 plug (Type F, Schuko) and an...
  • Page 9 The Front panel of TLV-900A can be divided into 6 main parts: Table 3 Front panel components 7 inch color TFT-LCD display Two speakers Volume knob Function buttons (Menu, Mute, SLCT(==ENTER), EXIT) Arrow buttons 3 LEDs (POWER, STATUS, FAULT) TAV900A DTV MONITOR POWER STATUS FAULT M ENU M UTE SLCT EXIT...

  • Page 10: Alphanumeric Display

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 1.3.1 Alphanumeric Display The status display provides clear viewing of status and menu configuration with 2 lines by 40 characters. It is used to control the TLV-300E directly from the front panel. 1. Lock State 2.

  • Page 11: Function Buttons

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 1.3.2 Function Buttons Front panel has buttons for easy control, which enable complete and simple control of the receiver. The entire operation of the receiver can be carried out directly using the front panel buttons with the alphanumeric display.

  • Page 12: Numeric Buttons

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual POWER STATUS FAULT MENU MUTE SLCT EXIT Figure 5 Function Buttons and Numeric Buttons of TAV-900A 1.3.3 Numeric Buttons Numeric buttons allow you to enter the numbers instead of using the arrow buttons. For example, instead of using the direction buttons to find program number ‘63’, the user enters the number ‘63’...

  • Page 13: Rear Panel Overview

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 1.4 R ANEL VERVIEW 1.4.1 Overview The rear panel has all the necessary connections to receive and send the incoming/outgoing signal. The real panel can be divided into 4 main parts: Table 6 Regions in the rear panel 1.

  • Page 14: Video Output

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual SDI OUT1 Pb/B OUT RF IN 2 L2/R2 (OPTIONAL) BNC IN(ASI/SMPTE-310M) Y/G OUT Pr/R OUT ANALOG AUDIO MAIN MAIN RF IN 1 SDI OUT2 HD OUT ETHERNET BNC OUT (AES3/ASI/SMPTE-310M) FAULT CVBS OUT VD OUT 100-240V~ 50- 60Hz 80W Figure 7 Rear Panel of the Receiver...

  • Page 15: Audio Output

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual  MAIN channel digital video output connector SDI 1 (HD/SD) A BNC type connector enables SDI digital video output signal. SDI 2 (HD/SD) Identical signal with SDI 1 The SDI signal is valid for 1080i, 720p (30/29.97/25 Hz), and 480i 29.97 Hz/576i 25 Hz video output mode.

  • Page 16: Dvb-Asi/Smpte-310M Input Bnc Connectors

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 1.4.5 DVB-ASI/SMPTE-310M Input BNC Connectors There are five input BNCs used to input DVB-ASI or SMPTE-310M format transport stream. The format is detected automatically. BNC-IN(DVB-ASI/SMPTE- BNC type connector enables serial SMPTE-310M and/or DVB- 310M-1~5) ASI transport stream input with automatic detection The TLV-300E/TAV-900A accepts SMPTE-310M and DVB-ASI signal.

  • Page 17: Bnc Configuration

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Power Switch Turn on/off main power Power Inlet Universal AC-INLET accepts 100–240 VAC and a line frequency 50/60 Hz. IEC C14 type chassis plug RF IN-1 TLV300E MAIN:PbPr/RGB Out RF IN-2 (option) MAIN: Sync Out SUB:CVBS Out MAIN:L1/R1(CH1/2) SUB:L2/R2(CH1/2)

  • Page 18: Getting Started

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 2. GETTING STARTED 2.1 I NITIAL Follow these instructions to connect the TLV-300E/TAV-900A receiver to your video display and audio amplifier. Connect the supplied power cable from the AC power inlet on the rear panel to a standard AC outlet. Either 50Hz or 60Hz, 100V-240V is acceptable.

  • Page 19: Verifying Ypbpr Or Rgb Component Video Output (Only If Applicable Display Is Attached)

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 2.2 V RGB C ERIFYING R OR OMPONENT IDEO UTPUT NLY IF APPLICABLE DISPLAY IS ATTACHED If you have attached YPbPr display or RGB display, follow this step. Connect YPbPr type or RGBHV type display into Y/G, Pb/B, Pr/R and HD, VD BNC connector in the rear panel.
  • Page 20 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Table 7 Available modes for SDI output Video Frame Rate Embedded Audio Mode 29.97Hz(59.94) 30Hz(60) 25Hz(50) PCM Compressed 1080i 720p 480p/576p Not defined Not defined Not defined (480p) (480p) (576p) 480i/576i O (480i) Not supported (480i) (576i)
  • Page 21 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Table 9 Embedded Audio Specification(Since FPGA v3.2) Display mode 1080i 720p 480i 1080i 720p 1080i 720p 576i 30/1.001 60/1.001 30/1.001 Frame rate 30Hz 60Hz 25Hz 50Hz 25Hz SMPTE standard SMPTE SMPTE SMPTE SMPTE SMPTE SMPTE SMPTE...

  • Page 22: Verifying Composite Video Output (Only If Applicable Display Is Connected)

    You may also use CONFIG/MAIN/SOURCE to select RF-IN1 and use CONFIG/MAIN/TUNE CH (tune by channel) as an alternative way. TAV900A does not have numeric buttons and can not use direct channel selection but need to use menu.

  • Page 23: Verifying Digital Tv Signal Decoding Thru Dvb-Asi Or Smpte-310M Input

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 3 4 . 9 d B < > S - H D < > User can select this menu (MAIN STATUS) by using ^ arrow buttons. In this upper line of the display, MAIN:RF-IN1 means MAIN channel is taking input signal from RF input-1 port.

  • Page 24: Verifying Qam Digital Tv Signal Decoding Thru Cable Tv Input

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual receiver will prompt user to choose one. Example) No menu state1 (INPUT PORT STATUS), B1:L indicates BNC-1 is in LOCK state. R 1 : < > In this upper line of the display, B1:L means BNC input-1 is in LOCK state. R1:- and R2:- means RF input-1 and RF input-2 is in UNLOCK state and B2:-, B3:-, B4:- and B5:- means BNC-2, 3, 4, 5 is in UNLOCK state.

  • Page 25: Verifying Analog Audio Output

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual If you were watching video with composite video, use CONFIG/SUB/SOURCE and select RF-IN1 and use CONFIG/SUB/TUNE CH (tune by channel). The receiver will choose RF-IN1 source for SUB decoder and tune to the desired channel. After you tune to the RF signal and exit to the no menu state1, the receiver does not get proper incoming video signal or setting, then “UNLOCK”...

  • Page 26: Using Fault Output

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual CVBS video. Use CONFIG/MAIN/AUDIO/DIGITAL AUDIO COMPRESSED or PCM depending on the type of digital audio receiver. Use CONFIG/SUB/AUDIO/DIGITAL AUDIO COMPRESSED or PCM depending on the type of digital audio receiver. Other connector BNC OUT(AES3/ASI/SMPTE310M) - 3 and 4 connectors can be used as well. 2.11 U FAULT O SING...
  • Page 27 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual STATU/SUB/PSIP, CONFIG/MAIN/AUDIO/VOLUME METER, CONFIG/SUB/AUDIO/VOLUME METER, DIAGNOSIS/COLOR BAT will use OSD. If this receiver is used for transmission and not allowed to use any overlay graphics, avoid using these menus. To disable all OSD on main video, use CONFIG/MAIN/OSD OFF.

  • Page 28: Menu Dictionary

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 3. MENU DICTIONARY 3.1 O VERVIEW There are six menu entries in top menu, CONFIG, STATUS, SAVE PROFILE, RECALL PROFILE, DEFAULT and DIAGNOSIS menu, in the TLV-300E/TAV-900A receiver. This menu appears when user press  (down arrow) button at no menu state. User can navigate through these menus and control using the function buttons and numeric buttons.

  • Page 29: Config Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual execution. 3.2 CONFIG M 3.2.1 CONFIG Menu Overview There are 11 sub-menus in the CONFIG menu. Change the sub-menus using Left/Right buttons and press ENTER button to select. Example) MENU: CONFIG M E N <...

  • Page 30: Config/Main Sub-Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual FAULT OUT Program fault condition. Entries consist of MAIN, SUB, INPUT PORT and THRESHOLD INTERVAL. PRIORITY Choose automatic source selection priority. Entries consist of AUTO SELECTION DELAY Choose automatic source selection latency on signal loss for SOURCE AUTO SELECTION mode.
  • Page 31 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual MAIN/CAPTION/ACTIVE/EIA- Select Caption Service for DTV caption (EIA708). Service 1 ~ 708B Service 7. MAIN/OSD Enable or disable OSD on MAIN display (PSIP display, FAULT status display and Volume bar, Constellation, Colorbar) 3.2.2.1 CONFIG/MAIN/SOURCE sub-menu The SOURCE sub-menu allows you to change the source of input for MAIN video.
  • Page 32 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual frame rate according with your display. Types are 25 Hz, 29.97 Hz, and 30 Hz. In fact, 25 Hz is to be used for both 25 Hz and 50 Hz, 29.97 Hz for both 29.97 Hz and 59.94 Hz, and 30 Hz for both 30 Hz and 60 Hz. ASPECT RATIO: The ASPECT RATIO sub-menu allows you to change the aspect ratio of MAIN video.
  • Page 33 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 20dB and maximum. MUTE: For setting a mute option for audio output. Types are mute ON or OFF. If the mute option is ON, there will be no sound output. VOLUME METER: Display on screen volume meter display. SDI AUDIO: Determine type of embedded audio in SDI.
  • Page 34 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Table 14 DVB sub title on screen display Display Analog Video output Frame rate 25Hz Caption Standard 1080i 720p 576p 576i DVB SUB-TITLE ETSI 300 743 DVB subtitling systems Table 15 SDI embedded closed caption Display Analog Video output Frame rate...

  • Page 35: Config/Sub Sub-Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 3.2.2.7 CONFIG/MAIN/OSD sub-menu Enable or disable OSD for main display. CONFIG/FAULT/MAIN/OSD, CONFIG/FAULT/SUB/OSD, STATUS/MAIN/PSIP STATU/SUB/PSIP, CONFIG/MAIN/AUDIO/VOLUME METER, CONFIG/SUB /AUDIO/VOLUME METER, DIAGNOSIS/COLOR BAR(main video) will use OSD. To disable all OSD on main video, disable this menu. 3.2.3 CONFIG/SUB sub-menu Table 16 CONFIG/SUB submenu architecture CONFIG...

  • Page 36: Config/Rf-In1 Sub-Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 3.2.4 CONFIG/RF-IN1 sub-menu To configure RF related modes. There are RF-IN1 and RF-IN2 sub-menu. Table 17 CONFIG/RF-IN1 submenu architecture CONFIG RF-IN1 Configure RF input-1 source. RF-IN1/ TUNE CENTER Switch MAIN channel source into RF input-1 and Tune by FREQ center frequency value.

  • Page 37: Config/Bnc Out(Aes/Asi/Smpte310M) Sub-Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual RF-IN2/FREQUENCY Select channel plan. Mode can be TERRESTRIAL, STANDARD PLAN CABLE, HRC CABLE, or IRC CABLE. RF-IN2/MODULATION Select Modulation type: 8VSB, 64QAM, 256QAM. RF-IN2/BER INTERVAL Select BER calculation interval RF-IN2/EQUALIZER ON / OFF the channel equalizer of the demodulator. ON is strongly recommended.

  • Page 38: Config/System Sub-Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Choose BNC OUT(AES/ASI/SMPTE310M)-3 connector to OUT(AES/ASI/SMPTE310M) deliver MAIN-ASI, MAIN-310M, MAIN-AES3 or SUB-AES3. /BNC-3 Choose BNC OUT(AES/ASI/SMPTE310M)-4 connector to OUT(AES/ASI/SMPTE310M) deliver MAIN-ASI, MAIN-310M, MAIN-AES3 or SUB-AES3. /BNC-4 3.2.7 CONFIG/SYSTEM sub-menu The SYSTEM sub-menu allows you to configure basic setting of the receiver. There are LOCAL TIME OFFSET, UPGRADE FIRMWARE and LICENSE NUMBER sub-menus in the SYSTEM sub- menu.

  • Page 39: Config/Network

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual desired position using Left/Right buttons and set the number using up/down buttons or numeric buttons. Select SAVE to apply it. License information may be included as an additional sheet. Be careful not to lose or mishandle this information.

  • Page 40: Config/Fault Out Sub-Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 3.2.9 CONFIG/FAULT OUT sub-menu You could see error status using FAULT OUT menu. There are MAIN, SUB, INPUT PORT, and THRESHOLD INTERVAL sub-menus. Table 22 CONFIG/FAULT OUT sub-menu architecture CONFIG FAULT OUT Program fault condition of the receiver. FAULT OUT/MAIN Program fault condition with MAIN channel audio/video decoder.

  • Page 41: Config/Priority

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual FAULT OUT/MAIN/FAULT OUT: You could choose fault output type to check. The fault output signal at the front “Fault LED” and rear panel “FAULT OUT” BNC indicates fault condition. You could see TS UNLOCK, TSWYNC ERR, TS FLAG ERR, TS CC ERR, TS CC ERR EACH PID, TS PAT ERR, DMX PAT ERR, DMX PMT ERR, DEC NO VIDEO, DEC NO AUDIO, and DEC LIPSYNC sub-menus.

  • Page 42: Config/Auto Selection Delay

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual PRIORTY/1 Select auto selection priority for SOURCE AUTO SELECTION mode. 3.2.11 CONFIG/AUTO SELECTION DELAY: This is the delay time to auto select if the input that you have been selected turns to unlock. This menu works only when you choose AUTO SELECTION.

  • Page 43: Status/Main Sub-Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual RF-IN1 View RF status on RF input-1. Entries are SNR, BER and CONSTELLATION. RF-IN2 View RF status on RF input-2. Entries are SNR, BER and CONSTELLATION. INPUT For the information about input condition. VERSION For showing a version number of the firmware.
  • Page 44 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual VIDEO: The VIDEO sub-menu allows you to see information about main video. Types of information are video RESOLUTION, FRAME RATE, ASPECT RATIO, and BIT RATE. M E N < > < > AUDIO: The AUDIO sub-menu allows you to see information about MAIN audio. Types of information are audio LANGUAGE, ENCODING, SAMPLING FREQ and CODING MODE.
  • Page 45 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Example) Table display: MGT INFORMATION 2004-11-09 Version Proto. Table Num. Table Type Table PID Table Ver. 0x0000 (T-VCT) 0x1Hb 0x0201 (ETT) 0x1e00 0x0202 (ETT) 0x1e01 0x0004 (ETT) 0x1e80 UP/DN: display another info, SLCT: toggle Hex÷Dec. Figure 11 MGT information display VCT: For displaying information about the VCTs (Virtual Channel Table) in the stream.

  • Page 46: Status/Sub Sub-Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual  Example) Table display: EIT INFORMATION 2004-11-09 Evt Id. Etm Loc. Length Start time Title NO EIT INFORMATION Extended Text Available EIT [Event Id] Total UP/DN : Display other Info, < >: Choose EIT, SLCT: Toggle Hex ÷ Dec. Figure 13 EIT information display ...

  • Page 47: Status/Rf-In1 And Status/Rf-In2 Sub-Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual SUB /AUDIO LANGUAGE, ENCODING, SAMPLING FREQ and CODING MODE SUB /PSIP PAT, PMT, MGT, VCT, EIT, and STT display SUB /CAPTION EIA-708B Service Language display 3.3.3 STATUS/RF-IN1 and STATUS/RF-IN2 sub-menu There are SNR, BER, and CONSTELLATION sub-menus in the RF-NI1 and RF-IN2 menus. The RF-IN1 and RF-IN2 sub-menus allow you to monitor the SNR/BER and CONSTELLATION of tuned RF.

  • Page 48: Status/Version Sub-Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 3.3.5 STATUS/VERSION sub-menu The VERSION sub-menu can show a version number of the receiver’s firmware. M E N < > < I T > 3.3.6 STATUS/SERIAL NUMBER sub-menu The SERIAL NUMBER sub-menu can show a serial number (16 bytes). M E N <...

  • Page 49: Save Profile Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual No ”AUTO SELECTION” at SOURCE menu No output control for BNC ALM Port (always stay in LOW status) No SNMP agent trap is defined Even though there is no TS Monitoring function, these below functions will be operating. TS LOCK / UNLOCK status for each TS port.
  • Page 50 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Table 29 Default values MAIN/SOURCE AUTO SELECTION MAIN/VIDEO/DISPLAY MODE 1080i MAIN/VIDEO/DISPLAY TYPE YPbPr MAIN/VIDEO/FRAME RATE 29.97Hz MAIN/VIDEO/ASPECT RATIO 16:9 MAIN/VIDEO/SCREEN MODE LETTER BOX MAIN/AUDIO/DIGITAL AUDIO MAIN/AUDIO/PROLOGIC MAIN/AUDIO/LANGUAGE MAIN/AUDIO/VOLUME MAIN/AUDIO/MUTE MAIN/AUDIO/VOLUME METER MAIN/AUDIO/SDI AUDIO MAIN/CAPTION/ACTIVE MAIN/CAPTION/EIA-608A MAIN/CAPTION/EIA-708B...
  • Page 51 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual SUB/VIDEO/FRAME RATE 29.97Hz SUB/VIDEO/ASPECT RATIO 16:9 SUB/VIDEO/SCREEN MODE LETTER BOX SUB/AUDIO/DIGITAL AUDIO PCM only. No Compressed Audio (Remaining SUB settings are as same as MAIN settings.) RF-IN1/TUNE CENTER FREQ 473000KHz RF-IN1/TUNE CH RF-IN1/FREQENCY PLAN TERRESTRIAL RF-IN1/MODULATION 8VSB...

  • Page 52: Diagnosis Menu

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual FAULT OUT /MAIN/THRESHOLD 1.0X10-4(FOR ALL SETTINGS) FAULT OUT/MAIN/OSD FAULT OUT/SUB/FAULT OUT NOT USED(FOR ALL SETTINGS) FAULT OUT/SUB/THRESHOLD 1.0X10-4(FOR ALL SETTINGS) FAULT OUT/SUB/OSD FAULT OUT/INPUT PORT/RF-IN1~2, BNC-1~5 1.0X10-4 FAULT OUT/THRESHOLD INTERVAL 5 SEC PRIORITY/1 RF-IN1 PRIORITY/2 RF-IN2...
  • Page 53 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual COLOR_BAR: The COLOR BAR sub-menu allows you to turn on/off the test color bar pattern on all video output. Select EXEC to run it. This is typically used to verify the signal path from the receiver. Select STOP button to stop it.

  • Page 54: How To Upgrade Firmware

    IRMWARE PGRADE FROM ELEVIEW You could find newer version of firmware at TELEVIEW web site. Therefore, if you have Internet connection, you could upgrade the firmware from TELEVIEW web site. Connect an Ethernet cable to the receiver. Connect the Ethernet cable to internet.

  • Page 55: Firmware Upgrade With Usb Port(Usb)

    If this situation happens, it will be necessary to return the receiver to the vendor to repair the flash ROM. The binary package of new firmware can be obtained from Teleview (mailto:sales@teleview.com). Version 2.0...

  • Page 56: Help

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 5. HELP 5.1 T ROUBLE HOOTING Symptom Possible Solution No video Make sure the power cord in plugged in and power is on Make sure all cables are connected properly Make sure the antenna cable is working properly Make sure that your setups are the ones your display supports (i.e.

  • Page 57: System Status Log

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 6. SYSTEM STATUS LOG The receiver creates log file allows you to monitor the system error or operation state. When the receiver has an operation problem, this log file allows you to monitor latest error status. 6.1 Example of message form in the log file.

  • Page 58: Specifications1

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 7. SPECIFICATIONS Section Detailed section Explanation Terrestrial Input Input frequency 54 MHz ~ 820 MHz Signal Input impedance 75 ohm F-connector Band width 6 MHz Modulation type 8VSB, 64QAM/256QAM(ITU-T J.83 Annex TS Input Interface protocol SMPTE-310M at 19,392,58 bps rate.
  • Page 59 TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Front Display Alphanumeric 2 Lines by 40 characters alphanumeric Controller Features ATI XILLEON 226 Operating system Embedded linux Firmware upgrade Upgrade via USB / Ethernet Data interface Ethernet connection, SNMP V1.1.1 support Power Power 100V –...

  • Page 60: Input And Output Signal Specifications2

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 8. INPUT AND OUTPUT SIGNAL SPECIFICATIONS 8.1 A UDIO UTPUT Name Type Connector Description L1, R1 Analog audio output Balanced 600 ohm, Audio L1 and R1 L2, R2 Analog audio output D-sub 9p Balanced 600 ohm, Audio L2 and R2 ASI/310/AES3...

  • Page 61: Main Video Output - Component

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 8.2 M – C IDEO UTPUT OMPONENT Name Type Connector Description Y/G OUT Luminance BNC, female 0.7Vpp at 75 ohm Pb/B OUT Chrominance-blue BNC, female 0.7Vpp at 75 ohm Pr/R OUT Chrominance-red BNC, female 0.7Vpp at 75 ohm HD OUT Horizontal sync...

  • Page 62: Sub Video Output -Composite

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 8.4 S –C IDEO UTPUT OMPOSITE Name Type Connector Description CVBS OUT Composite BNC, female 140 IRE(1.0Vpp) at 75 ohm +/- (NTSC/PAL) NTSC: ANSI/SMPTE170M- 1994, CCIR656 CC : Eia-608B PAL: ITU R. BT.470-6 8.5 USB USB 1.1 Master mode (type A connector)

  • Page 63: Smpte-310M Input

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Not used Not used Not used Not used 8.7 SMPTE-310M I NPUT Connector type BNC connector Impedance 75 ohm Bit rate 19,392,658 bps Minimum signal level 200 mVpp Maximum signal level 880 mVpp Frequency tolerance Max 2.5 ppm 8.8 SMPTE-310M O...

  • Page 64: Dvb-Asi Output

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Max. input voltage (p-p) 880 mV S11 (range: 0,1 to 1,0 x bit rate) -8dB 8.10 DVB-ASI O UTPUT Output voltage (p-p) 800 mV± 10% Deterministic jitter (DJ) (p-p) S11 (range: 0,1 to 1,0 x bit rate) -8dB Random jitter (RJ) (p-p) Return loss...

  • Page 65: Power Inlet

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual Maximum voltage 125VAC, 60VDC Maximum switching current Maximum switching capacity Inductive load 60VA, 30W Resistive load 30VA, 15W Minimum permissible load 5VDC 1mA 8.13 P OWER NLET Voltage 100V-240V~ Frequency 50Hz / 60 Hz Connector IEC type 14 chassis plug (inlet) These Specifications are subject to change without notice.

  • Page 66: Factory Option

    TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual 9. FACTORY OPTION 9.1 TLV-300E/M OPTION TLV-300E/M has only one pair ( BNC-1 in/out ) of TS input/output (ASI/310M) and one digital audio output of main source (BNC-1 out). TLV-300E/M does not support SDI (SD/HD) output. 9.2 DVB-T RECEPTION OPTION 6/7/8 MHz DVB-T reception module is available instead of 8VSB/6MHz QAM reception module.

  • Page 67: References

    SMPTE, SMPTE 292M-1998 Television - Bit-Serial Digital Interface for High-Definition Television Systems SMPTE, SMPTE 259M-1997 Television – 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals – Serial Digital Interface TELEVIEW CO. LTD. ADDRESS: 355-1 YATAP-DONG, BUNDANG-GU SEONGNAM, GYEONGGI, REPUBLIC OF KOREA, 463-828...
