Summary of Contents for Interface 75200

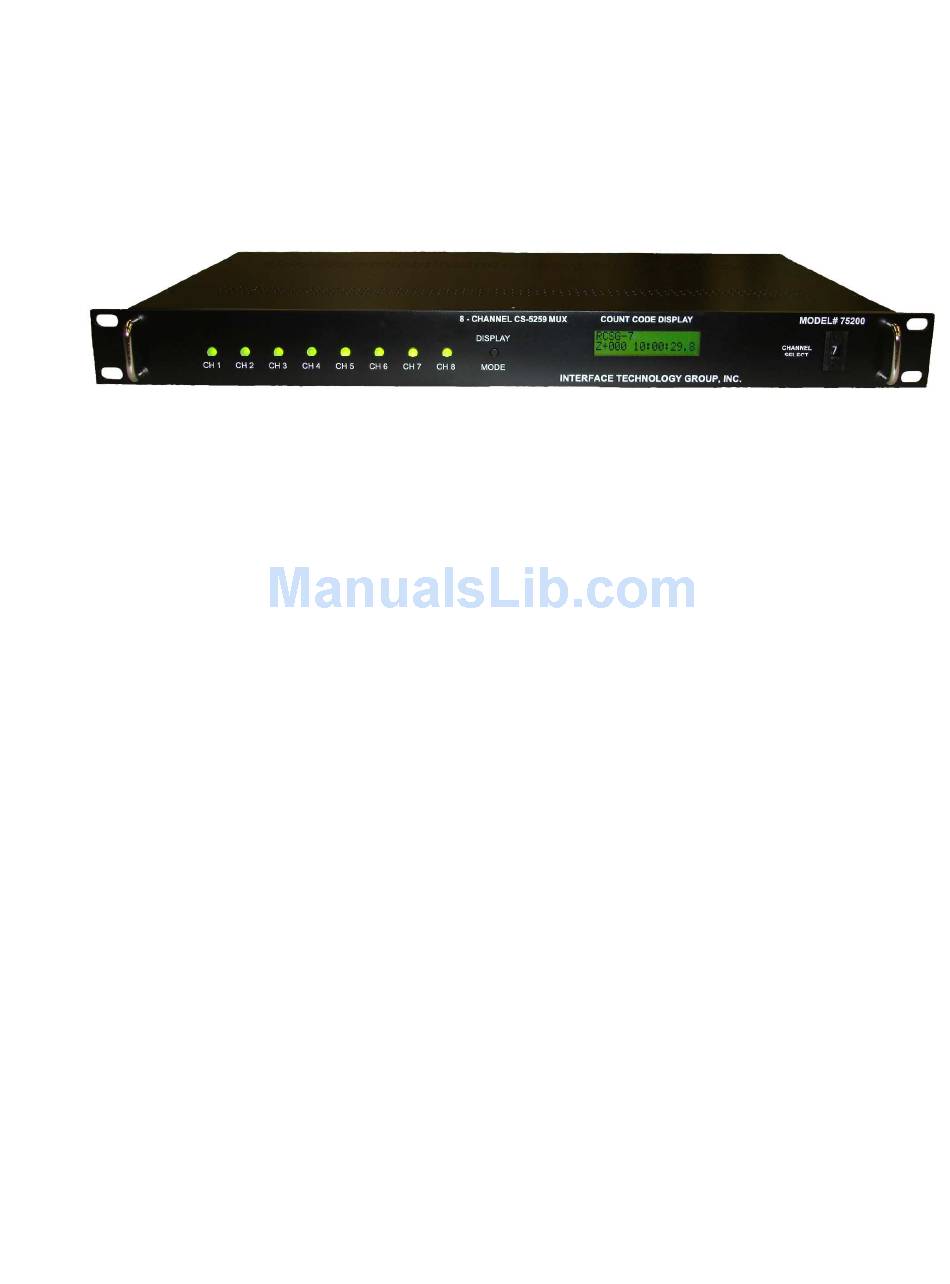

- Page 1 Interface Technology Group, Inc. Model 75200 8 Channel CS-5259 Mux Operation and Maintenance Manual Manual Rev- Interface Technology Group, Inc. 2107 South Hwy US-1 Rockledge, FL 32955 V 321-433-1165 F 321-433-0924...
-
Page 2: Specifications
Specifications: Power Input:…………………………. 90 – 265 VAC 47-470 Hz. …………………………IEC Input connector 10W Nominal Fuse:…………………………….…….1 Amp Dimensions:………………….……… 19” Wide X 1.75” High (1 RU) X 10.25 Deep Weight:……………………….……….4.75 Pounds Operating Environment:…………… 32° ° ° ° F to 100° ° ° ° F, 0 – 95% RH Non condensing Storage Environment………………..0°... - Page 3 Overview: The model #75200 8 Channel Mux allows up to 8 channels of CS-5246 to be multiplexed together into a 38.4 KB stream for distribution. Along with the count data, each channel is allocated 16 characters to be used as “tag”...
-
Page 4: Remote Control
The Ethernet port may be used in exactly the same way as the RS-232 port by using a Telnet program to connect to the IP address of the Model #75200 8 Channel Mux. The IP address of the port may be set to a fixed address or be dynamically set through DHCP. -
Page 5: Rear Panel Connections
STATUS (C/R) Returns the contents of each channel’s tag data. Also returns the firmware version. CHANNELx (C/R) Returns “Current Identification for Channel #x: “ “ –then- Enter up to 16 characters: . You may then type in up to 16 characters. Anything less than 16 will cause the remaining characters to be spaces. -
Page 6: Power Supply
RJ-45 Ethernet connector. Power Supply: The model #75200 8 channel mux uses a “Universal Input” switching power supply for cool and reliable operation. The power supply accepts any common voltage between 90 and 265 VAC or 100 to 370 Volts DC without any adjustment. A separate line filter is built into the Model #75200 8 Channel Mux for an additional measure of EMI suppression.
