Summary of Contents for Mimio Board

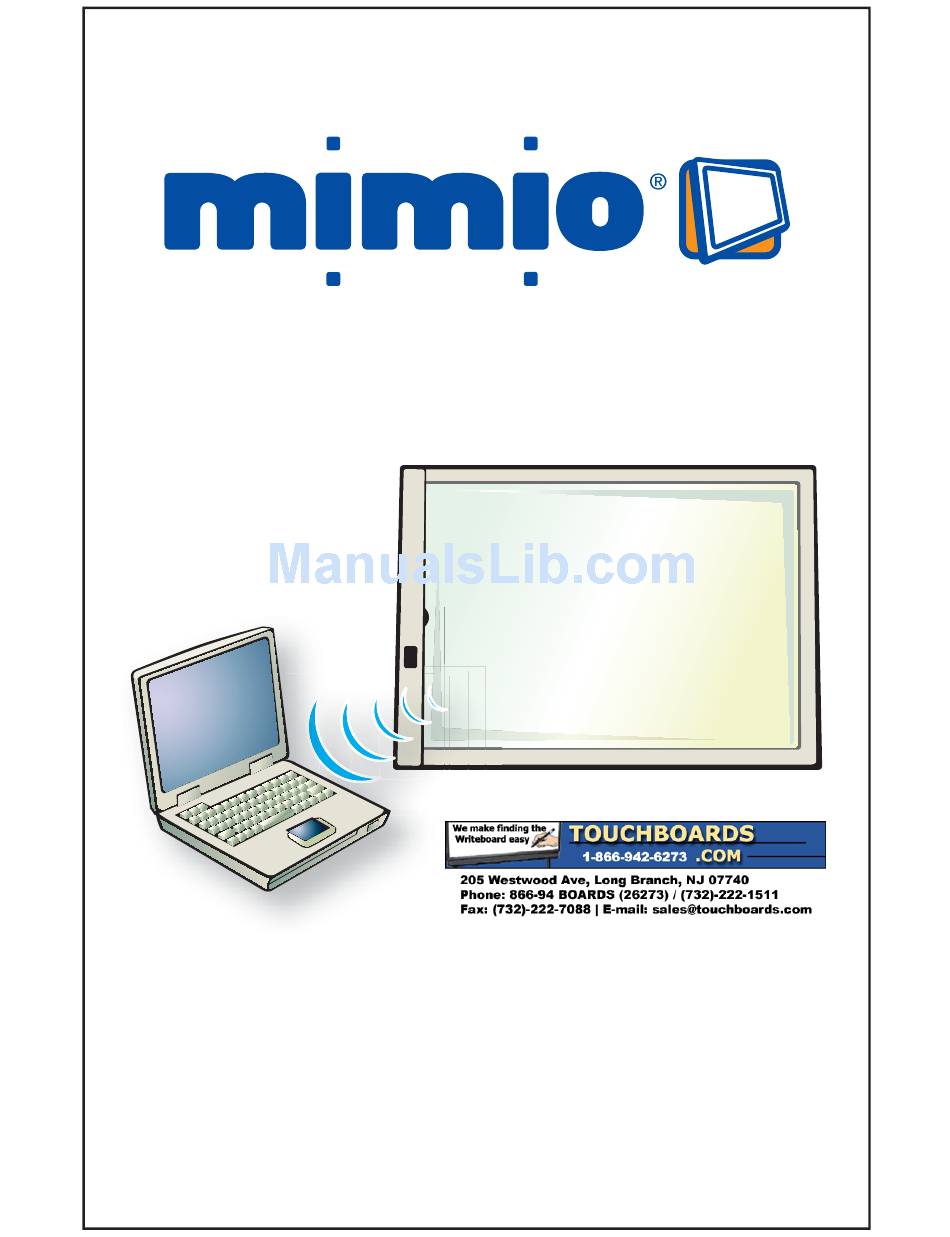

- Page 1 Setup Guide for Board For Windows 98SE/Me/2000/XP/Vista & Mac OS X 10.3.9 or later Use this to quickly setup and use your mimio Board or mimio Board HD.
-
Page 2: Accessory Box Contents
Wireless Receiver - Plugs into any available USB port, provides a wireless link to your mimio Board. USB Cable - 16ft (5m) USB cable to connect your mimio Board to your computer. USB Extension Cable - Extension cable for the wireless USB Receiver, for computers with very close USB ports. -
Page 3: Setup Process
Setup Process Install the mimio software from CD if not already installed. Check our website for the latest mimio software (www.mimio.com). Plug the Wireless Receiver into an available USB port. If there is insufficient space to fit the Wireless Receiver into a USB... - Page 4 Setup Process continued Power on mimio Board using the included AC Adapter. Install AA battery into the mimio Mouse stylus.
- Page 5 Setup Process continued Project desktop image onto mimio Board surface. Make sure there is a 2-3” buffer between the left edge of the projected image and the left edge of the mimio Board. Press the interactive button on the mimio Board...
- Page 6 Using the Interactive Mode...
-
Page 7: User Interface
Link Status Indicator Green: A wireless link is established between the mimio Board and the computer. Amber: There is no wireless link between the mimio Board and the computer. Refer to the Troubleshooting Section. Flashing green: mimio Board is in Learning Process*. -
Page 8: Wall Mounting Instructions
READ INSTRUCTIONS COMPLETELY BEFORE INSTALLING. It is important that walls or plaster be completely dry before installing a board, as any moisture may cause the panel inserts to warp. Complete hanging hardware is included with each unit. If wall construction prevents the use of hardware as furnished, it is the responsibility of the customer to furnish the required fasteners. - Page 9 Wall Mounting Instructions continued TRIM HANGER BAR L CLIP #10 x 2 1/2” SCREW WITH PLASTIC SCREW ANCHOR #6-20 x 1/2” DRILL & TAP SCREW...
- Page 10 Floor Stand Assembly Instructions (optional) READ INSTRUCTIONS COMPLETELY BEFORE ASSEMBLING. * Verify all floor stand parts listed below are included in the box. Top crossbeam with pre-installed board mount brace Bottom Crossbeam 6 bolts 6 washers 2 sheet metal screws...
- Page 11 As a result of its construction, it is a very heavy product, weighing in excess of 70 lbs. For safety reasons, assembly of the mimio Board product and its floor stand requires the assistance of at least 2 adults.
- Page 12 2 of the bolts and 2 of the washers to assemble the top crossbeam to the floor stand. Be sure to orient the top crossbeam such that the mimio Board mounting bracket faces in the same direction as the 2 L-brackets and the label on the top crossbeam marking TOP correctly points up.
- Page 13 Floor Stand Assembly Instructions continued...
-
Page 14: Learning Process
Wireless Receiver from one Wireless mimio device with a Wireless Receiver from another Wireless mimio device and expect it to work; mixed components will not be able to communicate unless they have been programmed as a pair. A mimio Board can only be paired with one mimio Wireless Receiver at any given point in time;... -
Page 15: Troubleshooting
Troubleshooting If the Link Status LED on the mimio Board is amber, a wireless connection cannot be made between the mimio Board and the Wireless Receiver. Please try the following steps to establish a wireless connection between these two mimio Wireless components: Ensure the computer is powered and turned on. -
Page 16: Technical Support
- Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Contact mimio, 25 First Street - Suite 301, Cambridge, MA 02141. Technical Support: 877-846-3721. - Page 17 Support: +44 870 458 3366 RG19 4EW E-mail: eurosales@mimio.com © 2007 Sanford LP. All rights reserved. mimio is a registered trademark and mimio Board is a trademark of Sanford LP. Windows is a registered trademark of Microsoft, Inc. Mac OS is a registered...
