- Page 1 Offering a wide selection of products at competitive prices AC ARC WELDING SERIES Instruction Manual...
-
Page 2: Technical Specification
Trueshopping Introduction Thank you for purchasing the BX1-B and BX1-C series portable moving coil type AC ARC Welder. Please read this manual carefully before using. The portable moving coil type AC ARC Welder is designed and manufactured by our company and has many advantageous features: National technique, novel style, portable volume, and excellent performance. -

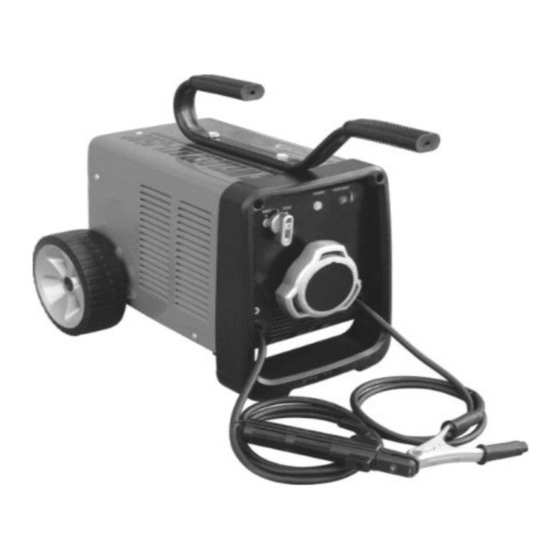

Page 3: Product Sketch
Trueshopping Product Sketch www.trueshopping.co.uk... - Page 4 Trueshopping Use of Welder Placement of welder 1. Set it in less-vibration and flat place above 200mm away from the wall. 2. Store in a clean and dry place away from iron power, dust, and paint. Connection 1. Ground. 1a. There is ground terminal under the shell board. Please ground with copper wire over 14mm.
-
Page 5: Power Connection
Trueshopping Power Connection Each welder needs to be equipped with a distributor box with switch and over-current protection device. Please lead the power from the distributor box to input terminal of welder by cable. The capacity of distributor box and cross-sectional area of cable refer to the above table. -
Page 6: Using The Welder
Trueshopping Thermal cut out If the machine stops at any time and the amber light on the front panel illuminates, the thermal cut out has activated. Wait until the transformer has cooled sufficiently (the amber light goes out) before restarting work. - Page 7 Trueshopping 1. Select the welding current by turning the welding current selector and observing the setting on the scale, on top of the machine. 2. The chart below is an indicator of the thickness of material/welding rod thickness and the corresponding welding current. This is intended as a guide only.
-
Page 8: Safety Notices
Trueshopping 1. Switch on the machine. 2. Line up the electrode exactly over the spot where you want to strike. 3. Position your shield in the front of your face and tap down firmly with the electrode. Once you tap down and contact is made, you must instantly raise the electrode to the required arc gap. - Page 9 Trueshopping Danger! To avoid getting an electric shock, please observe the following rules. Touching the electric parts may cause lethal shock or burn. 1. Do not touch electric parts. 2. Let an electrician ground the welder and machine tool according to the regulation.
- Page 10 Trueshopping Notice: Entry of splash and iron powder caused in welding and polishing into the inside of power, will lead to the deterioration of insulation. To avoid the fire caused by the deterioration of the power's insulation, please obey the rules: 1.
- Page 11 Trueshopping 8. The temperature of shell will rise in operation. The insulation of winding belongs to H grade. Please use the machine at rated duty cycle. 9. Keep the voltage as stable as possible. If the voltage is higher than rated input voltage: 1.
