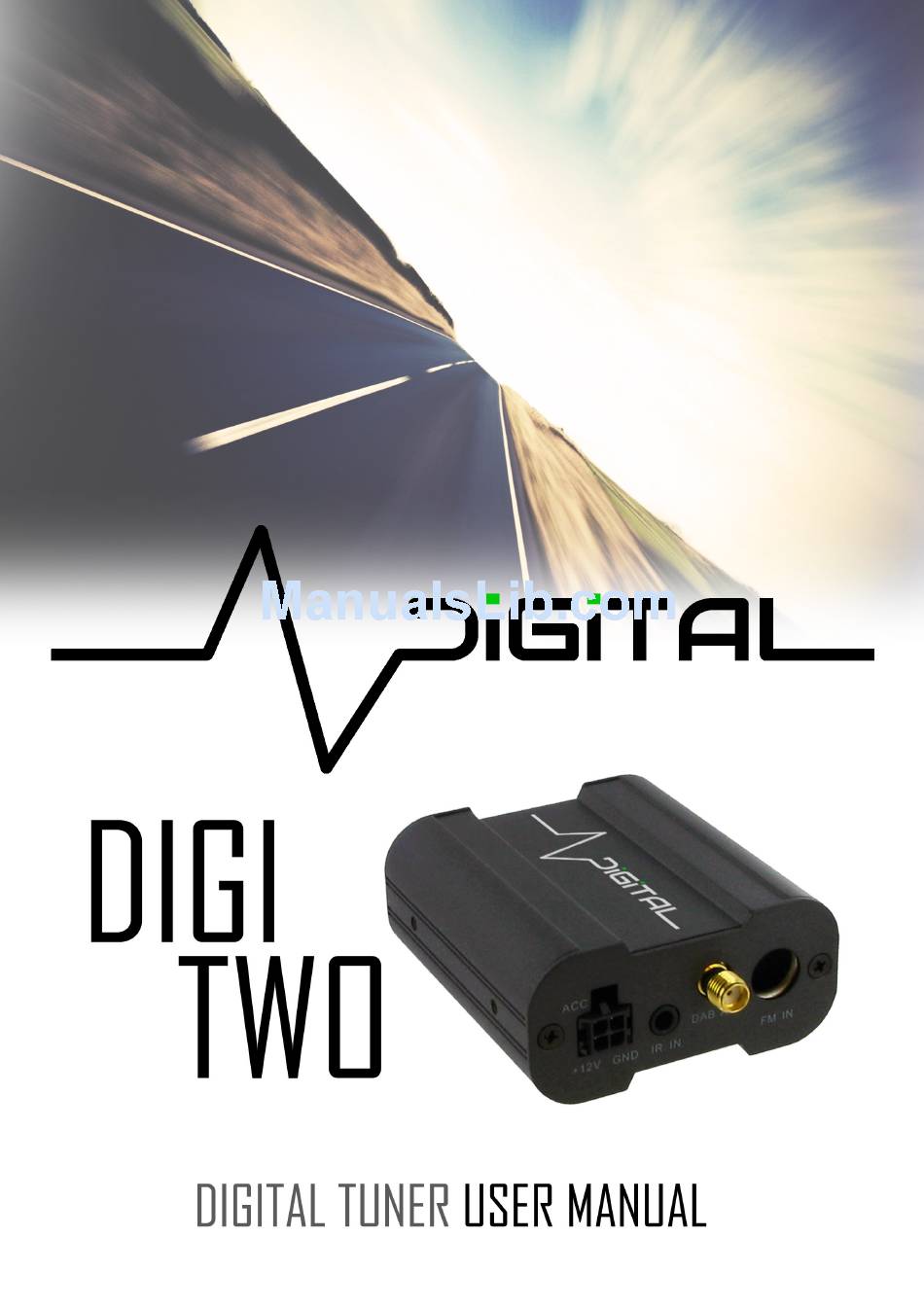

Digital Equipment Digi two User Manual

Digital tuner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digi two and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digital Equipment Digi two

  • Page 2 Important Safety Instructions and Caution WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE Please read all of these instructions regarding your unit and retain them for future reference. Read this manual fully and carefully before operating this in-car DAB receiver. •...
  • Page 3 Precautions On Safety Do not attempt to install or service your DAB receiver on your own. Installation or servicing by people without proper training and experiences in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock or other hazards. If the receiver does not work properly, please disconnect the plug for safety.

  • Page 5: Unit Description

    1. Unit Description 1.1.1 Front Side (a) Power Port (b) DAB Ant-In (c) IR In (d) FM Ant In Definition Function Power Port Power input from in-vehicle battery, i.e. +12V, GND, ACC DAB Ant. In DAB antenna input port, SMA type. Note.
  • Page 7 1.2.1 Remote Control Basic operations of remote control name Function Hold- Clear and Scan EXIT Hold – Factory Reset Hold – Display software INFO version To scan channels SCAN automatically (9)-(10) (7)-(8) Select channel up CH ▲ (11) Select channel down CH ▼...

  • Page 8: Installation Of The Device

    2. Installation of The Device Integrating this device with your existing car stereo system is simple and easy. Simply connect both the existing FM antenna and DAB antenna to the device inputs, then the FM-modulated DAB radio is readily available via its FM output (F female connector on the other end of device).
  • Page 9 Headphone socket i.e. port (e) is another audio output option for car stereo to receive the DAB contents. Note that the Mini USB port (f) is only for software upgrade of the unit. It is intended for service professionals, not for general public. Headphone socket connects to audio output...

  • Page 10: Basic Operations

    3. Basic Operations 3.1 To Turn Power On Turn on the vehicle/car, the device will be powered automatically • As an indication that the power is ON, LED light on IR receiver will illuminate. • To turn the power OFF, turn off the vehicle/car. •...
  • Page 11 3.3 Scanning the DAB Channels Before scanning for the available channels, ensure the frequency on the car radio (1 • din/monitor) is selected at one of following frequencies- 87.5 MHz, 87.6 MHz, 107.9 MHz or 108 MHz. Press [Scan] button on the remote control to search for DAB channels •...
  • Page 12 [CH ]/ [CH ] buttons to the time you have seen the station name available on display. To set a particular channel as user’s favorite, press one of the digital keys on the • remote control [0]-[9] for more than four seconds. During which time, the LED light on IR receiver will start flashing very rapidly showing that the unit is receiving such signal.
  • Page 13 5. RDS (Radio Data System) RDS is a communications protocol standard for embedding small amount of digital information in the FM radio broadcasting. Program name/time/identification of the station will be displayed on the car monitor if RDS is available; allowing users to quickly identify which station is being received.

  • Page 14: Trouble Shooting Q&A

    Check your country DAB radio coverage No radio service is provided map. It is not possible to listen to digital in the area. radio in non-covered areas. No “line-of-sight” between Ensure there are no obstacle between the unit and controller controller and the unit.

  • Page 15: Specification

    7. Specification Features Best in class performance of DAB RF Input Antenna Passive and active antenna supported (SMA type) Frequency range VHF Band3 (170-230 MHz) RF input impedance 75 Ohm Radio broadcasting System Transmission standard ETSI EN 300 401 DAB compliant Audio decoder Audio: MPEG Audio Layer II, AAC S/W Feature...
