Summary of Contents for Syner-Med VeraTemp

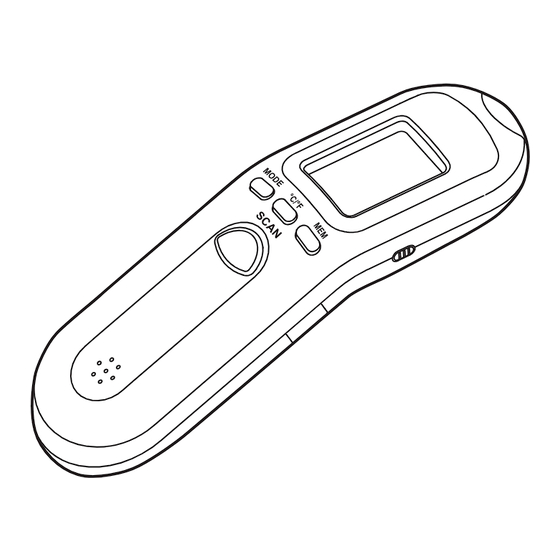

- Page 1 Syner-Med VeraTemp ™ Non-Contact Thermometer READ ALL INSTRUCTIONS BEFORE USE...
-
Page 2: Intended Use
DESCRIPTION ™ Non-Contact Thermometer is a hand Syner-Med VeraTemp held, battery powered device that is intended to be used for the intermittent measurement and monitoring of human body temperature of people of all ages. It measures the infrared energy emitted form the skin surface of the forehead. - Page 3 • Do not drop or expose to electric shocks. • Ambient temperature range for the thermometer is 50°F to 120°F . • Use in a clean and dry area where it will not become excessively cold or hot i.e. temperatures less than greater than (less than or greater than...
- Page 4 5-8 cm (2–3 inches). The Syner-Med VeraTemp™ provides a no risk, instantaneous and accurate temperature measurement. As with all types of thermometers it is essential to use the Syner-Med VeraTemp™...
- Page 5 The Syner-Med VeraTemp™ Non-Contact Thermometer is calibrated at the factory before shipping. No calibration is necessary. temperature, allow the thermometer to adjust to the “new” temperature for at least 15 minutes before use in order to obtain a reliable result.
- Page 6 When one is hot, the blood vessels in the skin dilate and carry the excess heat to the skin surface. You begin to sweat and as the sweat evaporates it helps to cool the body. Conversely, when the body is cold, the blood ow to the skin is decreased allowing conservation of body heat.
- Page 7 Examples of Body Temperature Measurement Ranges Method Celsius Fahrenheit Rectal 36.1°C – 38.0°C 97.9°F – 100.4°F Tympanic (inner ear) 35.8°C – 38.0°C 96.4°F – 100.4°F Oral 35.5°C – 37.5°C 95.9°F – 99.5°F Axillary (Armpit) 34.7°C – 37.3°C 94.5°F – 99.1°F Forehead 35.0°C –...
- Page 8 Because of heat loss from various parts of the body that are not covered by clothing, the normal temperature measured on a person’s forehead is usually lower than covered parts of the body. The Syner-Med VeraTemp™ Non-Contact Thermometer’s internal software automatically adjusts the temperature to provide a reading which approximates to the body temperature.
- Page 9 All objects radiate infrared energy. The intensity of this infrared energy depends on the temperature of the object. The Syner-Med VeraTemp™ Non-Contact Thermometer measures the temperature of a person based on the energy they radiate. This measurement is taken by the external temperature probe on the device which constantly analyse and registers the ambient temperature.
- Page 10 The screen will be orange when the measured temperature is between 37.4°C and 37.9°C (99.3°F to 100.2°F) The screen will be red when the measured temperature is greater than 38°C (100.4°F ) The temperature display will remain lit for about 5 seconds after the button is released.
- Page 11 Display background color: Green: Mode Between 36.3°C to 37.3°C Celsius (97.3°F and 99.1°F) Temperature Orange: Fahrenheit Between 37.4°C to 37.9°C (99.3°F and 100.2°F ) Red: Memory Greater than 38°C (100.4°F) Low Battery The colo r change of the display is to alert the user of a potential increase of body temperature.

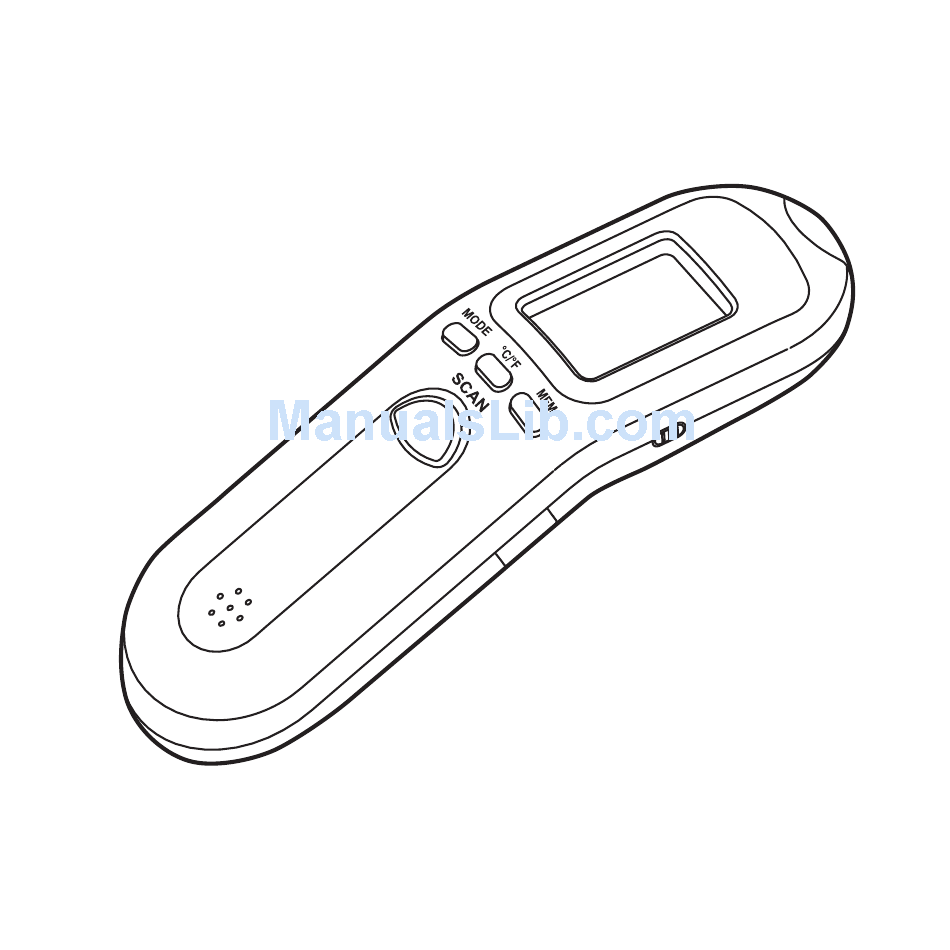

- Page 12 Front: Display Infrared lens MODE: Press to switch between Surface temp, Body and Room C/ F: Press to switch between Celsius and Fahrenheit MEM: Press to retrieve the last 32 readings, from most recent to oldest SCAN: Press to view and record a temperature reading Non-functioning covers...
- Page 13 Back: Battery cover Product label Serial number Model number Two AAA batteries. Note: orientation of battery polarity...
- Page 14 Practical Considerations When Taking Temperature To ensure accurate temperature measurements it is essential that each user has received adequate information about the device and its proper use. Take temperature in a neutral context. The patient must not have undertaken vigorous physical activity prior to temperature measurement.
- Page 15 » By age 6 variations gradually increase to 2 degrees per day. » In adults there is less body temperature variation. To Receive a Stable Reliable Result • Push back any hair from the forehead. • Wipe away any perspiration on the forehead. •...
- Page 16 Initial Setup 1. Remove battery door and install two AAA batteries. When batteries are new wait about 10 minutes before 2. Remove the display’ How to Take a Temperature 1. Before taking temperature check the forehead if free of perspiration and that hair has been moved aside. 2.
- Page 17 5–8 cm (2–3 inches) away from forehead...
- Page 18 Technical Characteristics 1. Operating Temperature Range: ) and < 85% relative humidity 2. Temperature Measurement Ranges: » Body mode – human body temperature measurement 3. Power: DC 3 volt (two AAA batteries) 4. Size: 5. Weight: ) without batteries 6. Display resolution: 7.
- Page 19 Accessories Supplied User manual Quick start card Storage bag Two AAA batteries For questions please call +44 (0) 208 655 6380 or visit www.syner-med-direct.com. The Syner-Med VeraTemp ™ Non-Contact Thermometer is a class II medical device...
- Page 20 Manufactured By 9929 E Washington, Unit C Chagrin Falls, OH 44023 Distributed by Syner-Med (Pharmaceutical Product) Ltd 2nd Floor, Beech House 840 Brighton Rd Purley, Surrey CR8 2BH, United Kingdom Tel: +44 (0) 208 655 6380 Fax:+44 (0) 208 655 6398 Web: www.syner-med-direct.com...
