Webtronico BTM-5 Bluetooth User Manual

Bluetooth wireless ttl master/slave transceiver module
Hide thumbs
Table of Contents

Advertisement

Quick Links

BTM-5 Bluetooth
Wireless TTL Master/Slave Transceiver Module
AT Command User Guide
Rev 1.1, Oct 2010
http://www.webtronico.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTM-5 Bluetooth and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Webtronico BTM-5 Bluetooth

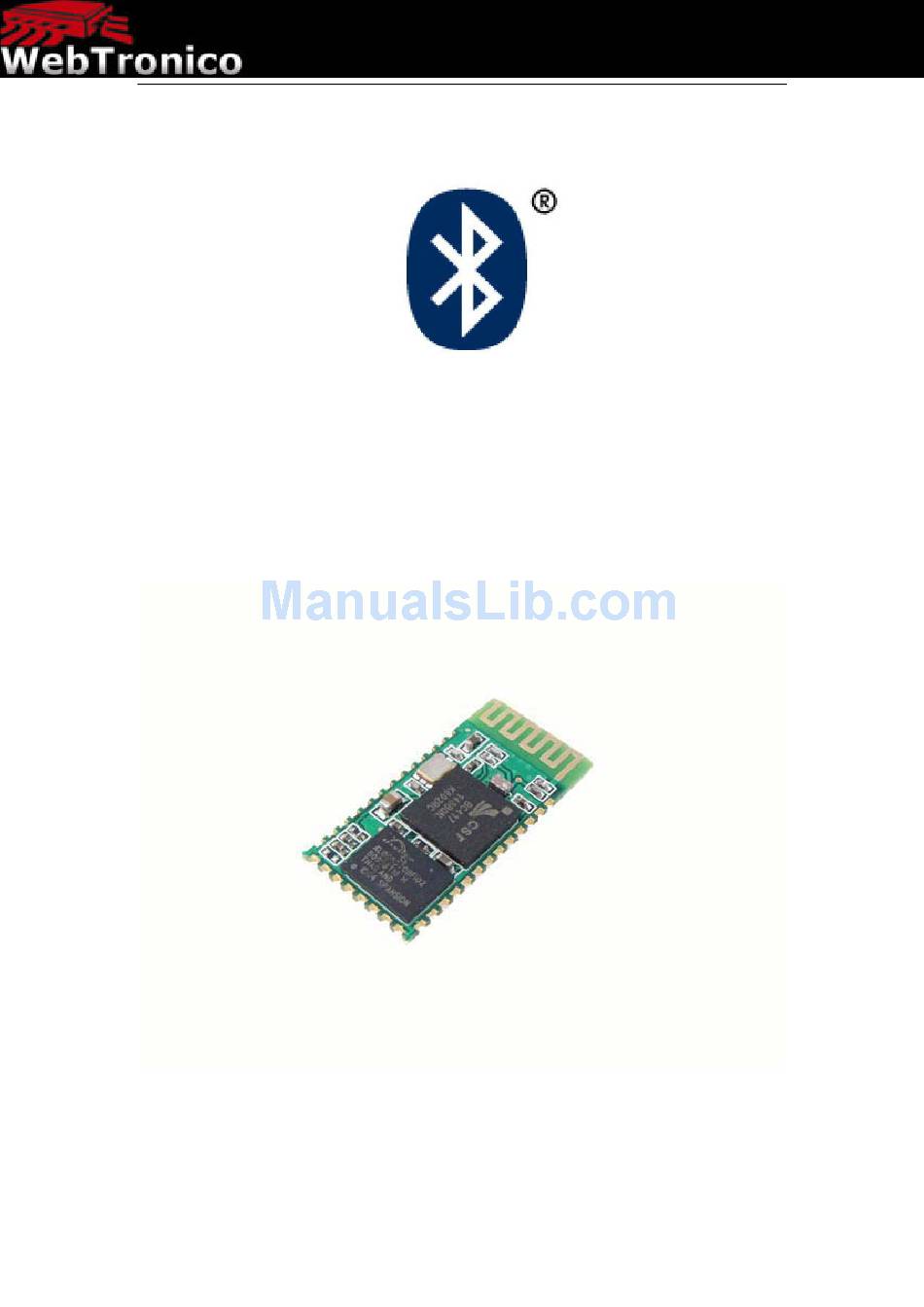

  • Page 1 BTM-5 Bluetooth Wireless TTL Master/Slave Transceiver Module AT Command User Guide Rev 1.1, Oct 2010 http://www.webtronico.com...

  • Page 2: Table Of Contents

    BTM-5 Bluetooth Module Datasheet Rev1.1 Contents Introduction..........................2 Hardware Connection......................2 AT Command Set ........................3 TEST Command........................3 RESET Command.......................3 Restore Default Setting Command ..................3 Get Firmware Version Command..................3 Get Address..........................4 Get the Device Name......................4 Set the Device Name......................4 Set / Get Role ........................4 Get Device Type........................5...

  • Page 3: Introduction

    BTM-5 Bluetooth Module Datasheet Rev1.1 1 Introduction The BTM-5 Module has two operation modes, one is normal auto link mode, and the other is AT command mode. User can switch between two modes via pull the mode select pin PIO11 low and high respectively.

  • Page 4: At Command Set

    BTM-5 Bluetooth Module Datasheet Rev1.1 The pin PIO8 is the indicator for the operation mode, user can use a LED to connect to this pin. The LED starts to blink after power up, and the blink frequency subject to change between different operation modes.

  • Page 5: Get Address

    BTM-5 Bluetooth Module Datasheet Rev1.1 Examples: Command : AT+VERSION? \r\n Response : +VERSION:2.0-20100601 3.5 Get Address Command Response Parameter AT+ADDR? +ADDR:< Param > Param: the Bluetooth address Representation of the address: NAP:UAP:LAP (HEX) Examples: The address of the Bluetooth device is: 10:7:180004...

  • Page 6: Get Device Type

    BTM-5 Bluetooth Module Datasheet Rev1.1 Examples: Command : AT+ROLE?\r\n Response : +ROLE:0 3.9 Get Device Type Command Response Parameter AT+CLASS? + CLASS:< Param > Param: device type Device type is a 32-bit parameter. It is used to indicate the device class and the service it supports Default: 0 The actual meaning is explained in appendix 1.

  • Page 7: Set / Get Link Mode

    BTM-5 Bluetooth Module Datasheet Rev1.1 2: Even Default:38400,0,0 3.12 Set / Get Link Mode Command Response Parameter AT+CMODE=<Param> Param Specify bluetooth link AT+ CMODE? + CMODE:< Param > address 1: Any bluetooth link address 2: Slave-Loopback Default : 0 3.13...

  • Page 8: Get Multiple Pio Input

    BTM-5 Bluetooth Module Datasheet Rev1.1 PIO 2 and PIO 10 output high: Command : AT+MPIO=404\r\n Response : OK 3.16 Get Multiple PIO Input Command Response Parameter AT+MPIO? +MPIO: <Param> Param- PIO port value (16bits) Param[0]=PIO0 Param[1]=PIO1 Paramp2]=PIO2 … Param[10]=PIO10 Param[11]=PIO11...

  • Page 9: Appendix A: At Command Error Code Refernce

    BTM-5 Bluetooth Module Datasheet Rev1.1 4 Appendix A: AT command error code refernce Error code (hex) Description AT command error The result is default value PSKEY write error Device name is too long (more than 32 bytes) Device name is 0 byte...
