Summary of Contents for Donmar SH-R-00

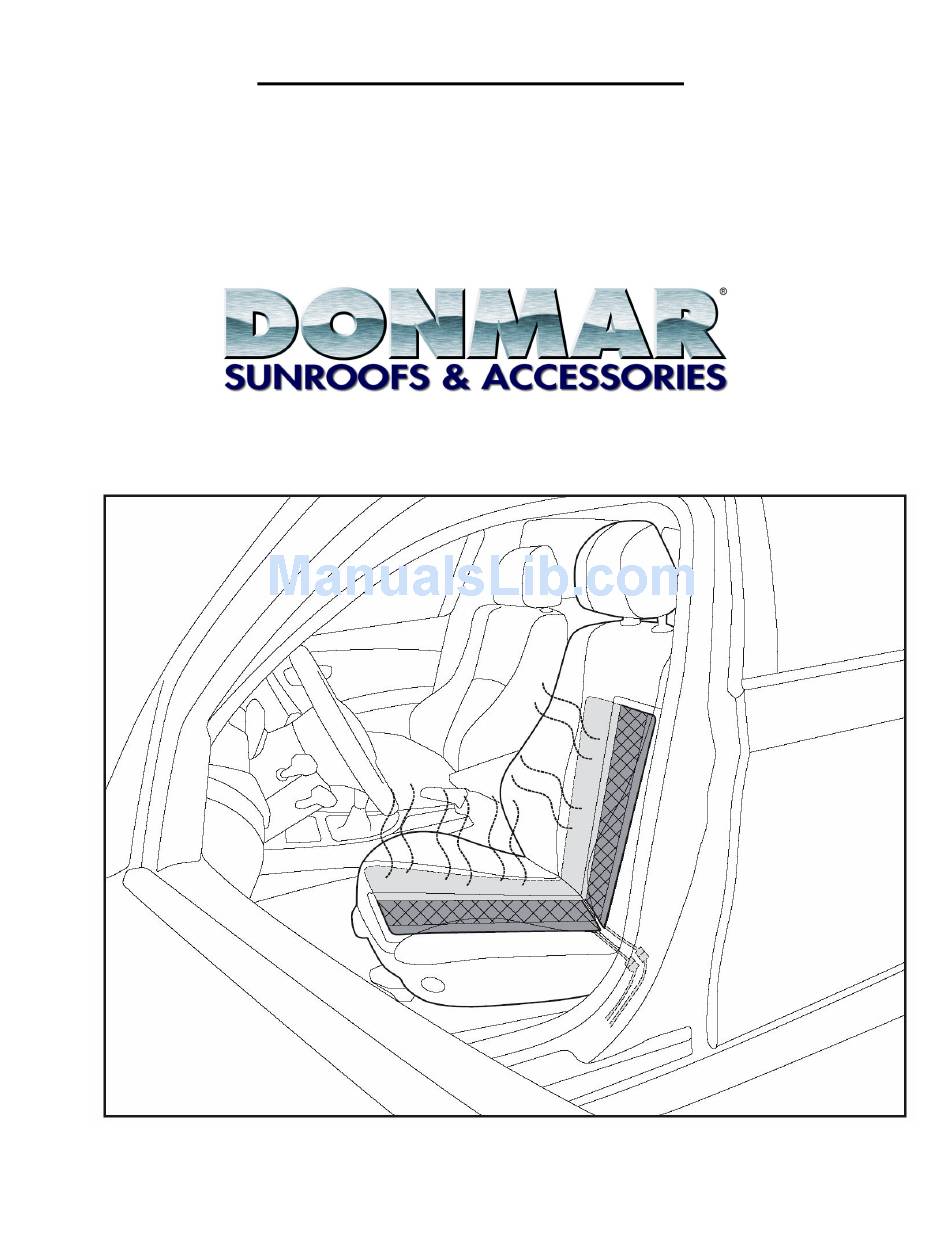

- Page 1 SH-R-00 Seat Heaters Universal: Dual Temperature Carbon Fiber: Twin Comfort Pads Installation Instructions Distributed by SR-H-00 Installation Guide Page 1...
- Page 2 Index General safety advice ............. . . 2 Component list …...
- Page 3 Pre-Installation Summary – Overview 1. Remove the existing front or rear seat covers. 2. Take note of whether the covers reattach by way of Velcro or Hog rings. 3. The Wire Connector with Purple & Black colored wires is seat the connector which will enable the use of both High &...
- Page 4 2. Component list A) 2 X Carbon Fiber Heating Pads B) 1 X Illuminated Hi/Low Switch C) 1 X Wire Harness – includes a 44” Modular Harness Extension D) 1 X 5-Pin Automotive Relay E) 1 X Fuse Holder containing a 10 amp Fuse F) 4 X Strips of “Heat Transfer Tape”...
- Page 5 INSTALLATION INSTRUCTIONS 1. Ensure that the vehicle is on a level surface in “Park” & with the hand brake engaged. 2. Disconnect the car’s battery or ensure that the work area is well grounded. 3. Unplug any wires which may be attached / harnessed to the underside of the vehicle’s seat. Proceed to unbolt the seat from the vehicle’s floor.
- Page 6 Operating instructions for seat heating units - Safety advice Wiring diagram...
- Page 7 Operating instructions for seat heating units - Safety advice **Warning: The seat heating unit is only allowed to be operated when a person is sitting on it. This person must be able to feel temperatures and be able to react to them. Persons who experience difficulty with feeling temperatures –...
- Page 8 Operating instructions for seat heating units – Consumer Guide “HIGH” Temperature Setting: - The seat heating system is switched ‘ON’ by pressing the switch upwards towards the Double wave located at the top of the face of the switch. This will engage the seat heater in the High temperature setting. This is confirmed by the RED color emitted by the LED light.
