Summary of Contents for Wamsler Haus W1-90

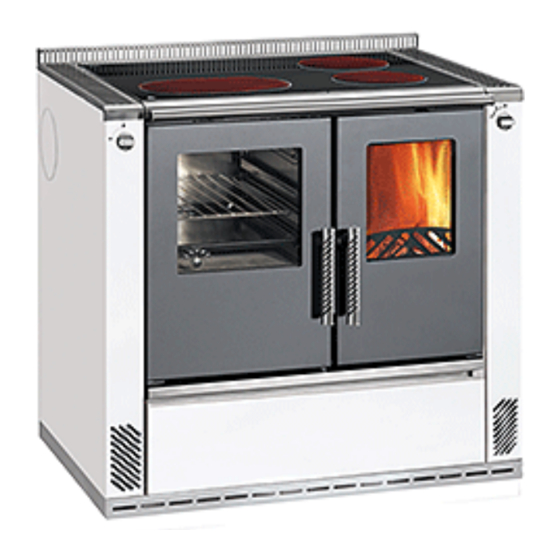

- Page 1 Instructions for Installation and Use Solid Fuel Cooker W1-90...
-
Page 2: Preface
Preface Dear Customer, Congratulations on your purchase of our solid fuel stove. You have made a good choice. Because this product guarantees you: High Quality thanks to use of top quality, proven materials • Safe Running thanks to mature technology which has been tested for strict ad- •... -
Page 3: Table Of Contents
Table of Contents Preface ..........................28 Table of Contents .......................29 Installation ......................30 Safety measures....................30 Parts ........................32 Instructions ......................33 Surrounding space ....................33 Air supply......................33 Electrical connections..................34 Safe distances ....................35 Chimney attachment..................35 Choice of flue gas connection placement ............36 1.9.1 Top connection (Fig. 1)..............36 1.9.2 Side connection (Fig. -
Page 4: Installation
Installation Safety measures The stoves are tested to DIN EN 12815 (see identification plate). For installation and for flue gas connections, the requirements of the Fire Regula- tions (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 4705, DIN EN 13384, DIN 18160, DIN EN 1856-2 and DIN EN 15287. - Page 5 Children and young people under 16 must not use the stove unless supervised by an adult who is responsible for them. 15. Make sure that the ash pan is always fully pushed in, until it touches the back. Never remove ashes while still hot (fire risk). 16.
-
Page 6: Parts
Parts W1-90 Key: Standard accessories: 1. Primary air control - Baking tray 2. Steel plate - Roasting grill 3. Flue gas connections - Lever to lift covers 4. Start damper - Soot scraper 5. Refractory clay layer in fire chamber - Fire iron 6. -
Page 7: Instructions
Instructions For installation and for connection of flue, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 4705, DIN EN 13384, DIN 18160, DIN EN 1856-2 and DIN EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition. -
Page 8: Electrical Connections
Important NOTES relevant to operation dependent on air supply from room or inde- pendent of air supply from room (valid for Germany – as of January 2005): The stoves have been tested under DIN EN 12815 as stoves relying on air supply •... -
Page 9: Safe Distances
Safe distances The following distances must be respected as safety margins from flammable objects and bearing walls made of reinforced concrete and partition walls made from flammable mate- rials or covered in flammable materials: Beneath the hob plate (from the top of the stove to the floor) A ≥... -
Page 10: Choice Of Flue Gas Connection Placement
angle of 10 degrees. Any pipes which are not heat insulated or vertical must not be longer than 1 metre. The requirements of the Fire Regulations (FeuVO) apply, as well as local building regulations such as for the chimney standards DIN 4705, DIN EN 13384, DIN 18160 and DIN EN 15287. -
Page 11: Electrical Circuit Diagram
The connection piece must not be fed through flammable construction materials or furni- ture elements. When using a side connection, the safety distance from flammable ele- ments required by the manufacturer of the connection must be respected. Fig. 3 1.9.3 Electrical circuit diagram The stove may only be connected by a qualified professional electrician according to cur- rent rules and regulations. - Page 12 Right Richtig Wrong Falsch min. 50 cm mind. 50 cm Chimney diameter reduced due to flue being inserted too far Querschnittverengung im Kam in durch zu into chimney weit eingeschobene Abgasrohre Blockage due to exhaust gases Stau durch sich ge- interfering with each mind.
-
Page 13: Fuels / Settings
Maximum fuel quantities per load W1-90 4.0 kg (7 - 8 briquettes) at nominal heat load Lignite briquettes 4.1 kg (7 - 8 briquettes) for long term load... -
Page 14: Combustion Airflow Settings
Combustion airflow settings The settings must always be as shown. Primary Secondary air- Combus- Start damper Fuel airflow set- flow setting tion dura- setting ting tion in hrs Lighting Nominal heat Firewood approx. 1 load Nominal heat Lignite briquettes approx. 2 load Long-term Lignite briquettes... -
Page 15: Start Damper
3.1.3 Start damper For lighting the stove the start damper must be open and when cooking or heating it must be closed. Closed (cooking, baking, roasting, heating) Open PLEASE NOTE Leaving the start damper open when heating will cause the stove to overheat which will damage the stove and its parts. -
Page 16: Lighting
Lighting The performance control is set depending on the type of fuel as a function of the chimney draught and the desired heating level. With firewood and particularly with softwood, only a limited heating period is possible. Lignite briquettes are much better suited to burning overnight, if they are placed on top of a layer of glowing embers. -
Page 17: Closing Down
displayed should only be used as an indication when baking and roasting. In addition the oven is supplied as standard with a roasting grid and a baking tray. Please observe the following NOTES: Check that the start damper has been shut for at least 60 minutes. This ensures an even temperature throughout the oven. -
Page 18: Varnished And Enamel Surfaces
cleaned free from soot. By removing the hob and heating plates the flue gas channel and the flue pipe inside the stove can also be cleaned. By loosening the screw of the cleaning cover (4) the lower part of the flue gas channel around the oven can also be cleaned. After finishing cleaning, the heating and hob plates must be replaced correctly. - Page 19 PLEASE NOTE: Before opening the bulb protector, disconnect the stove from the mains! Work such as installation, setup, commissioning and servicing, as well as repairs, must only be carried out by qualified personnel (heating system or space heating technicians). Intervention by non-qualified persons invalidates the warranty and guarantee.
-
Page 20: Troubleshooting
Troubleshooting Your stove has been built using modern technology. Even so, problems can arise, which may derive from the chimney, the fuel or the flue pipe system. There may briefly be smoke and an unpleasant smell the first time you use the stove: this is normal. -
Page 21: Technical Data
Efficiency ≥ 80 % Mains current 230 V AC Bulb 15 W Dimensions W1-90 850 (+20) 692 (+20) 900 (+20) 742 (+20) screw feet can raise stove height by +20 mm The dimension information shown is only for information! We reserve the right to make... -
Page 22: Ec-Declaration Of Conformity
EC-Declaration of Conformity WAMSLER Haus- und Küchentechnik GmbH EC-Declaration of Conformity Manufacturer: Wamsler Haus- und Küchentechnik GmbH, Gutenbergstr. 25, D-85748 Garching, Germany Product description: Solid fuel stove Model no: W1 - 90 W1 - 50 The products listed above conform to the requirements of the following European Directive:... -
Page 23: Guarantee Conditions
We will only provide a guarantee for equipment which can be shown to have been con- nected and set up by an approved installer or another recognised professional. Complaints: Complaints about delivered goods relating to obvious faults must be made in writing within 14 days of receipt. - Page 24 7. Other claims than those mentioned here will not be entertained. This applies in particu- lar to compensation for damage other than to the equipment itself. Exclusions to this are compensation for impact on human life, body or health if we are guilty of lack of care, and other damages, which can be attributed to intentional or grossly negligent lack of care on our part.
-
Page 25: Guarantee Card
Guarantee card Subject to the conditions stated we offer the following guarantee: 2 Year general equipment guarantee of problem-free functioning of the equipment. Damage to glass, Ceran, enamel, soapstone, ceramic or varnish is only included under our guarantee if it is reported within 14 days of delivery to our customer service department. Faulty functioning due to dirt, incorrect connections, misuse or incorrect adjustments or changes to flue installations by third parties are not covered by the guarantee. - Page 26 Innovation from Tradition We reserve the right to make changes which relate to technical advances and / or to an improvement in quality. We accept no liability for printing errors and changes which occur after printing. Item-No. 125 038 - Version 05/2010...
