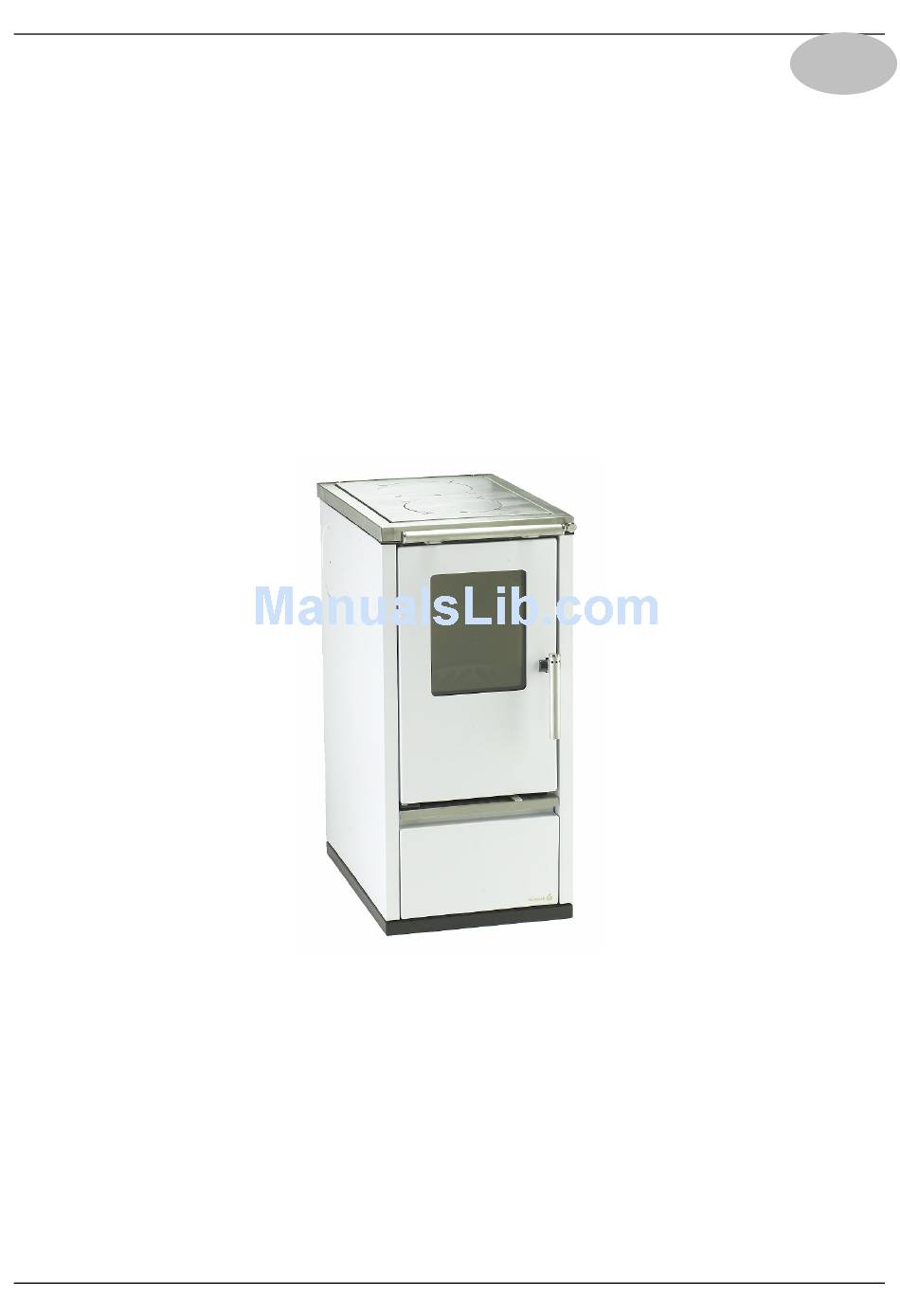

- Page 1 Instructions for Installation and Use W1-40...
-
Page 2: Preface
______________________________________________________________________ Preface Dear Customer, Congratulations on your purchase of our solid fuel stove. You have made a good choice. Because this product guarantees you: High Quality by using proved materials with top quality. • Safe function thanks to mature technology which has been tested for strict •... -
Page 3: Table Of Contents
Table of Contents Preface......................26 Table of Contents.................... 27 Installation .................... 28 Safety measures................28 Parts ....................30 Instructions ..................31 Surrounding space ................31 Air supply ..................31 Safe distances ................. 33 Safe distances ................. 33 Chimney attachment................ 34 Choice of flue gas connection placement........ -
Page 4: Installation
Installation Safety measures The stoves are tested to EN 12815 (see identification plate). For installation and for flue gas connections, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. - Page 5 the stove is being used. Use the protective gloves or the implements provided. Children and young people under 16 must not use the stove unless supervised by an adult who is responsible for them. 15. Make sure that the ash pan is always fully pushed in, until it touches the back. Never remove ashes while still hot (fire risk).
-
Page 6: Parts
Parts W1-40 Key: Standard accessories: 1. Primary air control - Flue cover 2. Steel plate - Protective gloves 3. Flue gas connections - Lever to lift covers 4. Start damper - Soot scraper 5. Refractory clay layer in fire chamber - Fire iron 6. -
Page 7: Instructions
Instructions For installation and for connection of flue, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition. - Page 8 Important NOTES relevant to operation dependent on air supply from room or independent of air supply from room (valid for Germany – as of January 2005): The stoves have been tested under EN 12815 as stoves relying on air • supply from room.
-
Page 9: Safe Distances
Safe distances The following distances must be respected as safety margins from flammable objects and bearing walls made of reinforced concrete and partition walls made from flammable materials or covered in flammable materials: Beneath the hob plate (from the top of the stove to the floor) A ≥... -
Page 10: Chimney Attachment
Chimney attachment The connection for attaching to the chimney must be able to withstand at least 400°C. PLEASE NOTE: Before connecting the stove the local authority responsible for approving heating systems must be consulted! Connection pieces must be firmly connected to the stove and to each other and must not leak. -
Page 11: Side Connection (Fig. 1)
1.8.2 Side connection (Fig. 1) Remove the rear flue outlet (1) by loosening the screws. • Remove the cooking plate (2) and the fire bricks (3) • Remove the steel plate (4) in the exhaust • Bolt tight the cover (6) at the inside with the outside cover (7). •... - Page 12 Right Wrong Richtig Falsch min. 50 cm mind. 50 cm Chimney diameter reduced due to flue being Querschnittverengung inserted too far into im Kam in durch zu chimney weit eingeschobene Abgasrohre Blockage due to exhaust gases Stau durch sich ge- interfering with each mind.
-
Page 13: Fuels / Settings
Maximum fuel quantities per load W1-40 3.1 kg (5 - 6 briquettes) at nominal heat load Lignite briquettes 3.1 kg (5 - 6 briquettes) for long term load... -
Page 14: Combustion Airflow Settings
Combustion airflow settings The settings must always be as shown. Secondary Combusti Primary Start damper airflow setting Fuel airflow setting duration setting in hrs Lighting 2 - open Nominal Firewood 1 - closed approx. 1 heat load Nominal Lignite briquettes 1 - closed approx. -
Page 15: Start Damper
3.1.3 Start damper For lighting the stove the start damper must be open and when cooking or heating it must be closed. Closed (cooking, baking, roasting, heating) Open PLEASE NOTE: Leaving the start damper open when heating will cause the stove to overheat which will damage the stove and its parts. -
Page 16: Lighting
Lighting The performance control is set depending on the type of fuel as a function of the chimney draught and the desired heating level. With firewood and particularly with softwood, only a limited heating period is possible. Lignite briquettes are much better suited to burning overnight, if they are placed on top of a layer of glowing embers. -
Page 17: Closing Down
Closing down Close the primary air regulator (Table 2). Let the embers burn out and leave the stove to cool down. Once the stove is cold, empty and clean out the fire chamber and ash pan! Notes on heating A properly adjusted secondary air flow ensures that any combustible elements in the flue gases are burned off. -
Page 18: Varnished And Enamel Surfaces
PLEASE NOTE: After every period of heating you should check the stove thoroughly. If repairs or replacements are necessary, please contact your supplier with the necessary article numbers and serial number in good time. 3.6.2 Varnished and enamel surfaces Only wipe down the external surfaces when the stove is cold. Varnished surfaces should only be washed with plain water (do not scrub). - Page 19 Parts explosion diagram for Chapter 3.6 Care and cleaning: Fig. 4...
-
Page 20: Troubleshooting
Troubleshooting Your stove has been built using modern technology. Even so, problems can arise, which may derive from the chimney, the fuel or the flue pipe system. There may briefly be smoke and an unpleasant smell the first time you use the stove: this is normal. Make sure the room is sufficiently well ventilated. -
Page 21: Technical Data
≤ 0,09 % CO ( based on 13% O2) ≥ 77 % Efficiency Dimensions W1-40 850 (+20) 695 (+20) screw feet can raise stove height by +20 mm The dimension information shown is only for information! We reserve the right to... -
Page 22: Ec-Declaration Of Conformity
EC-Declaration of Conformity WAMSLER Haus- und Küchentechnik GmbH EC-Declaration of Conformity Manufacturer: Wamsler Haus- und Küchentechnik GmbH, Gutenbergstr. 25, D-85748 GARCHING, Germany Product description: Solid fuel stove Model no: W1 - 90 W1 - 50 W1 - 40 The products listed above conform to the requirements of the following European Directive:... -
Page 23: Guarantee Conditions
We will only provide a guarantee for equipment which can be shown to have been connected and set up by an approved installer or another recognised professional. Complaints: Complaints about delivered goods relating to obvious faults must be made in writing within 14 days of receipt. - Page 24 than the residence or place of work of the recipient are charged to the recipient, unless the delivery was part of the normal use of the item. 5. The period of the guarantee is not extended or restarted from the date of repair or replacement of parts.
-
Page 25: Guarantee Card
Guarantee card Subject to the conditions stated we offer the following guarantee: 2 Year general equipment guarantee of problem-free functioning of the equipment. Damage to glass, Ceran, enamel, soapstone, ceramic or varnish is only included under our guarantee if it is reported within 14 days of delivery to our customer service department.
