Summary of Contents for GE Interlogix MVC-14S

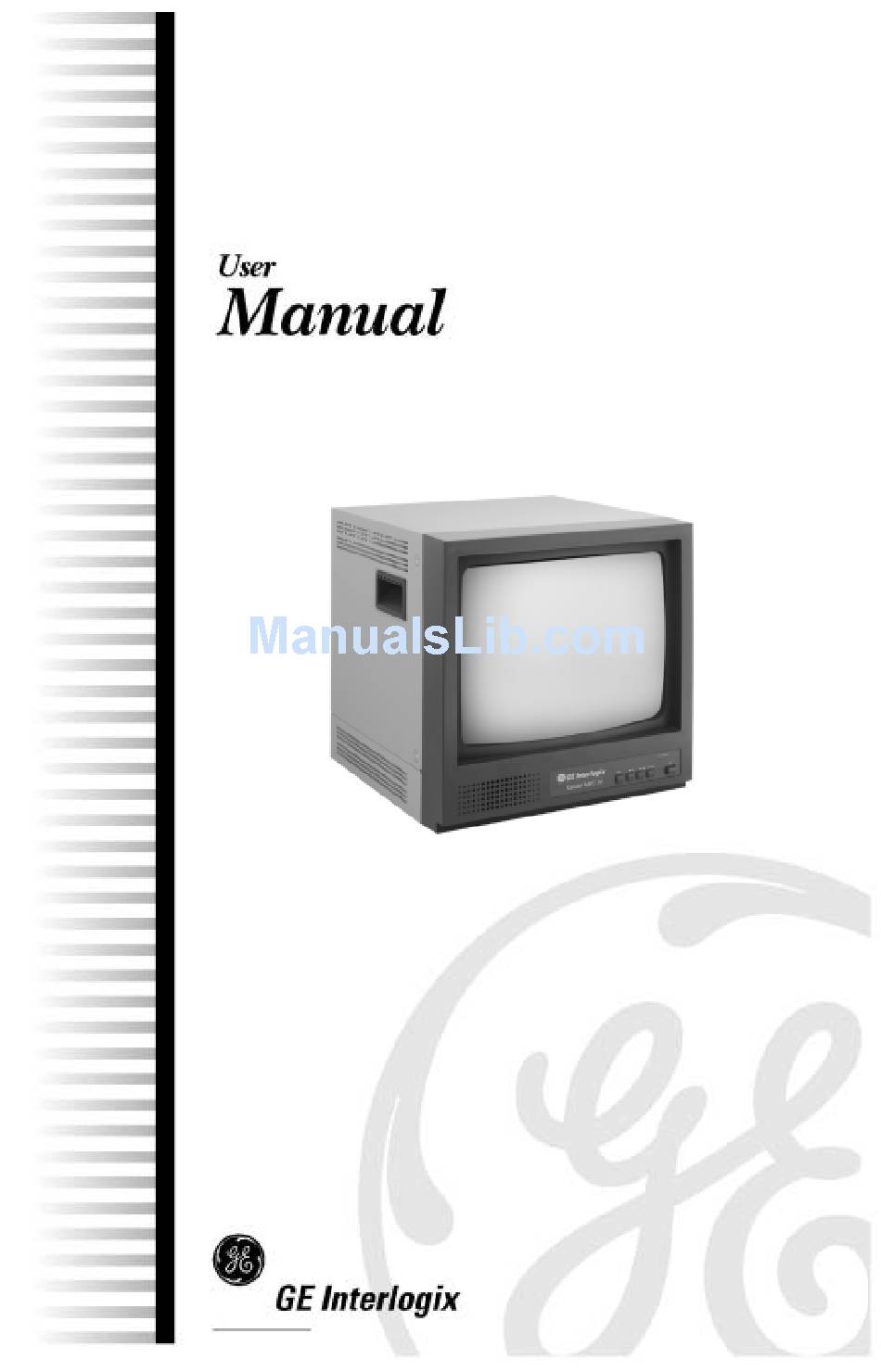

  • Page 1 MVC-14S Color Monitor...
  • Page 2 © 2002 Kalatel, a GE Interlogix company All Rights Reserved. Any GE Interlogix, Kalatel division, software This equipment has been tested and supplied with GE Interlogix, Kalatel division, found to comply with the limits for a products is proprietary and furnished under...

  • Page 3: Table Of Contents

    MVC-14S User Manual Table of Contents ABLE OF ONTENTS ..............4 EFORE EGIN ..............5 NSTALLATION ........8 RONT ANEL UNCTION ONTROLS ........8 SING THE UNCTIONS 2.1.1 Setting a Monitor Title...........9 ........13 ARRANTY AND ETURN NFORMATION ........13 DVANCE EPLACEMENT OLICY 1036089A / November 2002...

  • Page 4: Before You Begin

    Before You Begin MVC-14S User Manual EFORE EGIN Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: •...

  • Page 5: Installation

    MVC-14S User Manual Installation NSTALLATION CAUTION: To prevent electric shock, do not remove the monitor cover. Qualified service personnel should make repairs. CAUTION: omplete all installation steps before supplying power to the unit. AC input connector Audio out connector (RCA)

  • Page 6: Other Connections

    Figure 2. NOTE: The MVC-14S monitor is auto-terminating. Figure 2. Camera and two MVC-14S monitors Attach the monitor’s power cord (provided) to the AC input connector. Insert the power plug into an approved power source.
  • Page 7 MVC-14S User Manual Installation • Connect the audio out connector to the audio input connector of a VCR or other equipment. 1036089A / November 2002...

  • Page 8: Front Panelf

    Front Panel Function Controls MVC-14S User Manual RONT ANEL UNCTION ONTROLS To power up the unit press the power button and confirm that the green power indicator light is on (Figure 3). Power indicator Down/Brightness button Power button Up/Contrast button...

  • Page 9: Setting A Monitor Title

    Press OSD to exit the functions menu and return to normal mode. NOTE: Because the MVC-14S monitor is not multi-channel, the Dwell Time function is not active. NOTE: If you leave a function screen inactive for approximately 15 seconds, any adjustments to that function will be lost and the monitor will default to the normal mode.
  • Page 10 NOTE: Whether you use the MVC-14S in Video or Y/C mode, only the title labeled CH A will display. Do not attempt to enter the CH B and Y/C titles: they will not display because there is no built-in switcher in the MVC-14.
  • Page 11 MVC-14S User Manual Front Panel Function Controls Repeat steps 3-5 until you have selected a title containing up to eight characters. Press OSD to navigate off the title. Press the down arrow to navigate to either TITLE ON or TITLE OFF, whichever is currently displayed on the screen.
  • Page 12 1036089A / November 2002...

  • Page 13: Information

    • Fewer than 45 days from purchase, GE Interlogix, Kalatel division, will replace the product with new equipment. • From 45 days to 1 year from purchase, GE Interlogix, Kalatel division, will replace the product with refurbished equipment. • From 1 year to 3 years from purchase, the product must be sent in for repair.
