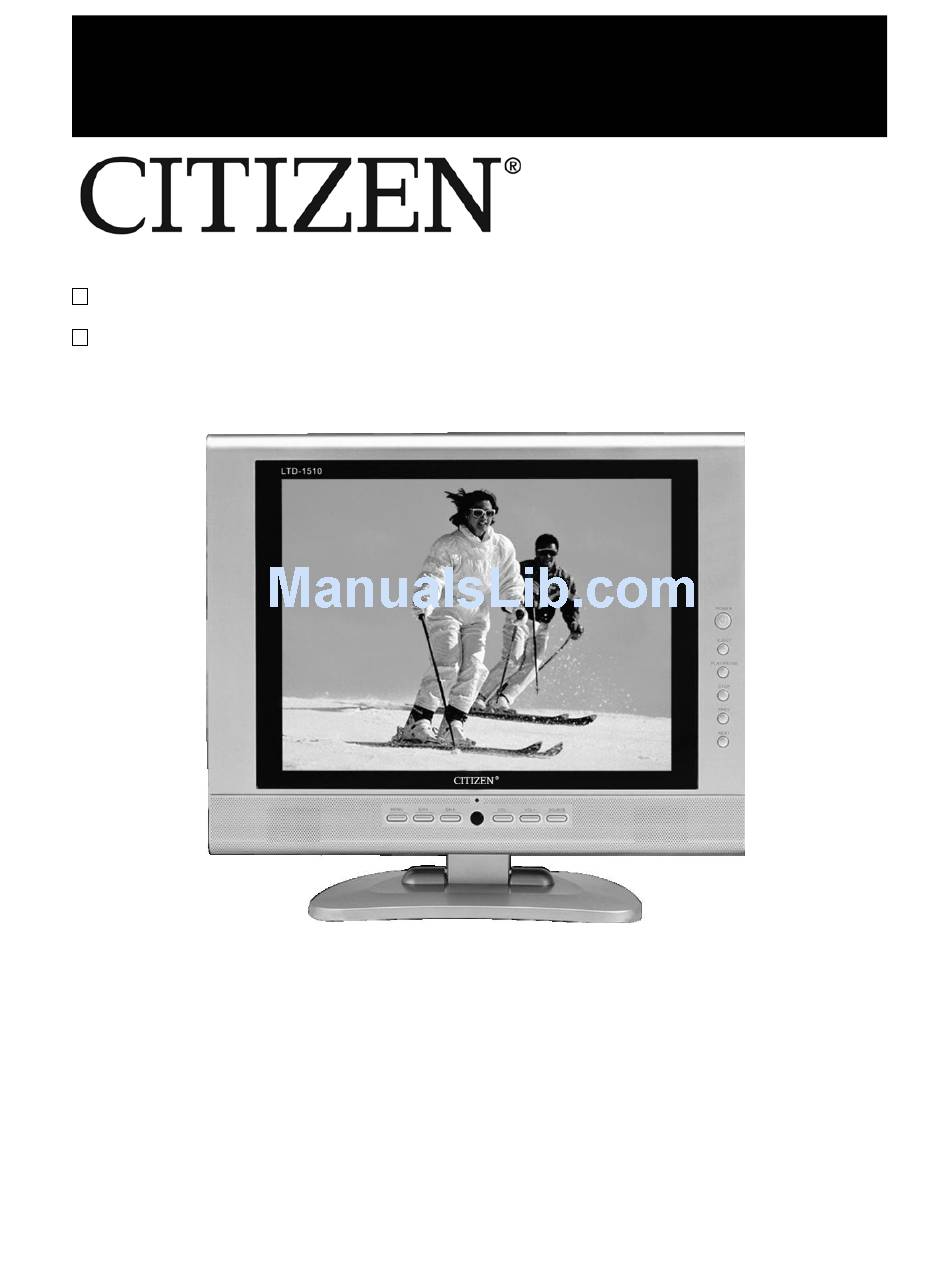

  • Page 1 PROGRAM RATING TV-PG LTD1510 15" LCD/DVD COMBO...

  • Page 2: Table Of Contents

    Table of Contents -------------------------------------------------------------------------- Table of Contents ------------------------------------------------------------------------ Safety Instructions ----------------------------------------------------------------------------------------- Features ---------------------------------------------------------------------------- Disc Information -------------------------------------------------------------------------------------- Front View ------------------------------------------------------------------------- Rear and Right View ---------------------------------------------------------------------------- Remote Control Preparation Of Remote Control ------------------------------------------------------------- Using Of Remote Control --------------------------------------------------------------------- -------------------------------------------------------- Connecting Other Equipment Connecting to Another Audio/Video Source------------------------------------------------ Connecting to TV Signal Input --------------------------------------------------------------- Connecting to a Personal Computer ---------------------------------------------------------...

  • Page 3: Table Of Contents

    Important Safety Instructions The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 4: Safety Instructions

    Safety Instructions NOTES: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Maintain well ventilated conditions around the product.

  • Page 5: Features

    Features This product has incorporated a DVD player, By correcting the phase delay and distortion LCD display, TV receiver and computer naturally generated by audio systems, BBE monitor. ensures that the sound that reaches your ears is as natural as the original recording. Television Features enhancing the mid-range sound frequencies, High Resolution...

  • Page 6: Disc Information

    Disc Information Discs Formats Supported By This Player DISC LOGO CONTENTS SIZE MAXIMUM TIME 133min(SS-SL) Audio+Video 242min(SS-DL) 12cm (active picture) 266min(DS-SL) 484min(DS-DL) Audio 12cm 74min Still high resolution 12cm JPEG • The operating method of some DVD discs is specified by the software maker. Please refer to the instruction manual of the disc.

  • Page 7: Front View

    Front View Front View 1. LCD screen Presents high resolution pictures. 2. POWER button Press to enter or exit the STANDBY mode. 3. EJECT button Press to eject the disc while in the DVD mode. 4. Play/Pause button Press to start or pause playback under DVD mode.

  • Page 8: Rear And Right View

    Rear and Right View Rear View Right View 1. Disc Tray slot 1. DC 12V power supply Jack Connecting to the power adapter. Insert disc into the slot. 2. Coaxial digital audio out jack Connecting for coaxial digital audio output. 3.

  • Page 9: Remote Control

    Remote Control Remote Control Drawing 5. MENU button Press to access the disc menu during DVD playback. 6. +10 button Select track number greater than 9, in DVD mode. 7. GOTO button Press to access or exit from the search menu under DVD mode.
  • Page 10 Remote Control 15. CLEAR button 27. SCAN button Press to clear incorrect input under DVD Under TV mode, press the button to scan programming status. channels. 16. REPEAT button 28. VOLUME＋/－ Press to repeat a chapter, track, title, or all Press to increase or decrease the speaker content under DVD mode.

  • Page 11: Preparation Of Remote Control

    Remote Control Using Of Remote Control Preparation Of Remote Control Point the remote control unit from no more than Insert the battery while observing the correct (+) about 7m from the remote control sensor and and (-) polarities. within about 60 degrees of the front of the unit. 1.

  • Page 12: Connecting Other Equipment

    Connecting Other Equipment • Do not connect the power cord until all other connections have been made. • Each time you start the unit, it will begin from the last playback function that was used. Connecting to Another Audio/Video Source •...

  • Page 13: Connecting To Tv Signal Input

    Connecting Other Equipment Connecting to TV Signal Input Plug the TV signal cable to the jack marked with ANT INPUT on the rear panel of the unit. After connecting, press the SOURCE button to shift to TV mode. Connecting to a Personal Computer The unit can be used as a display screen, when connecting to a personal computer.

  • Page 14: Connecting To Power Adapter

    Connecting Other Equipment Connecting to Power Adapter Power is supplied through the provided appropriative power adapter, one end of which is connected to the DC 12V IN jack on the rear panel, another to wall outlet with AC100-240V. Connecting to Headphone Plug the headphones to the jack on the rear panel of the unit.

  • Page 15: Tv Function

    Basic Operation Connect the antenna to the antenna jack on the unit rear panel. After connection, plug in the power supply. If the player is in standby mode, press the POWER button to turn on the power. Press the SOURCE button to select the TV mode. Press the ▼/▲...
  • Page 16 NOTE: The default password is 3308. This password will always be effective even after you change the PIN. When you input the password, the following menu will be displayed: V-CHIP SETTING ►V-CHIP TV RATING MPAA RATING CHANGE PIN In this menu, use the▼/▲ buttons to select items you want to set, press the OK button to exit from the menu.
  • Page 17 MPAA Rating In the V-CHIP setting menu, use the ▼/▲ button to select the MPAA RATING, press the ► button to enter and the following menu will be displayed: MPAA RATING PG13 NC17 : PREVIOUS : NEXT : CHANGE : EXIT Use the ▼/▲...
  • Page 18 Press the SCREEN SETUP button once on remote control to enter picture setup menu, the following menu will be displayed: PICTURE ►BRIGHT CONTRAST SATURATION SHARPNESS Use the ▼/▲ buttons to move cursor to the item you want to set (Bright, Contrast, Saturation, Hue and Sharpness).
  • Page 19 or OFF. When ON, the player will automatically fine tune the frequency. Skip Use the▼/▲ buttons to select SKIP, press the ►/◄ buttons to select ON or OFF. When ON, it will skip the current channel, when using the ▼/▲ buttons to select channel under normal playback status.

  • Page 20: Aux Function

    AUX Function AUX Function The player has some other AUX functions. You can enjoy programs from external input sources by pressing the SOURCE button on the remote control. Change to AUX mode after connecting to an AV signal such as a VCR, camcorder, game system, etc. After connection, you can go on with following setups: Picture Parameter setup Press the SCREEN SETUP button once on remote control to enter picture setup menu, and the...

  • Page 21: S-Video Function

    S-Video Function S-Video Function The player has S-VIDEO functions. You can enjoy programs from external S-VIDEO input sources. After connecting to the external S-Video input source, press the SOURCE button on the remote control to change to S-VIDEO mode. After connection, you can go on with following setups: Picture Parameter setup Press the SCREEN SETUP button once on remote control to enter picture setup menu, and the following menu will be displayed:...

  • Page 22: Computer Screen Function

    Computer Screen Function You can use the unit’s TFT LCD as your computer’s monitor. Access the computer setup menu and take the steps shown as below: 1. Turn OFF the power of the unit and the computer. Connect the unit to the computer VGA jack with a VGA cable (not included).

  • Page 23: Disc Playback

    Disc Playback Preparation：After all connections have been made, turn ON the unit and select the relevant video input. Disc Loading Steps: 1. Press the POWER button on the front panel of the unit. The player will search for a disc and play it automatically.

  • Page 24: Cd Playback

    Disc Playback Language (Audio) There can be up to 8 audio languages on a DVD disc. When you play a multi-language DVD disc you can use the AUDIO button on the remote control to select a language. Subtitle The DVD player can support multiple kinds of subtitles. When you play a multi-subtitle disc you can use the SUBTITLE button to select different subtitles.
  • Page 25 Disc Playback Picture Rotation This can be used only when the picture is normally displayed. Once another picture is selected, rotation will be cancelled automatically. There are four kinds of rotational modes. You can use the direction buttons to select them. Picture Zoom The ZOOM button is used to turn on/off the zoom function and the move function.

  • Page 26: Playback Functions

    Playback Functions Stop selecting the Title or Chapter, use number Press this button once to stop playback and buttons to input desired title or chapter. then press PLAY button to resume it. Press NOTE: the button twice to stop playback completely. Some DVD discs do not support the Search function.
  • Page 27 Playback Functions Programming Chapters / Tracks CD: Insert the CD and press the PROGRAM You can store up to 20 chapters of a DVD (or button. The screen shows: 20 tracks of a CD) in an individually programmed order. Please proceed accordingly: Insert press DVD:...
  • Page 28 Playback Functions Switching On and Off, Stand-by Connect the main cord to a wall outlet with a Playback will start automatically and most voltage corresponding to the specifications on discs will display a menu. You can control this the rear panel of the unit. menu with the direction buttons.

  • Page 29: System Setup

    System Setup DVD Setup Menu General Setup Page Please read this section to select the important The General Setup is shown as follows: settings for corresponding the DVD, TV and other additional audio equipment. - - General Setup Page - - TV Display Normal/PS Angle Mark...

  • Page 30: Dolby Digital Setup

    System Setup OSD Lang Downmix Please select preferred language for the OSD Selecting “Lt/Rt” in the ‘Downmix’ will alter the menus. audio output into a mixed Dolby output. By selecting ‘Stereo’ in the ‘Downmix’ menu the SPDIF Output player will output a common stereo signal. This item is used to set the format of digital audio.
  • Page 31 System Setup the SUBTITLE button. Sharpness This menu allows the settings for the sharpness of the picture: high, medium or low. Disc Menu Here you can choose the language in which the DVD menu stored on the disc will be shown Brightness on the screen If you activate this function you can set the...

  • Page 32: General Setup

    System Setup Screen Setup Menu After connecting the unit, there are other preferences you can set. Turn the POWER ON and press the SOURCE button on the remote or front panel and select DVD mode. Picture Parameter Setup Press the SCREEN SETUP on the remote and the screen will display the following: PICTURE ►BRIGHT CONTRAST...

  • Page 33: Placement Of The Unit

    Placement of the Unit When first using the player, please take following steps to place it: 1. Turn over the player with its chassis up, put it on a soft and smooth surface. Pos A 2. With one hand hold the player, the other hand tilt the set stand downwards about its axis.

  • Page 34: Troubleshooting

    Troubleshooting SYMPTOM CHECK ITEM Make sure disc is loaded in. Make sure disc is correctly loaded. Make sure disc is not dirty or warped. The player cannot play. Make sure the DVD disc region code is 1. Make sure water condensation has not occurred. If it occurs, take out disc and leave the player on for at least one hour.

  • Page 35: Specifications

    Specifications TFT-LCD Screen Size 15 Inches Laser Wavelength Wavelength: 780/650nm Digital Audio Out Out Level: 0.5Vp-p, Load: 75Ω AC100V~ 240V, 50/60Hz Power DC ＋12V Power Consumption ＜48W Dimension 422 mm x374 mm×102mm Weight About 6.5 kgs DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Manufactured under license from Dolby Laboratories.

  • Page 36: Warranty

    Citizen product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the...
