Engineered To Perform

DISHWASHER

USER MANUAL

12 PLACE SETTING

TDW12WA

TDW12SA

Table of Contents

Need help?

Do you have a question about the TDW12WA and is the answer not in the manual?

Questions and answers

Summary of Contents for TEC TDW12WA

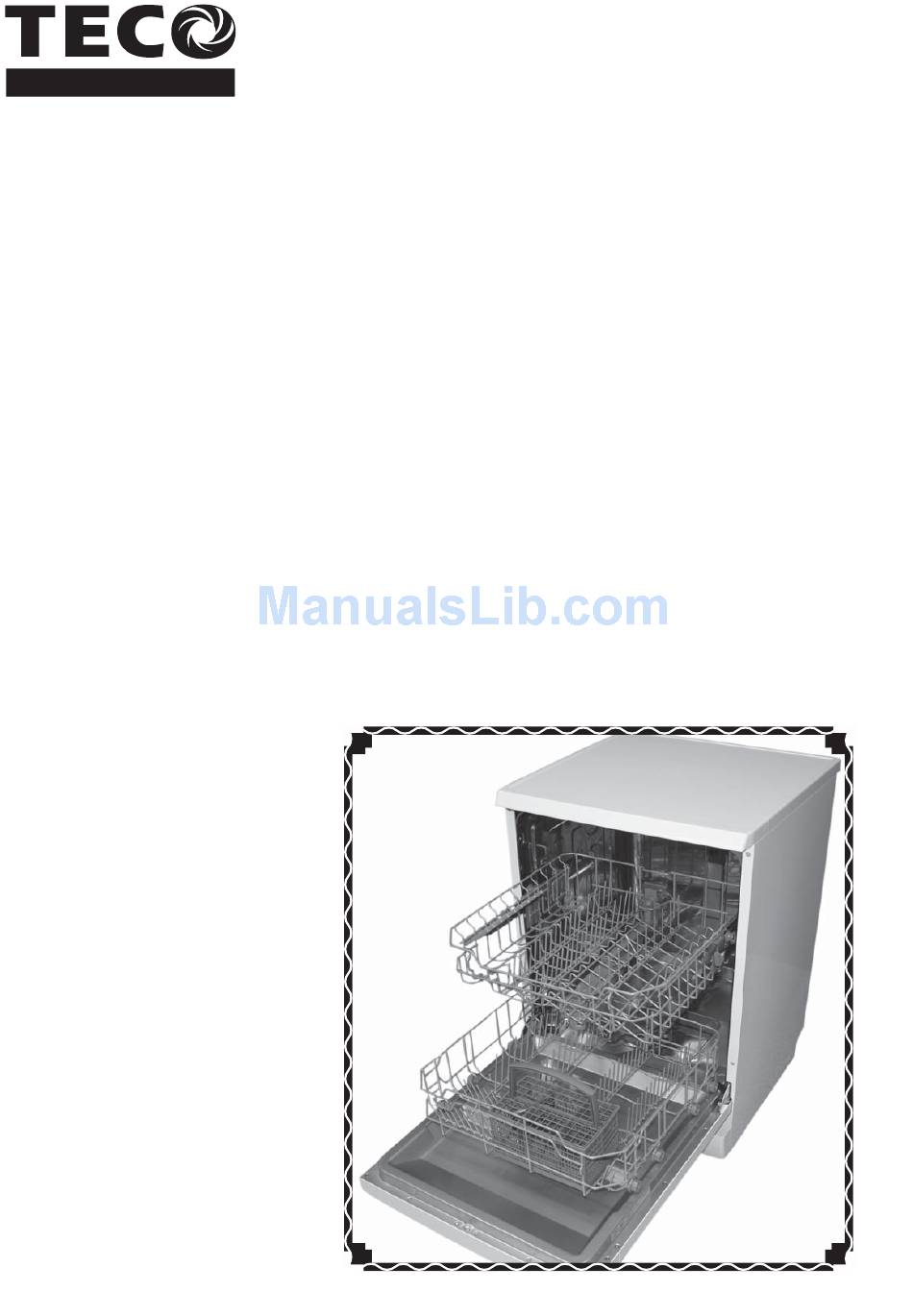

Page 1 Engineered To Perform DISHWASHER USER MANUAL 12 PLACE SETTING TDW12WA TDW12SA...
Page 2 READ BEFORE USE Congratulations on your purchase of a TECO dishwasher. We hope the appliance meets your expectations and serves you well for many years. For your safety and correct operation of the dishwasher, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it.
Page 3: Table Of Contents
CONTENTS Safety Information Quick Start Guide Operating Instructions Control Panel Part Names First Time Use Rinse Aid & Detergent Dispenser Function of Detergent Amount of Detergent to Use Filling Detergent Dispenser Loading the Dishwasher Before & After Loading Baskets Removing the Dishes Loading Upper Basket Loading Lower Basket Folding Cup Shelves...
Page 4: Safety Information
SAFETY INFORMATION • Do not use electrical items or ﬁ re equipment nearby. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 5: Quick Start Guide
QUICK START GUIDE Step 1 Correctly install the appliance. Ensure it is connected securely to the mains power source and water supply using the supplied hose. Step 2 Switch on the appliance by pressing the ON/OFF button. Check the front panel indicates power is supplied to the appliance.
Page 6: Operating Instructions
OPERATING INSTRUCTIONS CONTROL PANEL Name Function ON/OFF Button Power supply button. Power indicator Illuminates when power is connected and on. Rinse Aid Indicator Indicates when the dispenser needs to be reﬁ lled. Program Indicator Indicates the currently chosen program. Refer to page 12 for more information on each program.
Page 7: Part Names
OPERATING INSTRUCTIONS PART NAMES Front Back Name Name Upper basket Mains power plug Inner pipe Inlet pipe connector Lower basket Drain pipe Dispenser Cup shelf Spray arms Filter assembly FIRST TIME USE Before using your dishwasher for the ﬁ rst time, ﬁ ll the rinse aid and detergent dispenser. Rinse Aid Dispenser - The rinse aid is released during the ﬁ...
Page 8: Rinse Aid & Detergent Dispenser
RINSE AID & DETERGENT DISPENSER As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator chang- es, as illustrated below. Fig.2 Full 3/4 full 1/2 full 1/4 full - recommended to reﬁ ll at this stage Empty Fig.3a To open the rinse aid dispenser,...
Page 9: Function Of Detergent
FUNCTION OF DETERGENT Detergents with its chemical ingredients are necessary to remove dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. DETERGENTS There are 3 types of detergents: 1. With both phosphate and chlorine 2.
Page 10: Amount Of Detergent To Use
AMOUNT OF DETERGENT TO USE Fig.5a • If the lid is closed: Press release button. The lid will spring open. (Refer to Fig. 5a) Push latch to open CAUTION: DO NOT • Always add the detergent just before starting each wash cycle. LIFT LATCH.
Page 11: Loading The Dishwasher
LOADING THE DISHWASHER RECOMMENDATIONS • Consider buying dishes, glassware, mugs, cups, cutlery, etc. which are identiﬁ ed as dishwasher-proof or dishwasher-safe. • Use a mild detergent that is described as ‘kind to dishes’. If necessary, seek further information from the detergent manufacturers. •...
Page 12: Loading Upper Basket
LOADING UPPER BASKET LOADING LOWER BASKET It is suggested that you place large items The upper basket is designed to hold more and the most difﬁ cult to clean items to be delicate and lighter dishware such as glass- placed into the lower basket: such as pots, es, coffee and tea cups, saucers, plates, pans, lids, serving dishes and bowls.
Page 13: Wash Programs
WASH PROGRAMS  WASH CYCLE TABLE = This program performs best with rinse aid. Water Program Wash Cycle Wash Cycle Detergent Energy Rinse Time Used Icon & Name Information Details Pre/Main (Kw/h) (min) Pre-wash (50 For heaviest soiled Wash (65 crockery, pots and ...
Page 14: Start/Pause Button
START/PAUSE BUTTON When you press the Start/Pause button during a wash cycle, the selected program indicator will stop blinking and the buzzer will sound each minute until the Start/Pause button is pressed and the wash cycle resumes. CHANGING THE PROGRAM 1.
Page 15: Cleaning & Maintenance
CLEANING & MAINTENANCE FILTERING SYSTEM The ﬁ lter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the ﬁ lter, in this case they must be removed. The ﬁ lter system consists of a coarse ﬁ lter,a ﬂ at (main ﬁ lter) and a micro ﬁ lter (ﬁ ne ﬁ lter). Fig.13 1.
Page 16: Cleaning The Filter
- Inspect the ﬁ lters for blockages after each use. - By unscrewing the coarse ﬁ lter, you can remove the ﬁ lter system. Remove any food scraps and debris by cleaning the ﬁ lters under running water. The entire ﬁ lter assembly should be checked regularly and cleaned once a week. CLEANING THE FILTER To clean the coarse and ﬁ...
Page 17: General Maintenance
GENERAL MAINTENANCE AFTER EACH WASH WHEN NOT USED FOR LONG PERIODS After every wash, turn off the water supply It is recommended that you run a wash to the dishwasher and leave the door cycle with the dishwasher empty and then slightly open so that moisture and odours remove the power plug from the socket, are not trapped inside.
Page 18: Power Connection- Grounding
POWER CONNECTION (CONT.) CHECK DISHWASHER IS PROPERLY GROUNDED BEFORE USE Ensure the voltage and frequency of the power being supplied corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. This dishwasher is designed to operate on a single phase power supply within a voltage range of 220~240V/50Hz.
Page 19: Aqua-Stop Hose
AQUA-STOP HOSE The Aqua-stop hose consists of double walls. The hose system guarantees its intervention by blocking the ﬂ ow of water in cases where the supply hose breaks or when the space between the supply hose itself and the outer corrugated hose is full of water. DISCONNECTING THE AQUA-STOP HOSE Step 1 Turn off the water at the source.
Page 20: Draining Excess Water
DRAINING EXCESS WATER If the sink is greater than 1m high off the ﬂ oor, the excess water in the hoses cannot be drained directly into the sink. It will be necessary to drain excess water from the hoses into a bowl or suitable container that is held outside and lower than the sink.
Page 21: Troubleshooting
TROUBLESHOOTING TECHNICAL ISSUES Problem Possible Causes Possible solutions Dishwasher does Blown fuse or Check and replace fuse if not start circuit breaker necessary. Reset circuit breaker has been triggered. and remove any appliances sharing the circuit. Power supply is not Check the dishwasher is switched on.
Page 22 TROUBLESHOOTING (CONT.) GENERAL ISSUES Problem Possible Causes Possible solutions White ﬁ lm on the Hard water minerals Wearing rubber gloves, clean inside of dishwasher the interior of the dishwasher with a damp sponge and dish washing detergent. Never use any other chemical or cleaner.
Page 23 TROUBLESHOOTING (CONT.) UNSATISFACTORY WASH RESULTS (Cont.) Problem Possible Causes Possible solutions Black or gray marks Aluminium utensils Use a mild abrasive cleaner to on dishes have rubbed against eliminate marks. dishes Detergent left in Dishes have blocked Relocate dishes making sure dispenser detergent dispenser they do not block the dispenser.
Page 24 TECHNICAL INFORMATION Water pressure: 0.04-1.0MPa Power supply: Refer to rating plate Capacity: 12 place settings...
Page 25: Technical Information
TECHNICAL INFORMATION...
Page 26 www.teco.com.au MBD-PV1...
