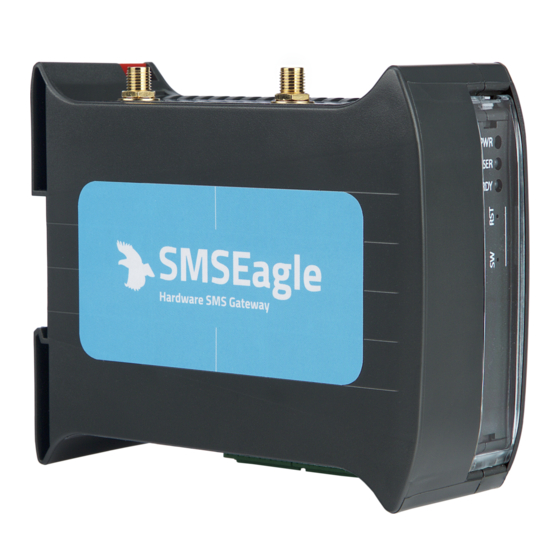

Smseagle hardware sms gateway user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

CONGRATULATIONS
ON
PURCHASING
SMSEAGLE!
1
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMSEagle and is the answer not in the manual?

Questions and answers

Related Manuals for SMSEagle SMSEagle

Summary of Contents for SMSEagle SMSEagle

  • Page 1 CONGRATULATIONS PURCHASING SMSEAGLE! Page...
  • Page 2 SMSEAGLE USER’S MANUAL Document version: 2.5 The materials used in this publication are copyright and are not to be duplicated, copied, or used without the prior consent of the copyright holder. Technical specifications are subject to change without prior notice being given.

  • Page 3: Table Of Contents

    USING OF SMSEAGLE ........................11 Get to know with Connectors, Ports and LEDs .................. 12 Basic Operations ..........................13 SMSEagle features ..........................13 Connecting directly to SMSEagle database ..................15 SNMP agent ............................15 TROUBLESHOOTING ........................19 Verification of LEDs ........................... 20 Checking the device logs ........................

  • Page 4: Get Ready To Start

    1. GET READY TO START Page...

  • Page 5: What's In The Box

    What’s in The BOX Your SMSEagle box contains: SMSEagle hardware sms gateway External omnidirectional 3.5dBi GSM antenna (with magnetic foot) AC/DC power supply (input voltage: 100-240V) Warranty card Page...

  • Page 6: Prepare For First Start

    Prepare for first start Your SMSEagle is designed so that you can set it up quickly and start using it right away. Follow the steps below to get started. Step 1: Connect GSM antenna Plug in GSM antenna connector to the device.
  • Page 7 Step 4: Configure IP settings Follow the steps below in order to the device first time using Ethernet – with initial factory settings on the device. SMSEAGLE DEFAULT NETWORK CONFIGURATION The following configuration is set on a device by default: IP address: 192.168.0.101...
  • Page 8 Example of computer IP configuration in Windows: b) V ERIFY YOUR CONNECTION Properly connected device should respond to the ping command. Example of ping after a proper connection to PC c) L SMSE OG IN TO AGLE Page...
  • Page 9 Open an internet browser on your PC and go to the address: 192.168.0.101 SMSEAGLE DEFAULT USER IS Username: admin Password: password Login to application with above username and password. d) C ONFIGURE SETTINGS Click on menu position “Settings” and navigate to tab “IP Settings”.
  • Page 10 Enter your IP settings. If you have DHCP server on your network you can choose “Get IP address from DHCP” – IP settings will be obtained automatically. Press “Save” button. e) S SIM-CARD PIN ETTING NUMBER This step should ONLY be done if your SIM-card requires PIN. If your SIM-card requires PIN number at startup, go to Settings >...

  • Page 11: Using Of Smseagle

    2. USING OF SMSEAGLE Page...

  • Page 12: Get To Know With Connectors, Ports And Leds

    Get to know with Connectors, Ports and LEDs Element Label Description Connector 1 Power connector and serial ports Connector 2 Additional ports connector (not used) SIM Card Slot SIM card slot SD Card Slot Slot for additional SD/MMC card Ethernet Port Ethernet RJ45 socket Antenna Antenna socket...

  • Page 13: Basic Operations

    SMSEagle is capable to work in various screen resolutions, making it accessible for wide range of devices: computers, laptops, tablets, smartphones, etc. Open a web browser on your device, type in SMSEagle’s IP address (as set in previous chapter). At login screen type in your username/password. Default username and password is given in chapter First Start.
  • Page 14 SMSEagle is equipped with powerful (yet simple to use) network services monitoring features. With that features you can monitor any service that has listening port open. SMSEagle is trying to connect to each defined port in Network Monitoring feature and sends defined SMS alert when port is unavailable. Go to our website www.smseagle.eu...

  • Page 15: Connecting Directly To Smseagle Database

    SMSEagle API SMSEagle has a powerful built-in API functionalities. With API you can use the device to send and receive messages from any external system or application. For the detailed description of API functionality go to our internet site: www.smseagle.eu...
  • Page 16 If your chosen SNMP tool cannot access NET-SNMP-EXTEND-MIB objects, you can download MIB definitions from: http://www.smseagle.eu/download/NET-SNMP-EXTEND-MIB.txt EXAMPLE OF READING GSM_SIGNAL VALUE USING NET-SNMP LIBRARY a) Command for reading the result value: snmpget -v 2c -c public ip-of-smseagle 'NET-SNMP-EXTEND- MIB::nsExtendOutputFull."GSM_Signal"' Result: NET-SNMP-EXTEND-MIB::nsExtendOutputFull."GSM_Signal" = STRING: 54 Comment: GSM Signal strength value is 54%...
  • Page 17 DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (216622) 0:36:06.22 Comment: Linux system is up for 36 hours, 6.22 minutes EXAMPLE OF BROWSING SMSEAGLE EXTENSION PARAMETERS IN MIB TREE USING NET-SNMP LIBRARY a) Command for reading the result value: snmpwalk -v 2c -c public ip-of-smseagle .1.3.6.1.4.1.8072.1.3.2.3.1.2 Result: NET-SNMP-EXTEND-MIB::nsExtendOutputFull."GSM_Signal"...
  • Page 18 EXAMPLE OF BROWSING SMSEAGLE EXTENSION PARAMETERS IN MIB TREE USING MIB-BROWSER Page...

  • Page 19: Troubleshooting

    3. TROUBLESHOOTING Page...

  • Page 20: Verification Of Leds

    Not used Checking the device logs SMSEagle operates on Linux system. Linux system log is available under menu position “Settings” > “Logs”. In case of any problems with the device this log is a valuable source of troubleshooting information. Please attach information from this log when contacting with SMSEagle Support Team.

  • Page 21: Restoring Factory Defaults

    Restoring factory defaults This action restores the following settings to default values: IP settings, web-interface admin password, time-zone on the device. In order to restore factory defaults proceed with the following steps: LED signaling USER actions System reaction When the device is ready to operate: When READY LED is blinking and USER LED is...

  • Page 22: Service And Repair

    4. SERVICE AND REPAIR Page...

  • Page 23: Warranty

    61-843 Poznan, Poland WHEN CONTACTING SUPPORT TEAM, BE PREPARED TO PROVIDE THE FOLLOWING INFORMATION: System Information To get information about your SMSEagle, go to menu Settings > Maintenance. You will find there information about application and database version. System Logs Go to menu Settings >...

  • Page 24: Tech Specs And Safety Information

    5. TECH SPECS AND SAFETY INFORMATION Page...

  • Page 25: Technical Specifications

    Technical Specifications Hardware Specification  Processor type: ARM9 32bit 200MIPS RISC  Network interface: Ethernet 10/100 TX (1xRJ45)  1GB Flashdisk  RTC Clock: RTC 240B SRAM, Watchdog timer  Power consumption: max 17W  Noise level: Fanless  Dimensions: (width x depth x height) 35 x 120 x 101 mm ...
  • Page 26  Outgoing transmission rate: up to 20 SMS/min  API send SMS requests: 30 SMS/min (messages are queued for sending in a built-in database) Software Platform  Operating system: Linux 2.6  built-in Apache2 web server  built-in PostgreSQL database server ...

  • Page 27: Important Safety Information

    Important Safety Information This chapter provides important information about safety procedures. For your safety and that of your equipment, follow these rules for handling your device. WARNING: Incorrect storage or use of your device may void the manufacturer’s warranty. Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage.
