HCD-GTR333/GTR555/GTR777/GTR888
SERVICE MANUAL
Ver. 1.1 2011.09
• HCD-GTR333 is the amplifi er, USB, CD player and tuner
section in MHC-GTR333.
• HCD-GTR555 is the amplifi er, USB, CD player and tuner
section in MHC-GTR555.
• HCD-GTR777 is the amplifi er, USB, CD player and tuner
section in MHC-GTR777.
• HCD-GTR888 is the amplifi er, USB, CD player and tuner
section in MHC-GTR888.
"WALKMAN" and "WALKMAN" logo are registered
trademarks of Sony Corporation.
MPEG Layer-3 audio coding technology and patents licensed
from Fraunhofer IIS and Thomson.
Windows Media is a registered trademark of Microsoft
Corporation in the United States and/or other countries.
This product contains technology subject to certain
intellectual property rights of Microsoft.
Use or distribution of this technology outside of this
product is prohibited without the appropriate license(s) from
Microsoft.
Amplifi er section
The following are measured at AC 120 V –
240 V, 50/60 Hz
MHC-GTR888
Front/Satellite speaker
Power Output (rated):
290 W + 290 W (at 4 Ω, 1 kHz, 1% THD)
Front speaker
RMS output power (reference):
360 W + 360 W (per channel at 6 Ω, 1 kHz)
Satellite speaker
RMS output power (reference):
180 W + 180 W (per channel at 12 Ω, 1 kHz)
Subwoofer
RMS output power (reference):
260 W + 260 W (per channel at 8 Ω, 100 Hz)
MHC-GTR777
Front/Satellite speaker
Power Output (rated):
190 W + 190 W (at 4 Ω, 1 kHz, 1% THD)
Front speaker
RMS output power (reference):
220 W + 220 W (per channel at 6 Ω, 1 kHz)
Satellite speaker
RMS output power (reference):
110 W + 110 W (per channel at 12 Ω, 1 kHz)
Subwoofer
RMS output power (reference):
170 W + 170 W (8 Ω, 100 Hz)
MHC-GTR555
Front speaker
Power Output (rated):
160 W + 160 W (at 5 Ω, 1 kHz, 1% THD)
RMS output power (reference):
250 W + 250 W (per channel at 5 Ω, 1 kHz)
Subwoofer
RMS output power (reference):
250 W (5 Ω, 100 Hz)
9-890-567-02
Sony Corporation
2011I80-1
©
2011.09
Published by Sony EMCS (Malaysia) PG Tec

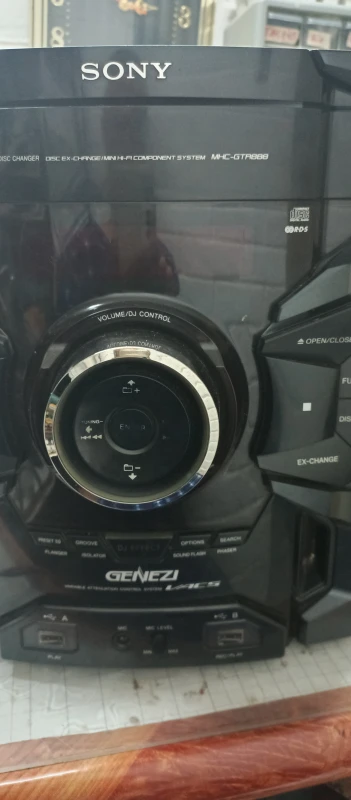

Photo: HCD-GTR888 (E2 Model)
CD Section

SPECIFICATIONS

MHC-GTR333
Front speaker
Power Output (rated):
130 W + 130 W (at 4 Ω, 1 kHz,1% THD)
RMS output power (reference):
250 W + 250 W (per channel at 4 Ω, 1 kHz)
Inputs
TV (AUDIO IN) L/R
Voltage 1.2 V, impedance 47 kΩ
DVD/PC (AUDIO IN) L/R
Voltage 1.2 V, impedance 47 kΩ
MIC (MHC-GTR888/MHC-GTR777 only)
Sensitivity 1 mV, impedance 10 kΩ
A,
B port: Type A
USB section
Supported bit rate
MP3 (MPEG 1 Audio Layer-3):
32 kbps – 320 kbps, VBR
WMA: 48 kbps – 192 kbps
AAC: 48 kbps – 320 kbps
Sampling frequencies
MP3 (MPEG 1 Audio Layer-3):
32 kHz/44.1 kHz/48 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz
Transfer speed
Full-Speed
Supported USB device
Mass Storage Class
Maximum current
500 mA
Model Name Using Similar Mechanism
CD Mechanism Type
Optical Pick-up Name
Disc player section
System
Compact disc and digital audio system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 μW
* This output is the value measurement at
a distance of 200 mm from the objective
lens surface on the Optical Pick-up Block
with 7 mm aperture.
Frequency response
20 Hz – 20 kHz
Signal-to-noise ratio
More than 90 dB
Dynamic range
More than 88 dB
Tuner section
FM stereo, FM/AM superheterodyne tuner
Antenna:
FM lead antenna
AM loop antenna
FM tuner section
Tuning range
87.5 MHz – 108.0 MHz (50 kHz step)
AM tuner section
Tuning range
Pan American models:
530 kHz – 1,710 kHz (10 kHz step)
531 kHz – 1,710 kHz (9 kHz step)
Other models:
530 kHz – 1,610 kHz (10 kHz step)
531 kHz – 1,602 kHz (9 kHz step)
COMPACT DISC RECEIVER
E Model
HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B
CDM74HF-DVBU101//M
KHM-313CAB/C2NP
General
Power requirements
AC 120 V – 240 V, 50/60 Hz
Power consumption
MHC-GTR888: 220 W
MHC-GTR777: 160 W
MHC-GTR555: 150 W
MHC-GTR333: 110 W
Dimensions (w/h/d) (excl. speakers)
(Approx.)
280 mm × 333 mm × 439.5 mm
Mass (excl. speakers) (Approx.)
HCD-GTR888: 7.1 kg
HCD-GTR777/HCD-GTR555: 6.7 kg
HCD-GTR333: 6.4 kg
Supplied accessories
Remote control (1)
R6 (Size AA) batteries (2)
FM lead/AM loop antenna (1)
Spacer A (MHC-GTR888 only) (2)
Spacer B (MHC-GTR888 only) (2)
Design and specifi cations are subject to change
without notice.
Abbreviation
E2 : 120V AC area in E model
