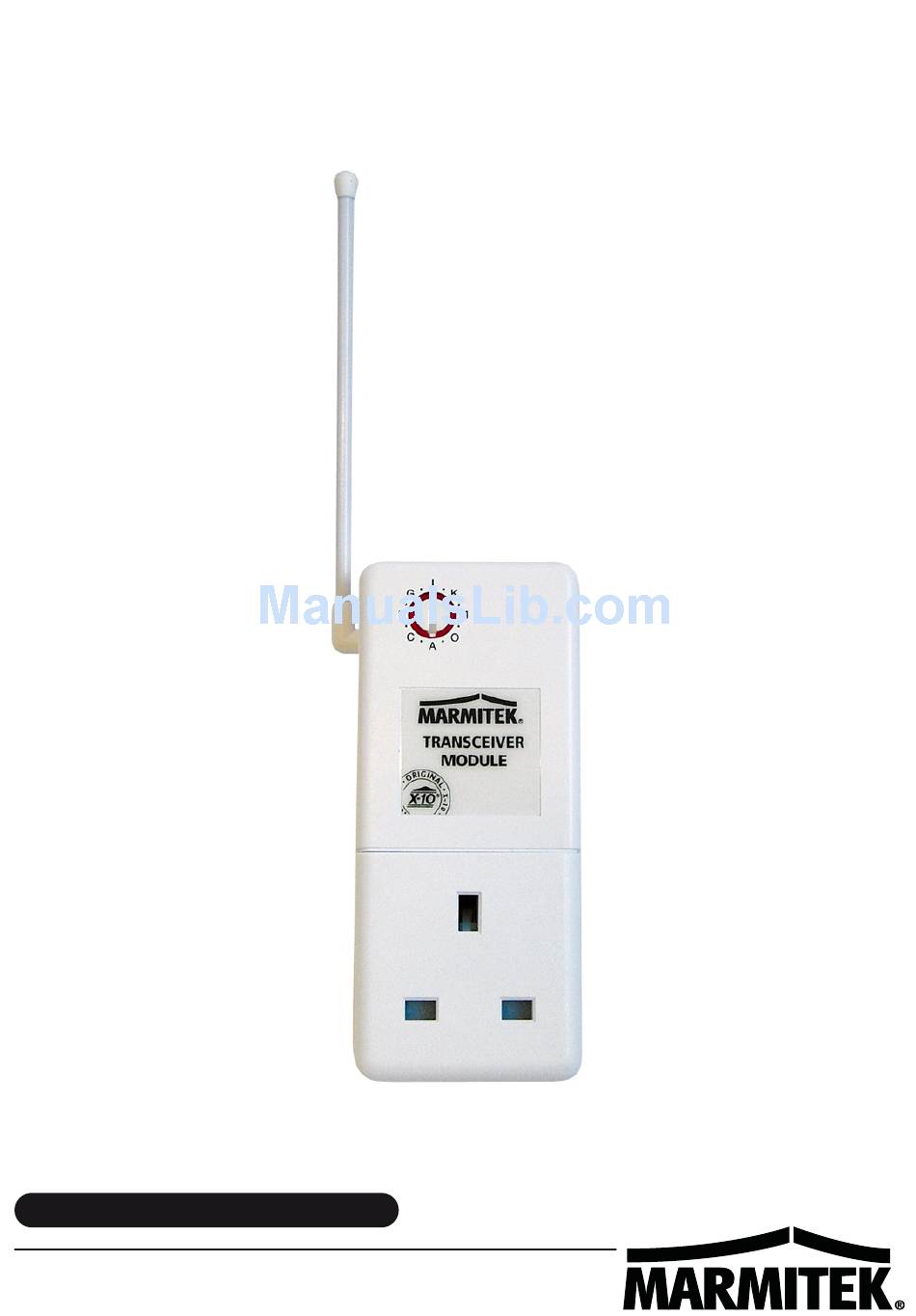

- Page 1 TM13 TM13 USER MANUAL 20590_20131113 TM13 ™ ALL RIGHTS RESERVED MARMITEK ©...
-
Page 2: Table Of Contents
ADRESSES ................. 4 SIGNAL RANGE ..............5 INTRODUCTION ..............7 How does it work? ............7 FIRST USE OF THE TM13 ............. 9 FREQENTLY ASKED QUESTIONS ........10 TECHNICAL DATA ............... 11 DECLARATION OF CONFORMITY ....... 12 COPYRIGHTS ..............12... -
Page 3: Safety Warnings
In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility. -
Page 4: How Does Marmitek X-10 Work
HOW DOES MARMITEK X-10 WORK? Marmitek X-10 components use the existing mains wiring to communicate (using Marmitek X-10 signals). You can build a complete system using the three different kind of components of the Marmitek X-10 System: 1. Modules: These components will receive Marmitek X-10 signals and will switch or dim the attached lamp or appliance. -
Page 5: Signal Range
On average the range is a cable length of 80 meters. If you have difficulties with the range of your Marmitek X- 10 signals, please pay attention to the following facts: 1. When more than one phase is used for your electrical system, it is necessary to couple these phases for the Marmitek X-10 signals. - Page 6 Gas Discharge Lamps (Energy Saving Lamps) 3. Some (old) devices are able to disturb the signal by transmitting noise on the power line. Because the Marmitek X- 10 signals are transmitted on 120 kHz, only noise on or near this frequency will have influence on the range. When you use a FM10 Filter to connect this device to the power line, the noise will be filtered.
-
Page 7: Introduction

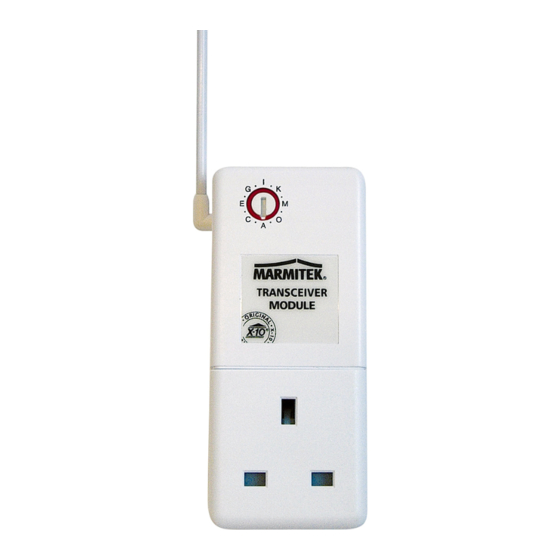

How does it work? The TM13 is a controller that is activated by transmitters. The controller operates Marmitek X-10 modules via the mains to switch your lighting and appliances on and off. This means that the TM13 forms the heart of your Marmitek X-10 installation. - Page 8 • The MS13 wireless motion sensor with memory (switches lighting and appliances on when someone is present and switches them off again afterwards. Switches on interior and exterior lighting when arriving home in the dark.) © MARMITEK...
-
Page 9: First Use Of The Tm13
FIRST USE OF THE TM13 Set the HouseCode (A to P) of the Home Control TM13 Transceiver to the same code as you have set your other modules. The UnitCode cannot be set and will always be ‘1’. If the TM13 is set to HouseCode ‘P’, all commands from remote controls will be converted into an X-10 signal over the mains, regardless of the HouseCode. -
Page 10: Freqently Asked Questions
To prevent your Marmitek X-10 System to become slow or to prevent dimming from becoming less smooth, make sure that the TM13 units are placed as far away from each other as possible. Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.com... -
Page 11: Technical Data
Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product. TM13... -
Page 12: Declaration Of Conformity
COPYRIGHTS Marmitek is a trademark of Pattitude B.V. ׀TM13™ is a trademark of Marmitek B.V. All rights reserved. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V.
