  5. WIRELESS ELECTRICITY MONITOR
  6. Instruction manual

Efergy WIRELESS ELECTRICITY MONITOR Instruction Manual

Wireless electricity monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
At the end of its serviceable life, this product should not be treated as household general waste. It should be handed over to the
applicable collection point for the recycling of electrical equipment, or returned to the supplier for disposal.
*All values shown in this manual are only examples. Actual figures will vary depending on your consumption.

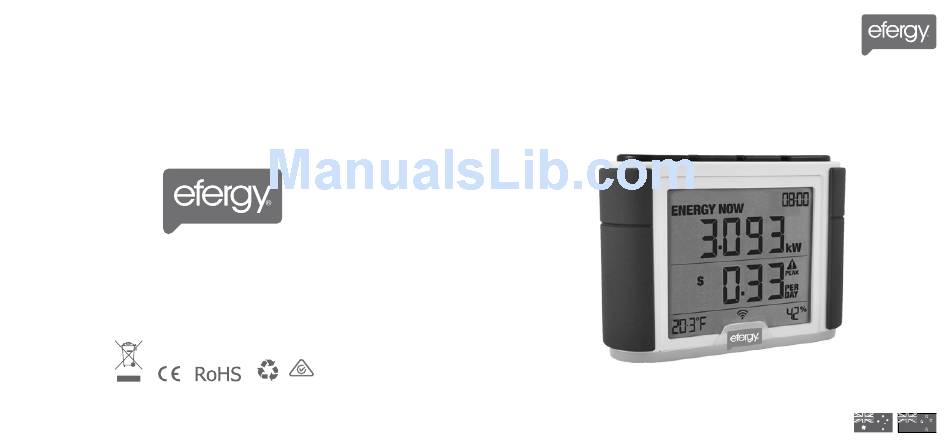

5600
ELITE CLASSIC
WIRELESS ELECTRICITY
MONITOR
INSTRUCTION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WIRELESS ELECTRICITY MONITOR and is the answer not in the manual?

Questions and answers

Related Manuals for Efergy WIRELESS ELECTRICITY MONITOR

Summary of Contents for Efergy WIRELESS ELECTRICITY MONITOR

  • Page 1: Instruction Manual

    ELITE CLASSIC WIRELESS ELECTRICITY MONITOR 5600 At the end of its serviceable life, this product should not be treated as household general waste. It should be handed over to the applicable collection point for the recycling of electrical equipment, or returned to the supplier for disposal. INSTRUCTION MANUAL *All values shown in this manual are only examples.

  • Page 2: Table Of Contents

    Installing the CT Sensor Ask George If you have any questions about using your elite efergy monitor or if you’d like further advice MONITOR SETUP on monitoring electricity at home, please feel free to contact us, or visit the website for up to Linking Transmitter and Monitor date information, downloads and frequently asked questions.

  • Page 3: Important Safety Information

    CT sensor is to be attached, stop immediately and report the findings to your supply company. • efergy energy monitoring systems are considered plug and play...

  • Page 4: In The Box

    Transmitter Your elite pack contains the following elements: The efergy elite is installed by clipping the mini CT sensor around the feed wire of your electric panel. In Australia the standard residential voltage is 240V. 1 x mini CT Sensor...

  • Page 5: Mounting Individual Or Multiple Circuits

    HARDWARE INSTALLATION MOUNTING INDIVIDUAL OR MULTIPLE CIRCUITS Dual Tariff Meters Dual Tariff meters (shown in Fig. 3) will often have an auxiliary cable running between cable 3 Locate Your Electrical Panel and cable 4. Auxiliary cables will be smaller in diameter than the feed cables, and will run into Locate your electricity meter and determine its type.

  • Page 6: Installing The Ct Sensor

    If the cables in your meter box are too big for the mini CT sensor you can order XL CT 1. Pull the release clip to open the sensors at www.efergy.com or from your local dealer. mini CT sensor (Fig. 4) IMPORTANT - Always make safety your first priority, see the relevant Important Safety 2.

  • Page 7: Monitor Setup

    MONITOR SETUP LINKING TRANSMITTER AND MONITOR SETTING THE TIME AND DATE Step 1 The elite monitor needs to know the time and date Ensure three AA batteries (not included) are inserted in the in order to provide you with the correct information. transmitter and wireless energy monitor.

  • Page 8: Setup Instructions

    MONITOR SETUP SETUP INSTRUCTIONS Step 4 - Electricity Cost The elite monitor needs to know unit cost per kWh charged by your electricity supplier, along Default cost is set at 0.130$/kWh. Use backward and with voltage and alarm settings. The following steps will move through each of these settings. forward buttons to change the cost per kWh.

  • Page 9: Dual Tariff Mode

    MONITOR SETUP DUAL TARIFF MODE ENERGY NOW MODE Step 1 - Activation of Dual / Multiple Tariff Push the mode/set button to change information displayed from kW to cost (displayed in $). Press and hold mode/set button for three seconds. On release you will see the voltage setting flash.

  • Page 10: History Mode

    The LED backlight will be Average information in days, weeks, or months activated from 18:00 to 6:00 hours. in kWh, $ and KgCO2 For more information about the elite go to www.efergy.net.au Contact efergy customer service phoneline on (+617) 1300 799 851...

  • Page 11: Technical Information

    TECHNICAL INFORMATION TECHNICAL NOTES FOR ELECTRICIAN Model Name efergy elite NOTE: This table is for reference only. Accuracy may vary ELITE-AUS depending on the type of connection and loading system used. Model Number Frequency 433MHz 6, 12 or 18 Sec...
