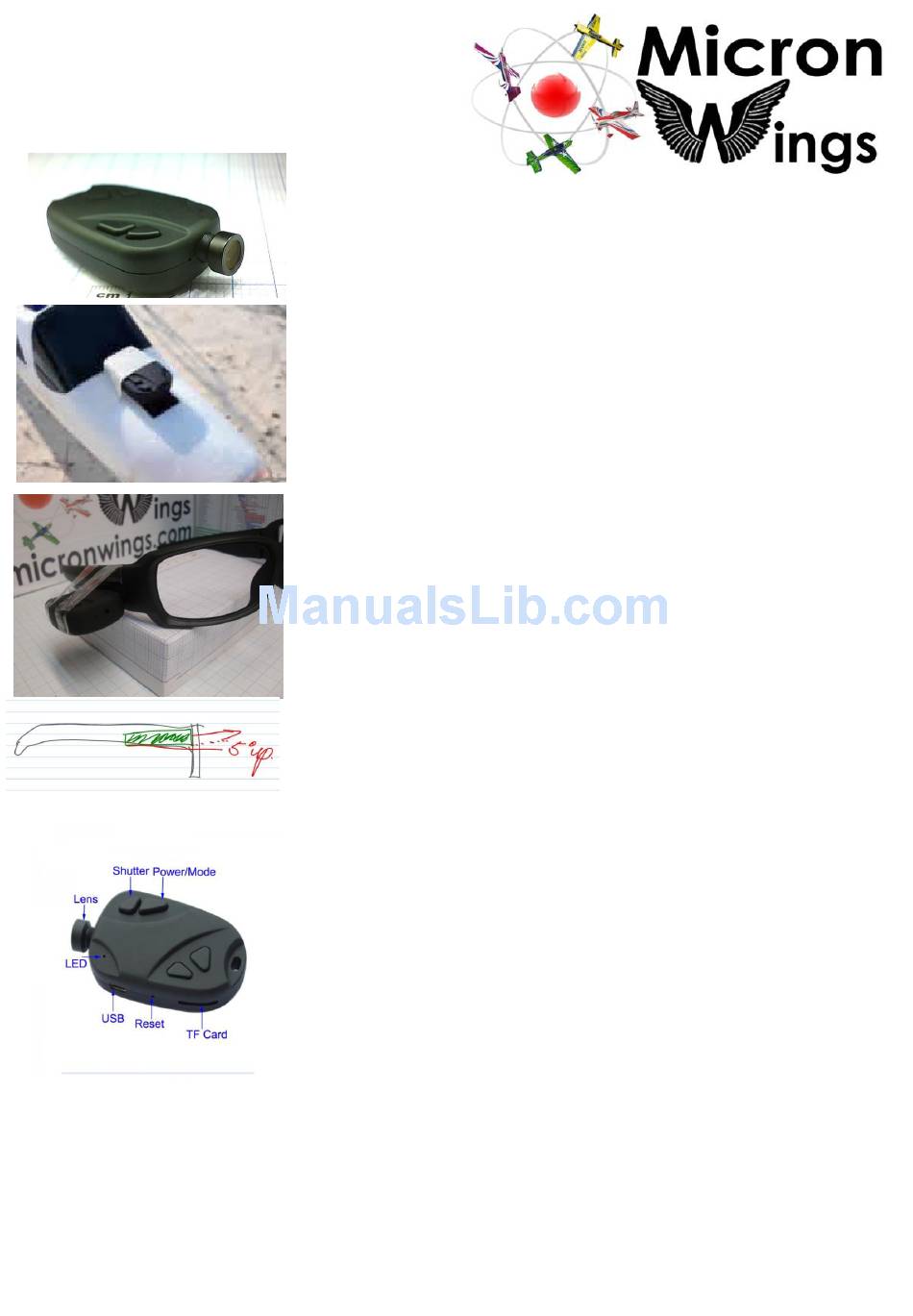

#18 - 808 Flight Camera
(HD 720P with AV Out Functionality)
Easy connection with PC/Laptops, no driver needed.
Built-in rechargeable high volume Lithium-ion Battery 400mA
Built-in Charger socket for USB
Dimensions (mm): 50 (L) x 32 (W) x13 (H)
This "keychain" camera at just 21 grams is a perfect video camera to record
your flights. It has a 250mah lithium ion battery built in and can take videos in
720P HD in continuous 15 minute segments which are only limited by your
memory card capacity.
Plane Mounting
The units are fully self-contained with their own battery and memory card slot
so they can be attached to your aircraft in just about any location quite easily.
Also, at 16 grams these cameras can be attached to smaller "park flyers". But
remember, the smaller the plane the more important it is to have the camera
mounted somewhere close to the CG.
Ground Cam
The unit can also be mounted to a hat visor or a pair of sunglasses to take video
of the plane in flight. Mounting to the arm of a pair of glasses is the best option.
This is because the glasses remain in the same position and at the same angle
each time you wear them unlike a cap which can be worn in different ways each
time. Attach the camera to the glasses with tape or use a foam shim cut to size
as a base for a more permanent setup.
It is also important to angle the camera up at about 5degrees from the line of
sight of the glasses. This is because the human eyeballs rotate up in their
sockets when we look up above the horizon. A bit of experimenting will be
needed to adjust the angle and position for your particular setup.
Functioanlity:
True H.264 720P HD
720P high def video 1280 x 720 H.264. 30fps .AVI
Records sound as well
4 in 1 function: video recording, camera, webcam, AV Output.
5.0 Mega pixels Photo JPEG format: 2048 x1536.jpg
Burst Photography – takes 3 photos in quick succession
PC-Webcam 640x480.
Dedicated car charger configuration allows video recording while charging.
Mass storage - can support up to 32GB Micro SD card
(Not included- Micro SD memory card ).
Advertisement
Table of Contents
Summary of Contents for MicronWings 18-800 Flight camera 720p
- Page 1 #18 - 808 Flight Camera (HD 720P with AV Out Functionality) This "keychain" camera at just 21 grams is a perfect video camera to record your flights. It has a 250mah lithium ion battery built in and can take videos in 720P HD in continuous 15 minute segments which are only limited by your memory card capacity.
- Page 2 1 x USB AV out cable with USB power input 1 X Velcro mounting pads 1 X User Manual 1 X keychain Note: All cameras sold by MicronWings have the latest firmware update already done which removes the date stamp on the video only (not photo) and changes the functionality so that when the battery dies, the current recording is now saved, rather than lost.
- Page 3 Basic Usage Instructions HOW TO TAKE A VIDEO 1. Start with the camera off 2. Press the power/mode button. This turns the LED and the camera on. 3. Press the shutter (video/image) button. The LED flashes 3 times then the LED goes off. The camera is recording video and audio.
