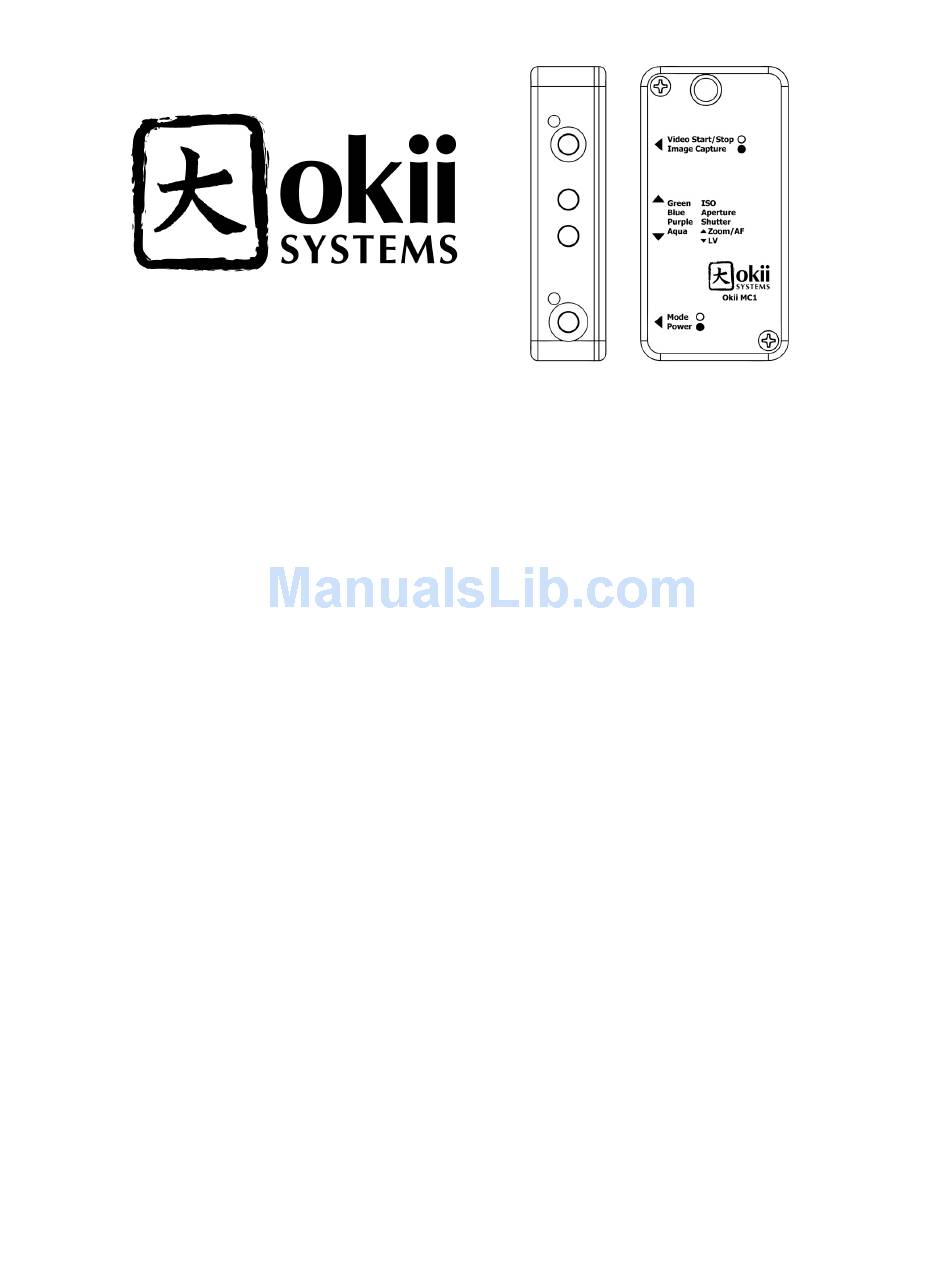

MC1 USB Mini Controller
Introduction
The Okii MC1 (patent pending) is a battery powered, handheld USB host device, designed to
control video enabled Canon EOS Digital SLR cameras.
The MC1 allows you to control important camera functions such as video start/stop; digital zoom
to aid with focusing; autofocus; and adjusting ISO, aperture, and shutter speed. It also includes
an optional recording restart feature, which can automatically stop and restart video recording at
11-minute intervals for long film sequences, or can act as a fail safe.
The MC1 is primarily intended to be mounted near a handle on a rig to provide easy access to
video start/stop and settings changes. It can also be used as a wired remote, and has been
tested past 25 meters using normal (non-powered) USB extension cables. The HDMI output of
the camera is not interrupted, allowing the MC1 to be used simultaneously with an external HDMI
monitor or electronic viewfinder.
Features
•
Functions with Canon EOS 1D X, 1D Mark IV, 5D Mark III, 5D Mark II, 7D, 6D, 60D,
650D, 600D, 550D, 500D
•
Initiates video start/stop, image capture, digital zoom, autofocus, and live view
•
Controls ISO, aperture, and shutter speed
•
Optional 11-minute automatic recording restart
•
Does not interfere with HDMI output for external monitors or viewfinders
•
Non-powered USB extension cables extend range to 25+ meters
•
30+ hour battery life on 2 AAA alkaline batteries
•
Also compatible with AAA lithium and rechargeable batteries
•
Three ¼"-20 threaded mounting points on the top and sides
•
Constructed of CNC milled 6061 aluminum
•
Approximately 3.4 oz (96 g) total weight with included batteries
•
Made in the USA
Advertisement
Table of Contents
Summary of Contents for okii MC1
- Page 1 11-minute intervals for long film sequences, or can act as a fail safe. The MC1 is primarily intended to be mounted near a handle on a rig to provide easy access to video start/stop and settings changes. It can also be used as a wired remote, and has been tested past 25 meters using normal (non-powered) USB extension cables.
- Page 2 Power On/Off The MC1 comes assembled with 2 installed AAA alkaline batteries. With the camera turned off, connect the MC1 using a regular USB mini-B to A cable (the same cable used to connect your camera to a computer). To turn the MC1 on, press and hold the power/mode button until the mode LED, located just above the power/mode button, begins to blink (approximately 2 seconds).
-
Page 3: Shutter Speed
A second press/release of the button will stop recording and turn the video LED off. The MC1 syncs video recording status with the camera. This enables you to start/stop video recording by using the on-camera controls, while maintaining the proper status on the MC1 video LED. - Page 4 Green means it is enabled; red means it is disabled. Mode Customization In order to streamline operation of the MC1 it is possible to disable up to 3 modes from the 4- mode rotation. To disable a mode: 1.
-
Page 5: Troubleshooting
Controller displays constant blinking red mode LED. This indicates a USB bus error. Turn off the camera, wait for the MC1 to display a blinking mode LED (green, blue, purple, or aqua), and then turn the camera back on. If you continue to receive bus errors, you should try a new USB cable. - Page 6 Okii Systems website RMA page. The original sales receipt must accompany all warranty claims. The customer assumes all risk for the use of any Okii Systems LLC product, and is solely responsible for determining its suitability for use by any individual or application. Under no circumstances shall Okii Systems LLC be held liable for damages resulting from the use or misuse of the product.
