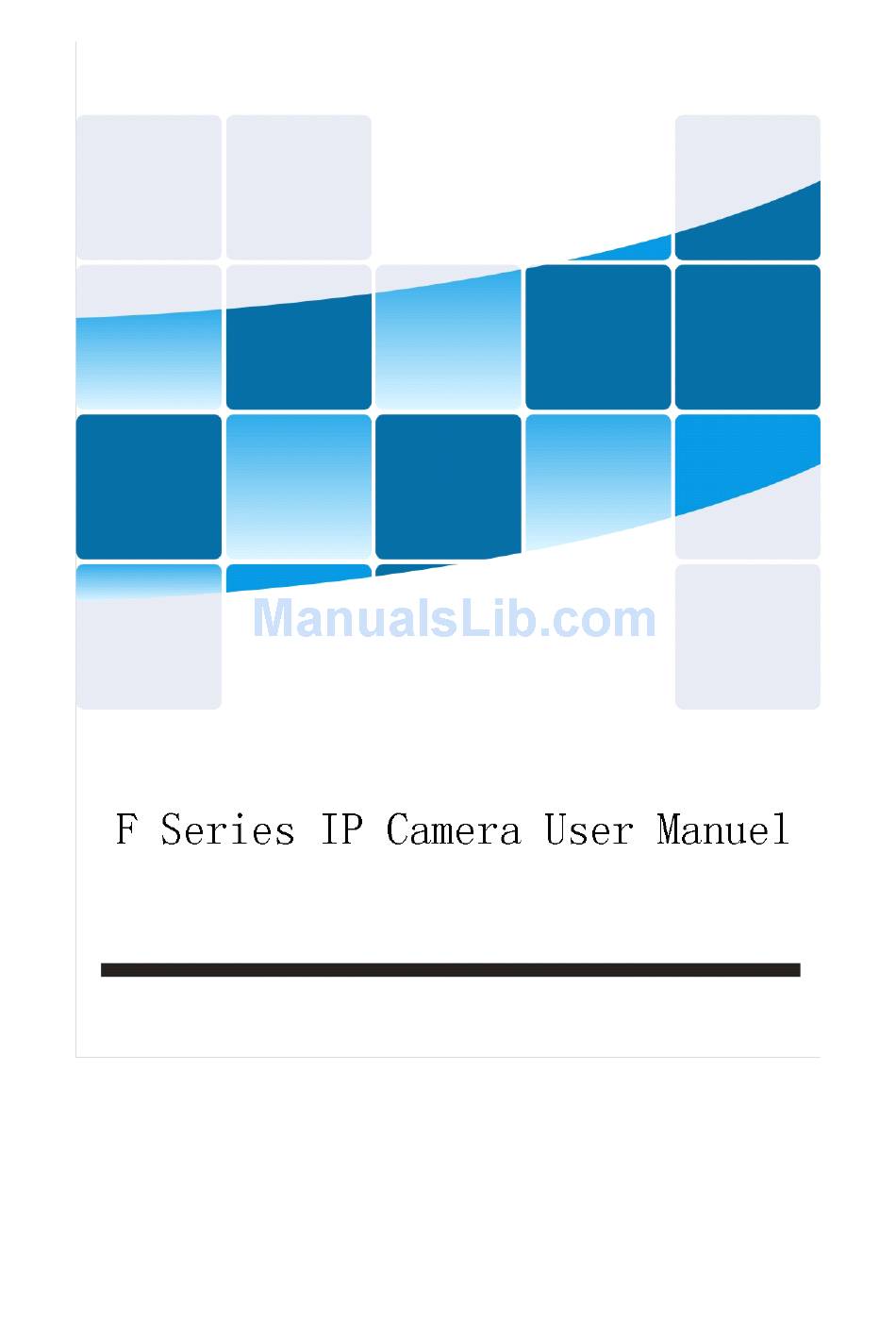

- Page 1 MFN-E-A2...
-
Page 2: Table Of Contents
4.Central Management System......................22 5. Mobile Access..........................22 5.1. Smart phone Access......................22 6. Others............................25 6.1. Port Forwarding Settings in router................... 25 6.2. F series Production Specification （Part）..............26 7.Frequently Asked Questions......................27 8. Warranty............................28 8.1. Warranty Terms........................ 28 8.2. Warranty Card........................30... -
Page 3: Products Introduction
Some IP cameras are able to extend to both analog and digital signal. F series IP camera‘s core is 32Bit RSIC. It adopts standard MJPEG compression format. The camera sensor is CMOS which supports auto white balance and backlight balance, support IE, cell phone browser, centralized monitor interface management. -
Page 4: Applications
Image Compression Format Standard M-JPEG Sensor CMOS，300,000 pixel Image Resolution Rate VGA（640x480）/QVGA（320x240） RJ-45/10-100 Base T ，802.11b/g Network interface Network protocol TCP/IP,FTP,SMTP,HTTP,UDP,DHCP,NTP,DDNS,UPNP,D NS,PPPOE 30 frame/second（QVGA）, 15 frame/second（VGA） Image Max Transmission Rate Output: 1 router（5VDC，0.1A） ；input: 1 router（closure Trigger） Alert control Motion Detection Support Software Update Users automatically upgrade... -
Page 5: System Requirements
Installation Installation Installation There are two kinds of interfaces for F series IP camera: one is body guard interface, the other is the extend line interface. Here we give detailed explanations on two representative products: Non-extended line IP Camera icon... -
Page 6: Interface
2.1. 2.1. Interface Interface 2.1. 2.1. Interface Interface Non-extended line IP Camera Tailgate Power Supply Light: constant on when power is on Network light: constant flash when power is on which shows data transmission. Ethernet interface: RJ-45 interface. I/O interface: 1 router alarm input, accept 3, 4 two terminals (input terminal grounding, low level effective trigger);... -
Page 7: Installation
Ethernet interface: RJ-45 network interface. Backup: follow-up product extend interface. About GPIO alarm interface (S terminal) definition: +DC12V RS485（A） Earth（GND） IO2 （OUT PUT） RS485 （B） IO1 （IN PUT） GND: Ground，alarm input ground，RS485 ground RS485: RS485 control interface，left connection RS485 negative right connection RS485 positive. connect P/T decoder， support variety PTZ protocol. -
Page 8: Pppoe Installation
2.2.2. PPPoE Installation Under this condition, users need to set up PPPoE dialing parameter in IP Camera: input the username and password provided by ISP supplier’ offer, this will allow the IP Camera to connect to internet by dialing connects. As for setting the PPPoE dialing parameter, you can connect device to network through the first method, then write parameter to the device, or through the following third method, directly write process parameter to device. -
Page 9: Ip Camera & Pc Connection
2.2.3. IP Camera & PC connection This method does not use frequently, when you process machine write parameter or program shift, we suggest you to use the first connect network method to process the modification of machine parameter. connect power to IP camera (note: don’t apply for wrong power), after one minute modification of IP camera, video could be connected via internet cable to IP camera;... -
Page 10: Ie Browse To Ip Camera
3. 3. 3. 3. IE IE IE Browse Browse to to to to IP IP IP IP Camera Camera IE Browse Browse Camera Camera After IP camera connects to PC LAN through router, you can operate on IP camera via PC, first please run the relative software in the CD kit 3.1. -
Page 11: Logging And Active X Installation
address. Before external net visit IP camera, port forwarding is necessary in the senior router ,for more detail please refer to “ Port Port Port Port Forwarding Forwarding Forwarding Forwarding Settings Settings Settings Settings in in in in router router router router ”in 8.1 section. - Page 12 b. Click finish 2. Open web page，you can directly click open button which is behind inner visit address or outer visit address in the search bar, also you can directly input relatively inner and outer visit address in web page address bar such as: http: //192.168.1.126 （LAN）, http: //dpvz.ipcam.hk（WAN）.
-
Page 13: Operation Keys
If it is blocked and requires plug-in installation by antivirus software, please remove block Note Note: : : : Note Note 1. Default device account is admin，no password. 2. M series IP camera doesn’t support Firefox browser，while F series support. 3.3. 3.3. Operation Operation Keys Keys 3.3. -
Page 14: Administrator Operation
3.3.2. Administrator Operation Sign Sign Sign in in in in, a pop-up will show, Sign in with ActiveX Mode(for IE) Click Sign - 14 - MFN-E-A2... -
Page 15: Operation
3.3.3. Operation 1. Image mirror indicates a reverse image. 2. Resolution, mode, brightness, contrast default setting are: 320*240、50HZ、6、4， mode is mainly for the adjustment of Light strength, please adjust to 60HZ when light is poor or in dark. 3. There are 3 browse modes in IE mode: visitor, operator, administrator. The authority of administrator is the highest. -
Page 16: Device Information
setting operation is successful, and need restart to finish setting, please click OK. If system indicates to restart (as right photo), please single click yes (Y), and then enter again. 3.4.1. Device Information The device information includes the above interfaces, device serial number 、... -
Page 17: Device User Settings
You can adjust time via NTP server or PC in this table. 3.4.4. Device User Settings User can proceed with setting according to the interface as below. The system is available for administrator, operator, visitor whose authority are listed in order.. Note: At least one administrator is needed for the device;... -
Page 18: Adsl Settings
None, None, Referring to the wireless networking setting, there are 5 security modes: None, None, Personal （ TKIP, Personal （ AES Personal （ AES WEP, WEP, Personal Personal TKIP, TKIP, Personal Personal AES） , , , , WPA2 WPA2 WPA2 Personal Personal WEP,... -
Page 19: Smtp Settings
All the above information are set up when the device is ready. Users generally do not need to change. In case of any accidental loss, user needs to re-obtain the domain name, and fill it himself, juts do as the above, the user’s name is just the first four characters, and this is for remote access. -
Page 20: Ftp Service Settings
Email provider，then test according to reference. If report needs to send, please tick report internet IP by Mail. The e-mail server and other information can be obtained from the mail service provider. The email notifications are pictures captured by camera when alarm is on. if no email notification is needed, there is no need to choose this one.. -
Page 21: Reset/Firm Ware Upgrade
3.4.13. Reset/Firm Ware Upgrade This sector is for camera firmware upgrade, it includes device system firmware and device application firmware. Be careful to apply for it! 3.4.14 Restore factory Settings If users forget password, we can restore ex-factory settings, when click the key, a picture will pop up, Click ok, and wait for 1 minute then you can use it normally. -
Page 22: Central Management System
normally. 4. 4. 4. 4.Central Central Management System Central Central Management Management Management System System System please refer to Central Management System User manual 5 5 5 5 ..Mobile Mobile Mobile Mobile Access Access Access Access 5 5 5 5 .1. - Page 23 2. Input the Username and Passoword of the device, and the following interface will appear. There are three log-in options. Click on the third “Sign in” and use Mobile Phone mode. Language is used to select the display language. Do not show next time: When this option is selected, this interface will not appear when you log in next time.
- Page 24 Description for the monitor image: - 24 - MFN-E-A2...
-
Page 25: Others
Instruction for the Key Function: Update: it is used to refresh the page. If the monitor piture is kept still, you may press this key to update the page. Up, down, left, and right: They are used to rotate the camera P/T. The camera without P/T does not have these keys. -
Page 26: F Series Production Specification （Part
6. Asus ex-factory definition router address is 192.168.1.1 pecification （ （ （ （ Part Part） ） ） ） 6 6 6 6 ..2 2 2 2 ..F F F F series series series... -
Page 27: Frequently Asked Questions
What is the max piece number that F series motion detection area support? Answer: F series support 1 piece motion detection area, which is a whole image. Question: Do the F series product allow the users to browse dynamic video through cell phone? Answer: Yes, but only the cell phone which supports JAVA can. -
Page 28: Warranty
Answer: First you can use search bar to find out the camera, then click auto set button. Question: What mode of cell phone does the F series camera allow to visit? Answer: Generally, cell phone with Java MIDP 2.0 program can watch dynamic video. - Page 29 c) The damages due to floods, fire, lightning strike and other natural calamities or force majored incidents factors d) Repaired item by non-authorized repair centers. All above terms, if these is any changes; they should according to relevant regulations. - 29 - MFN-E-A2...
-
Page 30: Warranty Card
8 8 8 8 .2. .2. .2. .2. W W W W arranty arranty arranty arranty C C C C ard Manufacturing Date: Product Specification: Inspector: Version number : Product Model Sale Dates User Company User name Customer Address Contact Number Results of Maintain Date Failure Conditions...
