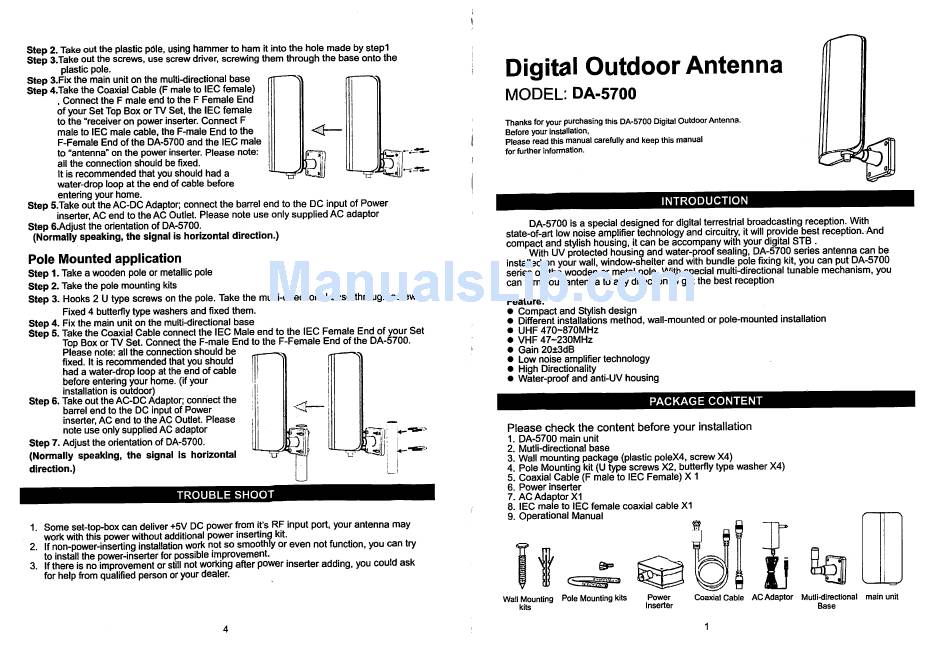

FreeTec DA-5700 User Manual

<i—
Step 2. Take out the plastic pdle, using hammer to ham it into the hole made by stepi
Step 3.Take out the screws, use screw driver, screwing them through the base onto the
plastic pole.
Step 3.Fix the main unit on the multi-directional base
Step 4.Take the Coaxial Cable (F male to IEC female)
, Connect the F male end to the F Female End
of your Set Top Box or TV Set, the IEC female
to the "receiver on power inserter. Connect F
male to IEC male cable, the F-male End to the
F-Female End of the DA-5700 and the IEC male
to "antenna" on the power inserter. Please note:
alt the connection should be fixed.
It is recommended that you should had a _
water-drop loop at the end of cable before
entering your home.
Step S.Take out the AC-DC Adaptor; connect the barrel end to the DC input of Power
inserter, AC end to the AC Outlet. Please note use only supplied AC adaptor
Step 6.Adjust the orientation of DA-5700.
(Normally speaking, the signal is horizontal direction.)
Pole Mounted application
Step 1. Take a wooden pole or metallic pole
Step 2. Take the pole mounting kits
Step 3. Hooks 2 U type screws on the pole. Take the multi-directional base through screws.
Fixed 4 butterfly type washers and fixed them.
Step 4. Fix the main unit on the multi-directional base
Step 5. Take the Coaxial Cable connect the IEC Male end to the IEC Female End of your Set
Top Box or TV Set. Connect the F-male End to the F-Female End of the DA-5700.
Please note: all the connection should be
fixed. It is recommended that you should
had a water-drop loop at the end of cable
before entering your home, (if your
installation is outdoor)
Step 6. Take out the AC-DC Adaptor; connect the
barrel end to the DC input of Power
inserter, AC end to the AC Outlet. Please
note use only supplied AC adaptor
Step 7. Adjust the orientation of DA-5700.
(Normally speaking, the signal is horizontal
direction.)
L-
TROUBLE SHOOT
1 Some set-top-box can deliver +5V DC power from it's RF input port, your antenna may
work with this power without additional power inserting kit.
2. If non-power-inserting installation work not so smoothly or even not function, you can try
to install the power-inserter for possible improvement.
3. If there is no improvement or still not working after power inserter adding, you could ask
for help from qualified person or your dealer.
Digital Outdoor Antenna
MODEL: DA-5700
Thanks for your purchasing this DA-5700 Digital Outdoor Antenna.
Before your installation,
Please read this manual carefully and keep this manual
for further information.
INTRODUCTION
DA-5700 is a special designed for digital terrestrial broadcasting reception. With
state-of-art low noise amplifier technology and circuitry, it will provide best reception. And
compact and stylish housing, it can be accompany with your digital STB .
With UV protected housing and water-proof sealing, DA-5700 series antenna can be
installed on your wall, window-shelter and with bundle pole fixing kit, you can put DA-5700
series on the wooden or metal pole. With special multi-directional tunable mechanism, you
can turn your antenna to any direction to get the best reception
Feature:
Compact and Stylish design
Different installations method, wall-mounted or pole-mounted installation
UHF 470-870MHZ
VHF 47~230MHz
Gain 20±3dB
Low noise amplifier technology
High Directionality
Water-proof and anti-UV housing
PACKAGE CONTENT
Please check the content before your installation
1. DA-5700 main unit
2. Mutli-directional base
3. Wall mounting package (plastic poleX4, screw X4)
4. Pole Mounting kit (U type screws X2, butterfly type washer X4)
5. Coaxial Cable (F male to IEC Female) X 1
6. Power inserter
7. AC Adaptor X1
8. IEC male to IEC female coaxial cable X1
9. Operational Manual
Wall Mounting Pole Mounting kits
kits
Power
Inserter
Coaxial Cable AC Adaptor Mutli-directional main unit
Base
