Summary of Contents for Macally rfKEY

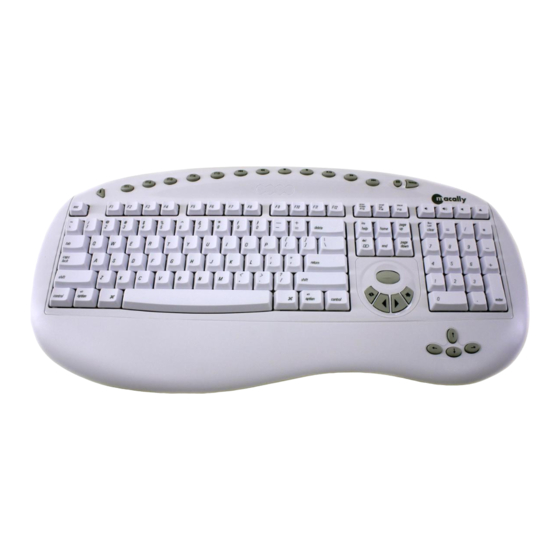

- Page 1 USB Wireless Keyboard User's Manual...
-
Page 2: Copyright Notice
Limitation of Liability The liability of Macally Peripherals arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall Macally Peripherals be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale. - Page 3 Placement of the Keyboard, Mouse, and Other Input Devices The keyboard, mouse, and other input devices, such as a numeric keypad, should be positioned so that your arms and hands are in a relaxed, comfortable, and natural position. • Select a work surface that is large enough to hold the computer equipment and any additional items required for your work.
- Page 4 Hand and Arm Position and Motion You can prevent straining of your arms, wrists, and hands by using natural, comfortable motions while working at the computer. Refer to the illustrations in this section for examples of correct and incorrect positions of arms, wrist, and hands. Follow these guidelines when working at the computer: •...
- Page 5 • When using a keyboard, mouse, or other input devices, keep your wrists in a natural, straight position. Avoid bending, arching, or angling your wrist. • If you use a palm rest, use it only briefly for resting. Do not use a palm rest, or rest your hands on the table, while you are typing.
-
Page 6: Table Of Contents
How to start How to synchronize Software Installation For Mac OS 9.2 For Mac OS X v10.1.5 or Mac OS X v10.2 Software Basics Managing Macally Keyboard in General View Example #1 Example #2 Customize Macally Keyboard Target Application Default Settings... -
Page 7: Introducing The Macally Rfkey
• Driver CD- Driver, manual, and registration form Registration We are confident that the Macally RFKey will greatly increase your productivity and simplify the usage of your computer. Please register this product at www.macally.com/register.html. It will help you obtaining latest drivers, updates, technical support and new Macally product release information. -
Page 8: Hardware Basics
HARDWARE BASICS Please insert two AA size batteries in the RFKey. (Batteries included) The battery slot is located at the bottom of the keyboard. RFKey Receiver and Connect Button for Synchronization Connect Button (for Synchronization) Connect Button Connect (for Synchronization) - Page 9 Multimedia Keys - Open/Close Macally Keyboard Application - Programmable - Programmable - Programmable - Programmable - Previous Track - Rewind - Programmable - Next Track - Stop - Record - E-mail - Play/Pause - World Wide Web / II - Fast Forward...
-
Page 10: How To Start
RFKey and Receiver. The effective distance is 3’-4’ max. How to synchronize You may need to do the RF synchronization between RFKey and receiver for first time use; users may need to re-synchronize RFKey and receiver after replacing the batteries. or... -
Page 11: Software Installation
For Mac OS 9.2 1. Insert the Macally Keyboard Driver CD. 2. Open the "RFKey Folder” , double click on “Driver OS 9" folder. 3. Double click on the RFKey installer, follow the on screen procedure 4. Restart your computer. -
Page 12: Managing Macally Keyboard In General View
SOFTWARE BASICS Managing Macally Keyboard in General View Launch Macally Keyboard or press the button on the RFKey to bring up the Macally Keyboard window. Macally Keyboard window in OS 9 Macally Keyboard window in OS X... - Page 13 Once the Macally Keyboard is open, you are ready to program the Keys. Before you start, you should have a general idea of what you want to program into the keys. We provided a few exam- ples for you to get started.
-
Page 14: Example #1
Example #1. I would like to program the m1 key to launch Adobe Photoshop 6.0. 1. If you haven’t already done so, open the Macally Keyboard window by pressing the multimedia key marked now. Make sure the “Target Application” is set to “GlobalSettings”. Select the m1 key in the Macally Keyboard. - Page 15 3. You will then be prompted to choose an application via the “Open” window 4. Locate your copy of the “Adobe PhotoShop” application and click the “Open” button. (Fig 2.2) Fig 2.2 Fig 2.3 5. The selected application will now show up on the new button. (Fig 2.3)
-
Page 16: Example #2
Example #2 I have the m1 key set to launch an application. Now I want to customize the Media Keys to execute a task or short-cuts within the application. 1. From the “Target Application” pop-up window select “Add Application”. (Fig 2.4) Fig 2.4 2. - Page 17 4. The “Target Application” pop-up menu button will now show the new application as the current selection after adding it to the list in the menu. 5. Press the m1 key again, or any other multimedia key you wish to program with a task for the selected application.
- Page 18 6. Now M1 key is set as short cut key for “Copy”(Fig 2.8). You can continue to insert short cuts for the rest of the media keys or select other applications or actions to program. Fig 2.8 7. Close the Macally Keyboard or click on the finder to test the new settings.
-
Page 19: Customize Macally Keyboard
Add Application The “Add Application” function is for adding and then customizing applications for use with the multimedia keys. When you switch between applications the RFKey will automatically configure its multimedia keys for that application. 1. Once you select “Add application”, an “Open” window will show as seen below. (Fig 3.1) -
Page 20: Remove Application
2. Locate the file or copy of the application you want to configure and click “Open”. The “Target Application” pop up menu will then add the application to the list and make it active by displaying its name in the menu bar as shown below. Fig 3.2 Remove Application The remove application function is for deleting applications from the menu. -
Page 21: None
The Keystroke function is to input short cuts for multimedia keys . To use this function select a key by pressing it or clicking on it in the Macally Keyboard Manager Window. Next select “Keystroke” from the Button Application pop up menu. You will be prompted to enter the desired keystrokes. -
Page 22: Open Web Browser
Open Web Browser The factory setting uses your “Internet” Control Panel’s default Browser. To change the browser, either change it directly from the Internet Control Panel (see below) or use the “Open Item” func- tion to program your own preference. Open Email Client For first time use, you have to configure your email account when “Open Email Client”... -
Page 23: Open Macallykeyboard
Macally Keyboard control panel will instantly open. Press it again to close the window. You do not have to use the factory default. You can set any multimedia key to open the Macally Keyboard by configuring it to “Open Macally Keyboard”. -
Page 24: Itunes Controls For Osx/ Apple Audio Controls For Os 9.2
Volume Up To increase the speaker volume. Volume Down To decrease the speaker volume. Mute To Mute the speaker volume. Eject CD To Eject CD iTunes Controls for OSX/ Apple Audio Controls for OS 9.2 When this function is selected, a new pop up menu will appear in place of the definition button. Use this menu to reconfigure your multimedia key Audio CD controls. -
Page 25: Explorer Controls
Explorer Controls When this function is selected, a new pop up menu will appear in place of the definition button. Use this menu to reconfigure your internet browser controls. Simply select a command from the list to configure the selected multimedia key. Fig 4.5... - Page 26 The battery may be low. Replacing the batteries could solve the problem. If you use RFKey on metal surfaces such as metal desk, you may need to put the receiver closer to the keyboard to reduce the interference.
-
Page 27: World Wide Office
World Wide Office Macally U.S.A Mace Group Inc. 15861 Tapia Street, Irwindale, CA 91706, USA Tel: 626. 338.8787 Fax: 626. 338.3585 e-mail: sales@macally.com website: www.macally.com Macally Europe Teklink Europe Unit 14, Kerkenbos 10-111 6546 BJ Nijmegen, The Netherlands Tel: 31.24. 3731410 Fax: 31.24. - Page 28 www.macally.com...
